WHIRLPOOL ARC 8120/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARC 8120/1 |
| Kód 12NC: | 850181236100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850181211100, 850181211101, 850181236101, 850181211102, 850181236102 |
Potřebujete servis? Jsme tady pro Vás

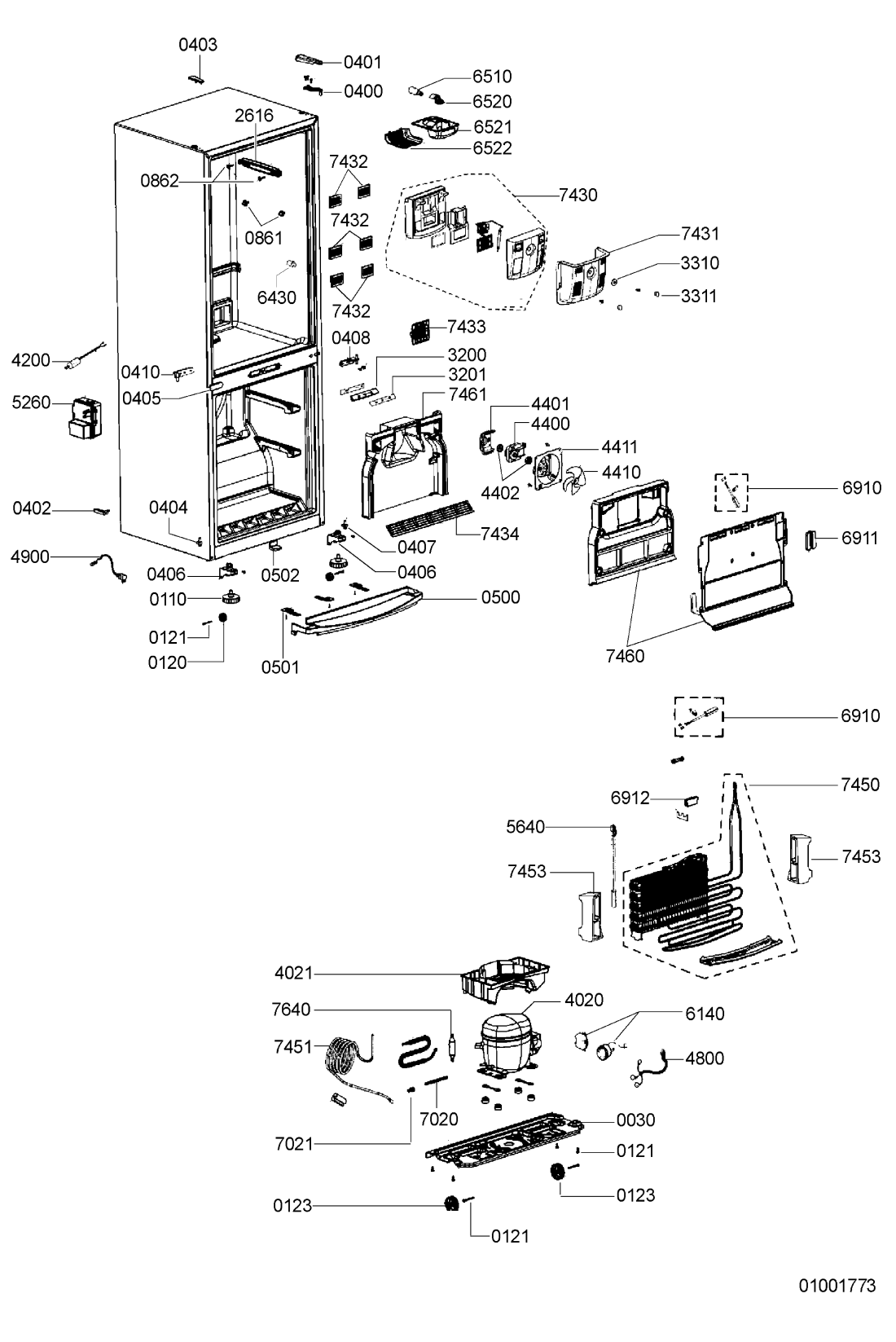

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR67011 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 011 0 WHR67011 |
C00330451
481246218246 |
Foot | Na dotaz | Zadat poptávku | |
| 012 0 WHR67011 |
C00332374
481252878071 |
Roller | Na dotaz | Zadat poptávku | |
| 012 1 WHR67011 |
C00332719
481253548034 |
Shaft roller | Na dotaz | Zadat poptávku | |
| 012 3 WHR67011 |
C00332375
481252878072 |
Roller | Na dotaz | Zadat poptávku | |
| 040 0 WHR67011 |
C00329726
481241719286 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 1 WHR67011 |
C00342473
481246228635 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR67011 |
C00329073
481240449608 |
Spacer | Na dotaz | Zadat poptávku | |
| 040 3 WHR67011 |
C00342338
481246228636 |
Cover WH | Na dotaz | Zadat poptávku | |
| 040 4 WHR67011 |
C00329739
481241719355 |
Pin hinge left | Na dotaz | Zadat poptávku | |
| 040 5 WHR67011 |
C00342339
481246228637 |
Cover WH | Na dotaz | Zadat poptávku | |
| 040 6 WHR67011 |
C00329724
481241719284 |
pant | 525 Kč
€ 20.70 |
||
| 040 7 WHR67011 |
C00329738
481241719354 |
Pin hinge right | Na dotaz | Zadat poptávku | |
| 040 8 WHR67011 |
C00329720
481241719277 |
Závěs dveří střední - pravý | 981 Kč
€ 38.70 |
||
| 041 0 WHR67011 |
C00317501
481241719331 |
Závěs dveří střední levý | 948 Kč
€ 37.40 |
||
| 042 0 WHR67011 |
C00374088
481241719349 |
Door revers.Kit | Na dotaz | Zadat poptávku | |
| 047 0 WHR67011 |
C00344062
481253288067 |
Bushing WH | Na dotaz | Zadat poptávku | |
| 047 1 WHR67011 |
C00342342
481253288072 |
Cover WH | Na dotaz | Zadat poptávku | |
| 047 2 WHR67011 |
C00344086
481253288068 |
Bushing | Na dotaz | Zadat poptávku | |
| 047 3 WHR67011 |
C00491796
481244688157 |
Bushing | Na dotaz | Zadat poptávku | |
| 047 4 WHR67011 |
C00380425
481246228762 |
Cover WH | Na dotaz | Zadat poptávku | |
| 050 0 WHR67011 |
C00337655
481244089095 |
Plinth WH | Na dotaz | Zadat poptávku | |
| 050 1 WHR67011 |
C00327931
481243518111 |
Clamp | Na dotaz | Zadat poptávku | |
| 050 2 WHR67011 |
C00342341
481241458261 |
Cover WH | Na dotaz | Zadat poptávku | |
| 086 1 WHR67011 |
C00327081
481222608024 |
Pin rail | Na dotaz | Zadat poptávku | |
| 086 2 WHR67011 |
C00327079
481222608021 |
Pin rail | Na dotaz | Zadat poptávku | |
| 101 0 WHR67011 |
C00378742
481241619805 |
Door refriger. WH | Na dotaz | Zadat poptávku | |
| 104 0 WHR67011 |
C00402660
481241619812 |
Door freezer WH | Na dotaz | Zadat poptávku | |
| 110 0 WHR67011 |
C00377839
481249818747 |
Handle refrigerator | Na dotaz | Zadat poptávku | |
| 110 1 WHR67011 |
C00377840
481249818748 |
Handle freezer | Na dotaz | Zadat poptávku | |
| 111 7 WHR67011 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 152 0 WHR67011 |
C00313527
481241848731 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 1 WHR67011 |
C00327705
481241828887 |
Door dairy door freezer | Na dotaz | Zadat poptávku | |
| 152 2 WHR67011 |
C00315582
481241828817 |
Bottle shelf door | Na dotaz | Zadat poptávku | |
| 152 3 WHR67011 |
C00327684
481241828728 |
Separator bottles | Na dotaz | Zadat poptávku | |
| 152 4 WHR67011 |
C00330811
481246418185 |
Hoop door dairy | Na dotaz | Zadat poptávku | |
| 156 0 WHR67011 |
C00330418
481246088297 |
Rack egg | Na dotaz | Zadat poptávku | |
| 191 0 WHR67011 |
C00331515
481246688849 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 191 1 WHR67011 |
C00331514
481246688847 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 239 0 WHR67011 |
C00327685
481241828731 |
Tank | Na dotaz | Zadat poptávku | |
| 239 1 WHR67011 |
C00314429
481269028035 |
vyrobnik ledu | Na dotaz | Zadat poptávku | |
| 239 2 WHR67011 |
C00327073
481222438026 |
Support | Na dotaz | Zadat poptávku | |
| 239 3 WHR67011 |
C00327686
481241828733 |
Miska na led | Na dotaz | Zadat poptávku | |
| 241 0 WHR67011 |
C00327703
481241828884 |
Drawer | Na dotaz | Zadat poptávku | |
| 241 1 WHR67011 |
C00327706
481241828888 |
Drawer | Na dotaz | Zadat poptávku | |
| 241 2 WHR67011 |
C00327704
481241828885 |
Drawer upper | Na dotaz | Zadat poptávku | |
| 241 3 WHR67011 |
C00327701
481241828882 |
Front drawer | Na dotaz | Zadat poptávku | |
| 241 4 WHR67011 |
C00327702
481241828883 |
Front drawer | Na dotaz | Zadat poptávku | |
| 242 0 WHR67011 |
C00327767
481241829967 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 1 WHR67011 |
C00330656
481246238247 |
Separator | Na dotaz | Zadat poptávku | |
| 242 2 WHR67011 |
C00319208
481241828812 |
celo zasuvky | 2 220 Kč
€ 87.60 |
||
| 242 3 WHR67011 |
C00329410
481241168012 |
podložka | 231 Kč
€ 9.10 |
||
| 243 0 WHR67011 |
C00327707
481241828889 |
Box 0°C | Na dotaz | Zadat poptávku | |
| 243 1 WHR67011 |
C00318632
481241828881 |
Cover drawer | Na dotaz | Zadat poptávku | |
| 255 0 WHR67011 |
C00331203
481245088266 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR67011 |
C00331208
481245088325 |
Shelf | Na dotaz | Zadat poptávku | |
| 255 3 WHR67011 |
C00331209
481245088326 |
Grid freezer | Na dotaz | Zadat poptávku | |
| 255 4 WHR67011 |
C00331210
481245088327 |
Grid freezer upper | Na dotaz | Zadat poptávku | |
| 261 6 WHR67011 |
C00330652
481246238213 |
Rail | Na dotaz | Zadat poptávku | |
| 320 0 WHR67011 |
C00405025
481246469322 |
Control panel WH | Na dotaz | Zadat poptávku | |
| 320 1 WHR67011 |
C00405026
481246469323 |
Control panel reflector | Na dotaz | Zadat poptávku | |
| 331 0 WHR67011 |
C00402334
481241279207 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR67011 |
C00330537
481246228701 |
Cover WH | Na dotaz | Zadat poptávku | |
| 402 0 WHR67011 |
C00328564
481236038668 |
COMPRESSOR NBM1118Y 1/4HP R600 S.P. | Na dotaz | Zadat poptávku | |
| 402 1 WHR67011 |
C00327700
481241828839 |
Tray,compressor. | Na dotaz | Zadat poptávku | |
| 420 0 WHR67011 |
C00326766
481212108251 |
Capacitor 5#f 380V | Na dotaz | Zadat poptávku | |
| 440 0 WHR67011 |
C00326717
481202858374 |
Motor fan 220-240V/50-60Hz | Na dotaz | Zadat poptávku | |
| 440 1 WHR67011 |
C00319061
481240418482 |
Support motor fan | Na dotaz | Zadat poptávku | |
| 440 2 WHR67011 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR67011 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 441 1 WHR67011 |
C00314645
481240418458 |
Support motor freezer | Na dotaz | Zadat poptávku | |
| 480 0 WHR67011 |
C00317517
481201978857 |
Cable harness | Na dotaz | Zadat poptávku | |
| 490 0 WHR67011 |
C00399669
481201978858 |
Cable mains | Na dotaz | Zadat poptávku | |
| 526 0 WHR67011 |
C00374123
481228038112 |
Control unit | Na dotaz | Zadat poptávku | |
| 564 0 WHR67011 |
C00497303
481225228045 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 614 0 WHR67011 |
C00320869
481221838238 |
Relay + overload protector | Na dotaz | Zadat poptávku | |
| 643 0 WHR67011 |
C00317932
481221538022 |
Thermometer SPACE 4 | Na dotaz | Zadat poptávku | |
| 651 0 WHR67011 |
C00326816
481213418034 |
Lamp 240V-25W | Na dotaz | Zadat poptávku | |
| 652 0 WHR67011 |
C00327124
481225518277 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR67011 |
C00329071
481240449603 |
support lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR67011 |
C00326817
481213418037 |
Protector lamp | Na dotaz | Zadat poptávku | |
| 691 0 WHR67011 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 57.50 |
||
| 691 1 WHR67011 |
C00329067
481240449597 |
Support sensor | Na dotaz | Zadat poptávku | |
| 691 2 WHR67011 |
C00329015
481240438735 |
držák senzoru | 321 Kč
€ 12.70 |
||
| 702 0 WHR67011 |
C00332353
481252648253 |
Tube | Na dotaz | Zadat poptávku | |
| 702 1 WHR67011 |
C00405575
481252648255 |
Connector tube | Na dotaz | Zadat poptávku | |
| 743 0 WHR67011 |
C00375988
481248128185 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 743 1 WHR67011 |
C00403224
481244029489 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 743 2 WHR67011 |
C00405181
481248028109 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 743 3 WHR67011 |
C00329069
481240449601 |
Support anti-bacterial filter | Na dotaz | Zadat poptávku | |
| 743 4 WHR67011 |
C00328138
481244029495 |
Air guide | Na dotaz | Zadat poptávku | |
| 745 0 WHR67011 |
C00318465
481251138327 |
Evaporator kit | Na dotaz | Zadat poptávku | |
| 745 1 WHR67011 |
C00405475
481251138381 |
Condenser pre-cooler | Na dotaz | Zadat poptávku | |
| 745 3 WHR67011 |
C00329068
481240449598 |
Bracket | Na dotaz | Zadat poptávku | |
| 746 0 WHR67011 |
C00328137
481244029494 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR67011 |
C00328141
481244029516 |
Cover evaporator rear | Na dotaz | Zadat poptávku | |
| 764 0 WHR67011 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
| 904 0 WHR67011 |
C00332346
481252648192 |
příchytka | 224 Kč
€ 8.80 |
||
| 999 WHR67011 |
C00686117 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
