WHIRLPOOL ARC 229
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARC 229 |
| Kód 12NC: | 850122901010 |
| I.C. kód: | Q0912180001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 850122901011, 850122901012, Q0912180002, 850122901010 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

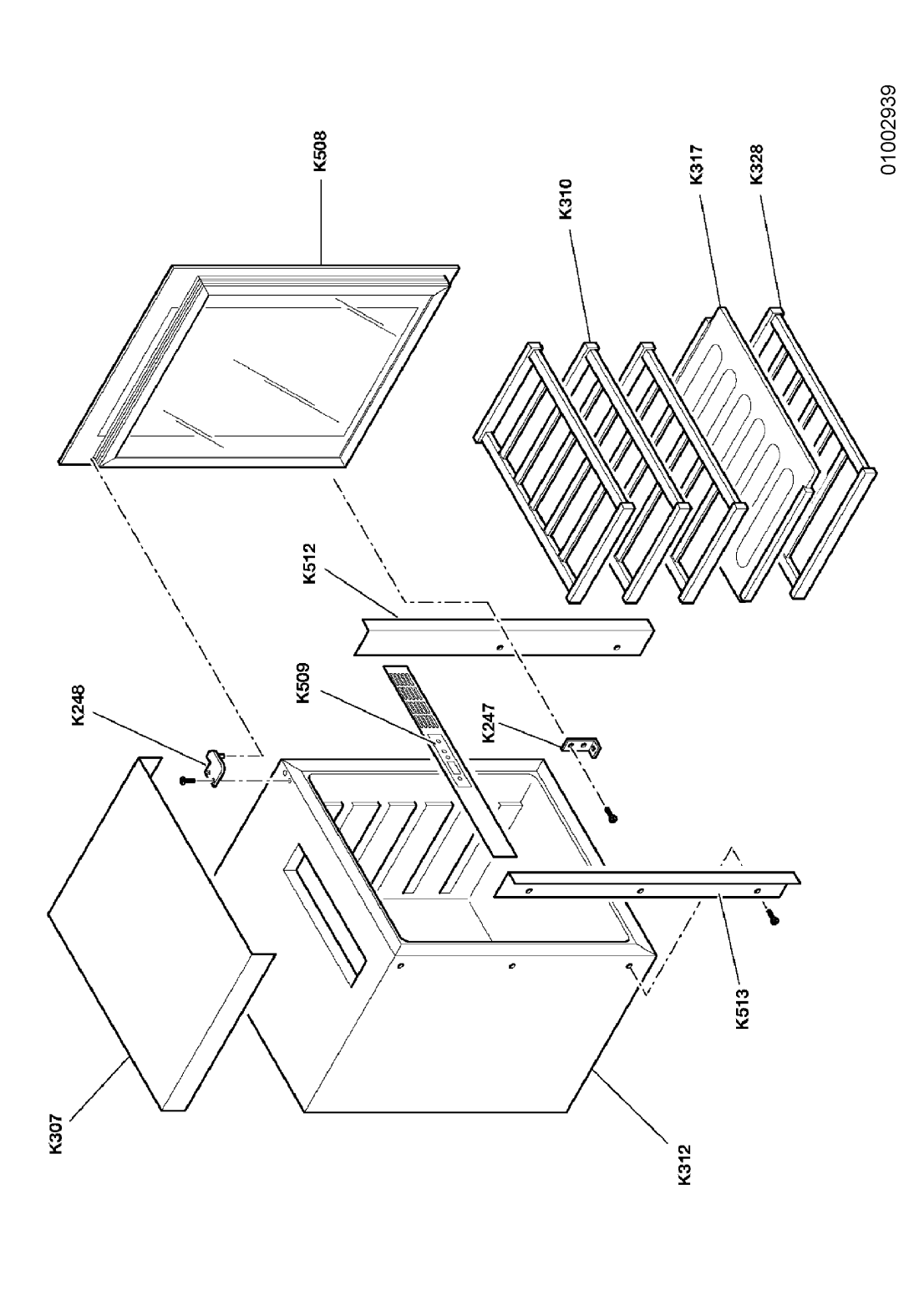

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR00033 |
C00346060 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00033 |
C00346061 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| B047 WHR00033 |
C00327213
481226278053 |
Filter | Na dotaz | Zadat poptávku | |
| G165 WHR00033 |
C00328595
481236039082 |
Compressor PLE 35 K 220V 50Hz | Na dotaz | Zadat poptávku | |
| G170 WHR00033 |
C00328593
481236039079 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| G173 WHR00033 |
C00328594
481236039081 |
Evaporator | Na dotaz | Zadat poptávku | |
| K100 WHR00033 |
C00333858
482000009084 |
Rivet BK | Na dotaz | Zadat poptávku | |
| K136 WHR00033 |
C00328540
481232178389 |
Cable harness Lamp | Na dotaz | Zadat poptávku | |
| K137 WHR00033 |
C00326788
481212158173 |
transformator | 1 140 Kč
€ 45.00 |
||
| K138 WHR00033 |
C00326830
481213428097 |
Glass Lamp | Na dotaz | Zadat poptávku | |
| K140 WHR00033 |
C00326831
481213428098 |
Housing Lamp | Na dotaz | Zadat poptávku | |
| K142 WHR00033 |
C00326824
481213418096 |
Lampholder | Na dotaz | Zadat poptávku | |
| K143 WHR00033 |
C00317727
481225928963 |
Heating element 220V 24W | Na dotaz | Zadat poptávku | |
| K144 WHR00033 |
C00331063
481244229345 |
Panel Evaporator | Na dotaz | Zadat poptávku | |
| K145 WHR00033 |
C00313861
481236138137 |
Internal fan | Na dotaz | Zadat poptávku | |
| K155 WHR00033 |
C00326829
481213428096 |
starter | 189 Kč
€ 7.50 |
||
| K209 WHR00033 |
C00328539
481232178388 |
Cable harness Ventilator | Na dotaz | Zadat poptávku | |
| K215 WHR00033 |
C00327041
481221778273 |
Housing CB | Na dotaz | Zadat poptávku | |
| K220 WHR00033 |
C00329249
481240478927 |
senzor | 1 013 Kč
€ 40.00 |
||
| K221 WHR00033 |
C00328596
481236039083 |
Bracket Evaporator | Na dotaz | Zadat poptávku | |
| K234 WHR00033 |
C00328825
481236138138 |
Ventilator Condenser | Na dotaz | Zadat poptávku | |
| K247 WHR00033 |
C00329774
481241719496 |
Hinge bracket bottom right | Na dotaz | Zadat poptávku | |
| K248 WHR00033 |
C00329775
481241719497 |
Hinge top right | Na dotaz | Zadat poptávku | |
| K250 WHR00033 |
C00327321
481229088122 |
Terminal Board | Na dotaz | Zadat poptávku | |
| K251 WHR00033 |
C00332268
481251148474 |
Condenser | Na dotaz | Zadat poptávku | |
| K301 WHR00033 |
C00333859
482000009085 |
Cable BK | Na dotaz | Zadat poptávku | |
| K302 WHR00033 |
C00328541
481232178391 |
Cable harness Compressor | Na dotaz | Zadat poptávku | |
| K303 WHR00033 |
C00326825
481213418097 |
Zářivka 6W | 513 Kč
€ 20.20 |
||
| K305 WHR00033 |
C00327042
481221778274 |
Housing CB | Na dotaz | Zadat poptávku | |
| K306 WHR00033 |
C00332269
481251148475 |
Bracket condenser | Na dotaz | Zadat poptávku | |
| K307 WHR00033 |
C00330233
481245948218 |
Cover top | Na dotaz | Zadat poptávku | |
| K310 WHR00033 |
C00331236
481245088493 |
Shelf small | Na dotaz | Zadat poptávku | |
| K312 WHR00033 |
C00333860
482000009086 |
Cabinet | Na dotaz | Zadat poptávku | |
| K317 WHR00033 |
C00331238
481245088495 |
Rošt | 1 932 Kč
€ 76.20 |
||
| K328 WHR00033 |
C00331237
481245088494 |
Shelf large | Na dotaz | Zadat poptávku | |
| K336 WHR00033 |
C00333861
482000009087 |
Connect.cable | Na dotaz | Zadat poptávku | |
| K339 WHR00033 |
C00327781
481241829987 |
Base compressor | Na dotaz | Zadat poptávku | |
| K428 WHR00033 |
C00334590
482000012899 |
Modul, vinotéka | Na dotaz | Zadat poptávku | |
| K508 WHR00033 |
C00333862
482000009088 |
Door WHIRLPOOL | Na dotaz | Zadat poptávku | |
| K509 WHR00033 |
C00333863
482000009089 |
Control panel | Na dotaz | Zadat poptávku | |
| K512 WHR00033 |
C00333864
482000009090 |
Frame | Na dotaz | Zadat poptávku | |
| K513 WHR00033 |
C00333865
482000009091 |
Frame | Na dotaz | Zadat poptávku | |
| K525 WHR00033 |
C00335016
482000015413 |
LED | Na dotaz | Zadat poptávku | |
