IGNIS ARF 247 LH REFRIGERATORS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARF 247 LH REFRIGERATORS |
| Kód 12NC: | 850324722000 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 850324722001 |
Potřebujete servis? Jsme tady pro Vás

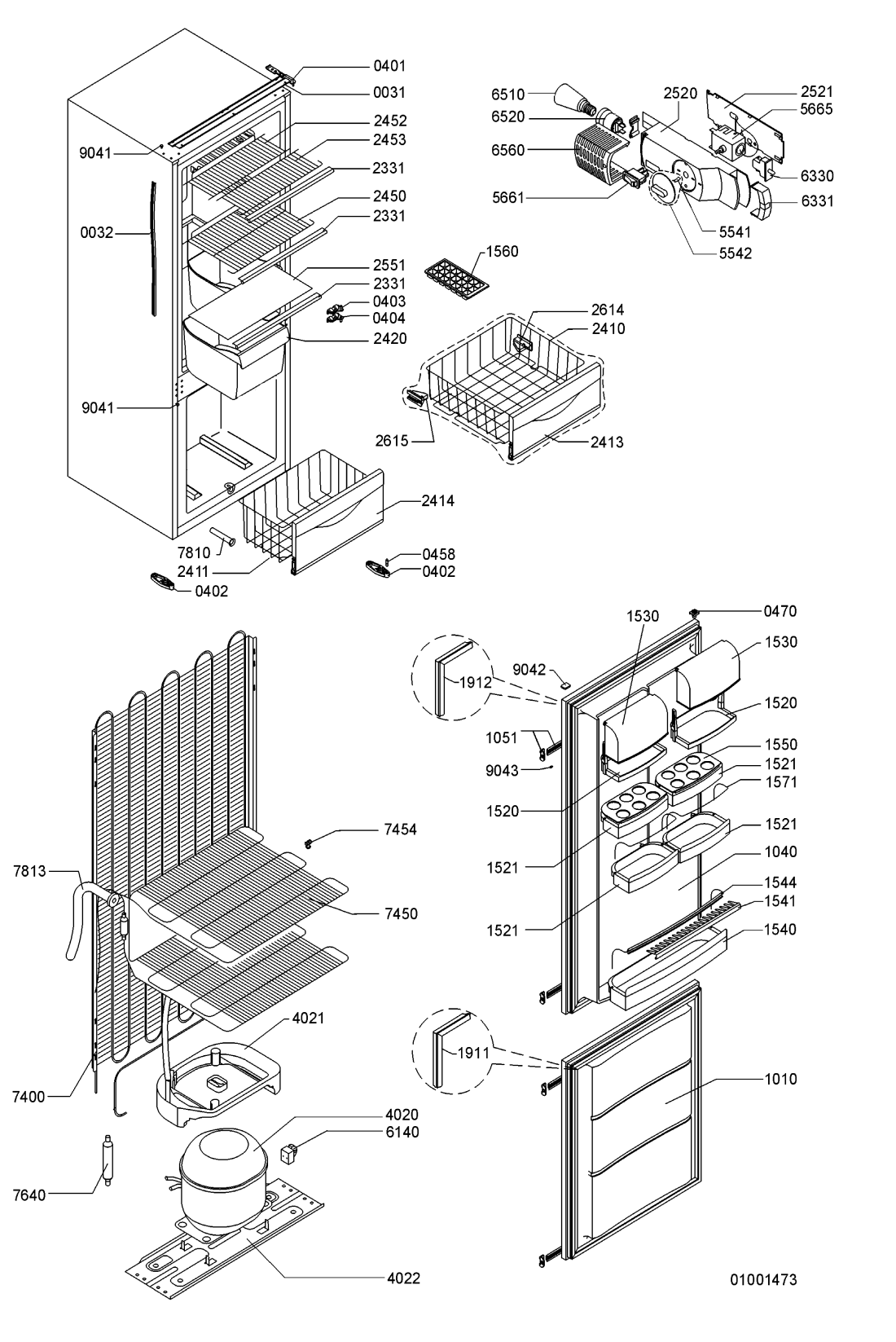

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0031 WHR55570 |
C00500877
481246049503 |
Trim | Na dotaz | Zadat poptávku | |
| 0032 WHR55570 |
C00486107
481246488044 |
Profile | Na dotaz | Zadat poptávku | |
| 0401 WHR55570 |
C00214999
481991100005 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR55570 |
C00490897
481991100016 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0403 WHR55570 |
C00488985
481241719316 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0404 WHR55570 |
C00500814
481241719317 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0458 WHR55570 |
C00215001
481991100006 |
Pivot | Na dotaz | Zadat poptávku | |
| 0470 WHR55570 |
C00215159
481246228335 |
Bushing | Na dotaz | Zadat poptávku | |
| 1010 WHR55570 |
C00484899
481241619673 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR55570 |
C00484900
481241619674 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1051 WHR55570 |
C00493050
481231018749 |
Friction plate ,KIT | Na dotaz | Zadat poptávku | |
| 1520 WHR55570 |
C00489052
481241828782 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1521 WHR55570 |
C00374077
481241828781 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1530 WHR55570 |
C00484975
481241828783 |
Lid | Na dotaz | Zadat poptávku | |
| 1540 WHR55570 |
C00489053
481241828786 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1541 WHR55570 |
C00215014
481991100009 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 1544 WHR55570 |
C00491535
481240448967 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 1550 WHR55570 |
C00216236
481241828785 |
Rack egg | Na dotaz | Zadat poptávku | |
| 1560 WHR55570 |
C00215423
481991100041 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 1571 WHR55570 |
C00574730
481240448968 |
Hoop | Na dotaz | Zadat poptávku | |
| 1911 WHR55570 |
C00574961
481246688798 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 1912 WHR55570 |
C00381027
481246688799 |
Těsnění lednice | 2 043 Kč
€ 80.70 |
||
| 2331 WHR55570 |
C00216243
481246058405 |
Trim glass shelf | Na dotaz | Zadat poptávku | |
| 2410 WHR55570 |
C00215163
481245819278 |
BASKET | Na dotaz | Zadat poptávku | |
| 2411 WHR55570 |
C00215164
481245819279 |
Basket | Na dotaz | Zadat poptávku | |
| 2413 WHR55570 |
C00216248
481244011211 |
Flap f. Basket | Na dotaz | Zadat poptávku | |
| 2414 WHR55570 |
C00489148
481244011212 |
Flap f. Basket | Na dotaz | Zadat poptávku | |
| 2420 WHR55570 |
C00489091
481241870003 |
Crisper | Na dotaz | Zadat poptávku | |
| 2450 WHR55570 |
C00216240
481245838111 |
Grid | Na dotaz | Zadat poptávku | |
| 2452 WHR55570 |
C00216242
481245819281 |
HALF SHELF REAR | Na dotaz | Zadat poptávku | |
| 2453 WHR55570 |
C00490012
481245819282 |
Grille | Na dotaz | Zadat poptávku | |
| 2520 WHR55570 |
C00484031
481246228587 |
Casing | Na dotaz | Zadat poptávku | |
| 2521 WHR55570 |
C00486985
481991100038 |
Cover thermost. | Na dotaz | Zadat poptávku | |
| 2551 WHR55570 |
C00485368
481245088294 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2614 WHR55570 |
C00214994
481240448797 |
Support | Na dotaz | Zadat poptávku | |
| 2615 WHR55570 |
C00215005
481240448796 |
Support | Na dotaz | Zadat poptávku | |
| 4020 WHR55570 |
C00574707
481236038621 |
nahradene 481281718831 | Na dotaz | Zadat poptávku | |
| 4021 WHR55570 |
C00216223
481241879777 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 4022 WHR55570 |
C00500793
481240448902 |
Support compressor | Na dotaz | Zadat poptávku | |
| 5541 WHR55570 |
C00575085
481249268201 |
Spring thermostat. | Na dotaz | Zadat poptávku | |
| 5542 WHR55570 |
C00500811
481241278859 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 5661 WHR55570 |
C00500758
481227618474 |
Switch base heater | Na dotaz | Zadat poptávku | |
| 5665 WHR55570 |
C00215198
481991100046 |
Thermostat 077B 6549 | Na dotaz | Zadat poptávku | |
| 6140 WHR55570 |
C00575082
481221848102 |
Relay | Na dotaz | Zadat poptávku | |
| 6330 WHR55570 |
C00417525
482000021338 |
Switch light | Na dotaz | Zadat poptávku | |
| 6330 WHR55570 |
C00494990
481991100043 |
Kit Thermostat, lamp + lamp switch | Na dotaz | Zadat poptávku | |
| 6331 WHR55570 |
C00216227
481991100044 |
BUTTON LIGHT SWITCH | Na dotaz | Zadat poptávku | |
| 6510 WHR55570 |
C00488439
481213428088 |
Bulb | Na dotaz | Zadat poptávku | |
| 6520 WHR55570 |
C00627431
481991100035 |
Holder lamp. | Na dotaz | Zadat poptávku | |
| 6560 WHR55570 |
C00485953
481246098056 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 7400 WHR55570 |
C00548560
481991100069 |
Condenser. | Na dotaz | Zadat poptávku | |
| 7450 WHR55570 |
C00484715
481236038954 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7454 WHR55570 |
C00491507
481240438746 |
Spacebar | Na dotaz | Zadat poptávku | |
| 7640 WHR55570 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 7810 WHR55570 |
C00215409
481253029144 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 7813 WHR55570 |
C00500928
481253029147 |
Hose insulat. | Na dotaz | Zadat poptávku | |
| 9041 WHR55570 |
C00575083
481226318008 |
Cap for hole. | Na dotaz | Zadat poptávku | |
| 9042 WHR55570 |
C00215160
481246228336 |
Bushing | Na dotaz | Zadat poptávku | |
| 9043 WHR55570 |
C00575084
481246228692 |
Cap for hole. | Na dotaz | Zadat poptávku | |
| 999 WHR55570 |
C00666820 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
