WHIRLPOOL ARG 596-K/G/WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARG 596-K/G/WP |
| Kód 12NC: | 853459638080 |
| I.C. kód: | 853459638082 |
| Značka: | WHIRLPOOL |
| Typ produktu: | |
| Další podobné modely: | 853459638081, 853459638091, 853459638092, 853459638080, 853459638090 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

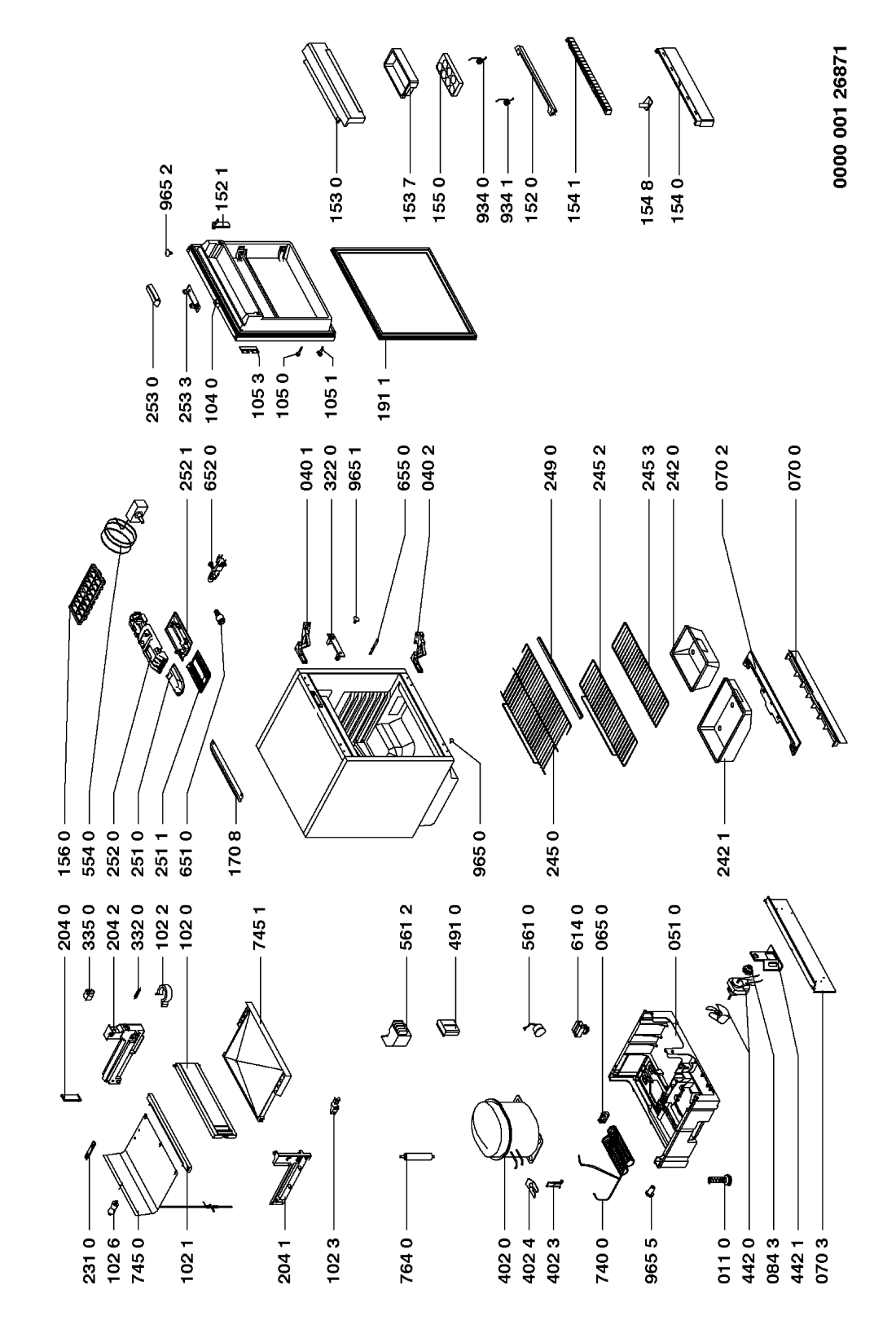

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR110356 |
C00311579
481950018141 |
Noha vestavné chladničky Whirlpool AFB 821/1, AFB 8281, ARG 913/A+, ARG 913 1, ARZ 005/A+ | 85 Kč
€ 3.40 |
||
| 040 1 WHR110356 |
C00320884
481241718782 |
Hinge low.re./up.le. | Na dotaz | Zadat poptávku | |
| 040 2 WHR110356 |
C00320868
481241718781 |
HINGE LOW.LE./UP.RI. | Na dotaz | Zadat poptávku | |
| 051 0 WHR110356 |
C00333116
481946418163 |
Base | Na dotaz | Zadat poptávku | |
| 065 0 WHR110356 |
C00333279
481952918041 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 070 0 WHR110356 |
C00333050
481945858331 |
Grid air | Na dotaz | Zadat poptávku | |
| 070 2 WHR110356 |
C00337694
481944228604 |
Plinth | Na dotaz | Zadat poptávku | |
| 070 3 WHR110356 |
C00333019
481944229927 |
Kryt | Na dotaz | Zadat poptávku | |
| 084 3 WHR110356 |
C00333073
481946248211 |
gufero | 121 Kč
€ 4.80 |
||
| 102 0 WHR110356 |
C00557475
481944099518 |
Evapor.door.. | Na dotaz | Zadat poptávku | |
| 102 1 WHR110356 |
C00586857
481940449997 |
HOLDER. | Na dotaz | Zadat poptávku | |
| 102 2 WHR110356 |
C00492281
481940118289 |
SPONA N | Na dotaz | Zadat poptávku | |
| 102 3 WHR110356 |
C00555910
481940449364 |
NAHRADENE 481240478528 N | Na dotaz | Zadat poptávku | |
| 102 6 WHR110356 |
C00333346
481953578051 |
Holder | Na dotaz | Zadat poptávku | |
| 104 0 WHR110356 |
C00556681
481944269085 |
DVERE CHLADNIAKY N | Na dotaz | Zadat poptávku | |
| 105 0 WHR110356 |
C00344633
481953268521 |
sroubek | 39 Kč
€ 1.50 |
||
| 105 1 WHR110356 |
C00333274
481952838286 |
kolik s excentrem | 40 Kč
€ 1.60 |
||
| 105 3 WHR110356 |
C00333128
481946689044 |
Fastener | Na dotaz | Zadat poptávku | |
| 152 0 WHR110356 |
C00339672
481940449368 |
Holder | Na dotaz | Zadat poptávku | |
| 152 1 WHR110356 |
C00499616
481953518031 |
prichytka uz nebude !!!!! | Na dotaz | Zadat poptávku | |
| 153 0 WHR110356 |
C00584097
481944278387 |
VEKO POLIUKY PLAST N | Na dotaz | Zadat poptávku | |
| 153 7 WHR110356 |
C00584062
481941849618 |
PRIEHRADKA PRE VAJCIA N | Na dotaz | Zadat poptávku | |
| 154 0 WHR110356 |
C00557465
481941879772 |
POLIAKA NA FiA?E N | Na dotaz | Zadat poptávku | |
| 154 1 WHR110356 |
C00344319
481946088115 |
drzak lahvi | 383 Kč
€ 15.10 |
||
| 154 8 WHR110356 |
C00499615
481953518029 |
PRICHYTKA DRZIAKA N | Na dotaz | Zadat poptávku | |
| 155 0 WHR110356 |
C00333066
481946088403 |
drzak vajec | 338 Kč
€ 13.30 |
||
| 156 0 WHR110356 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 170 8 WHR110356 |
C00337466
481946049686 |
Trim, upper | Na dotaz | Zadat poptávku | |
| 191 1 WHR110356 |
C00312856
481946818162 |
Těsnění magnetické | 2 394 Kč
€ 94.50 |
||
| 204 0 WHR110356 |
C00584141
481946279609 |
COVER FRAME. | Na dotaz | Zadat poptávku | |
| 204 1 WHR110356 |
C00586892
481944229115 |
Separator left. | Na dotaz | Zadat poptávku | |
| 204 2 WHR110356 |
C00584096
481944278165 |
SEPARATOR. | Na dotaz | Zadat poptávku | |
| 231 0 WHR110356 |
C00332938
481940449256 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 242 0 WHR110356 |
C00499115
481941878384 |
ZASUVKA PLAST. N | Na dotaz | Zadat poptávku | |
| 242 1 WHR110356 |
C00342270
481941878385 |
zasuvka na zeleninu velka | 1 068 Kč
€ 42.20 |
||
| 245 0 WHR110356 |
C00333056
481945868267 |
GRID | Na dotaz | Zadat poptávku | |
| 245 2 WHR110356 |
C00499266
481945819704 |
ROST | 393 Kč
€ 15.50 |
||
| 245 3 WHR110356 |
C00320046
481945868273 |
GRID | Na dotaz | Zadat poptávku | |
| 249 0 WHR110356 |
C00335245
481946088512 |
lista kryci rostu | 192 Kč
€ 7.60 |
||
| 251 0 WHR110356 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR110356 |
C00320080
481946279556 |
kryt dif | 725 Kč
€ 28.60 |
||
| 252 0 WHR110356 |
C00316781
481940478855 |
Casing | Na dotaz | Zadat poptávku | |
| 252 1 WHR110356 |
C00318922
481946279617 |
kryt | 39 Kč
€ 1.50 |
||
| 253 0 WHR110356 |
C00340904
481240448489 |
Fixation f. light switch | Na dotaz | Zadat poptávku | |
| 253 3 WHR110356 |
C00339614
481240448491 |
Holder f.Lightswitch | Na dotaz | Zadat poptávku | |
| 322 0 WHR110356 |
C00586918
481945298699 |
Trim cover. | Na dotaz | Zadat poptávku | |
| 332 0 WHR110356 |
C00584053
481941028397 |
KNOB. | Na dotaz | Zadat poptávku | |
| 335 0 WHR110356 |
C00586868
481941128732 |
KNOB THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 402 0 WHR110356 |
C00555867
481936038701 |
NAHRADENE 481936058776 N | Na dotaz | Zadat poptávku | |
| 402 3 WHR110356 |
C00333348
481953598345 |
Fastener | Na dotaz | Zadat poptávku | |
| 402 4 WHR110356 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 442 0 WHR110356 |
C00314229
481936178144 |
motorek ventilatoru | 2 193 Kč
€ 86.60 |
||
| 442 1 WHR110356 |
C00332945
481940478859 |
drzak | 169 Kč
€ 6.70 |
||
| 491 0 WHR110356 |
C00342332
481946288043 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 554 0 WHR110356 |
C00584029
481927128835 |
Thermostat TB48-B989. | Na dotaz | Zadat poptávku | |
| 561 0 WHR110356 |
C00337119
481928228683 |
ochrana motoru | 471 Kč
€ 18.60 |
||
| 561 2 WHR110356 |
C00343464
481929068406 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 614 0 WHR110356 |
C00336871
481928068359 |
Relé rozběhové | Na dotaz | Zadat poptávku | |
| 651 0 WHR110356 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR110356 |
C00313941
481925518199 |
spinac osvetl.+obj. | 944 Kč
€ 37.30 |
||
| 655 0 WHR110356 |
C00344554
481953598273 |
spinac osvetl.tycka | 67 Kč
€ 2.60 |
||
| 740 0 WHR110356 |
C00332223
481251148068 |
Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR110356 |
C00584183
481951138567 |
Evaporator. | Na dotaz | Zadat poptávku | |
| 745 1 WHR110356 |
C00557439
481941849664 |
TRAY,DRIP.. | Na dotaz | Zadat poptávku | |
| 764 0 WHR110356 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 934 0 WHR110356 |
C00317569
481949248127 |
Spring right | Na dotaz | Zadat poptávku | |
| 934 1 WHR110356 |
C00320164
481949248128 |
Spring leftleft sub 481231018626 | Na dotaz | Zadat poptávku | |
| 965 0 WHR110356 |
C00336008
481946248175 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 1 WHR110356 |
C00486724
481946248216 |
STOPPER | Na dotaz | Zadat poptávku | |
| 965 2 WHR110356 |
C00336009
481946248186 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 5 WHR110356 |
C00333278
481952918039 |
Spacer | Na dotaz | Zadat poptávku | |
| 993 9 WHR110356 |
C00498910
481931038798 |
balicek montazni | 495 Kč
€ 19.50 |
||
| 999 WHR110356 |
C00791149 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
