| Komerční kód: | WBM48 423LT REFRIGERATORS WP |
| Kód 12NC: | 853475401030 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

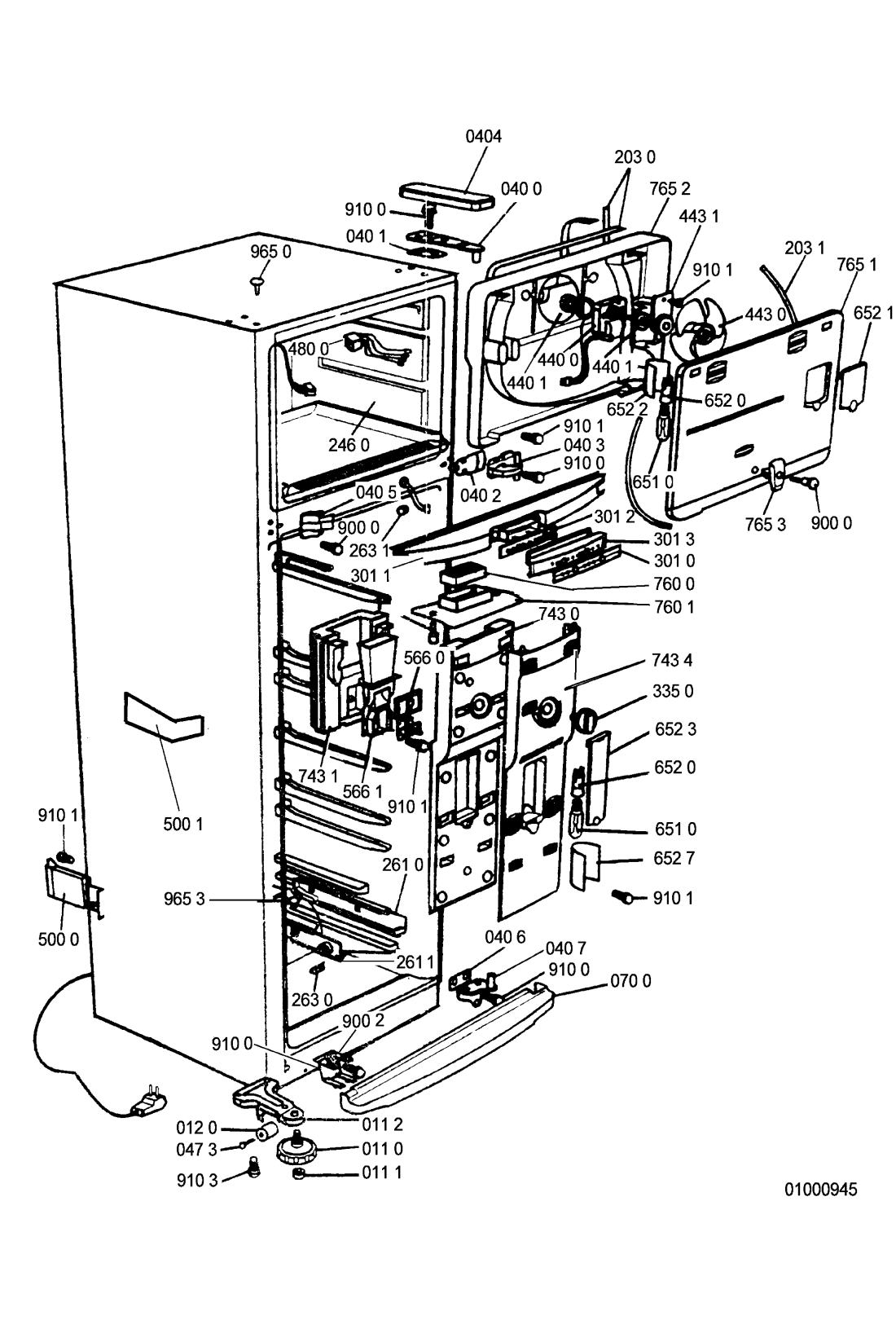

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR52446 |
C00340792
481246218245 |
Foot adjustable | Na dotaz | Zadat poptávku | |
| 011 1 WHR52446 |
C00636648
481246248061 |
DAMPING PART. | Na dotaz | Zadat poptávku | |
| 011 2 WHR52446 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 012 0 WHR52446 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
| 040 0 WHR52446 |
C00583842
481241778019 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 1 WHR52446 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR52446 |
C00492120
481253538084 |
Shim | Na dotaz | Zadat poptávku | |
| 040 3 WHR52446 |
C00488942
481241718995 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 4 WHR52446 |
C00342345
481246228389 |
Cover upper hinge | Na dotaz | Zadat poptávku | |
| 040 5 WHR52446 |
C00488925
481241718853 |
Hinge left | Na dotaz | Zadat poptávku | |
| 040 6 WHR52446 |
C00583931
481246228276 |
Shim. | Na dotaz | Zadat poptávku | |
| 040 7 WHR52446 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 047 3 WHR52446 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 070 0 WHR52446 |
C00583932
481246228393 |
Plinth w.grid /BL. | Na dotaz | Zadat poptávku | |
| 101 0 WHR52446 |
C00583834
481241618526 |
DVERE MRAZNICKY | Na dotaz | Zadat poptávku | |
| 102 0 WHR52446 |
C00583885
481244229106 |
Evapor.door. | Na dotaz | Zadat poptávku | |
| 102 1 WHR52446 |
C00583933
481246228395 |
Cover ,Evaporator. | Na dotaz | Zadat poptávku | |
| 104 0 WHR52446 |
C00583833
481241618525 |
Door,refriger.. | Na dotaz | Zadat poptávku | |
| 105 0 WHR52446 |
C00344059
481246228397 |
Bushingupper | Na dotaz | Zadat poptávku | |
| 105 2 WHR52446 |
C00344083
481246228399 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 3 WHR52446 |
C00344084
481246228401 |
Bushing | Na dotaz | Zadat poptávku | |
| 111 0 WHR52446 |
C00374014
481246268801 |
Handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR52446 |
C00490165
481246699001 |
Insert door,handle | Na dotaz | Zadat poptávku | |
| 111 7 WHR52446 |
C00583916
481245928065 |
Nameplate. | Na dotaz | Zadat poptávku | |
| 153 0 WHR52446 |
C00583908
481245828007 |
Shelf ,freezer. | Na dotaz | Zadat poptávku | |
| 153 1 WHR52446 |
C00583909
481245828011 |
Shelf. | Na dotaz | Zadat poptávku | |
| 153 6 WHR52446 |
C00491895
481246078892 |
SPACER | Na dotaz | Zadat poptávku | |
| 154 0 WHR52446 |
C00583910
481245828012 |
Shelf. | Na dotaz | Zadat poptávku | |
| 156 0 WHR52446 |
C00335336
481241828031 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR52446 |
C00610501
481246228398 |
Cover ,Ice Box. | Na dotaz | Zadat poptávku | |
| 156 2 WHR52446 |
C00500821
481241828033 |
zasobnik na led | 564 Kč
€ 22.30 |
||
| 156 3 WHR52446 |
C00584654
481245828008 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 156 4 WHR52446 |
C00584655
481245828009 |
Shelf ,holder eggs. | Na dotaz | Zadat poptávku | |
| 191 0 WHR52446 |
C00583951
481246818015 |
NAHRADENE 481246818275 | Na dotaz | Zadat poptávku | |
| 191 1 WHR52446 |
C00529774
481246818016 |
Magnetic seal ref. | Na dotaz | Zadat poptávku | |
| 203 0 WHR52446 |
C00338714
481232518003 |
Insulation ,rear | Na dotaz | Zadat poptávku | |
| 203 1 WHR52446 |
C00527316
481232518004 |
Insulation front | Na dotaz | Zadat poptávku | |
| 242 0 WHR52446 |
C00342288
481241879647 |
zasuvka na zeleninu | 1 886 Kč
€ 74.50 |
||
| 242 1 WHR52446 |
C00584622
481245228007 |
Cover front Drawer. | Na dotaz | Zadat poptávku | |
| 242 3 WHR52446 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 242 4 WHR52446 |
C00584631
481245228323 |
Separator Drawer. | Na dotaz | Zadat poptávku | |
| 242 5 WHR52446 |
C00583854
481241879648 |
GRID. | Na dotaz | Zadat poptávku | |
| 244 0 WHR52446 |
C00584660
481245838072 |
Shelf. | Na dotaz | Zadat poptávku | |
| 244 1 WHR52446 |
C00485822
481245838074 |
Shelf ,Evaporator | Na dotaz | Zadat poptávku | |
| 244 2 WHR52446 |
C00584658
481245838054 |
Grid. | Na dotaz | Zadat poptávku | |
| 244 3 WHR52446 |
C00584736
481246228396 |
Cover ,Drawer. | Na dotaz | Zadat poptávku | |
| 244 4 WHR52446 |
C00584661
481245838073 |
Shelf. | Na dotaz | Zadat poptávku | |
| 246 0 WHR52446 |
C00557160
481241318283 |
Tray,drip.. | Na dotaz | Zadat poptávku | |
| 246 1 WHR52446 |
C00584543
481241848543 |
Tray , freezer. | Na dotaz | Zadat poptávku | |
| 256 0 WHR52446 |
C00583948
481246698945 |
AIR REGULATOR. | Na dotaz | Zadat poptávku | |
| 261 0 WHR52446 |
C00484762
481240418166 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR52446 |
C00484761
481240418165 |
Rail left | Na dotaz | Zadat poptávku | |
| 263 0 WHR52446 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 263 1 WHR52446 |
C00335790
481240448671 |
drzak | 123 Kč
€ 4.90 |
||
| 301 0 WHR52446 |
C00583903
481245319587 |
Insert. | Na dotaz | Zadat poptávku | |
| 301 1 WHR52446 |
C00584383
481221458089 |
Console /BL. | Na dotaz | Zadat poptávku | |
| 301 2 WHR52446 |
C00557164
481245228072 |
INTERFACE.. | Na dotaz | Zadat poptávku | |
| 301 3 WHR52446 |
C00584382
481221458088 |
Display. | Na dotaz | Zadat poptávku | |
| 335 0 WHR52446 |
C00583789
481227158162 |
KNOB THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 402 0 WHR52446 |
C00576145
481236138058 |
Compressor FGS 100 HA 220-240V/50Hz | Na dotaz | Zadat poptávku | |
| 402 1 WHR52446 |
C00335359
481241879646 |
Tray | Na dotaz | Zadat poptávku | |
| 402 3 WHR52446 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 402 4 WHR52446 |
C00574987
481253538085 |
Clip. | Na dotaz | Zadat poptávku | |
| 440 0 WHR52446 |
C00574714
481236138051 |
MOTOR VENTILATORA 220V/60HZ | Na dotaz | Zadat poptávku | |
| 440 1 WHR52446 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR52446 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR52446 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR52446 |
C00320266
481225948141 |
ELEMENT DEFROST | Na dotaz | Zadat poptávku | |
| 480 0 WHR52446 |
C00343501
481201978807 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR52446 |
C00498415
481246279703 |
Cover Relay. | Na dotaz | Zadat poptávku | |
| 500 0 WHR52446 |
C00482533
481227158163 |
CONTROL BOARD | Na dotaz | Zadat poptávku | |
| 500 1 WHR52446 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
| 566 0 WHR52446 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR52446 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 566 2 WHR52446 |
C00314686
481228238042 |
termostat | 1 877 Kč
€ 74.10 |
||
| 566 3 WHR52446 |
C00530019
481253548024 |
Bracket bi-metal | Na dotaz | Zadat poptávku | |
| 614 0 WHR52446 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 651 0 WHR52446 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR52446 |
C00584428
481240018061 |
Holder lamp. | Na dotaz | Zadat poptávku | |
| 652 1 WHR52446 |
C00342450
481225528004 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR52446 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
| 652 3 WHR52446 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 7 WHR52446 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 691 0 WHR52446 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 740 0 WHR52446 |
C00583969
481251148216 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR52446 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 740 2 WHR52446 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 743 0 WHR52446 |
C00498501
481248028035 |
difuzor | 214 Kč
€ 8.40 |
||
| 743 1 WHR52446 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 743 4 WHR52446 |
C00485134
481244078918 |
Cover | Na dotaz | Zadat poptávku | |
| 745 0 WHR52446 |
C00341099
481251138149 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR52446 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
| 745 2 WHR52446 |
C00490121
481246428024 |
Insulator | Na dotaz | Zadat poptávku | |
| 745 3 WHR52446 |
C00583801
481232518005 |
Cover rubber. | Na dotaz | Zadat poptávku | |
| 745 4 WHR52446 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 760 0 WHR52446 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 760 1 WHR52446 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 764 0 WHR52446 |
C00345711
481248028051 |
Dryer | Na dotaz | Zadat poptávku | |
| 765 1 WHR52446 |
C00342488
481246228392 |
Cover front Evaporator | Na dotaz | Zadat poptávku | |
| 765 2 WHR52446 |
C00342370
481244069031 |
Cover rear | Na dotaz | Zadat poptávku | |
| 765 3 WHR52446 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 781 0 WHR52446 |
C00337398
481217088005 |
Tube | Na dotaz | Zadat poptávku | |
| 900 0 WHR52446 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 900 2 WHR52446 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR52446 |
C00336665
481256018026 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR52446 |
C00492138
481256018018 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 3 WHR52446 |
C00583987
481256018019 |
SCREW. | Na dotaz | Zadat poptávku | |
| 910 6 WHR52446 |
C00492139
481256018021 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 7 WHR52446 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR52446 |
C00336668
481256018023 |
Screw | Na dotaz | Zadat poptávku | |
| 965 0 WHR52446 |
C00342558
481246228391 |
Cover BL | Na dotaz | Zadat poptávku | |
| 965 3 WHR52446 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR52446 |
C00655246 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
