WHIRLPOOL ARG 756/WH BDC 370
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARG 756/WH BDC 370 |
| Kód 12NC: | 853475665000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

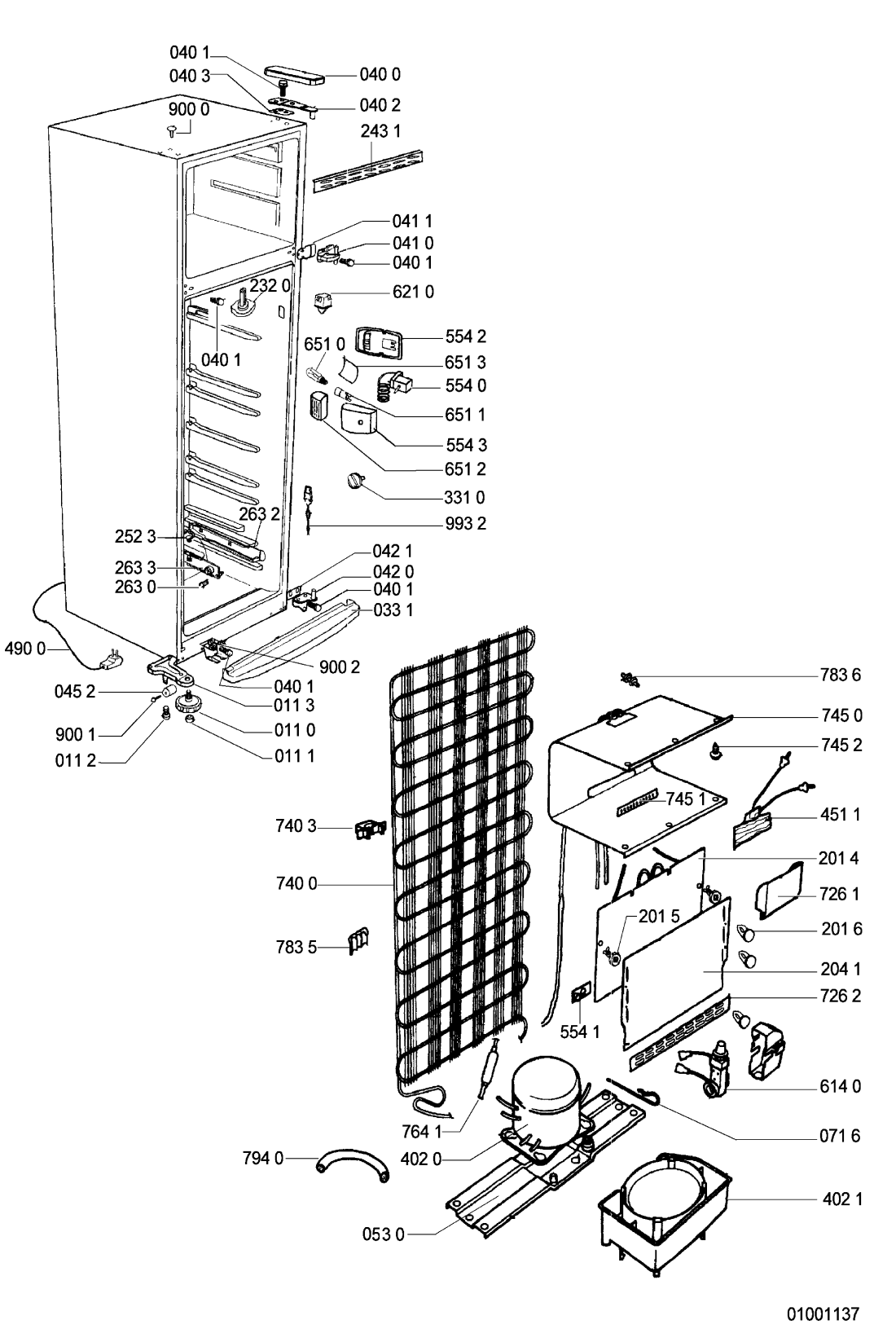

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR94952 |
C00340800
481246238082 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR94952 |
C00636648
481246248061 |
DAMPING PART. | Na dotaz | Zadat poptávku | |
| 011 2 WHR94952 |
C00336570
481256018025 |
Screw M5x10mm | Na dotaz | Zadat poptávku | |
| 011 3 WHR94952 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 033 1 WHR94952 |
C00485625
481245298205 |
Cover ,lower hinges | Na dotaz | Zadat poptávku | |
| 040 0 WHR94952 |
C00342472
481246228054 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 040 1 WHR94952 |
C00336665
481256018026 |
Screw | Na dotaz | Zadat poptávku | |
| 040 2 WHR94952 |
C00583842
481241778019 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 3 WHR94952 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 041 0 WHR94952 |
C00488941
481241718993 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 041 1 WHR94952 |
C00336362
481252648092 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 042 0 WHR94952 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 042 1 WHR94952 |
C00336366
481241778022 |
Shim | Na dotaz | Zadat poptávku | |
| 045 2 WHR94952 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
| 053 0 WHR94952 |
C00574570
481246698946 |
Fastener compressor. | Na dotaz | Zadat poptávku | |
| 071 6 WHR94952 |
C00574987
481253538085 |
Clip. | Na dotaz | Zadat poptávku | |
| 101 0 WHR94952 |
C00584590
481244229095 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR94952 |
C00584589
481244229091 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 111 7 WHR94952 |
C00576352
481245918188 |
PLAQUE DE MARQUE.. | Na dotaz | Zadat poptávku | |
| 152 0 WHR94952 |
C00488999
481241818321 |
Crisper freezer | Na dotaz | Zadat poptávku | |
| 152 2 WHR94952 |
C00527908
481241879736 |
Drawer freezer | Na dotaz | Zadat poptávku | |
| 152 5 WHR94952 |
C00584541
481241848537 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 153 3 WHR94952 |
C00489007
481241828137 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 4 WHR94952 |
C00584554
481241879738 |
Rack freezer. | Na dotaz | Zadat poptávku | |
| 154 0 WHR94952 |
C00489008
481241828139 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 6 WHR94952 |
C00584542
481241848538 |
Separator. | Na dotaz | Zadat poptávku | |
| 156 0 WHR94952 |
C00339160
481241848502 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 171 0 WHR94952 |
C00584683
481246088247 |
Trim front. | Na dotaz | Zadat poptávku | |
| 171 1 WHR94952 |
C00584673
481246028001 |
Insert grid. | Na dotaz | Zadat poptávku | |
| 191 0 WHR94952 |
C00584790
481246818079 |
Magnetic seal ,refrigerator. | Na dotaz | Zadat poptávku | |
| 191 1 WHR94952 |
C00584781
481246688568 |
Magnetic seal freezing. | Na dotaz | Zadat poptávku | |
| 200 0 WHR94952 |
C00621407
481241828138 |
Holder, eggs. | Na dotaz | Zadat poptávku | |
| 200 1 WHR94952 |
C00584703
481246228182 |
Flap left. | Na dotaz | Zadat poptávku | |
| 200 2 WHR94952 |
C00584704
481246228183 |
Flap right. | Na dotaz | Zadat poptávku | |
| 201 4 WHR94952 |
C00584393
481225948134 |
Heating element. | Na dotaz | Zadat poptávku | |
| 201 5 WHR94952 |
C00584808
481249148012 |
Clip fix. | Na dotaz | Zadat poptávku | |
| 201 6 WHR94952 |
C00491981
481249148013 |
Clip fix | Na dotaz | Zadat poptávku | |
| 204 1 WHR94952 |
C00584582
481244078971 |
Panel insulatin. | Na dotaz | Zadat poptávku | |
| 232 0 WHR94952 |
C00493824
481253598084 |
Drain piece | Na dotaz | Zadat poptávku | |
| 242 0 WHR94952 |
C00485022
481241879737 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 1 WHR94952 |
C00574466
481241879652 |
Crisper. | Na dotaz | Zadat poptávku | |
| 242 2 WHR94952 |
C00584499
481241818322 |
Front Drawer. | Na dotaz | Zadat poptávku | |
| 243 1 WHR94952 |
C00484147
481269088002 |
Deflector evaporator | Na dotaz | Zadat poptávku | |
| 244 7 WHR94952 |
C00584651
481245819042 |
Grid freezer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR94952 |
C00584652
481245819043 |
Grid main. | Na dotaz | Zadat poptávku | |
| 245 1 WHR94952 |
C00584653
481245819044 |
Grid. | Na dotaz | Zadat poptávku | |
| 252 3 WHR94952 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 255 0 WHR94952 |
C00485969
481246228178 |
Cover Drawer | Na dotaz | Zadat poptávku | |
| 263 0 WHR94952 |
C00747689
481252518005 |
Slide | Na dotaz | Zadat poptávku | |
| 263 2 WHR94952 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
| 263 3 WHR94952 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 264 0 WHR94952 |
C00557167
481246238083 |
SLIDE.. | Na dotaz | Zadat poptávku | |
| 264 1 WHR94952 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR94952 |
C00583789
481227158162 |
KNOB THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 402 0 WHR94952 |
C00553384
481236038709 |
COMPRESSOR | Na dotaz | Zadat poptávku | |
| 402 1 WHR94952 |
C00318946
481241818319 |
Tray | Na dotaz | Zadat poptávku | |
| 451 1 WHR94952 |
C00584392
481225948133 |
Heating element. | Na dotaz | Zadat poptávku | |
| 490 0 WHR94952 |
C00583779
481219808002 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 554 0 WHR94952 |
C00491010
481227128461 |
Thermostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR94952 |
C00500796
481240478396 |
Fastener clip | Na dotaz | Zadat poptávku | |
| 554 2 WHR94952 |
C00526814
481215128001 |
Fastener TERMOSTAT | Na dotaz | Zadat poptávku | |
| 554 3 WHR94952 |
C00584701
481246228176 |
Casing. | Na dotaz | Zadat poptávku | |
| 614 0 WHR94952 |
C00493838
481269028017 |
Relay PTC | Na dotaz | Zadat poptávku | |
| 621 0 WHR94952 |
C00574311
481227138411 |
Switch lamp. | Na dotaz | Zadat poptávku | |
| 651 0 WHR94952 |
C00574299
481213488025 |
Lamp. | Na dotaz | Zadat poptávku | |
| 651 1 WHR94952 |
C00557158
481225528005 |
HOLDER,LAMP.. | Na dotaz | Zadat poptávku | |
| 651 2 WHR94952 |
C00484589
481213418016 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 651 3 WHR94952 |
C00557226
481225518238 |
REFLECTEUR LUMIERE.. | Na dotaz | Zadat poptávku | |
| 726 1 WHR94952 |
C00486258
481251138151 |
Evaporator ,protector | Na dotaz | Zadat poptávku | |
| 726 2 WHR94952 |
C00584821
481251148254 |
Evaporatorflap. | Na dotaz | Zadat poptávku | |
| 740 0 WHR94952 |
C00583971
481251148253 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 3 WHR94952 |
C00621451
481246698943 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 745 0 WHR94952 |
C00584814
481251138152 |
Evaporator. | Na dotaz | Zadat poptávku | |
| 745 1 WHR94952 |
C00584702
481246228177 |
Cover evaporator. | Na dotaz | Zadat poptávku | |
| 745 2 WHR94952 |
C00574968
481250218506 |
Screw. | Na dotaz | Zadat poptávku | |
| 764 1 WHR94952 |
C00740064
481248028038 |
Dryer | Na dotaz | Zadat poptávku | |
| 783 5 WHR94952 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 783 6 WHR94952 |
C00584845
481253048279 |
Tube LOKRING. | Na dotaz | Zadat poptávku | |
| 794 0 WHR94952 |
C00583863
481244069033 |
Insulation. | Na dotaz | Zadat poptávku | |
| 900 0 WHR94952 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
| 900 1 WHR94952 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 900 2 WHR94952 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 904 6 WHR94952 |
C00344061
481246228181 |
Bushing white | Na dotaz | Zadat poptávku | |
| 904 7 WHR94952 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 904 8 WHR94952 |
C00498375
481246228179 |
Bushing right,white. | Na dotaz | Zadat poptávku | |
| 904 9 WHR94952 |
C00336004
481253288012 |
zaslepka | 122 Kč
€ 4.80 |
||
| 910 0 WHR94952 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
| 993 2 WHR94952 |
C00584855
481269028016 |
Swab. | Na dotaz | Zadat poptávku | |
| 999 WHR94952 |
C00763982 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
