| Komerční kód: | WBD405 REFRIGERATORS WP |
| Kód 12NC: | 853475665100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853475665101 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

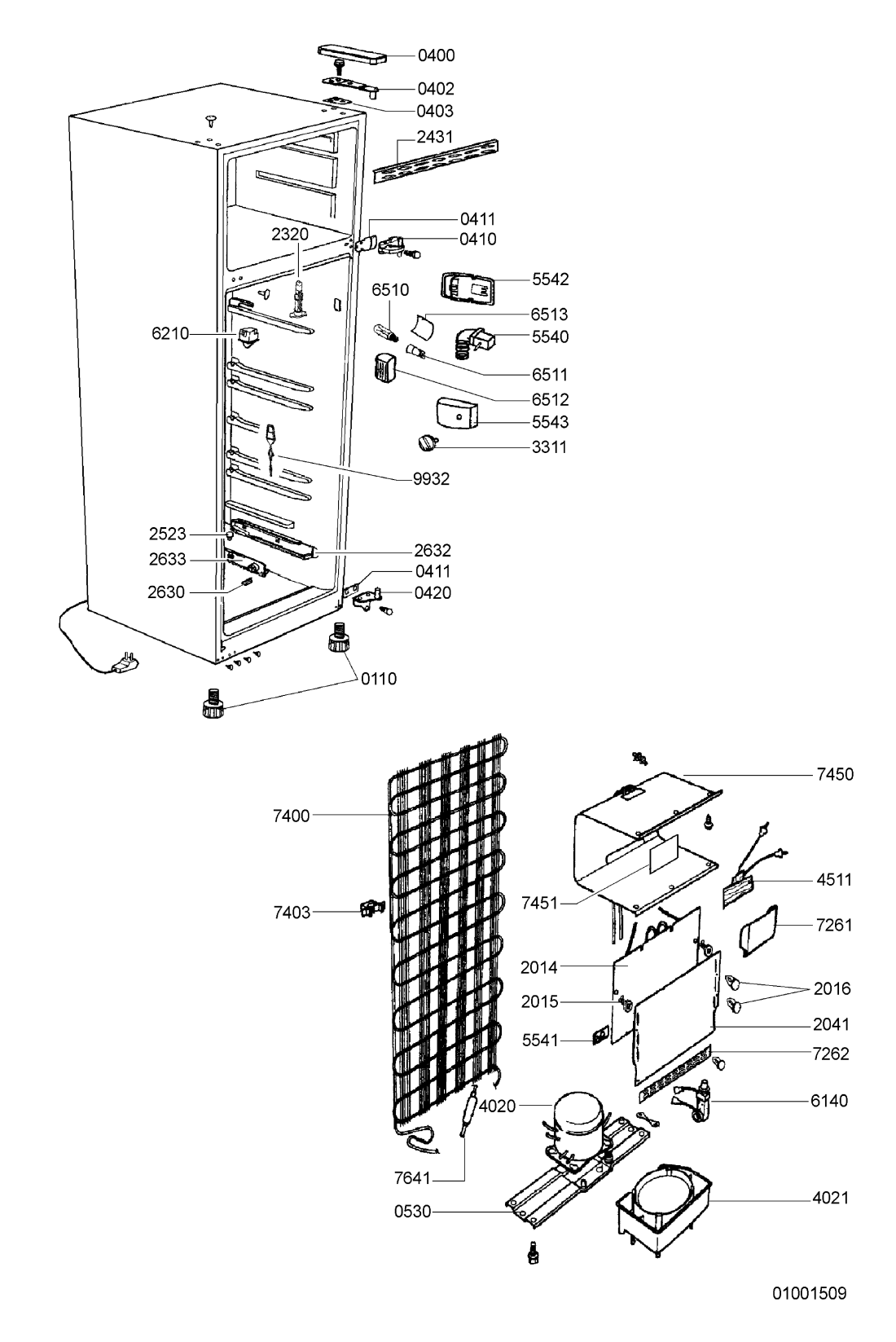

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR78362 |
C00583936
481246248414 |
Adjusting screw. | Na dotaz | Zadat poptávku | |
| 040 0 WHR78362 |
C00486019
481246228704 |
Cover hinge WH | Na dotaz | Zadat poptávku | |
| 040 2 WHR78362 |
C00339759
481241719138 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 3 WHR78362 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 7 WHR78362 |
C00584492
481241719333 |
Hinge , set. | Na dotaz | Zadat poptávku | |
| 041 0 WHR78362 |
C00488941
481241718993 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 041 1 WHR78362 |
C00336362
481252648092 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 042 0 WHR78362 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 053 0 WHR78362 |
C00574570
481246698946 |
Fastener compressor. | Na dotaz | Zadat poptávku | |
| 101 0 WHR78362 |
C00584505
481241818546 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR78362 |
C00584481
481241619732 |
Door refriger. , white color. | Na dotaz | Zadat poptávku | |
| 111 7 WHR78362 |
C00576370
481245918254 |
Nameplate Whirlpool.. | Na dotaz | Zadat poptávku | |
| 152 0 WHR78362 |
C00584523
481241828819 |
Drawer. | Na dotaz | Zadat poptávku | |
| 152 2 WHR78362 |
C00584522
481241828818 |
Drawer. | Na dotaz | Zadat poptávku | |
| 152 5 WHR78362 |
C00584530
481241828827 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 153 4 WHR78362 |
C00584531
481241828828 |
Rack freezer. | Na dotaz | Zadat poptávku | |
| 154 0 WHR78362 |
C00584525
481241828822 |
Door dairy | Na dotaz | Zadat poptávku | |
| 154 6 WHR78362 |
C00584529
481241828826 |
Separator. | Na dotaz | Zadat poptávku | |
| 156 0 WHR78362 |
C00339160
481241848502 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 171 0 WHR78362 |
C00485948
481246088298 |
Trim grid | Na dotaz | Zadat poptávku | |
| 191 0 WHR78362 |
C00584786
481246688829 |
Gasket ref.door. | Na dotaz | Zadat poptávku | |
| 191 1 WHR78362 |
C00584787
481246688831 |
Gasket.fre.door. | Na dotaz | Zadat poptávku | |
| 200 0 WHR78362 |
C00584526
481241828823 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 200 1 WHR78362 |
C00584703
481246228182 |
Flap left. | Na dotaz | Zadat poptávku | |
| 200 2 WHR78362 |
C00584704
481246228183 |
Flap right. | Na dotaz | Zadat poptávku | |
| 201 4 WHR78362 |
C00584819
481251138295 |
Evaporator. | Na dotaz | Zadat poptávku | |
| 201 5 WHR78362 |
C00576410
481249148033 |
Clip fix.. | Na dotaz | Zadat poptávku | |
| 201 6 WHR78362 |
C00498514
481249148034 |
Clip fix. | Na dotaz | Zadat poptávku | |
| 204 1 WHR78362 |
C00584582
481244078971 |
Panel insulatin. | Na dotaz | Zadat poptávku | |
| 232 0 WHR78362 |
C00482891
481240478703 |
Base | Na dotaz | Zadat poptávku | |
| 242 0 WHR78362 |
C00584524
481241828821 |
Drawer. | Na dotaz | Zadat poptávku | |
| 242 1 WHR78362 |
C00374062
481241870007 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 2 WHR78362 |
C00584504
481241818543 |
Front Drawer. | Na dotaz | Zadat poptávku | |
| 243 1 WHR78362 |
C00584632
481245228687 |
Deflector , Evaporator. | Na dotaz | Zadat poptávku | |
| 244 7 WHR78362 |
C00584651
481245819042 |
Grid freezer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR78362 |
C00584617
481245088313 |
Shelf. | Na dotaz | Zadat poptávku | |
| 245 1 WHR78362 |
C00584618
481245088314 |
Shelf. | Na dotaz | Zadat poptávku | |
| 252 3 WHR78362 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 255 0 WHR78362 |
C00584753
481246228707 |
Cover Drawer. | Na dotaz | Zadat poptávku | |
| 263 0 WHR78362 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 263 2 WHR78362 |
C00345118
481246238241 |
Slide right.. | Na dotaz | Zadat poptávku | |
| 263 3 WHR78362 |
C00345184
481246238239 |
Slide left.. | Na dotaz | Zadat poptávku | |
| 264 0 WHR78362 |
C00517551
481246238242 |
Roller crisper. | Na dotaz | Zadat poptávku | |
| 331 1 WHR78362 |
C00345217
481227138482 |
Knob Thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR78362 |
C00527352
481236038784 |
COMPRESSOR FFI 7,5 HAK- 220V | Na dotaz | Zadat poptávku | |
| 402 1 WHR78362 |
C00327700
481241828839 |
Tray,compressor. | Na dotaz | Zadat poptávku | |
| 451 1 WHR78362 |
C00584392
481225948133 |
Heating element. | Na dotaz | Zadat poptávku | |
| 554 0 WHR78362 |
C00491010
481227128461 |
Thermostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR78362 |
C00500796
481240478396 |
Fastener clip | Na dotaz | Zadat poptávku | |
| 554 2 WHR78362 |
C00584774
481246448191 |
Fastener Thermostat. | Na dotaz | Zadat poptávku | |
| 554 3 WHR78362 |
C00584585
481244079171 |
Casing. | Na dotaz | Zadat poptávku | |
| 614 0 WHR78362 |
C00493838
481269028017 |
Relay PTC | Na dotaz | Zadat poptávku | |
| 621 0 WHR78362 |
C00584400
481227138481 |
Switch Lamp. | Na dotaz | Zadat poptávku | |
| 651 0 WHR78362 |
C00574299
481213488025 |
Lamp. | Na dotaz | Zadat poptávku | |
| 651 1 WHR78362 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 651 2 WHR78362 |
C00584752
481246228706 |
Cover f. lamp. | Na dotaz | Zadat poptávku | |
| 651 3 WHR78362 |
C00490082
481246098026 |
Reflector lamp | Na dotaz | Zadat poptávku | |
| 726 1 WHR78362 |
C00584633
481245228688 |
Evaporator , Protector. | Na dotaz | Zadat poptávku | |
| 726 2 WHR78362 |
C00584638
481245298302 |
Deflector Evaporator. | Na dotaz | Zadat poptávku | |
| 740 0 WHR78362 |
C00583971
481251148253 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 3 WHR78362 |
C00621451
481246698943 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 745 0 WHR78362 |
C00584820
481251138296 |
Evaporator. | Na dotaz | Zadat poptávku | |
| 745 1 WHR78362 |
C00486009
481246228646 |
Cover Evaporator | Na dotaz | Zadat poptávku | |
| 764 1 WHR78362 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 904 6 WHR78362 |
C00330537
481246228701 |
Cover WH | Na dotaz | Zadat poptávku | |
| 904 7 WHR78362 |
C00344062
481253288067 |
Bushing WH | Na dotaz | Zadat poptávku | |
| 904 8 WHR78362 |
C00374018
481246228708 |
Bushing right WH | Na dotaz | Zadat poptávku | |
| 904 9 WHR78362 |
C00491657
481241719332 |
Pivot | Na dotaz | Zadat poptávku | |
| 993 2 WHR78362 |
C00584855
481269028016 |
Swab. | Na dotaz | Zadat poptávku | |
| 999 WHR78362 |
C00706411 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
