WHIRLPOOL ARG 774 IX REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARG 774 IX REFRIGERATORS WP |
| Kód 12NC: | 853477410010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853477401010 |
Potřebujete servis? Jsme tady pro Vás

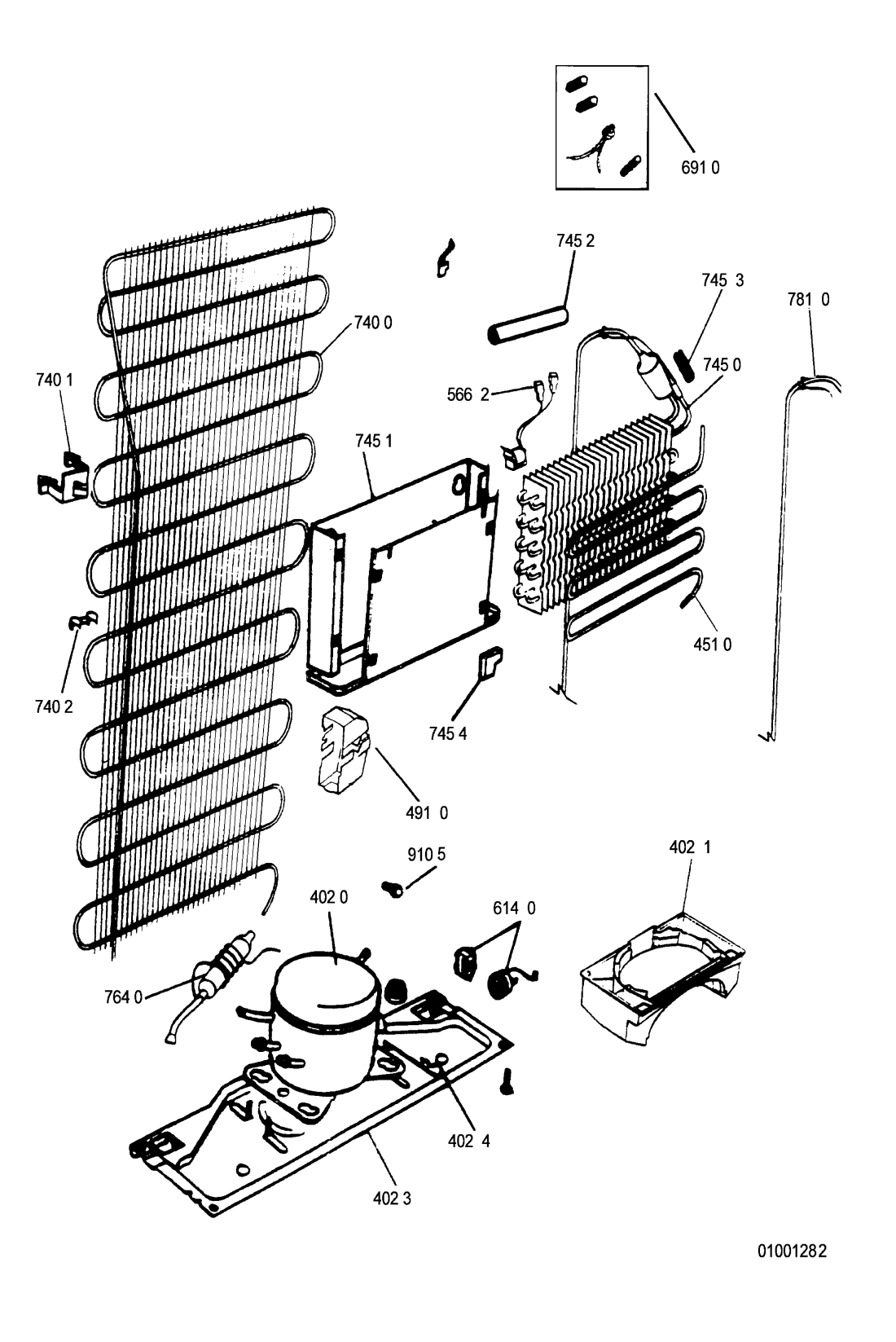

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR55954 |
C00340792
481246218245 |
Foot adjustable | Na dotaz | Zadat poptávku | |
| 011 2 WHR55954 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 012 0 WHR55954 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
| 024 0 WHR55954 |
C00344521
481246418082 |
Base | Na dotaz | Zadat poptávku | |
| 040 0 WHR55954 |
C00583842
481241778019 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 1 WHR55954 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR55954 |
C00492120
481253538084 |
Shim | Na dotaz | Zadat poptávku | |
| 040 3 WHR55954 |
C00497796
481241778088 |
ZAVES STREDNY | Na dotaz | Zadat poptávku | |
| 040 4 WHR55954 |
C00342345
481246228389 |
Cover upper hinge | Na dotaz | Zadat poptávku | |
| 040 5 WHR55954 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 6 WHR55954 |
C00583931
481246228276 |
Shim. | Na dotaz | Zadat poptávku | |
| 040 7 WHR55954 |
C00339847
481241719111 |
závěs | 512 Kč
€ 20.20 |
||
| 040 9 WHR55954 |
C00488962
481241719109 |
Hinge middle left version | Na dotaz | Zadat poptávku | |
| 047 3 WHR55954 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 070 0 WHR55954 |
C00337687
481246228433 |
sokl/BL | 651 Kč
€ 25.70 |
||
| 101 0 WHR55954 |
C00584470
481241618626 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 102 0 WHR55954 |
C00584599
481244229165 |
Flap evap.door. | Na dotaz | Zadat poptávku | |
| 102 1 WHR55954 |
C00490087
481246218247 |
Flap | Na dotaz | Zadat poptávku | |
| 104 0 WHR55954 |
C00484805
481241618593 |
DVERE CHLADNICKY N | Na dotaz | Zadat poptávku | |
| 105 0 WHR55954 |
C00344059
481246228397 |
Bushingupper | Na dotaz | Zadat poptávku | |
| 105 1 WHR55954 |
C00344082
481253288024 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 2 WHR55954 |
C00344083
481246228399 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 3 WHR55954 |
C00344084
481246228401 |
Bushing | Na dotaz | Zadat poptávku | |
| 111 0 WHR55954 |
C00340112
481249818231 |
Handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR55954 |
C00636094
481249818232 |
Handle. | Na dotaz | Zadat poptávku | |
| 111 2 WHR55954 |
C00636095
481249818233 |
Insert. | Na dotaz | Zadat poptávku | |
| 111 3 WHR55954 |
C00342486
481246818234 |
Cover handle | Na dotaz | Zadat poptávku | |
| 111 7 WHR55954 |
C00584668
481245918219 |
Nameplate. | Na dotaz | Zadat poptávku | |
| 153 0 WHR55954 |
C00495593
481241879762 |
rack freezer | Na dotaz | Zadat poptávku | |
| 153 1 WHR55954 |
C00584741
481246228421 |
Shelf. | Na dotaz | Zadat poptávku | |
| 153 6 WHR55954 |
C00490096
481246228404 |
Separator | Na dotaz | Zadat poptávku | |
| 154 0 WHR55954 |
C00555500
481246228422 |
Shelf.. | Na dotaz | Zadat poptávku | |
| 154 2 WHR55954 |
C00557116
481246428032 |
Shelf.. | Na dotaz | Zadat poptávku | |
| 154 3 WHR55954 |
C00584739
481246228417 |
Shelf. | Na dotaz | Zadat poptávku | |
| 155 1 WHR55954 |
C00584684
481246088256 |
Door dairy egg carrier. | Na dotaz | Zadat poptávku | |
| 156 0 WHR55954 |
C00489022
481241828343 |
miska na led | 444 Kč
€ 17.50 |
||
| 156 1 WHR55954 |
C00555496
481246088254 |
Holder, eggs.. | Na dotaz | Zadat poptávku | |
| 156 2 WHR55954 |
C00584737
481246228414 |
Separator. | Na dotaz | Zadat poptávku | |
| 156 3 WHR55954 |
C00500821
481241828033 |
zasobnik na led | 564 Kč
€ 22.30 |
||
| 156 4 WHR55954 |
C00495592
481241728082 |
viko zasobniku na led | 203 Kč
€ 8.00 |
||
| 156 6 WHR55954 |
C00491919
481246228425 |
Holder ,can | Na dotaz | Zadat poptávku | |
| 191 0 WHR55954 |
C00529774
481246818016 |
Magnetic seal ref. | Na dotaz | Zadat poptávku | |
| 191 1 WHR55954 |
C00583951
481246818015 |
NAHRADENE 481246818275 | Na dotaz | Zadat poptávku | |
| 203 0 WHR55954 |
C00338714
481232518003 |
Insulation ,rear | Na dotaz | Zadat poptávku | |
| 203 1 WHR55954 |
C00527316
481232518004 |
Insulation front | Na dotaz | Zadat poptávku | |
| 242 0 WHR55954 |
C00342288
481241879647 |
zasuvka na zeleninu | 1 886 Kč
€ 74.50 |
||
| 242 1 WHR55954 |
C00340674
481244229168 |
celo zasuvky na zel. | 1 900 Kč
€ 75.00 |
||
| 242 3 WHR55954 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 244 1 WHR55954 |
C00584740
481246228418 |
shelf. | Na dotaz | Zadat poptávku | |
| 244 2 WHR55954 |
C00485992
481246228419 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 244 3 WHR55954 |
C00584600
481244229166 |
Cover crisper. | Na dotaz | Zadat poptávku | |
| 246 0 WHR55954 |
C00335356
481241828029 |
Tray ,freezer | Na dotaz | Zadat poptávku | |
| 246 1 WHR55954 |
C00574560
481246429166 |
Shelf freezing. | Na dotaz | Zadat poptávku | |
| 261 0 WHR55954 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR55954 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 263 0 WHR55954 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 263 1 WHR55954 |
C00335790
481240448671 |
drzak | 123 Kč
€ 4.90 |
||
| 301 0 WHR55954 |
C00584643
481245310073 |
Reflector. | Na dotaz | Zadat poptávku | |
| 301 4 WHR55954 |
C00574558
481246428031 |
Control panel | Na dotaz | Zadat poptávku | |
| 356 0 WHR55954 |
C00487161
481241218028 |
Knob ,damper | Na dotaz | Zadat poptávku | |
| 402 0 WHR55954 |
C00576145
481236138058 |
Compressor FGS 100 HA 220-240V/50Hz | Na dotaz | Zadat poptávku | |
| 402 1 WHR55954 |
C00335359
481241879646 |
Tray | Na dotaz | Zadat poptávku | |
| 402 3 WHR55954 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 402 4 WHR55954 |
C00500771
481236038783 |
Strap ,compressor | Na dotaz | Zadat poptávku | |
| 440 0 WHR55954 |
C00574714
481236138051 |
MOTOR VENTILATORA 220V/60HZ | Na dotaz | Zadat poptávku | |
| 440 1 WHR55954 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR55954 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR55954 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR55954 |
C00320266
481225948141 |
ELEMENT DEFROST | Na dotaz | Zadat poptávku | |
| 480 0 WHR55954 |
C00343501
481201978807 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR55954 |
C00498415
481246279703 |
Cover Relay. | Na dotaz | Zadat poptávku | |
| 500 0 WHR55954 |
C00311580
481221838159 |
modul chl. | Na dotaz | Zadat poptávku | |
| 500 1 WHR55954 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
| 566 0 WHR55954 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR55954 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 566 2 WHR55954 |
C00314686
481228238042 |
termostat | 1 877 Kč
€ 74.10 |
||
| 614 0 WHR55954 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 651 0 WHR55954 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR55954 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR55954 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
| 652 3 WHR55954 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 7 WHR55954 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 655 0 WHR55954 |
C00557948
481227138442 |
Interface board | Na dotaz | Zadat poptávku | |
| 691 0 WHR55954 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 740 0 WHR55954 |
C00583969
481251148216 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR55954 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 740 2 WHR55954 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 743 0 WHR55954 |
C00498501
481248028035 |
difuzor | 214 Kč
€ 8.40 |
||
| 743 1 WHR55954 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 743 4 WHR55954 |
C00584373
481215818003 |
Cover air diffuser. | Na dotaz | Zadat poptávku | |
| 743 5 WHR55954 |
C00497490
481232518021 |
Cover rubber. | Na dotaz | Zadat poptávku | |
| 745 0 WHR55954 |
C00341099
481251138149 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR55954 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
| 745 2 WHR55954 |
C00583803
481232588007 |
Insulation. | Na dotaz | Zadat poptávku | |
| 745 4 WHR55954 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 760 1 WHR55954 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 760 2 WHR55954 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 764 0 WHR55954 |
C00583958
481248028036 |
DRYER. | Na dotaz | Zadat poptávku | |
| 765 1 WHR55954 |
C00342327
481244069029 |
Cover,front | Na dotaz | Zadat poptávku | |
| 765 2 WHR55954 |
C00342370
481244069031 |
Cover rear | Na dotaz | Zadat poptávku | |
| 765 3 WHR55954 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 765 4 WHR55954 |
C00342450
481225528004 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 781 0 WHR55954 |
C00337398
481217088005 |
Tube | Na dotaz | Zadat poptávku | |
| 900 0 WHR55954 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 900 2 WHR55954 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR55954 |
C00336665
481256018026 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR55954 |
C00492140
481256018024 |
Screw | Na dotaz | Zadat poptávku | |
| 910 3 WHR55954 |
C00336570
481256018025 |
Screw M5x10mm | Na dotaz | Zadat poptávku | |
| 910 5 WHR55954 |
C00584835
481252388005 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 7 WHR55954 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR55954 |
C00336668
481256018023 |
Screw | Na dotaz | Zadat poptávku | |
| 965 0 WHR55954 |
C00342558
481246228391 |
Cover BL | Na dotaz | Zadat poptávku | |
| 965 0 WHR55954 |
C00576445
481253048349 |
Connection LOKRING.. | Na dotaz | Zadat poptávku | |
| 965 3 WHR55954 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR55954 |
C00667298 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
