IGNIS ARL 273 /1/G REFRIGERATORS IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | ARL 273 /1/G REFRIGERATORS IG |
Kód 12NC: | 853927338400 |
I.C. kód: | 853927338401 |
Značka: | IGNIS |
Typ produktu: | Vestavné lednice |
Další podobné modely: | 853927338400, 853927338402, 853927338405 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

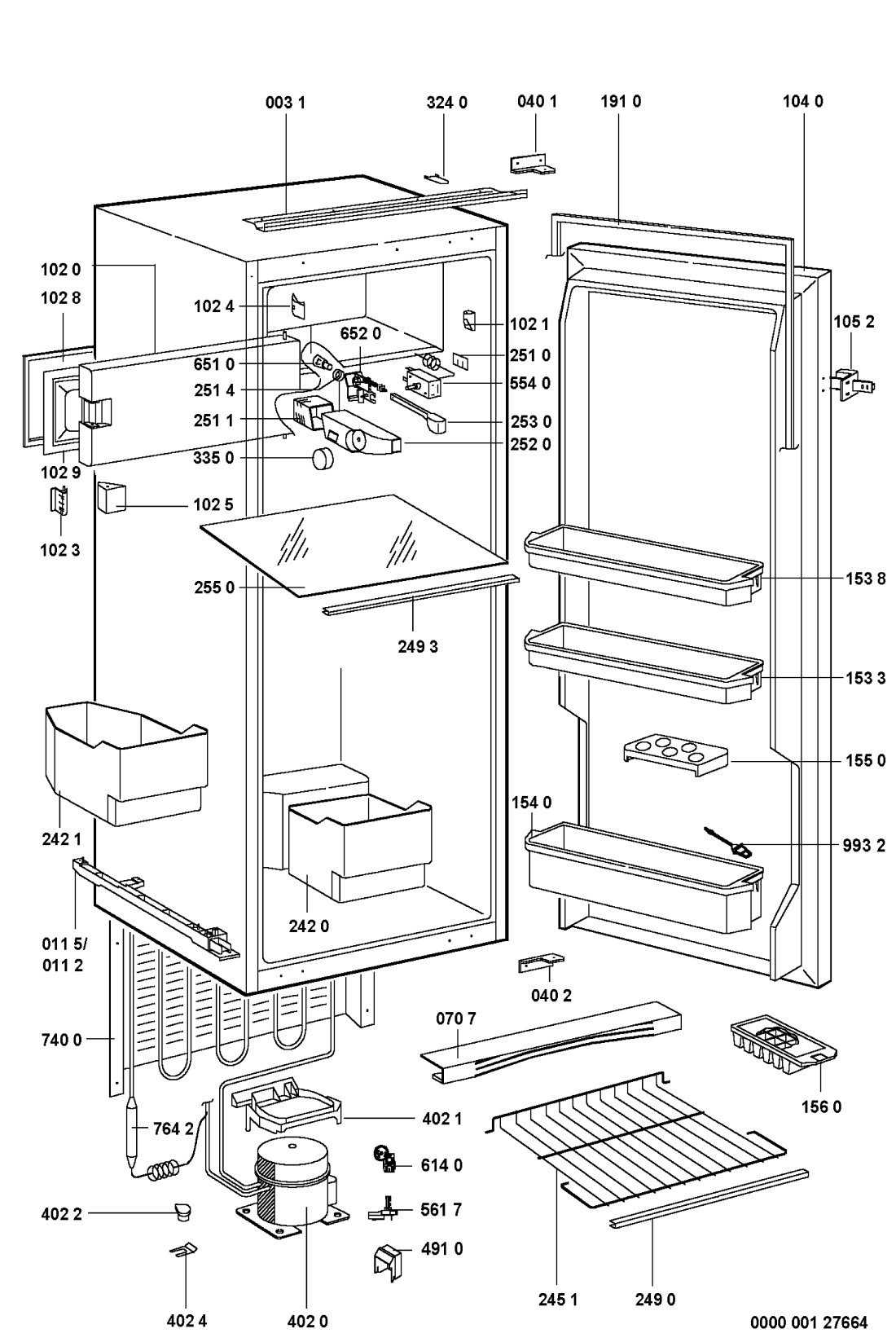

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
003 1 WHR90183 |
C00340983
481246058312 |
Fastener upper | Na dotaz | Zadat poptávku | |
011 2 WHR90183 |
C00492060
481250518365 |
NOZKA PRAVA N | Na dotaz | Zadat poptávku | |
011 5 WHR90183 |
C00492061
481250518366 |
NOZKA LAVA N | Na dotaz | Zadat poptávku | |
040 1 WHR90183 |
C00339753
481241718791 |
Hinge upper right | Na dotaz | Zadat poptávku | |
040 2 WHR90183 |
C00339796
481241718792 |
Hinge lower right | Na dotaz | Zadat poptávku | |
070 7 WHR90183 |
C00340263
481244088105 |
sokl | 220 Kč
€ 8.70 |
||
102 0 WHR90183 |
C00584974
481244229001 |
DVIERKA VYPARNIKA VONKAJSIE N | Na dotaz | Zadat poptávku | |
102 1 WHR90183 |
C00584955
481241718788 |
PANT N | Na dotaz | Zadat poptávku | |
102 3 WHR90183 |
C00318229
481249268132 |
Pružina rukojetě dveří | 834 Kč
€ 32.90 |
||
102 4 WHR90183 |
C00329030
481240448612 |
Hook | Na dotaz | Zadat poptávku | |
102 5 WHR90183 |
C00585040
481249868135 |
RUKOVAT DVERI VYPARNIKA *** N | Na dotaz | Zadat poptávku | |
102 8 WHR90183 |
C00330913
481246668565 |
Gasket, door evaporator | Na dotaz | Zadat poptávku | |
102 9 WHR90183 |
C00584972
481244028953 |
VNUTRO DVERI VYPARNIKA N | Na dotaz | Zadat poptávku | |
104 0 WHR90183 |
C00558004
481244028893 |
DVERE CHLADNICKY N | Na dotaz | Zadat poptávku | |
105 2 WHR90183 |
C00315571
481931039838 |
posouvac-sada | Na dotaz | Zadat poptávku | |
153 3 WHR90183 |
C00341353
481941879333 |
Door,dairy | Na dotaz | Zadat poptávku | |
153 8 WHR90183 |
C00557460
481941879623 |
POLICKA DVERI PLAST N | Na dotaz | Zadat poptávku | |
154 0 WHR90183 |
C00557461
481941879624 |
POLICKA NA FLASE PLAST N | Na dotaz | Zadat poptávku | |
155 0 WHR90183 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
156 0 WHR90183 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
191 0 WHR90183 |
C00330994
481246688572 |
Magnetic seal | Na dotaz | Zadat poptávku | |
242 0 WHR90183 |
C00489073
481241848445 |
Crisper | Na dotaz | Zadat poptávku | |
242 1 WHR90183 |
C00557994
481241848386 |
ZASUVKA CHLADNICKY N | Na dotaz | Zadat poptávku | |
245 1 WHR90183 |
C00583907
481245828002 |
ROST ARG970 N | Na dotaz | Zadat poptávku | |
249 0 WHR90183 |
C00335288
481946089469 |
Trim | Na dotaz | Zadat poptávku | |
249 3 WHR90183 |
C00557548
481946089366 |
KRYCIA LI?TA ARL415 N | Na dotaz | Zadat poptávku | |
251 0 WHR90183 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
251 1 WHR90183 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
251 4 WHR90183 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
252 0 WHR90183 |
C00343909
481246279653 |
Cabinet lamp / thermos | Na dotaz | Zadat poptávku | |
253 0 WHR90183 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
255 0 WHR90183 |
C00329998
481245818929 |
Glass shelf | Na dotaz | Zadat poptávku | |
324 0 WHR90183 |
C00342500
481244028856 |
krytka | 89 Kč
€ 3.50 |
||
335 0 WHR90183 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
402 0 WHR90183 |
C00555060
481236038635 |
Compressor BP1084Z.. | Na dotaz | Zadat poptávku | |
402 1 WHR90183 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
402 2 WHR90183 |
C00195454
481936048014 |
VENTIL | Na dotaz | Zadat poptávku | |
402 4 WHR90183 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
491 0 WHR90183 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
554 0 WHR90183 |
C00332837
481927129068 |
Thermostat A13-0460-33 | Na dotaz | Zadat poptávku | |
561 7 WHR90183 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
614 0 WHR90183 |
C00527059
481228068331 |
Monoblock | Na dotaz | Zadat poptávku | |
651 0 WHR90183 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
652 0 WHR90183 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
740 0 WHR90183 |
C00332229
481251148259 |
Condenser | Na dotaz | Zadat poptávku | |
764 2 WHR90183 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
993 2 WHR90183 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
993 9 WHR90183 |
C00327412
481231038487 |
Montážní sada na přehození dveří | 645 Kč
€ 25.50 |
||
999 WHR90183 |
C00732701 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
