IGNIS ARL478 G REFRIGERATORS IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARL478 G REFRIGERATORS IG |
| Kód 12NC: | 853947801000 |
| I.C. kód: | 853947801001 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853947801002, 853947801000 |
Potřebujete servis? Jsme tady pro Vás

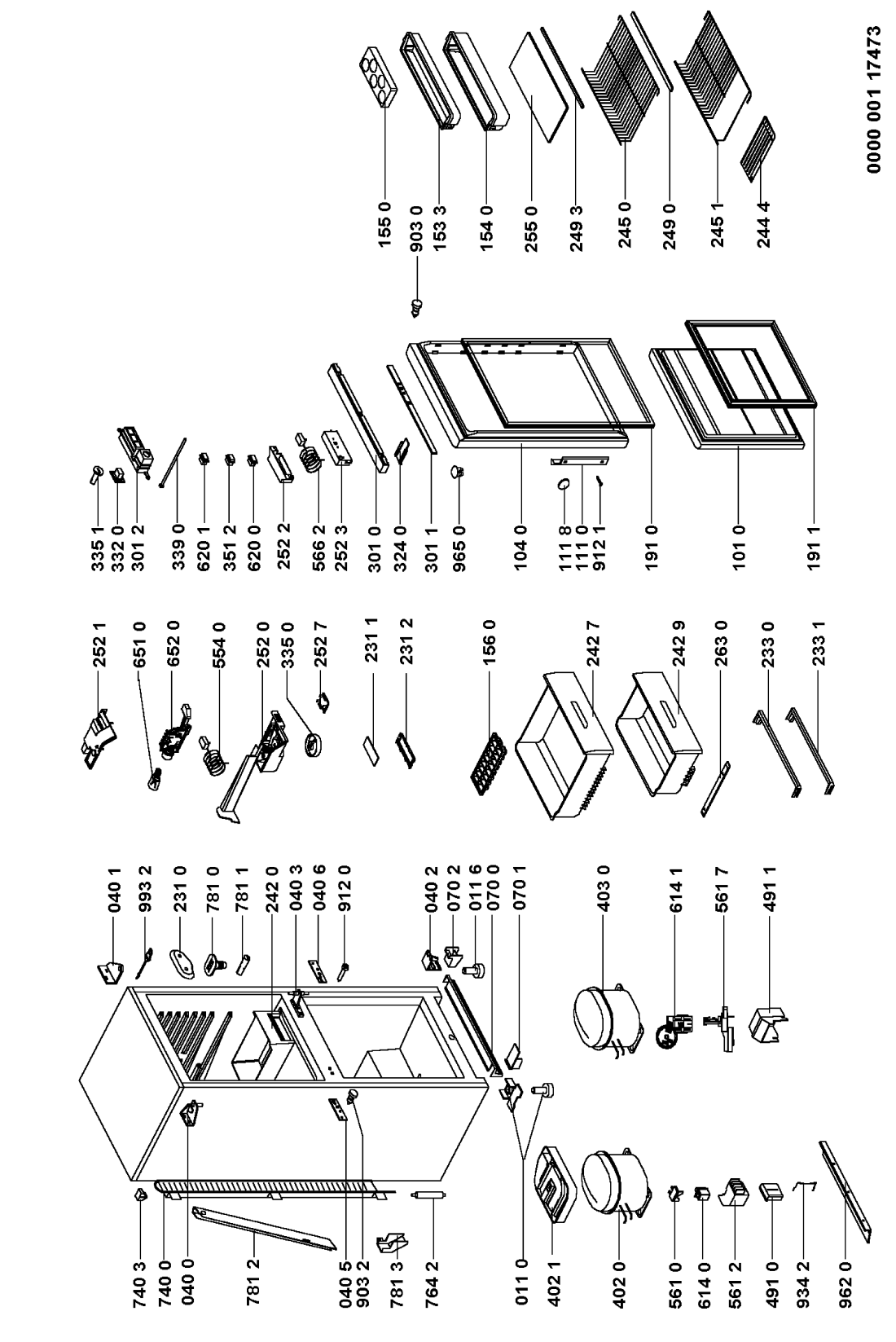

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR61906 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 011 6 WHR61906 |
C00333081
481946248513 |
noha | 144 Kč
€ 5.70 |
||
| 040 0 WHR61906 |
C00574608
481941719558 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 1 WHR61906 |
C00574609
481941719559 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 2 WHR61906 |
C00332997
481941719642 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR61906 |
C00329698
481241718826 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 5 WHR61906 |
C00586967
481946698487 |
podlozka zav.leva | 489 Kč
€ 19.30 |
||
| 040 6 WHR61906 |
C00586968
481946698488 |
podlozka zav.prava | 111 Kč
€ 4.40 |
||
| 070 0 WHR61906 |
C00337724
481944268703 |
sokl | 346 Kč
€ 13.70 |
||
| 070 1 WHR61906 |
C00338893
481945919436 |
kryt soklu | 71 Kč
€ 2.80 |
||
| 070 2 WHR61906 |
C00332946
481940478921 |
drzak soklu | 151 Kč
€ 6.00 |
||
| 101 0 WHR61906 |
C00586907
481944268817 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR61906 |
C00586906
481944268793 |
Door,refriger.. | Na dotaz | Zadat poptávku | |
| 111 0 WHR61906 |
C00576520
481949878132 |
NAHRADENE 481246268886 | Na dotaz | Zadat poptávku | |
| 111 8 WHR61906 |
C00336007
481946279466 |
Stopper | Na dotaz | Zadat poptávku | |
| 153 3 WHR61906 |
C00333010
481941879332 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR61906 |
C00557454
481941879388 |
Holder,bottles.. | Na dotaz | Zadat poptávku | |
| 155 0 WHR61906 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR61906 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR61906 |
C00557565
481946818072 |
NAHRADENE 481246688697 | Na dotaz | Zadat poptávku | |
| 191 1 WHR61906 |
C00338278
481946818074 |
Magnetic seal freezing | Na dotaz | Zadat poptávku | |
| 231 0 WHR61906 |
C00343342
481946258101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 231 1 WHR61906 |
C00333126
481946688956 |
PLATE THERMOSTAT SENSOR | Na dotaz | Zadat poptávku | |
| 231 2 WHR61906 |
C00343341
481946689101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 233 0 WHR61906 |
C00339653
481940479375 |
Holder ,EvaporatorEvaporator | Na dotaz | Zadat poptávku | |
| 233 1 WHR61906 |
C00339620
481940479374 |
drzak vyparniku | 268 Kč
€ 10.60 |
||
| 242 0 WHR61906 |
C00586873
481941879021 |
zasuvka na zeleninu | 1 114 Kč
€ 44.00 |
||
| 242 7 WHR61906 |
C00557446
481941879193 |
kos mraznicky | 1 579 Kč
€ 62.30 |
||
| 242 9 WHR61906 |
C00341222
481941879194 |
Drawer small | Na dotaz | Zadat poptávku | |
| 244 4 WHR61906 |
C00336388
481945819605 |
Shelf flap | Na dotaz | Zadat poptávku | |
| 245 0 WHR61906 |
C00340275
481945868085 |
rost lednice | 1 260 Kč
€ 49.70 |
||
| 245 1 WHR61906 |
C00488260
481945868087 |
ROST N | Na dotaz | Zadat poptávku | |
| 249 0 WHR61906 |
C00335303
481946088514 |
Trim | Na dotaz | Zadat poptávku | |
| 249 3 WHR61906 |
C00316803
481946089247 |
Trim | Na dotaz | Zadat poptávku | |
| 252 0 WHR61906 |
C00342762
481941878586 |
Casing thermostat | Na dotaz | Zadat poptávku | |
| 252 1 WHR61906 |
C00342351
481946279393 |
krabicka termostatu | 248 Kč
€ 9.80 |
||
| 252 2 WHR61906 |
C00587310
481940478494 |
DRYIA PRE TERMOSTAT N | Na dotaz | Zadat poptávku | |
| 252 3 WHR61906 |
C00575016
481941878813 |
KRYT TERMOSTATU N | Na dotaz | Zadat poptávku | |
| 252 7 WHR61906 |
C00586955
481946279405 |
SPINAC N | Na dotaz | Zadat poptávku | |
| 255 0 WHR61906 |
C00320102
481946678139 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 263 0 WHR61906 |
C00340172
481946238886 |
kolejnice kose | Na dotaz | Zadat poptávku | |
| 301 0 WHR61906 |
C00587311
481940478649 |
HORNŚ PANEL N | Na dotaz | Zadat poptávku | |
| 301 1 WHR61906 |
C00587385
481945299755 |
Front. | Na dotaz | Zadat poptávku | |
| 301 2 WHR61906 |
C00574286
481940478495 |
DRYIAK PRE GOMB?K N | Na dotaz | Zadat poptávku | |
| 324 0 WHR61906 |
C00587403
481946049368 |
KRYTKA HORNEHO ZAVESU N | Na dotaz | Zadat poptávku | |
| 332 0 WHR61906 |
C00574287
481941028561 |
TLAAIDLO N | Na dotaz | Zadat poptávku | |
| 335 0 WHR61906 |
C00338435
481941348107 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 335 1 WHR61906 |
C00587319
481941128794 |
GOMB?K TERMOSTATU PLAST. N | Na dotaz | Zadat poptávku | |
| 339 0 WHR61906 |
C00574661
481953598445 |
PRIDRZIAVAC plast. N | Na dotaz | Zadat poptávku | |
| 351 2 WHR61906 |
C00481749
481913448435 |
SIGNÁLKA ČERVENÁ | Na dotaz | Zadat poptávku | |
| 402 0 WHR61906 |
C00574336
481236038579 |
KOMPRESOR CHLADENIA N | Na dotaz | Zadat poptávku | |
| 402 1 WHR61906 |
C00574610
481941878833 |
ZACHYT?VAA VODY PRE KOMPRESOR N | Na dotaz | Zadat poptávku | |
| 403 0 WHR61906 |
C00555060
481236038635 |
Compressor BP1084Z.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR61906 |
C00574639
481946288104 |
Cover conn.bloc. | Na dotaz | Zadat poptávku | |
| 491 1 WHR61906 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR61906 |
C00312010
481927128788 |
Thermostat A13-0103-26 | Na dotaz | Zadat poptávku | |
| 561 0 WHR61906 |
C00574291
481203618926 |
Protect,motor 4TM 205 NFBY, per BP1084Z. | Na dotaz | Zadat poptávku | |
| 561 2 WHR61906 |
C00574600
481929068424 |
CONNECT.BLOCK. | Na dotaz | Zadat poptávku | |
| 561 7 WHR61906 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 566 2 WHR61906 |
C00557399
481927128791 |
termostat A04-0134 | 713 Kč
€ 28.10 |
||
| 614 0 WHR61906 |
C00574279
481928068312 |
RELÉ | 919 Kč
€ 36.30 |
||
| 614 1 WHR61906 |
C00527059
481228068331 |
Monoblock | Na dotaz | Zadat poptávku | |
| 620 0 WHR61906 |
C00316468
481927618259 |
tlacitko zlute-topen | 951 Kč
€ 37.50 |
||
| 620 1 WHR61906 |
C00341478
481927618261 |
Tlačítko zelené - signálka | 743 Kč
€ 29.30 |
||
| 651 0 WHR61906 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR61906 |
C00339514
481946698567 |
Holder,thermom. f. ATE | Na dotaz | Zadat poptávku | |
| 740 0 WHR61906 |
C00574651
481951148489 |
CHLADIA N | Na dotaz | Zadat poptávku | |
| 740 3 WHR61906 |
C00333137
481946698259 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 2 WHR61906 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR61906 |
C00335471
481946278785 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 781 1 WHR61906 |
C00494680
481952648478 |
trubice odtokova | 78 Kč
€ 3.10 |
||
| 781 2 WHR61906 |
C00337206
481952928168 |
Water conveyor | Na dotaz | Zadat poptávku | |
| 781 3 WHR61906 |
C00574656
481952648316 |
SPOJOVACÍ KUS | 145 Kč
€ 5.70 |
||
| 903 0 WHR61906 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 903 2 WHR61906 |
C00333168
481949248154 |
zaslepka | 100 Kč
€ 3.90 |
||
| 912 0 WHR61906 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 912 1 WHR61906 |
C00336669
481950218338 |
Screw | Na dotaz | Zadat poptávku | |
| 934 2 WHR61906 |
C00513874
481949268648 |
SPRING. | Na dotaz | Zadat poptávku | |
| 962 0 WHR61906 |
C00587413
481946089163 |
Bracket. | Na dotaz | Zadat poptávku | |
| 965 0 WHR61906 |
C00336022
481946278448 |
Stopper | Na dotaz | Zadat poptávku | |
| 993 2 WHR61906 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR61906 |
C00587294
481931039475 |
Door revers.Kit. | Na dotaz | Zadat poptávku | |
| 999 WHR61906 |
C00677461 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
