Komerční kód: | ARL 702/1-LH REFRIGERATORS IG |
Kód 12NC: | 853970201090 |
Značka: | IGNIS |
Typ produktu: | Vestavné lednice s mrazákem |
Další podobné modely: | 853970201091, 853970201094, 853970201092, 853970201093 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

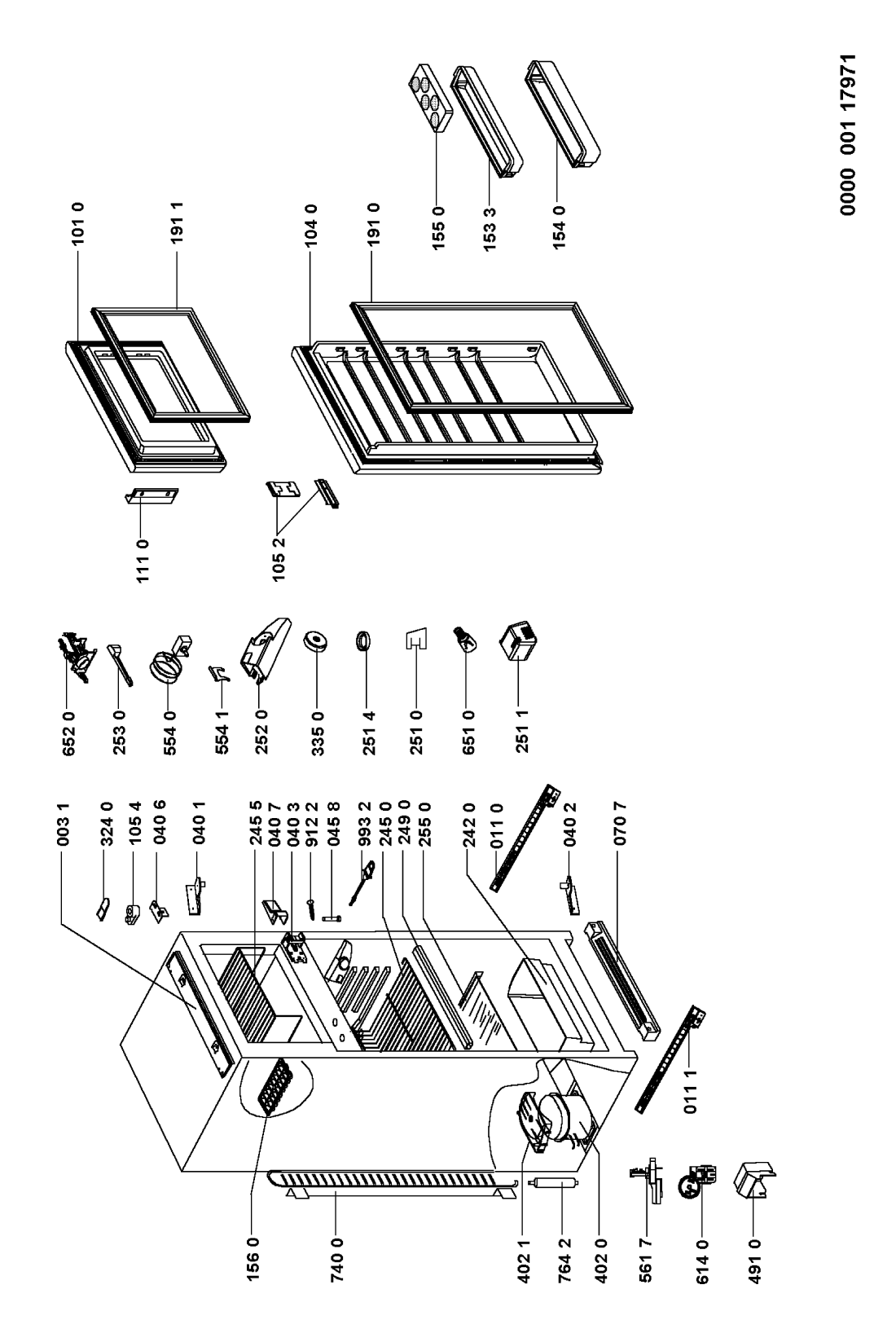

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
003 1 WHR61658 |
C00340983
481246058312 |
Fastener upper | Na dotaz | Zadat poptávku | |
011 0 WHR61658 |
C00319497
481246248064 |
noha vest.chladnicky | 554 Kč
€ 21.90 |
||
011 1 WHR61658 |
C00319499
481246248065 |
noha vest.chladnicky | 533 Kč
€ 21.00 |
||
040 1 WHR61658 |
C00339753
481241718791 |
Hinge upper right | Na dotaz | Zadat poptávku | |
040 2 WHR61658 |
C00339796
481241718792 |
Hinge lower right | Na dotaz | Zadat poptávku | |
040 3 WHR61658 |
C00311902
481941719541 |
zaves dveri stredni | 989 Kč
€ 39.00 |
||
040 6 WHR61658 |
C00332927
481940118819 |
Bracket | Na dotaz | Zadat poptávku | |
040 7 WHR61658 |
C00342321
481946258357 |
Cover,hinge | Na dotaz | Zadat poptávku | |
045 8 WHR61658 |
C00311311
481953598188 |
Osa závěsu dveří vestavné lednice Whirlpool | 287 Kč
€ 11.30 |
||
070 7 WHR61658 |
C00340263
481244088105 |
sokl | 220 Kč
€ 8.70 |
||
101 0 WHR61658 |
C00587353
481944268671 |
Door,freezer. | Na dotaz | Zadat poptávku | |
104 0 WHR61658 |
C00557487
481944268669 |
DVERE CHLADNICKY | Na dotaz | Zadat poptávku | |
105 2 WHR61658 |
C00315571
481931039838 |
posouvac-sada | Na dotaz | Zadat poptávku | |
105 4 WHR61658 |
C00312022
481953268815 |
Pouzdro závěsu | 526 Kč
€ 20.80 |
||
111 0 WHR61658 |
C00587448
481949878214 |
RUKOVAT DVERI N | Na dotaz | Zadat poptávku | |
153 3 WHR61658 |
C00333010
481941879332 |
Door,dairy | Na dotaz | Zadat poptávku | |
154 0 WHR61658 |
C00344315
481941879479 |
police lahvi | Na dotaz | Zadat poptávku | |
155 0 WHR61658 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
156 0 WHR61658 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
191 0 WHR61658 |
C00492513
481946818258 |
tesneni magneticke | 2 194 Kč
€ 86.60 |
||
191 1 WHR61658 |
C00384440
481946818259 |
Magnetic seal freezer | Na dotaz | Zadat poptávku | |
242 0 WHR61658 |
C00557455
481941879569 |
zasuvka na zeleninu | 917 Kč
€ 36.20 |
||
245 0 WHR61658 |
C00333053
481945868187 |
rost lednice | 1 460 Kč
€ 57.60 |
||
245 5 WHR61658 |
C00382556
481945868049 |
GRID | Na dotaz | Zadat poptávku | |
249 0 WHR61658 |
C00335288
481946089469 |
Trim | Na dotaz | Zadat poptávku | |
251 0 WHR61658 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
251 1 WHR61658 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
251 4 WHR61658 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
252 0 WHR61658 |
C00343909
481246279653 |
Cabinet lamp / thermos | Na dotaz | Zadat poptávku | |
253 0 WHR61658 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
255 0 WHR61658 |
C00374285
481946678401 |
Crisper cover | Na dotaz | Zadat poptávku | |
324 0 WHR61658 |
C00342500
481244028856 |
krytka | 89 Kč
€ 3.50 |
||
335 0 WHR61658 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
402 0 WHR61658 |
C00555100
481236038834 |
Compressor | Na dotaz | Zadat poptávku | |
402 1 WHR61658 |
C00333005
481941878641 |
miska na kondenzat | 171 Kč
€ 6.80 |
||
491 0 WHR61658 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
554 0 WHR61658 |
C00311608
481927129054 |
Thermostat A13-0447-33 | Na dotaz | Zadat poptávku | |
554 1 WHR61658 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
561 7 WHR61658 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
614 0 WHR61658 |
C00338679
481228038008 |
Integrato E+ AD47BU10 / Y5 | Na dotaz | Zadat poptávku | |
651 0 WHR61658 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
652 0 WHR61658 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
740 0 WHR61658 |
C00486280
481251148283 |
Condenser | Na dotaz | Zadat poptávku | |
764 2 WHR61658 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
912 2 WHR61658 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
993 2 WHR61658 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
993 9 WHR61658 |
C00587293
481931039391 |
MONTAZNA SADA | Na dotaz | Zadat poptávku | |
999 WHR61658 |
C00677155 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
