WHIRLPOOL ART 397/A
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ART 397/A |
| Kód 12NC: | 856439718000 |
| I.C. kód: | 856439718004 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 856439718003, 856439718000, 856439718001, 856439718002 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

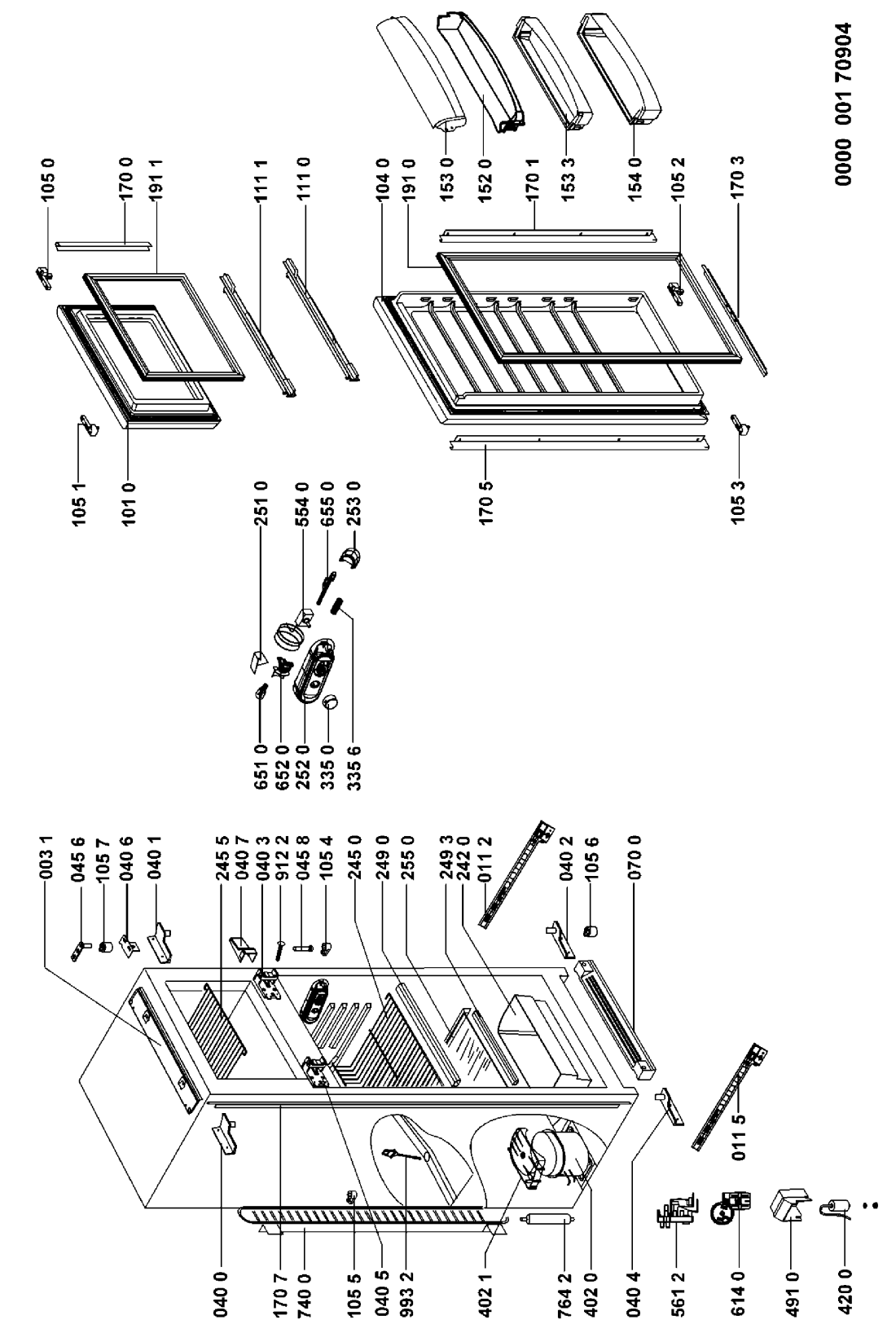

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR40492 |
C00491770
481244079076 |
Front | Na dotaz | Zadat poptávku | |
| 011 2 WHR40492 |
C00491906
481246218201 |
Foot | Na dotaz | Zadat poptávku | |
| 011 5 WHR40492 |
C00491907
481246218202 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR40492 |
C00488970
481241719163 |
Hinge top left | Na dotaz | Zadat poptávku | |
| 040 1 WHR40492 |
C00496637
481241719164 |
Hinge top right | Na dotaz | Zadat poptávku | |
| 040 2 WHR40492 |
C00488971
481241719165 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR40492 |
C00488969
481241719162 |
Hinge center | Na dotaz | Zadat poptávku | |
| 040 4 WHR40492 |
C00488972
481241719166 |
Hinge bottom | Na dotaz | Zadat poptávku | |
| 040 5 WHR40492 |
C00488968
481241719161 |
Hinge center | Na dotaz | Zadat poptávku | |
| 040 6 WHR40492 |
C00484359
481940118837 |
SMALL PLATE | Na dotaz | Zadat poptávku | |
| 040 7 WHR40492 |
C00484936
481241778107 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 045 6 WHR40492 |
C00484396
481941718655 |
Bearing hinge | Na dotaz | Zadat poptávku | |
| 045 8 WHR40492 |
C00311311
481953598188 |
Osa závěsu dveří vestavné lednice Whirlpool | 287 Kč
€ 11.30 |
||
| 070 0 WHR40492 |
C00490243
481270448015 |
Plinth | Na dotaz | Zadat poptávku | |
| 101 0 WHR40492 |
C00458560
481241619985 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR40492 |
C00484827
481241618817 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 105 0 WHR40492 |
C00480556
481940478788 |
Support upper left | Na dotaz | Zadat poptávku | |
| 105 1 WHR40492 |
C00480555
481940478787 |
Support upper right | Na dotaz | Zadat poptávku | |
| 105 2 WHR40492 |
C00480554
481940478786 |
Support lower left | Na dotaz | Zadat poptávku | |
| 105 3 WHR40492 |
C00480553
481940478785 |
Support lower right | Na dotaz | Zadat poptávku | |
| 105 4 WHR40492 |
C00492649
481953268108 |
Stop door upper | Na dotaz | Zadat poptávku | |
| 105 5 WHR40492 |
C00492486
481946689481 |
Stop door | Na dotaz | Zadat poptávku | |
| 105 6 WHR40492 |
C00314341
481244688139 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 7 WHR40492 |
C00344100
481244688141 |
Bushing | Na dotaz | Zadat poptávku | |
| 111 0 WHR40492 |
C00487738
481246268882 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR40492 |
C00490098
481246228527 |
Insert | Na dotaz | Zadat poptávku | |
| 152 0 WHR40492 |
C00316998
481241828431 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR40492 |
C00329920
481241828432 |
Flap f.door dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR40492 |
C00327676
481241828611 |
DAIRY DOOR | Na dotaz | Zadat poptávku | |
| 154 0 WHR40492 |
C00329852
481241818631 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 170 0 WHR40492 |
C00485923
481246079067 |
Profile | Na dotaz | Zadat poptávku | |
| 170 1 WHR40492 |
C00592867
481246079068 |
Profile side. | Na dotaz | Zadat poptávku | |
| 170 3 WHR40492 |
C00485922
481246079066 |
Profile bottom | Na dotaz | Zadat poptávku | |
| 170 5 WHR40492 |
C00486672
481946058943 |
Trim crisper cooling | Na dotaz | Zadat poptávku | |
| 170 7 WHR40492 |
C00545034
481246049411 |
Trim | Na dotaz | Zadat poptávku | |
| 191 0 WHR40492 |
C00380262
481946818266 |
Magnetic seal refrigerator | Na dotaz | Zadat poptávku | |
| 191 1 WHR40492 |
C00384440
481946818259 |
Magnetic seal freezer | Na dotaz | Zadat poptávku | |
| 242 0 WHR40492 |
C00374309
481941879567 |
Crisper | Na dotaz | Zadat poptávku | |
| 245 0 WHR40492 |
C00333053
481945868187 |
rost lednice | 1 460 Kč
€ 57.60 |
||
| 245 5 WHR40492 |
C00384441
481245848398 |
Grid | 1 227 Kč
€ 48.40 |
||
| 249 0 WHR40492 |
C00345173
481246049361 |
lista kryci rostu | 649 Kč
€ 25.60 |
||
| 249 3 WHR40492 |
C00314579
481246049346 |
Krycí lišta skleněné police chladničky Whirlpool - přední | 322 Kč
€ 12.70 |
||
| 251 0 WHR40492 |
C00319193
481246048927 |
reflektor | 200 Kč
€ 7.90 |
||
| 252 0 WHR40492 |
C00312480
481244079219 |
Casing | Na dotaz | Zadat poptávku | |
| 253 0 WHR40492 |
C00311648
481246228545 |
kryt-plast | 734 Kč
€ 28.90 |
||
| 255 0 WHR40492 |
C00374285
481946678401 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 335 0 WHR40492 |
C00311920
481241078172 |
knoflik termostatu | 605 Kč
€ 23.90 |
||
| 335 6 WHR40492 |
C00312939
481249148014 |
pruzina | 382 Kč
€ 15.10 |
||
| 402 0 WHR40492 |
C00320283
481236038664 |
Compressor NBT1116Y | Na dotaz | Zadat poptávku | |
| 402 1 WHR40492 |
C00329910
481241828025 |
miska na kondenzat | 152 Kč
€ 6.00 |
||
| 420 0 WHR40492 |
C00326754
481212028039 |
KONDENZÁTOR 4 µF | Na dotaz | Zadat poptávku | |
| 491 0 WHR40492 |
C00256948
481229088103 |
KRYT SVORKOVNICE COMPRESS. | Na dotaz | Zadat poptávku | |
| 554 0 WHR40492 |
C00311069
481228238175 |
Termostat K59-S2785+držák termostatu | 778 Kč
€ 30.70 |
||
| 561 2 WHR40492 |
C00256950
481229068325 |
kryt rele | 601 Kč
€ 23.70 |
||
| 614 0 WHR40492 |
C00327476
481228038116 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR40492 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR40492 |
C00311531
481246698982 |
Držák termostatu | 726 Kč
€ 28.60 |
||
| 655 0 WHR40492 |
C00311795
481227618362 |
Páčka osvětlení | 995 Kč
€ 39.20 |
||
| 740 0 WHR40492 |
C00486280
481251148283 |
Condenser | Na dotaz | Zadat poptávku | |
| 764 2 WHR40492 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 912 2 WHR40492 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 993 2 WHR40492 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR40492 |
C00490368
481931039571 |
Door revers.Kit not shown | Na dotaz | Zadat poptávku | |
