WHIRLPOOL ART 476/R REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ART 476/R REFRIGERATORS WP |
| Kód 12NC: | 856447601020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 856447601021, 856447610010, 856447610011, 856447610012 |
Potřebujete servis? Jsme tady pro Vás

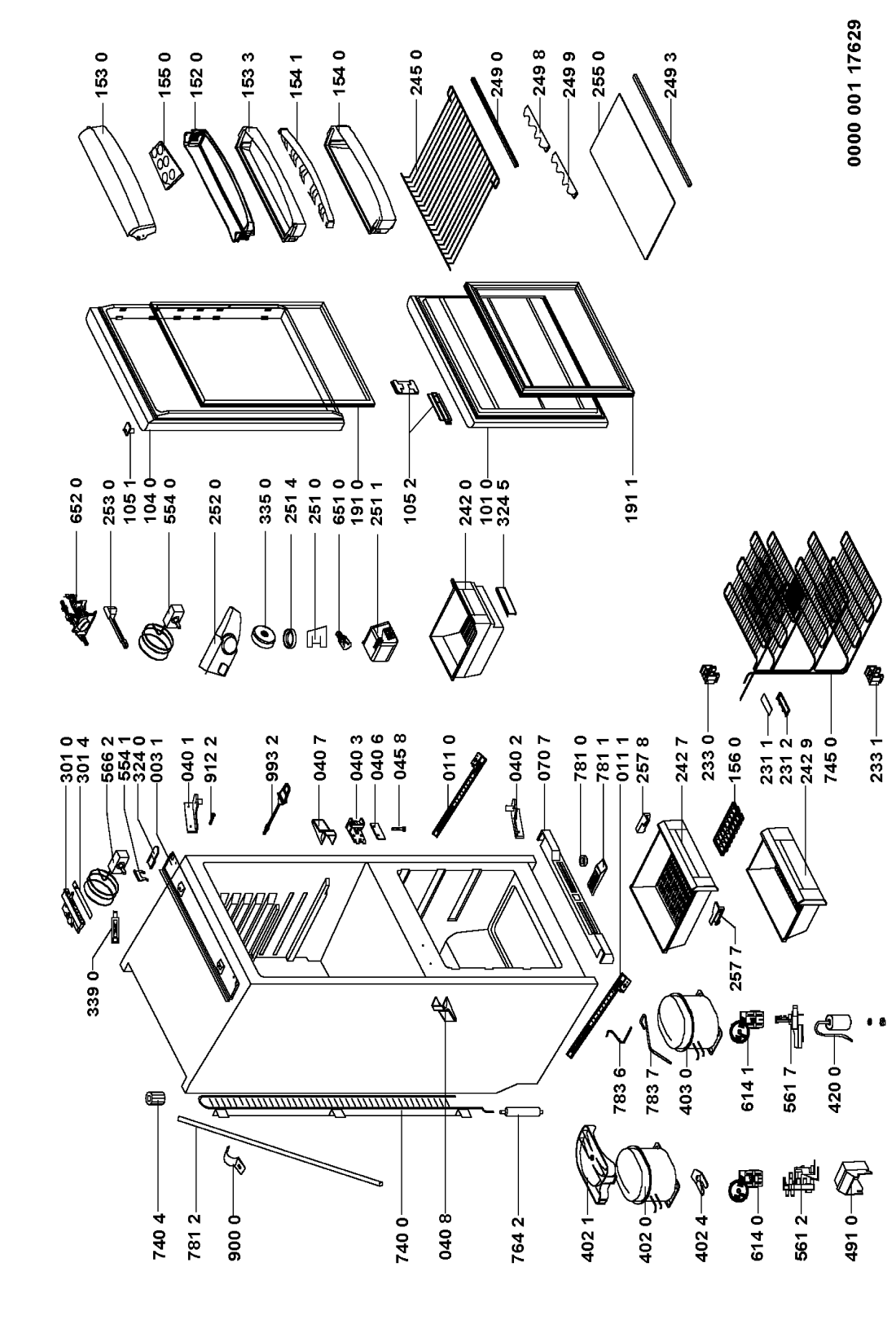

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR53784 |
C00340983
481246058312 |
Fastener upper | Na dotaz | Zadat poptávku | |
| 011 0 WHR53784 |
C00319497
481246248064 |
noha vest.chladnicky | 554 Kč
€ 21.90 |
||
| 011 1 WHR53784 |
C00319499
481246248065 |
noha vest.chladnicky | 533 Kč
€ 21.00 |
||
| 040 1 WHR53784 |
C00339753
481241718791 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 2 WHR53784 |
C00339796
481241718792 |
Hinge lower right | Na dotaz | Zadat poptávku | |
| 040 3 WHR53784 |
C00311902
481941719541 |
zaves dveri stredni | 989 Kč
€ 39.00 |
||
| 040 6 WHR53784 |
C00332927
481940118819 |
Bracket | Na dotaz | Zadat poptávku | |
| 040 7 WHR53784 |
C00342321
481946258357 |
Cover,hinge | Na dotaz | Zadat poptávku | |
| 040 8 WHR53784 |
C00342322
481946258358 |
Cover,hinge | Na dotaz | Zadat poptávku | |
| 045 8 WHR53784 |
C00311311
481953598188 |
Osa závěsu dveří vestavné lednice Whirlpool | 287 Kč
€ 11.30 |
||
| 070 7 WHR53784 |
C00340263
481244088105 |
sokl | 220 Kč
€ 8.70 |
||
| 101 0 WHR53784 |
C00341331
481944269002 |
Door,freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR53784 |
C00317535
481944269378 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 105 1 WHR53784 |
C00312022
481953268815 |
Pouzdro závěsu | 526 Kč
€ 20.80 |
||
| 105 2 WHR53784 |
C00315571
481931039838 |
posouvac-sada | Na dotaz | Zadat poptávku | |
| 152 0 WHR53784 |
C00319980
481941879726 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR53784 |
C00317537
481944278363 |
Lid ,dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR53784 |
C00340623
481941879578 |
GALERIE | Na dotaz | Zadat poptávku | |
| 154 0 WHR53784 |
C00313323
481941879576 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR53784 |
C00318101
481946078513 |
drzak lahvi modry | 1 218 Kč
€ 48.10 |
||
| 155 0 WHR53784 |
C00339624
481946089533 |
držák na vajíčka (6 ks vajec) | Na dotaz | Zadat poptávku | |
| 156 0 WHR53784 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR53784 |
C00315639
481946818321 |
Těsnění magnetické na chladničku Whirlpool | 1 632 Kč
€ 64.40 |
||
| 191 1 WHR53784 |
C00314263
481946818317 |
Těsnění magnetické dveří mrazáku Whirlpool | 1 390 Kč
€ 54.90 |
||
| 231 1 WHR53784 |
C00333126
481946688956 |
PLATE THERMOSTAT SENSOR | Na dotaz | Zadat poptávku | |
| 231 2 WHR53784 |
C00343341
481946689101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 233 0 WHR53784 |
C00317306
481940479432 |
prichytka vyparniku | 782 Kč
€ 30.90 |
||
| 233 1 WHR53784 |
C00316783
481940479552 |
Držák výparníku | 58 Kč
€ 2.30 |
||
| 242 0 WHR53784 |
C00319982
481941879741 |
zasuvka na zeleninu | Na dotaz | Zadat poptávku | |
| 242 7 WHR53784 |
C00313094
481941879767 |
Koš mrazničky horní/prostřední Whirlpool | 1 387 Kč
€ 54.80 |
||
| 242 9 WHR53784 |
C00315046
481941879771 |
Drawer | Na dotaz | Zadat poptávku | |
| 245 0 WHR53784 |
C00333053
481945868187 |
rost lednice | 1 460 Kč
€ 57.60 |
||
| 249 0 WHR53784 |
C00337477
481946089624 |
Trim, grid | Na dotaz | Zadat poptávku | |
| 249 3 WHR53784 |
C00316803
481946089247 |
Trim | Na dotaz | Zadat poptávku | |
| 249 8 WHR53784 |
C00339647
481944278304 |
drzak lahvi | 1 104 Kč
€ 43.60 |
||
| 249 9 WHR53784 |
C00339648
481944278305 |
drzak lahvi | 1 121 Kč
€ 44.30 |
||
| 251 0 WHR53784 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR53784 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
| 251 4 WHR53784 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 252 0 WHR53784 |
C00343909
481246279653 |
Cabinet lamp / thermos | Na dotaz | Zadat poptávku | |
| 253 0 WHR53784 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
| 255 0 WHR53784 |
C00314253
481946678415 |
Skleněná police nad zásuvku ovoce/zelenina | 905 Kč
€ 35.70 |
||
| 257 7 WHR53784 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR53784 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 301 0 WHR53784 |
C00379142
481945299855 |
panel ovladaci chl. | 3 507 Kč
€ 138.50 |
||
| 301 4 WHR53784 |
C00592936
481946078824 |
VLOZKA PANELU | 480 Kč
€ 18.90 |
||
| 324 0 WHR53784 |
C00342500
481244028856 |
krytka | 89 Kč
€ 3.50 |
||
| 324 5 WHR53784 |
C00499300
481945919511 |
kryt zasuvky | 218 Kč
€ 8.60 |
||
| 335 0 WHR53784 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 339 0 WHR53784 |
C00332731
481253598051 |
tycka termostatu | 277 Kč
€ 10.90 |
||
| 402 0 WHR53784 |
C00343571
481936058792 |
Compressor EMT26CLP | Na dotaz | Zadat poptávku | |
| 402 1 WHR53784 |
C00335355
481941879552 |
miska na kondenzat | 137 Kč
€ 5.40 |
||
| 402 4 WHR53784 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 403 0 WHR53784 |
C00555056
481236038619 |
KOMPRESOR BPK1111Y N | Na dotaz | Zadat poptávku | |
| 420 0 WHR53784 |
C00557918
481212028013 |
KONDENZATOR N | Na dotaz | Zadat poptávku | |
| 491 0 WHR53784 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR53784 |
C00380918
481927129079 |
Thermostat A13-0467-24 | Na dotaz | Zadat poptávku | |
| 554 1 WHR53784 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 2 WHR53784 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 561 7 WHR53784 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 566 2 WHR53784 |
C00384267
481927129072 |
termostat A04-0288- | Na dotaz | Zadat poptávku | |
| 614 0 WHR53784 |
C00333356
481969028199 |
Monoblock | Na dotaz | Zadat poptávku | |
| 614 1 WHR53784 |
C00492946
481228068329 |
MONOBLOK AD47BU10 N | Na dotaz | Zadat poptávku | |
| 651 0 WHR53784 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR53784 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
| 740 0 WHR53784 |
C00486277
481251148266 |
CHLADIC N | Na dotaz | Zadat poptávku | |
| 740 4 WHR53784 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR53784 |
C00481060
481951138699 |
vyparnik | 2 633 Kč
€ 103.90 |
||
| 764 2 WHR53784 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR53784 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR53784 |
C00342192
481941878208 |
kanal odtokovy | 189 Kč
€ 7.50 |
||
| 781 2 WHR53784 |
C00333294
481953029042 |
Tube | Na dotaz | Zadat poptávku | |
| 783 6 WHR53784 |
C00494761
481953048839 |
TRUBICKA ART480 | 435 Kč
€ 17.20 |
||
| 783 7 WHR53784 |
C00494762
481953048841 |
HADICKA ART480 N | Na dotaz | Zadat poptávku | |
| 900 0 WHR53784 |
C00333149
481946699138 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 912 2 WHR53784 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 993 2 WHR53784 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR53784 |
C00317280
481931039545 |
balicek montazni | 744 Kč
€ 29.40 |
||
| 999 WHR53784 |
C00659153 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
