WHIRLPOOL ART 480/R REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ART 480/R REFRIGERATORS WP |
| Kód 12NC: | 856448001000 |
| I.C. kód: | 856448001001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 856448001000 |
Potřebujete servis? Jsme tady pro Vás

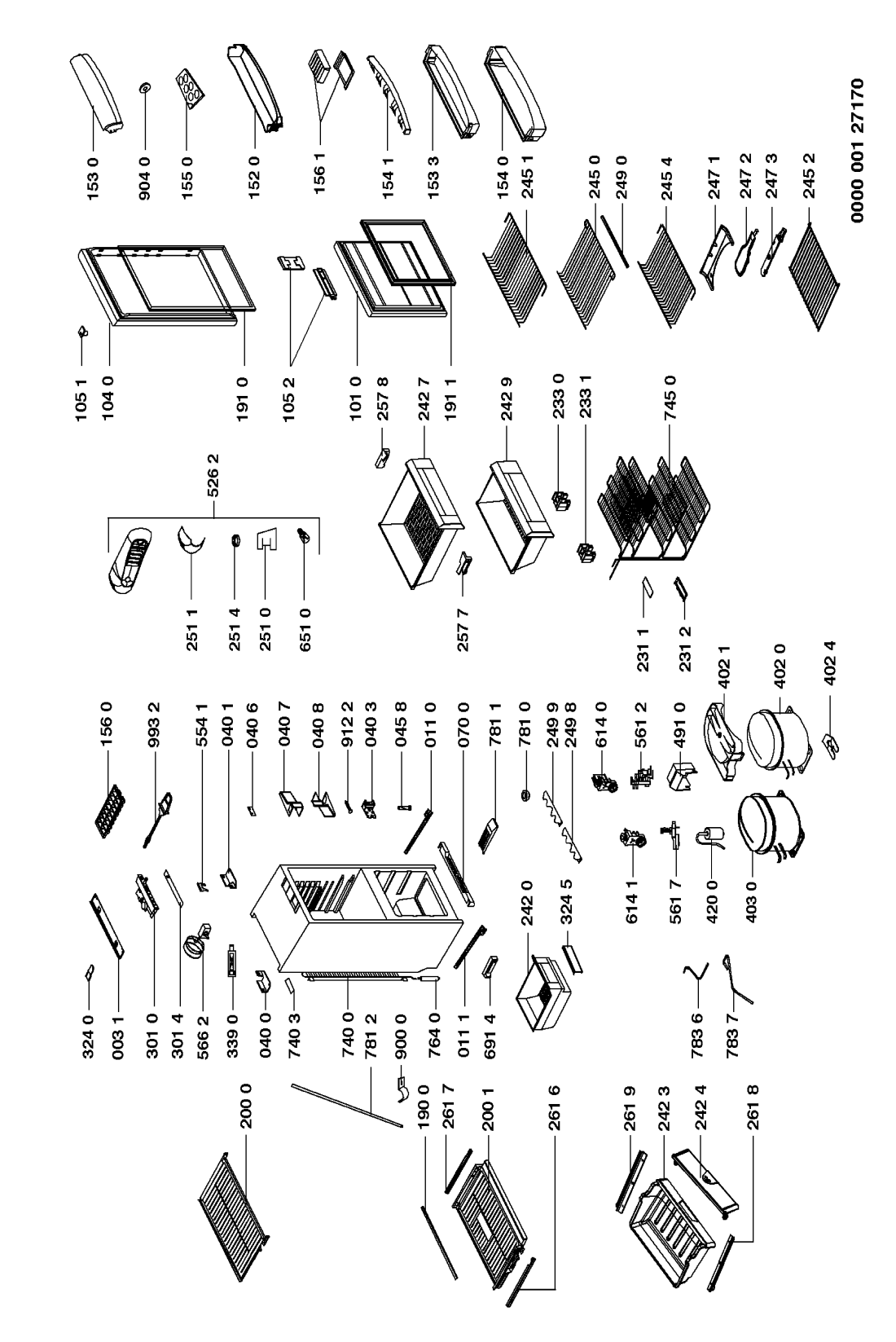

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR91624 |
C00330364
481246058387 |
lista | 968 Kč
€ 38.20 |
||
| 011 0 WHR91624 |
C00340812
481946238905 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR91624 |
C00340813
481946238906 |
foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR91624 |
C00314340
481241719197 |
Závěs | 904 Kč
€ 35.70 |
||
| 040 1 WHR91624 |
C00314342
481241719198 |
Závěs | 961 Kč
€ 37.90 |
||
| 040 3 WHR91624 |
C00311902
481941719541 |
zaves dveri stredni | 989 Kč
€ 39.00 |
||
| 040 6 WHR91624 |
C00332927
481940118819 |
Bracket | Na dotaz | Zadat poptávku | |
| 040 7 WHR91624 |
C00315526
481241778105 |
kryt závěsu | 842 Kč
€ 33.20 |
||
| 040 8 WHR91624 |
C00315528
481241778106 |
kryt závěsu | 736 Kč
€ 29.10 |
||
| 045 8 WHR91624 |
C00311311
481953598188 |
Osa závěsu dveří vestavné lednice Whirlpool | 287 Kč
€ 11.30 |
||
| 070 0 WHR91624 |
C00328392
481244089054 |
Lišta větrací | 988 Kč
€ 39.00 |
||
| 101 0 WHR91624 |
C00312319
481241618822 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR91624 |
C00592587
481241618824 |
Dveře chladničky | Na dotaz | Zadat poptávku | |
| 105 1 WHR91624 |
C00312022
481953268815 |
Pouzdro závěsu | 526 Kč
€ 20.80 |
||
| 105 2 WHR91624 |
C00340183
481252518017 |
Guide | Na dotaz | Zadat poptávku | |
| 152 0 WHR91624 |
C00511338
481241828465 |
POLICKA DVERI | Na dotaz | Zadat poptávku | |
| 153 0 WHR91624 |
C00592922
481944278455 |
VEKO POLICKY ART480 N | Na dotaz | Zadat poptávku | |
| 153 3 WHR91624 |
C00583689
481241879893 |
NAHRADA 481241828464 | Na dotaz | Zadat poptávku | |
| 154 0 WHR91624 |
C00313323
481941879576 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR91624 |
C00318101
481946078513 |
drzak lahvi modry | 1 218 Kč
€ 48.10 |
||
| 155 0 WHR91624 |
C00339624
481946089533 |
držák na vajíčka (6 ks vajec) | Na dotaz | Zadat poptávku | |
| 156 0 WHR91624 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 156 1 WHR91624 |
C00555266
481241879863 |
Box,butter.. | Na dotaz | Zadat poptávku | |
| 190 0 WHR91624 |
C00485905
481246058386 |
Trim | Na dotaz | Zadat poptávku | |
| 191 0 WHR91624 |
C00315639
481946818321 |
Těsnění magnetické na chladničku Whirlpool | 1 632 Kč
€ 64.40 |
||
| 191 1 WHR91624 |
C00314263
481946818317 |
Těsnění magnetické dveří mrazáku Whirlpool | 1 390 Kč
€ 54.90 |
||
| 200 0 WHR91624 |
C00377691
481241848625 |
rošt plastovy | 1 261 Kč
€ 49.80 |
||
| 200 1 WHR91624 |
C00380417
481241828479 |
Police komplet-plast | 1 312 Kč
€ 51.80 |
||
| 231 1 WHR91624 |
C00333126
481946688956 |
PLATE THERMOSTAT SENSOR | Na dotaz | Zadat poptávku | |
| 231 2 WHR91624 |
C00343341
481946689101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 233 0 WHR91624 |
C00317306
481940479432 |
prichytka vyparniku | 782 Kč
€ 30.90 |
||
| 233 1 WHR91624 |
C00316783
481940479552 |
Držák výparníku | 58 Kč
€ 2.30 |
||
| 242 0 WHR91624 |
C00317111
481241879878 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 3 WHR91624 |
C00380419
481241848623 |
Zásuvka | 2 309 Kč
€ 91.20 |
||
| 242 4 WHR91624 |
C00374300
481944278472 |
viko police | 1 251 Kč
€ 49.40 |
||
| 242 7 WHR91624 |
C00592603
481241848628 |
NAHRADENE 481941879767 | Na dotaz | Zadat poptávku | |
| 242 9 WHR91624 |
C00345081
481241879928 |
Drawer | Na dotaz | Zadat poptávku | |
| 245 0 WHR91624 |
C00555473
481245868001 |
Grid | Na dotaz | Zadat poptávku | |
| 245 1 WHR91624 |
C00555463
481245828019 |
Grid | Na dotaz | Zadat poptávku | |
| 245 2 WHR91624 |
C00556124
481945868224 |
Grid.. | Na dotaz | Zadat poptávku | |
| 245 4 WHR91624 |
C00592926
481945868304 |
Grid. | Na dotaz | Zadat poptávku | |
| 247 1 WHR91624 |
C00492384
481944278399 |
Small plate,sid | Na dotaz | Zadat poptávku | |
| 247 2 WHR91624 |
C00498484
481246698938 |
DRZIAK MRIEZKY N | Na dotaz | Zadat poptávku | |
| 247 3 WHR91624 |
C00620446
481246698939 |
Rod. | Na dotaz | Zadat poptávku | |
| 249 0 WHR91624 |
C00529598
481246049433 |
Trim | Na dotaz | Zadat poptávku | |
| 249 8 WHR91624 |
C00339647
481944278304 |
drzak lahvi | 1 104 Kč
€ 43.60 |
||
| 249 9 WHR91624 |
C00339648
481944278305 |
drzak lahvi | 1 121 Kč
€ 44.30 |
||
| 251 0 WHR91624 |
C00555133
481238028019 |
REFLEKTOR ART480 N | Na dotaz | Zadat poptávku | |
| 251 1 WHR91624 |
C00555660
481260018002 |
KRYT ZIAROVKY ART480 N | Na dotaz | Zadat poptávku | |
| 251 4 WHR91624 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 257 7 WHR91624 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR91624 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 261 6 WHR91624 |
C00484038
481246238167 |
Slide | Na dotaz | Zadat poptávku | |
| 261 7 WHR91624 |
C00484037
481246238166 |
Pojezd | 490 Kč
€ 19.30 |
||
| 261 8 WHR91624 |
C00377800
481246238169 |
Držák -levý | 465 Kč
€ 18.40 |
||
| 261 9 WHR91624 |
C00377799
481246238168 |
Slide replaced by drawer cpl | Na dotaz | Zadat poptávku | |
| 301 0 WHR91624 |
C00379142
481945299855 |
panel ovladaci chl. | 3 507 Kč
€ 138.50 |
||
| 301 4 WHR91624 |
C00592868
481246079105 |
Insert | Na dotaz | Zadat poptávku | |
| 324 0 WHR91624 |
C00328126
481244029413 |
zaslepka | 389 Kč
€ 15.40 |
||
| 324 5 WHR91624 |
C00499300
481945919511 |
kryt zasuvky | 218 Kč
€ 8.60 |
||
| 339 0 WHR91624 |
C00332731
481253598051 |
tycka termostatu | 277 Kč
€ 10.90 |
||
| 402 0 WHR91624 |
C00343571
481936058792 |
Compressor EMT26CLP | Na dotaz | Zadat poptávku | |
| 402 1 WHR91624 |
C00335355
481941879552 |
miska na kondenzat | 137 Kč
€ 5.40 |
||
| 402 4 WHR91624 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 403 0 WHR91624 |
C00555053
481236038615 |
Compressor BPK1111Y.. | Na dotaz | Zadat poptávku | |
| 420 0 WHR91624 |
C00589682
481212118153 |
Capacitor 3ÁF | Na dotaz | Zadat poptávku | |
| 491 0 WHR91624 |
C00342331
481946288145 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 526 2 WHR91624 |
C00590809
481941879923 |
TERMOSTAT | Na dotaz | Zadat poptávku | |
| 554 1 WHR91624 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 2 WHR91624 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 561 7 WHR91624 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 566 2 WHR91624 |
C00384267
481927129072 |
termostat A04-0288- | Na dotaz | Zadat poptávku | |
| 614 0 WHR91624 |
C00333356
481969028199 |
Monoblock | Na dotaz | Zadat poptávku | |
| 614 1 WHR91624 |
C00492946
481228068329 |
MONOBLOK AD47BU10 N | Na dotaz | Zadat poptávku | |
| 651 0 WHR91624 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 691 4 WHR91624 |
C00328123
481244029395 |
Cover | Na dotaz | Zadat poptávku | |
| 740 0 WHR91624 |
C00556296
481951148653 |
CHLADIC N | Na dotaz | Zadat poptávku | |
| 740 3 WHR91624 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR91624 |
C00481060
481951138699 |
vyparnik | 2 633 Kč
€ 103.90 |
||
| 764 0 WHR91624 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR91624 |
C00331410
481245298259 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR91624 |
C00327909
481241889008 |
kanal odtokovy | 143 Kč
€ 5.60 |
||
| 781 2 WHR91624 |
C00333294
481953029042 |
Tube | Na dotaz | Zadat poptávku | |
| 783 6 WHR91624 |
C00494761
481953048839 |
TRUBICKA ART480 | 435 Kč
€ 17.20 |
||
| 783 7 WHR91624 |
C00494762
481953048841 |
HADICKA ART480 N | Na dotaz | Zadat poptávku | |
| 900 0 WHR91624 |
C00333149
481946699138 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 904 0 WHR91624 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 912 2 WHR91624 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 993 2 WHR91624 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR91624 |
C00317280
481931039545 |
balicek montazni | 744 Kč
€ 29.40 |
||
| 999 WHR91624 |
C00735462 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
