WHIRLPOOL ART 686/SL CUSTOMIZED REFRIGERAT WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ART 686/SL CUSTOMIZED REFRIGERAT WP |
| Kód 12NC: | 856468601030 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

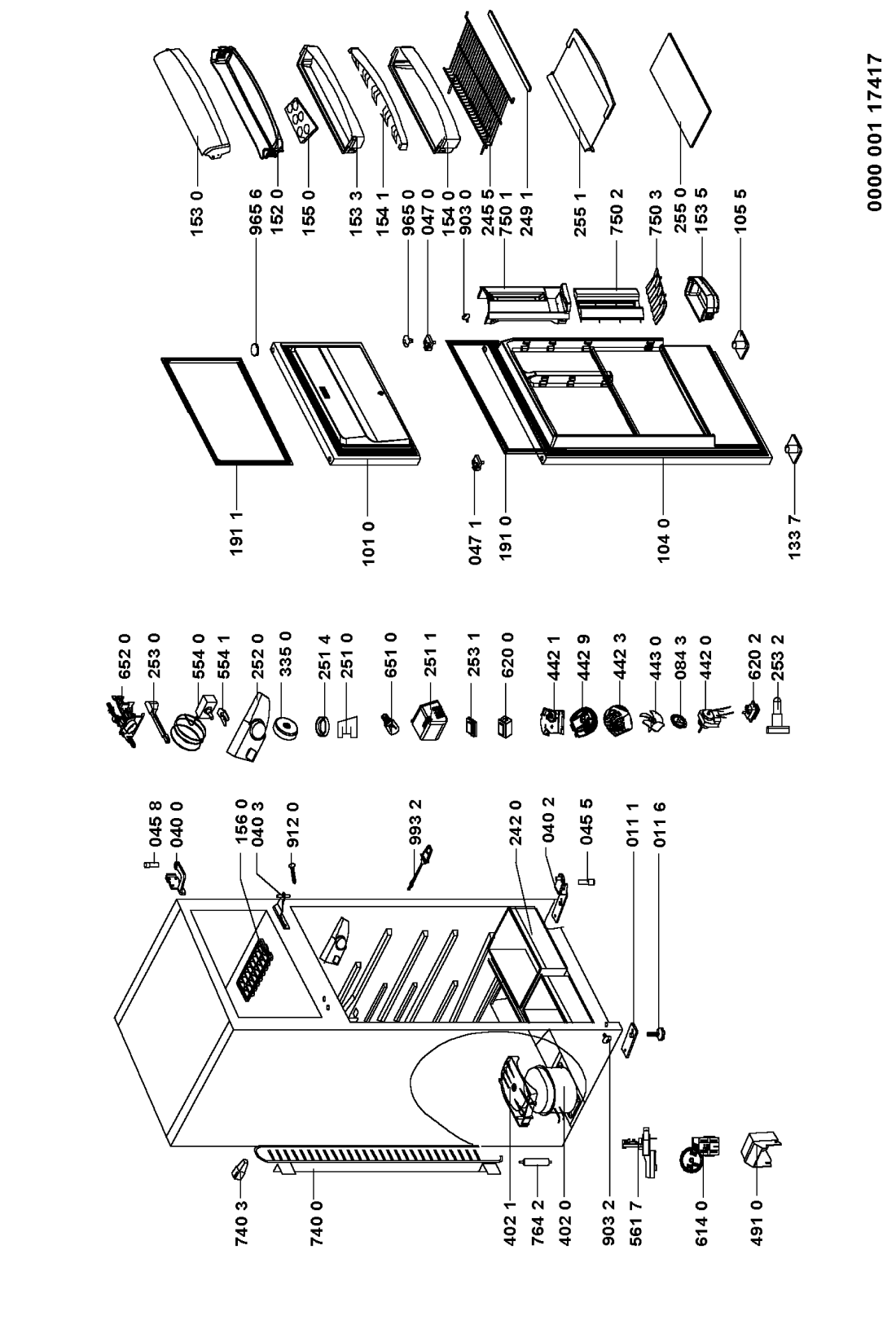

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR74822 |
C00528136
481244068983 |
SIDE PANEL /RH | Na dotaz | Zadat poptávku | |
| 001 1 WHR74822 |
C00593138
481244068984 |
Side panel /RH. | Na dotaz | Zadat poptávku | |
| 011 1 WHR74822 |
C00336245
481946699164 |
Small plate | Na dotaz | Zadat poptávku | |
| 011 6 WHR74822 |
C00333081
481946248513 |
noha | 144 Kč
€ 5.70 |
||
| 030 0 WHR74822 |
C00528139
481244068987 |
LID /RH | Na dotaz | Zadat poptávku | |
| 033 3 WHR74822 |
C00593139
481244068989 |
SMALL PLATE,MID. | Na dotaz | Zadat poptávku | |
| 040 0 WHR74822 |
C00527806
481241718847 |
HINGE /RH /RH | Na dotaz | Zadat poptávku | |
| 040 2 WHR74822 |
C00339805
481941719647 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR74822 |
C00374089
481241718914 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 045 5 WHR74822 |
C00344545
481953598677 |
Axle | Na dotaz | Zadat poptávku | |
| 045 8 WHR74822 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR74822 |
C00337809
481253088018 |
Pivot | Na dotaz | Zadat poptávku | |
| 047 1 WHR74822 |
C00337810
481253088019 |
Pivot | Na dotaz | Zadat poptávku | |
| 070 0 WHR74822 |
C00593140
481244068991 |
PLINTH. | Na dotaz | Zadat poptávku | |
| 084 3 WHR74822 |
C00333281
481952918124 |
krouzek tlumici | 495 Kč
€ 19.50 |
||
| 101 0 WHR74822 |
C00341335
481944269399 |
Door,freezer | Na dotaz | Zadat poptávku | |
| 101 1 WHR74822 |
C00593134
481244068977 |
Door cabinet /RH. | Na dotaz | Zadat poptávku | |
| 104 0 WHR74822 |
C00341308
481944269398 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 104 1 WHR74822 |
C00593137
481244068981 |
Door cabinet /RH. | Na dotaz | Zadat poptávku | |
| 105 5 WHR74822 |
C00337806
481946689479 |
Pivot left | Na dotaz | Zadat poptávku | |
| 111 0 WHR74822 |
C00487829
481249878036 |
DOOR HANDLE set (FR+RF) | Na dotaz | Zadat poptávku | |
| 133 7 WHR74822 |
C00337805
481946689478 |
Pivot right | Na dotaz | Zadat poptávku | |
| 152 0 WHR74822 |
C00319980
481941879726 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR74822 |
C00317537
481944278363 |
Lid ,dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR74822 |
C00340623
481941879578 |
GALERIE | Na dotaz | Zadat poptávku | |
| 153 5 WHR74822 |
C00341354
481941879898 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR74822 |
C00344313
481941879899 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR74822 |
C00499342
481946078885 |
PRIDRZIAVAC FLIAS ART676 N | Na dotaz | Zadat poptávku | |
| 155 0 WHR74822 |
C00339624
481946089533 |
držák na vajíčka (6 ks vajec) | Na dotaz | Zadat poptávku | |
| 156 0 WHR74822 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 170 3 WHR74822 |
C00593136
481244068979 |
Trim door. | Na dotaz | Zadat poptávku | |
| 191 0 WHR74822 |
C00587440
481946818383 |
TESNENIE DVERI MAGN. ART676 N | Na dotaz | Zadat poptávku | |
| 191 1 WHR74822 |
C00338281
481946818384 |
Magnetic seal ,freezinfreezing | Na dotaz | Zadat poptávku | |
| 242 0 WHR74822 |
C00341260
481241828057 |
Drawer | Na dotaz | Zadat poptávku | |
| 245 5 WHR74822 |
C00340292
481945868305 |
Grid | Na dotaz | Zadat poptávku | |
| 249 1 WHR74822 |
C00335239
481946089726 |
Trim grid | Na dotaz | Zadat poptávku | |
| 251 0 WHR74822 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR74822 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
| 251 4 WHR74822 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 252 0 WHR74822 |
C00342770
481246279652 |
Casing | Na dotaz | Zadat poptávku | |
| 253 0 WHR74822 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
| 253 1 WHR74822 |
C00330745
481246279645 |
Cover switch | Na dotaz | Zadat poptávku | |
| 253 2 WHR74822 |
C00342827
481946288081 |
Cap device | Na dotaz | Zadat poptávku | |
| 255 0 WHR74822 |
C00342276
481946678451 |
kryci deska | 1 758 Kč
€ 69.40 |
||
| 255 1 WHR74822 |
C00340354
481245088008 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 335 0 WHR74822 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR74822 |
C00343569
481936058759 |
Compressor EMT46CLP | Na dotaz | Zadat poptávku | |
| 402 1 WHR74822 |
C00335355
481941879552 |
miska na kondenzat | 137 Kč
€ 5.40 |
||
| 442 0 WHR74822 |
C00341651
481236118268 |
Motor,fan | Na dotaz | Zadat poptávku | |
| 442 1 WHR74822 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 442 3 WHR74822 |
C00343010
481946288074 |
Cover | Na dotaz | Zadat poptávku | |
| 442 9 WHR74822 |
C00333108
481946288073 |
kryt | 4 697 Kč
€ 185.40 |
||
| 443 0 WHR74822 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 491 0 WHR74822 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR74822 |
C00317820
481227128424 |
TERMOSTAT A13-0 | Na dotaz | Zadat poptávku | |
| 554 1 WHR74822 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 7 WHR74822 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR74822 |
C00333354
481969028196 |
Monoblock | Na dotaz | Zadat poptávku | |
| 620 0 WHR74822 |
C00316468
481927618259 |
tlacitko zlute-topen | 951 Kč
€ 37.50 |
||
| 620 2 WHR74822 |
C00319478
481927618256 |
spinac rychlorozmraz | 204 Kč
€ 8.10 |
||
| 651 0 WHR74822 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR74822 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
| 740 0 WHR74822 |
C00343544
481251148222 |
CONDENSER | Na dotaz | Zadat poptávku | |
| 740 3 WHR74822 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 750 1 WHR74822 |
C00344216
481244048223 |
Bracket ,tin | Na dotaz | Zadat poptávku | |
| 750 2 WHR74822 |
C00336215
481244048224 |
Spacer | Na dotaz | Zadat poptávku | |
| 750 3 WHR74822 |
C00344306
481944239512 |
Bottom | Na dotaz | Zadat poptávku | |
| 764 2 WHR74822 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 903 0 WHR74822 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 903 2 WHR74822 |
C00333168
481949248154 |
zaslepka | 100 Kč
€ 3.90 |
||
| 912 0 WHR74822 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 965 0 WHR74822 |
C00336022
481946278448 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 6 WHR74822 |
C00336023
481946278909 |
Stopper | Na dotaz | Zadat poptávku | |
| 993 2 WHR74822 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR74822 |
C00344675
481931039861 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 999 WHR74822 |
C00699232 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
