WHIRLPOOL ART 9730/H/AL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ART 9730/H/AL |
| Kód 12NC: | 856497301060 |
| I.C. kód: | 856497301061 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 856497301060 |
Potřebujete servis? Jsme tady pro Vás

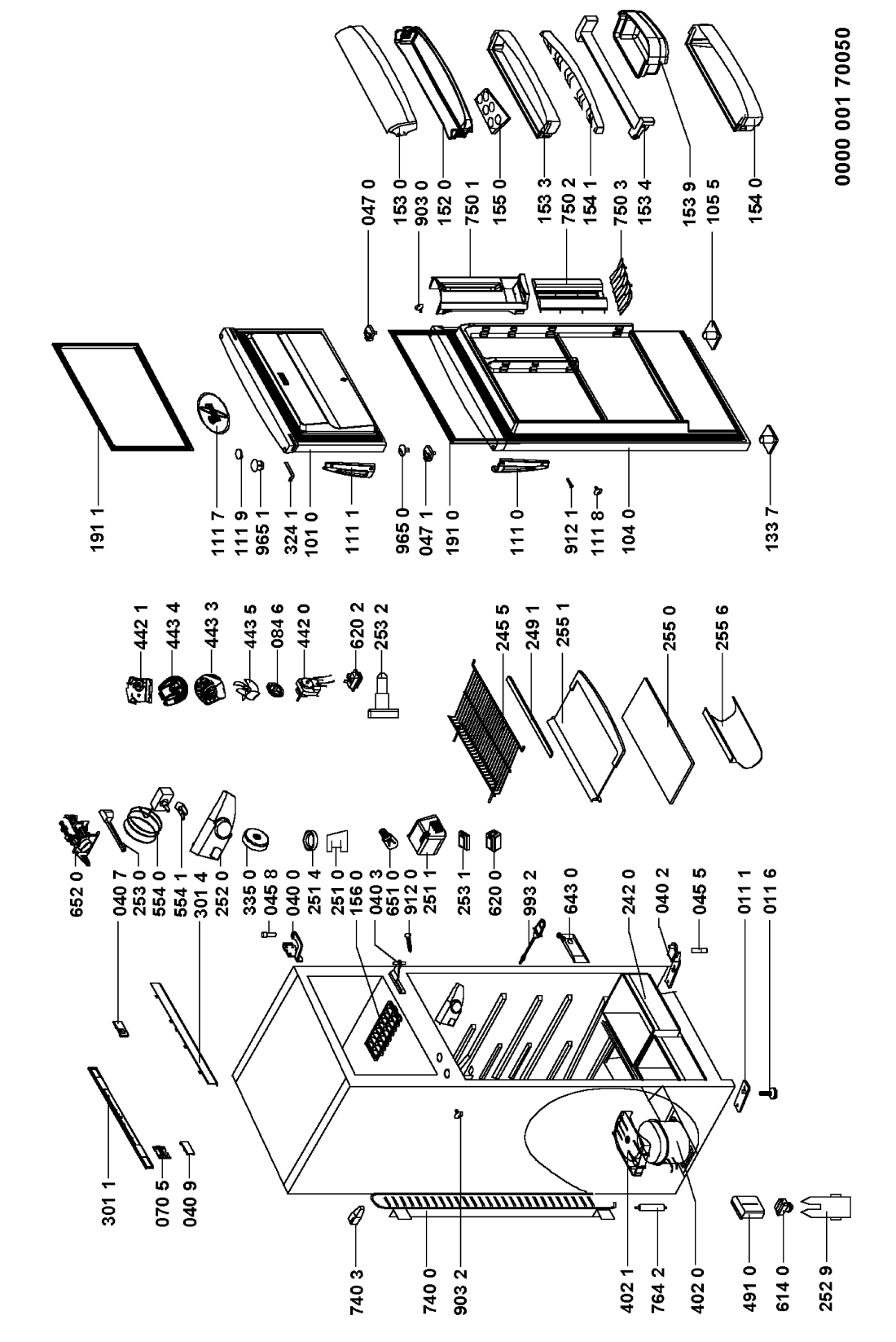

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0111 WHR102120 |
C00336245
481946699164 |
Small plate | Na dotaz | Zadat poptávku | |
| 0116 WHR102120 |
C00333081
481946248513 |
noha | 144 Kč
€ 5.70 |
||
| 0400 WHR102120 |
C00339767
481941719648 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR102120 |
C00339805
481941719647 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0403 WHR102120 |
C00374089
481241718914 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0407 WHR102120 |
C00330242
481246048879 |
Insert | Na dotaz | Zadat poptávku | |
| 0409 WHR102120 |
C00330474
481246228022 |
Insert | Na dotaz | Zadat poptávku | |
| 0455 WHR102120 |
C00344545
481953598677 |
Axle | Na dotaz | Zadat poptávku | |
| 0458 WHR102120 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 0470 WHR102120 |
C00332686
481253288013 |
Bushing | Na dotaz | Zadat poptávku | |
| 0471 WHR102120 |
C00332687
481253288014 |
Bushing | Na dotaz | Zadat poptávku | |
| 0705 WHR102120 |
C00484476
481946689476 |
Plate | Na dotaz | Zadat poptávku | |
| 0846 WHR102120 |
C00333281
481952918124 |
krouzek tlumici | 495 Kč
€ 19.50 |
||
| 1010 WHR102120 |
C00760682
481241618683 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR102120 |
C00574360
481241618684 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 1055 WHR102120 |
C00491782
481244268867 |
Bushing | Na dotaz | Zadat poptávku | |
| 1110 WHR102120 |
C00487728
481246268826 |
Door handle | Na dotaz | Zadat poptávku | |
| 1111 WHR102120 |
C00760683
481246268825 |
Door handle | Na dotaz | Zadat poptávku | |
| 1117 WHR102120 |
C00593426
481946078379 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 1118 WHR102120 |
C00336030
481946258325 |
SCREW COVER HANDLE GREY | Na dotaz | Zadat poptávku | |
| 1119 WHR102120 |
C00330676
481246248055 |
Stopper | Na dotaz | Zadat poptávku | |
| 1337 WHR102120 |
C00545000
481244268866 |
Bushing. | Na dotaz | Zadat poptávku | |
| 1520 WHR102120 |
C00319980
481941879726 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 1530 WHR102120 |
C00484955
481241828148 |
viko police | 503 Kč
€ 19.90 |
||
| 1533 WHR102120 |
C00583848
481241828147 |
POLIAKA ART 550 PLAST N | Na dotaz | Zadat poptávku | |
| 1534 WHR102120 |
C00584961
481241828339 |
Door,dairy.. | Na dotaz | Zadat poptávku | |
| 1539 WHR102120 |
C00489023
481241828353 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1540 WHR102120 |
C00344313
481941879899 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1541 WHR102120 |
C00592594
481241828189 |
PRIDRZIAVAC FLIAS ART676 N | Na dotaz | Zadat poptávku | |
| 1550 WHR102120 |
C00339538
481241828149 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1560 WHR102120 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 1910 WHR102120 |
C00377821
481246688742 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 1911 WHR102120 |
C00490160
481246688743 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 2420 WHR102120 |
C00341260
481241828057 |
Drawer | Na dotaz | Zadat poptávku | |
| 2455 WHR102120 |
C00340292
481945868305 |
Grid | Na dotaz | Zadat poptávku | |
| 2491 WHR102120 |
C00335239
481946089726 |
Trim grid | Na dotaz | Zadat poptávku | |
| 2510 WHR102120 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 2511 WHR102120 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
| 2514 WHR102120 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 2520 WHR102120 |
C00342770
481246279652 |
Casing | Na dotaz | Zadat poptávku | |
| 2529 WHR102120 |
C00333089
481946258371 |
Guard | Na dotaz | Zadat poptávku | |
| 2530 WHR102120 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
| 2531 WHR102120 |
C00330745
481246279645 |
Cover switch | Na dotaz | Zadat poptávku | |
| 2532 WHR102120 |
C00342827
481946288081 |
Cap device | Na dotaz | Zadat poptávku | |
| 2550 WHR102120 |
C00342276
481946678451 |
kryci deska | 1 758 Kč
€ 69.40 |
||
| 2551 WHR102120 |
C00340354
481245088008 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2556 WHR102120 |
C00480828
481241828356 |
DRZIAK PLAST N | Na dotaz | Zadat poptávku | |
| 3011 WHR102120 |
C00574494
481244268869 |
Front. | Na dotaz | Zadat poptávku | |
| 3014 WHR102120 |
C00574521
481246048139 |
Insert. | Na dotaz | Zadat poptávku | |
| 3241 WHR102120 |
C00574555
481246279676 |
Cover. | Na dotaz | Zadat poptávku | |
| 3350 WHR102120 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 4020 WHR102120 |
C00498951
481936038704 |
nahradene 481281718829 | Na dotaz | Zadat poptávku | |
| 4021 WHR102120 |
C00489291
481244079046 |
MISKA ODPAROVACIA | Na dotaz | Zadat poptávku | |
| 4420 WHR102120 |
C00341651
481236118268 |
Motor,fan | Na dotaz | Zadat poptávku | |
| 4421 WHR102120 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 4433 WHR102120 |
C00343010
481946288074 |
Cover | Na dotaz | Zadat poptávku | |
| 4434 WHR102120 |
C00333108
481946288073 |
kryt | 4 697 Kč
€ 185.40 |
||
| 4435 WHR102120 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4910 WHR102120 |
C00333094
481946279241 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 5540 WHR102120 |
C00317820
481227128424 |
TERMOSTAT A13-0 | Na dotaz | Zadat poptávku | |
| 5541 WHR102120 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 6140 WHR102120 |
C00332847
481928068367 |
RELE ART284 | 1 086 Kč
€ 42.90 |
||
| 6200 WHR102120 |
C00316468
481927618259 |
tlacitko zlute-topen | 951 Kč
€ 37.50 |
||
| 6202 WHR102120 |
C00319478
481927618256 |
spinac rychlorozmraz | 204 Kč
€ 8.10 |
||
| 6430 WHR102120 |
C00583551
481221538006 |
Thermometer | Na dotaz | Zadat poptávku | |
| 6510 WHR102120 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 6520 WHR102120 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
| 7400 WHR102120 |
C00343544
481251148222 |
CONDENSER | Na dotaz | Zadat poptávku | |
| 7403 WHR102120 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 7501 WHR102120 |
C00344216
481244048223 |
Bracket ,tin | Na dotaz | Zadat poptávku | |
| 7502 WHR102120 |
C00544974
481241848544 |
HOLDER. | Na dotaz | Zadat poptávku | |
| 7503 WHR102120 |
C00491689
481241848545 |
HOLDER | Na dotaz | Zadat poptávku | |
| 7642 WHR102120 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 9030 WHR102120 |
C00333339
481953518135 |
Stopper | Na dotaz | Zadat poptávku | |
| 9032 WHR102120 |
C00332930
481940118856 |
Stopper | Na dotaz | Zadat poptávku | |
| 9120 WHR102120 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 9121 WHR102120 |
C00336664
481250238164 |
Screw | Na dotaz | Zadat poptávku | |
| 9650 WHR102120 |
C00333107
481946288025 |
Stopper | Na dotaz | Zadat poptávku | |
| 9651 WHR102120 |
C00333109
481946288079 |
Stopper | Na dotaz | Zadat poptávku | |
| 9932 WHR102120 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 9939 WHR102120 |
C00488606
481231038357 |
Door revers.Kit not shown | Na dotaz | Zadat poptávku | |
| 999 WHR102120 |
C00774512 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
