WHIRLPOOL ARZ 892/G REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARZ 892/G REFRIGERATORS WP |
| Kód 12NC: | 858689215000 |
| I.C. kód: | 858689215003 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 858689210000, 858689210001, 858689210002, 858689215000, 858689215001, 858689215002 |
Potřebujete servis? Jsme tady pro Vás

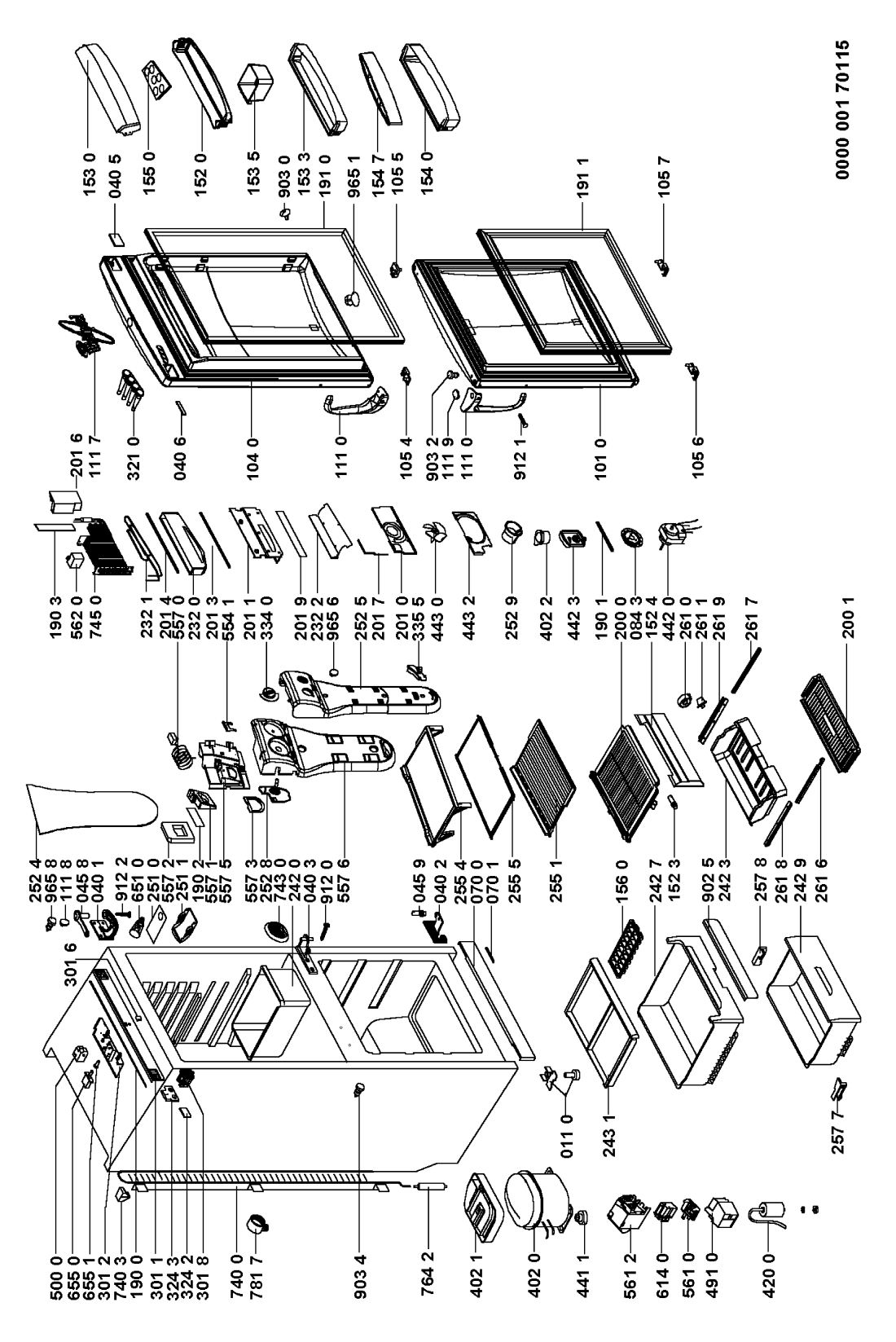

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR85660 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 040 1 WHR85660 |
C00488973
481241719167 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR85660 |
C00574797
481241719112 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR85660 |
C00316369
481241719135 |
Závěs dveří chladničky - střední | 720 Kč
€ 28.40 |
||
| 040 5 WHR85660 |
C00490058
481246049415 |
Insert | Na dotaz | Zadat poptávku | |
| 040 6 WHR85660 |
C00574532
481246049413 |
Insert | Na dotaz | Zadat poptávku | |
| 045 8 WHR85660 |
C00344546
481253588004 |
Axle | Na dotaz | Zadat poptávku | |
| 045 9 WHR85660 |
C00499633
481953598661 |
KOLIK ZAVESU ART527 N | Na dotaz | Zadat poptávku | |
| 070 0 WHR85660 |
C00574993
481270448016 |
Plinth | Na dotaz | Zadat poptávku | |
| 070 1 WHR85660 |
C00574911
481246049414 |
VLOZKA PANELU PLAST | 145 Kč
€ 5.70 |
||
| 084 3 WHR85660 |
C00333280
481952918093 |
tlumic ventilatoru | 587 Kč
€ 23.20 |
||
| 101 0 WHR85660 |
C00605909
481241618828 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR85660 |
C00605908
481241618827 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 105 4 WHR85660 |
C00574920
481246218203 |
ZAPADKA PLAST N | Na dotaz | Zadat poptávku | |
| 105 5 WHR85660 |
C00491553
481240478403 |
ZAPADKA PLAST N | Na dotaz | Zadat poptávku | |
| 105 6 WHR85660 |
C00574726
481240448842 |
Latch | Na dotaz | Zadat poptávku | |
| 105 7 WHR85660 |
C00574727
481240448843 |
Latch | Na dotaz | Zadat poptávku | |
| 111 0 WHR85660 |
C00574554
481246268875 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR85660 |
C00574553
481246268874 |
Door handle. | Na dotaz | Zadat poptávku | |
| 111 7 WHR85660 |
C00574481
481244069247 |
LOGO | Na dotaz | Zadat poptávku | |
| 111 8 WHR85660 |
C00315436
481246279866 |
krytka rukojete | 298 Kč
€ 11.80 |
||
| 111 9 WHR85660 |
C00574573
481246818269 |
krytka rukojete | 134 Kč
€ 5.30 |
||
| 152 0 WHR85660 |
C00327902
481241879842 |
Door dairy upper | Na dotaz | Zadat poptávku | |
| 152 3 WHR85660 |
C00575066
481953538154 |
CAP ZAVESU ART885 N | Na dotaz | Zadat poptávku | |
| 152 4 WHR85660 |
C00605947
481241828391 |
klapka dvirek | 599 Kč
€ 23.60 |
||
| 153 0 WHR85660 |
C00338377
481241848526 |
viko police | 498 Kč
€ 19.70 |
||
| 153 3 WHR85660 |
C00339330
481241848523 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 5 WHR85660 |
C00497838
481241848525 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR85660 |
C00605948
481241828481 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 7 WHR85660 |
C00339705
481240448742 |
Holder | Na dotaz | Zadat poptávku | |
| 155 0 WHR85660 |
C00339538
481241828149 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR85660 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 190 0 WHR85660 |
C00340588
481953268737 |
Gasket | Na dotaz | Zadat poptávku | |
| 190 1 WHR85660 |
C00333144
481946698957 |
Gasket | Na dotaz | Zadat poptávku | |
| 190 2 WHR85660 |
C00498306
481245948144 |
Cover | Na dotaz | Zadat poptávku | |
| 190 3 WHR85660 |
C00499481
481946818112 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 0 WHR85660 |
C00319927
481246688704 |
tesneni magneticke | 1 929 Kč
€ 76.20 |
||
| 191 1 WHR85660 |
C00312786
481246818065 |
Těsnění magnetické - mraznička | 1 920 Kč
€ 75.80 |
||
| 200 0 WHR85660 |
C00590832
481944278333 |
ODDELOVAC | Na dotaz | Zadat poptávku | |
| 200 1 WHR85660 |
C00574849
481244079075 |
PRIECKA DELIACA ART885 N | Na dotaz | Zadat poptávku | |
| 201 0 WHR85660 |
C00499231
481945299346 |
Front | Na dotaz | Zadat poptávku | |
| 201 1 WHR85660 |
C00340682
481946078211 |
Front | Na dotaz | Zadat poptávku | |
| 201 3 WHR85660 |
C00499479
481946818054 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 4 WHR85660 |
C00499478
481946818053 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 6 WHR85660 |
C00497998
481244079031 |
Cover | Na dotaz | Zadat poptávku | |
| 201 7 WHR85660 |
C00499489
481946818394 |
Gasket border | Na dotaz | Zadat poptávku | |
| 201 9 WHR85660 |
C00333063
481946078208 |
Foil alum.adhesive | Na dotaz | Zadat poptávku | |
| 232 0 WHR85660 |
C00342233
481941879151 |
Cup,thaw water | Na dotaz | Zadat poptávku | |
| 232 1 WHR85660 |
C00341151
481925928854 |
topeni | 1 789 Kč
€ 70.60 |
||
| 232 2 WHR85660 |
C00337204
481944278071 |
Water conveyor | Na dotaz | Zadat poptávku | |
| 242 0 WHR85660 |
C00342305
481241879706 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 3 WHR85660 |
C00574810
481241828472 |
ZASUVKA ART885 N | Na dotaz | Zadat poptávku | |
| 242 7 WHR85660 |
C00497842
481241848629 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 9 WHR85660 |
C00497828
481241828545 |
Drawer | Na dotaz | Zadat poptávku | |
| 243 1 WHR85660 |
C00336431
481241828546 |
Shelf | Na dotaz | Zadat poptávku | |
| 251 0 WHR85660 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR85660 |
C00342451
481946279771 |
kryt svetla | 365 Kč
€ 14.40 |
||
| 252 4 WHR85660 |
C00498000
481244079034 |
Cover | Na dotaz | Zadat poptávku | |
| 252 5 WHR85660 |
C00485139
481244079035 |
Cover | Na dotaz | Zadat poptávku | |
| 252 8 WHR85660 |
C00336247
481226338003 |
ovladac prepinace pl | 156 Kč
€ 6.20 |
||
| 252 9 WHR85660 |
C00333098
481946279776 |
Cover wires | Na dotaz | Zadat poptávku | |
| 255 1 WHR85660 |
C00606186
481245088161 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 4 WHR85660 |
C00374042
481245088162 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 5 WHR85660 |
C00487609
481245088163 |
rost sklapeci | 855 Kč
€ 33.80 |
||
| 257 7 WHR85660 |
C00498395
481246238171 |
Guide | Na dotaz | Zadat poptávku | |
| 257 8 WHR85660 |
C00498396
481246238172 |
Guide | Na dotaz | Zadat poptávku | |
| 261 0 WHR85660 |
C00621144
481952878107 |
kolecko dvirek | 208 Kč
€ 8.20 |
||
| 261 1 WHR85660 |
C00575067
481953588109 |
naboj kolecka | 100 Kč
€ 3.90 |
||
| 261 6 WHR85660 |
C00484038
481246238167 |
Slide | Na dotaz | Zadat poptávku | |
| 261 7 WHR85660 |
C00484037
481246238166 |
Pojezd | 490 Kč
€ 19.30 |
||
| 261 8 WHR85660 |
C00377800
481246238169 |
Držák -levý | 465 Kč
€ 18.40 |
||
| 261 9 WHR85660 |
C00377799
481246238168 |
Slide replaced by drawer cpl | Na dotaz | Zadat poptávku | |
| 301 1 WHR85660 |
C00606197
481245228422 |
PANEL OVLADACI | 408 Kč
€ 16.10 |
||
| 301 2 WHR85660 |
C00606363
481246098044 |
Support | Na dotaz | Zadat poptávku | |
| 301 6 WHR85660 |
C00333101
481946279953 |
zaslepka | 203 Kč
€ 8.00 |
||
| 301 8 WHR85660 |
C00336005
481246048955 |
Stopper | Na dotaz | Zadat poptávku | |
| 321 0 WHR85660 |
C00574672
481213448275 |
Pilot lamp. | Na dotaz | Zadat poptávku | |
| 324 2 WHR85660 |
C00499405
481946279767 |
krytka | 122 Kč
€ 4.80 |
||
| 324 3 WHR85660 |
C00336239
481946689233 |
krytka | 134 Kč
€ 5.30 |
||
| 334 0 WHR85660 |
C00374101
481241218033 |
Knob | Na dotaz | Zadat poptávku | |
| 335 5 WHR85660 |
C00327070
481222318433 |
Regulator | 147 Kč
€ 5.80 |
||
| 402 0 WHR85660 |
C00314677
481236038812 |
Compressor EGY90HLC CP | Na dotaz | Zadat poptávku | |
| 402 1 WHR85660 |
C00574847
481244079029 |
miska na kondenzat | 530 Kč
€ 20.90 |
||
| 402 2 WHR85660 |
C00195454
481936048014 |
VENTIL | Na dotaz | Zadat poptávku | |
| 420 0 WHR85660 |
C00316496
481212028023 |
Capacitor | Na dotaz | Zadat poptávku | |
| 441 1 WHR85660 |
C00195360
481946248418 |
PRYŽ TLUMIČE XB800AENF | Na dotaz | Zadat poptávku | |
| 442 0 WHR85660 |
C00312313
481936118428 |
motor ventilatoru | 2 953 Kč
€ 116.60 |
||
| 442 3 WHR85660 |
C00333097
481946279775 |
Cover | Na dotaz | Zadat poptávku | |
| 443 0 WHR85660 |
C00313351
481951548034 |
vrtule ventilatoru | 430 Kč
€ 17.00 |
||
| 443 2 WHR85660 |
C00342952
481946279774 |
Cover | Na dotaz | Zadat poptávku | |
| 491 0 WHR85660 |
C00313589
481229088087 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 500 0 WHR85660 |
C00498875
481928218497 |
PROGRAMATOR N | Na dotaz | Zadat poptávku | |
| 554 1 WHR85660 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 557 0 WHR85660 |
C00374120
481228238106 |
termostat | 1 565 Kč
€ 61.80 |
||
| 557 1 WHR85660 |
C00498369
481246098045 |
Insert | Na dotaz | Zadat poptávku | |
| 557 2 WHR85660 |
C00340506
481246688654 |
Gasket | Na dotaz | Zadat poptávku | |
| 557 3 WHR85660 |
C00499480
481946818056 |
Gasket | Na dotaz | Zadat poptávku | |
| 557 5 WHR85660 |
C00335878
481240478577 |
Support | Na dotaz | Zadat poptávku | |
| 557 6 WHR85660 |
C00498503
481248028065 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 561 0 WHR85660 |
C00327590
481229068269 |
Protect,motor | Na dotaz | Zadat poptávku | |
| 561 2 WHR85660 |
C00328307
481244079022 |
Morsettiera per EGY100 HLC | Na dotaz | Zadat poptávku | |
| 562 0 WHR85660 |
C00319756
481928228624 |
termostat | 1 530 Kč
€ 60.40 |
||
| 614 0 WHR85660 |
C00318139
481229068262 |
PTC-Unit | Na dotaz | Zadat poptávku | |
| 651 0 WHR85660 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 655 0 WHR85660 |
C00605807
481238118282 |
Pilot lamp. | Na dotaz | Zadat poptávku | |
| 655 1 WHR85660 |
C00605974
481244098127 |
Cover. | Na dotaz | Zadat poptávku | |
| 740 0 WHR85660 |
C00499546
481951148664 |
KONDENZATOR RJ N | Na dotaz | Zadat poptávku | |
| 740 3 WHR85660 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 743 0 WHR85660 |
C00340262
481945858558 |
Grid air | Na dotaz | Zadat poptávku | |
| 745 0 WHR85660 |
C00341120
481951138642 |
Výparník | 2 314 Kč
€ 91.40 |
||
| 764 2 WHR85660 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 7 WHR85660 |
C00333270
481952648307 |
priruba hadice | 265 Kč
€ 10.50 |
||
| 902 5 WHR85660 |
C00606346
481246049339 |
Insert | Na dotaz | Zadat poptávku | |
| 903 0 WHR85660 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 903 2 WHR85660 |
C00574574
481246818271 |
Stopper | Na dotaz | Zadat poptávku | |
| 903 4 WHR85660 |
C00333168
481949248154 |
zaslepka | 100 Kč
€ 3.90 |
||
| 912 0 WHR85660 |
C00336672
481950218525 |
Screw | Na dotaz | Zadat poptávku | |
| 912 1 WHR85660 |
C00336664
481250238164 |
Screw | Na dotaz | Zadat poptávku | |
| 912 2 WHR85660 |
C00336771
481250238162 |
Screw | Na dotaz | Zadat poptávku | |
| 965 1 WHR85660 |
C00574572
481246818268 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 6 WHR85660 |
C00330501
481246228511 |
drzak | 109 Kč
€ 4.30 |
||
| 965 8 WHR85660 |
C00498322
481246048943 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 993 9 WHR85660 |
C00574698
481231038526 |
Montážní sada na přehození dveří | 192 Kč
€ 7.60 |
||
| 999 WHR85660 |
C00721787 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
