| Komerční kód: | ARZ 897/H/PEARL REFRIGERATORS WP |
| Kód 12NC: | 858689701030 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 858689701031 |
Potřebujete servis? Jsme tady pro Vás

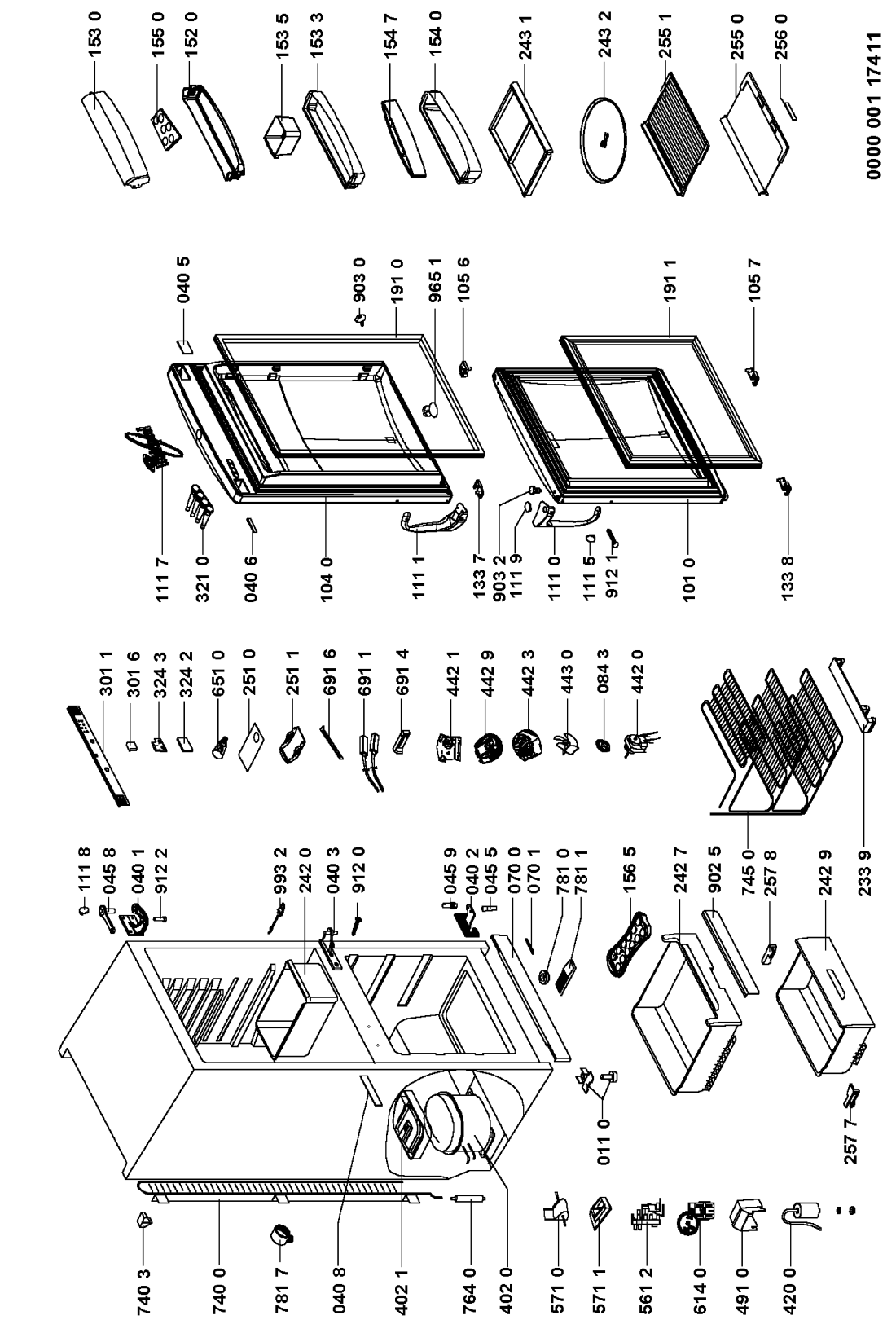

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR103979 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 040 1 WHR103979 |
C00488936
481241718956 |
ZAVES HORNY KOV N | Na dotaz | Zadat poptávku | |
| 040 2 WHR103979 |
C00488935
481241718954 |
ZAVES SPODNY KOV N | Na dotaz | Zadat poptávku | |
| 040 3 WHR103979 |
C00605937
481241718955 |
ZAVES STREDNY KOVOVY N | Na dotaz | Zadat poptávku | |
| 040 5 WHR103979 |
C00338909
481246238104 |
Insert | Na dotaz | Zadat poptávku | |
| 040 6 WHR103979 |
C00498372
481246228148 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 040 8 WHR103979 |
C00605941
481241778061 |
COVER. | Na dotaz | Zadat poptávku | |
| 045 5 WHR103979 |
C00344545
481953598677 |
Axle | Na dotaz | Zadat poptávku | |
| 045 8 WHR103979 |
C00344546
481253588004 |
Axle | Na dotaz | Zadat poptávku | |
| 045 9 WHR103979 |
C00499633
481953598661 |
KOLIK ZAVESU ART527 N | Na dotaz | Zadat poptávku | |
| 070 0 WHR103979 |
C00606269
481245298199 |
GRID,AIR. | Na dotaz | Zadat poptávku | |
| 070 1 WHR103979 |
C00606359
481246078965 |
COVER. | Na dotaz | Zadat poptávku | |
| 084 3 WHR103979 |
C00333281
481952918124 |
krouzek tlumici | 495 Kč
€ 19.50 |
||
| 101 0 WHR103979 |
C00605883
481241618254 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR103979 |
C00605884
481241618255 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 105 6 WHR103979 |
C00491553
481240478403 |
ZAPADKA PLAST N | Na dotaz | Zadat poptávku | |
| 105 7 WHR103979 |
C00606410
481252648075 |
Latch. | Na dotaz | Zadat poptávku | |
| 111 0 WHR103979 |
C00763686
481249818191 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR103979 |
C00763687
481249898007 |
Handle | Na dotaz | Zadat poptávku | |
| 111 5 WHR103979 |
C00485108
481244029333 |
COVER | Na dotaz | Zadat poptávku | |
| 111 7 WHR103979 |
C00486184
481246698971 |
COVER | Na dotaz | Zadat poptávku | |
| 111 8 WHR103979 |
C00336007
481946279466 |
Stopper | Na dotaz | Zadat poptávku | |
| 111 9 WHR103979 |
C00606409
481249878104 |
COVER. | Na dotaz | Zadat poptávku | |
| 133 7 WHR103979 |
C00606415
481253598071 |
Latch. | Na dotaz | Zadat poptávku | |
| 133 8 WHR103979 |
C00574920
481246218203 |
ZAPADKA PLAST N | Na dotaz | Zadat poptávku | |
| 152 0 WHR103979 |
C00318075
481941879724 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR103979 |
C00338377
481241848526 |
viko police | 498 Kč
€ 19.70 |
||
| 153 3 WHR103979 |
C00339330
481241848523 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 5 WHR103979 |
C00497838
481241848525 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR103979 |
C00497837
481241848524 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 7 WHR103979 |
C00339705
481240448742 |
Holder | Na dotaz | Zadat poptávku | |
| 155 0 WHR103979 |
C00339624
481946089533 |
držák na vajíčka (6 ks vajec) | Na dotaz | Zadat poptávku | |
| 156 5 WHR103979 |
C00375193
481941879788 |
Výrobník ledu "Quick Ice" s urychlenou výrobou ledu | 139 Kč
€ 5.50 |
||
| 191 0 WHR103979 |
C00320057
481246818066 |
Magnetic seal, cooling | Na dotaz | Zadat poptávku | |
| 191 1 WHR103979 |
C00312786
481246818065 |
Těsnění magnetické - mraznička | 1 920 Kč
€ 75.80 |
||
| 233 9 WHR103979 |
C00335837
481946699082 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 242 0 WHR103979 |
C00342305
481241879706 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 7 WHR103979 |
C00341218
481241879642 |
Drawer upper | Na dotaz | Zadat poptávku | |
| 242 9 WHR103979 |
C00605955
481241879684 |
ZASUVKA MRAZNICKY DOLNA ARZ825 N | Na dotaz | Zadat poptávku | |
| 243 1 WHR103979 |
C00605944
481241818261 |
ZASUVKA ARZ825 N | Na dotaz | Zadat poptávku | |
| 243 2 WHR103979 |
C00481561
481246698969 |
talir otocny chladni | Na dotaz | Zadat poptávku | |
| 251 0 WHR103979 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR103979 |
C00342451
481946279771 |
kryt svetla | 365 Kč
€ 14.40 |
||
| 255 0 WHR103979 |
C00342280
481246678389 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 255 1 WHR103979 |
C00340386
481241879683 |
rost skleneny | 722 Kč
€ 28.50 |
||
| 256 0 WHR103979 |
C00499274
481945838048 |
regulator vzduchu | 228 Kč
€ 9.00 |
||
| 257 7 WHR103979 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR103979 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 301 1 WHR103979 |
C00556546
481244069072 |
Front,panel | Na dotaz | Zadat poptávku | |
| 301 6 WHR103979 |
C00606188
481245228127 |
INSERT. | Na dotaz | Zadat poptávku | |
| 321 0 WHR103979 |
C00341790
481238118259 |
Lens | Na dotaz | Zadat poptávku | |
| 324 2 WHR103979 |
C00606341
481246048912 |
COVER. | Na dotaz | Zadat poptávku | |
| 324 3 WHR103979 |
C00336239
481946689233 |
krytka | 134 Kč
€ 5.30 |
||
| 402 0 WHR103979 |
C00320283
481236038664 |
Compressor NBT1116Y | Na dotaz | Zadat poptávku | |
| 402 1 WHR103979 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR103979 |
C00342794
481212118202 |
Capacitor 4#F - 450V - 6#m dielectric | Na dotaz | Zadat poptávku | |
| 442 0 WHR103979 |
C00341705
481936118463 |
motor ventilatoru | 2 753 Kč
€ 108.70 |
||
| 442 1 WHR103979 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 442 3 WHR103979 |
C00592954
481946288102 |
KRYT ART676 N | Na dotaz | Zadat poptávku | |
| 442 9 WHR103979 |
C00333108
481946288073 |
kryt | 4 697 Kč
€ 185.40 |
||
| 443 0 WHR103979 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 491 0 WHR103979 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 561 2 WHR103979 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 571 0 WHR103979 |
C00337286
481928128272 |
ventil elektromagn. | 2 744 Kč
€ 108.30 |
||
| 571 1 WHR103979 |
C00590780
481940478626 |
Holder | Na dotaz | Zadat poptávku | |
| 614 0 WHR103979 |
C00320313
481269028005 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR103979 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 691 1 WHR103979 |
C00380404
481221058009 |
senzor teploty | 1 336 Kč
€ 52.70 |
||
| 691 4 WHR103979 |
C00342929
481246228116 |
Cover , sensor | Na dotaz | Zadat poptávku | |
| 691 6 WHR103979 |
C00499408
481946279847 |
kryt desky ovladani | 134 Kč
€ 5.30 |
||
| 740 0 WHR103979 |
C00590885
481951148655 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 3 WHR103979 |
C00333137
481946698259 |
Spacer | Na dotaz | Zadat poptávku | |
| 745 0 WHR103979 |
C00555607
481251138105 |
Evaporator.. | Na dotaz | Zadat poptávku | |
| 764 0 WHR103979 |
C00494652
481948028148 |
DEHYDRATOR | Na dotaz | Zadat poptávku | |
| 781 0 WHR103979 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR103979 |
C00342192
481941878208 |
kanal odtokovy | 189 Kč
€ 7.50 |
||
| 781 7 WHR103979 |
C00333270
481952648307 |
priruba hadice | 265 Kč
€ 10.50 |
||
| 902 5 WHR103979 |
C00338913
481246078961 |
Insert | Na dotaz | Zadat poptávku | |
| 903 0 WHR103979 |
C00606419
481253598078 |
CLIP. | Na dotaz | Zadat poptávku | |
| 903 2 WHR103979 |
C00606420
481253598079 |
CLIP. | Na dotaz | Zadat poptávku | |
| 912 0 WHR103979 |
C00336672
481950218525 |
Screw | Na dotaz | Zadat poptávku | |
| 912 1 WHR103979 |
C00317062
481250218425 |
Screw | Na dotaz | Zadat poptávku | |
| 912 2 WHR103979 |
C00336771
481250238162 |
Screw | Na dotaz | Zadat poptávku | |
| 965 1 WHR103979 |
C00606362
481246098025 |
COVER. | Na dotaz | Zadat poptávku | |
| 993 2 WHR103979 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR103979 |
C00605803
481231038523 |
Door revers.Kit ,not shown. | Na dotaz | Zadat poptávku | |
| 999 WHR103979 |
C00778192 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
