| Komerční kód: | AVM 614 WH |
| Kód 12NC: | 853861415290 |
| I.C. kód: | 853861415291 |
| Značka: | WHIRLPOOL |
| Typ produktu: | |
| Další podobné modely: | 853861481291, 853861445291 |
Potřebujete servis? Jsme tady pro Vás

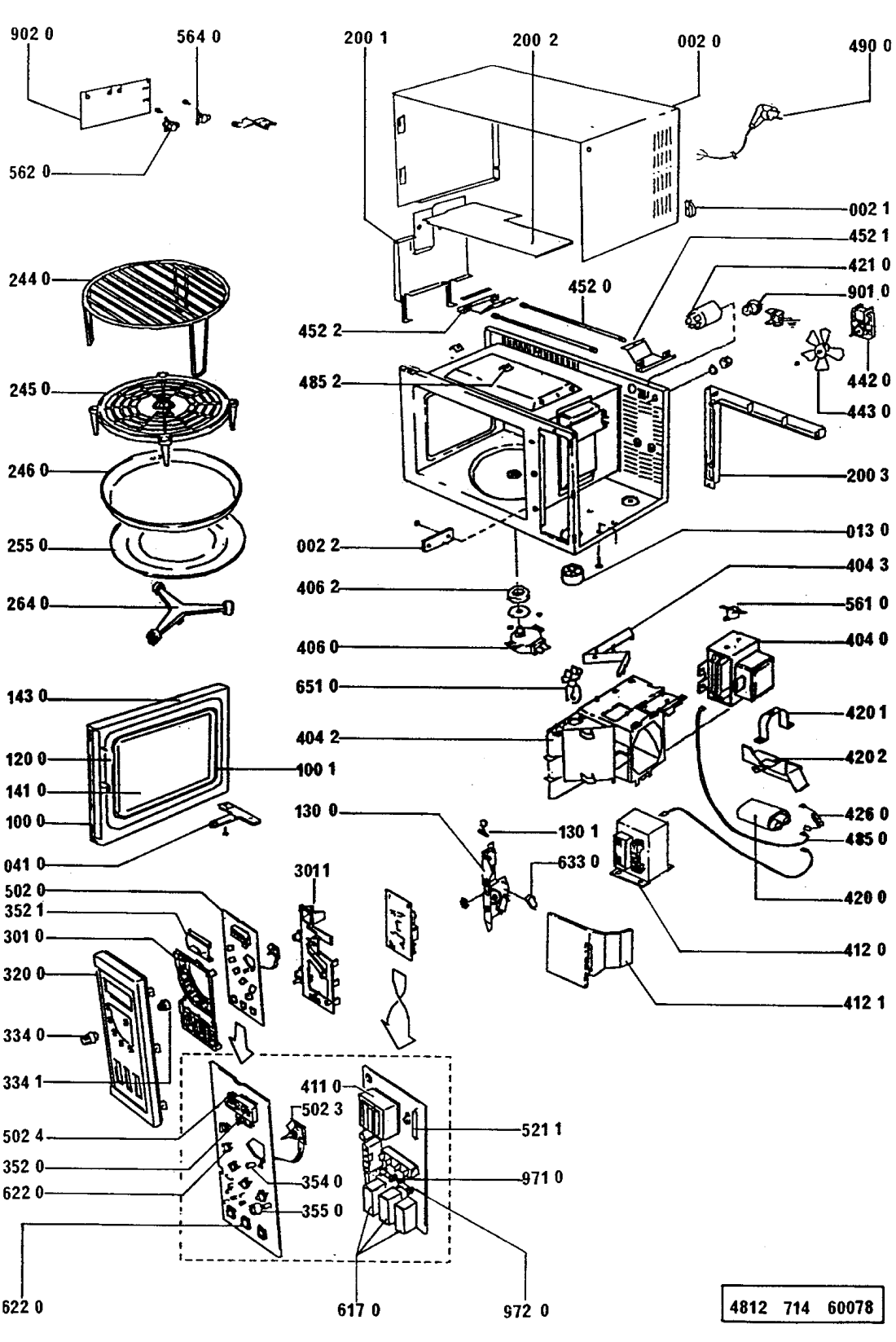

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR110982 |
C00585987
481944059448 |
skrin trouby | 2 173 Kč
€ 85.80 |
||
| 002 1 WHR110982 |
C00336229
481946698741 |
Spacebar | Na dotaz | Zadat poptávku | |
| 002 2 WHR110982 |
C00337749
481944059444 |
Krytka slídová | 240 Kč
€ 9.50 |
||
| 002 2 WHR110982 |
C00383436
481946279625 |
Krytka slídová | 684 Kč
€ 27.00 |
||
| 013 0 WHR110982 |
C00340808
481946279423 |
noha | Na dotaz | Zadat poptávku | |
| 041 0 WHR110982 |
C00339804
481941719248 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 100 0 WHR110982 |
C00750236
481944238269 |
Door cpl. WH | Na dotaz | Zadat poptávku | |
| 100 1 WHR110982 |
C00586282
481944059865 |
vnitrek dveri | 3 359 Kč
€ 132.60 |
||
| 120 0 WHR110982 |
C00486652
481945948541 |
VNUTORNY RAM DVERI *** N | Na dotaz | Zadat poptávku | |
| 130 0 WHR110982 |
C00319704
481927138148 |
Unit,pushbutton | Na dotaz | Zadat poptávku | |
| 130 1 WHR110982 |
C00338407
481940478492 |
Lever for microswitch | Na dotaz | Zadat poptávku | |
| 141 0 WHR110982 |
C00750237
481945069897 |
Oven glass WH | Na dotaz | Zadat poptávku | |
| 143 0 WHR110982 |
C00751834
481945948549 |
Door frame outer WH | Na dotaz | Zadat poptávku | |
| 200 1 WHR110982 |
C00484461
481946238672 |
BOAN? VEDENIE VZDUCHU N | Na dotaz | Zadat poptávku | |
| 200 2 WHR110982 |
C00586366
481946238671 |
HORNE VEDENIE VZDUCHU N | Na dotaz | Zadat poptávku | |
| 200 3 WHR110982 |
C00586365
481946238669 |
PRIV?DZAA VZDUCHU AVM440 N | Na dotaz | Zadat poptávku | |
| 244 0 WHR110982 |
C00336055
481945819898 |
STAND HIGH | Na dotaz | Zadat poptávku | |
| 245 0 WHR110982 |
C00336054
481946698731 |
Stand optional | Na dotaz | Zadat poptávku | |
| 246 0 WHR110982 |
C00342308
481946689065 |
Crisp plate | Na dotaz | Zadat poptávku | |
| 255 0 WHR110982 |
C00337373
481946678218 |
Skleněný otočný talíř VIP 20; průměr 28 cm | 805 Kč
€ 31.80 |
||
| 264 0 WHR110982 |
C00337374
481953578131 |
kříž unašecí | Na dotaz | Zadat poptávku | |
| 301 0 WHR110982 |
C00499037
481941028492 |
ZOSTAVA SP?NAAOV WH N | Na dotaz | Zadat poptávku | |
| 301 1 WHR110982 |
C00499013
481940478253 |
DRYIAK N | Na dotaz | Zadat poptávku | |
| 320 0 WHR110982 |
C00750238
481945358059 |
Panel control WH | Na dotaz | Zadat poptávku | |
| 334 0 WHR110982 |
C00499081
481941358777 |
GOMB?K WH PLAST. N | Na dotaz | Zadat poptávku | |
| 334 1 WHR110982 |
C00343272
481941338126 |
unasec knofliku | 453 Kč
€ 17.90 |
||
| 352 0 WHR110982 |
C00490293
481913038067 |
Display | Na dotaz | Zadat poptávku | |
| 352 1 WHR110982 |
C00750177
481946678219 |
Cap,glass display | Na dotaz | Zadat poptávku | |
| 354 0 WHR110982 |
C00341792
481913038059 |
LED YELLOW | Na dotaz | Zadat poptávku | |
| 355 0 WHR110982 |
C00343953
481928018019 |
Buzzer | Na dotaz | Zadat poptávku | |
| 404 0 WHR110982 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 404 2 WHR110982 |
C00586374
481952648298 |
PRÍVODNÝ KANÁL VZDUC | 915 Kč
€ 36.10 |
||
| 404 3 WHR110982 |
C00586373
481952648297 |
VZDUCHOVY KANAL N | Na dotaz | Zadat poptávku | |
| 406 0 WHR110982 |
C00341664
481936118292 |
Motor for rotary plate | Na dotaz | Zadat poptávku | |
| 406 2 WHR110982 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 411 0 WHR110982 |
C00335380
481914868059 |
transformator | 1 479 Kč
€ 58.40 |
||
| 412 0 WHR110982 |
C00319620
481914868058 |
TRANSFORMÁTOR VYSOKO | 4 598 Kč
€ 181.50 |
||
| 412 1 WHR110982 |
C00586367
481946238737 |
Air guide. | Na dotaz | Zadat poptávku | |
| 420 0 WHR110982 |
C00317238
481912148016 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 1 WHR110982 |
C00339686
481940478491 |
Holder | Na dotaz | Zadat poptávku | |
| 420 2 WHR110982 |
C00586236
481932518036 |
IZOLACIA KONDENZATORA N | Na dotaz | Zadat poptávku | |
| 421 0 WHR110982 |
C00340941
481912118197 |
Filtr odrušovací | Na dotaz | Zadat poptávku | |
| 426 0 WHR110982 |
C00498812
481921838039 |
VN DIODA MVO 4,25 mA N | Na dotaz | Zadat poptávku | |
| 442 0 WHR110982 |
C00341665
481936118313 |
motor ventilatoru | 2 908 Kč
€ 114.80 |
||
| 443 0 WHR110982 |
C00498913
481931039025 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 452 0 WHR110982 |
C00555741
481925998261 |
NAHRADENE 481925998445 N | Na dotaz | Zadat poptávku | |
| 452 1 WHR110982 |
C00344160
481940478511 |
Bracket right | Na dotaz | Zadat poptávku | |
| 452 2 WHR110982 |
C00344173
481940478613 |
Bracket left | Na dotaz | Zadat poptávku | |
| 485 0 WHR110982 |
C00498926
481932028024 |
Cable HT | Na dotaz | Zadat poptávku | |
| 485 2 WHR110982 |
C00343873
481946698742 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR110982 |
C00498936
481932118241 |
Cable mains cpl. with clamp GB | Na dotaz | Zadat poptávku | |
| 490 0 WHR110982 |
C00342885
481932118218 |
Cable mains GB + HK | Na dotaz | Zadat poptávku | |
| 502 0 WHR110982 |
C00750239
481921478423 |
Control unit | Na dotaz | Zadat poptávku | |
| 502 3 WHR110982 |
C00337596
481910148072 |
POTENCIOMETER | 822 Kč
€ 32.50 |
||
| 502 4 WHR110982 |
C00750185
481920988025 |
Microprocessor | Na dotaz | Zadat poptávku | |
| 521 1 WHR110982 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 561 0 WHR110982 |
C00335522
481928248247 |
Termostat mikrovlnné trouby Whirlpool 145 °C | 1 314 Kč
€ 51.90 |
||
| 562 0 WHR110982 |
C00335521
481928248248 |
Thermostat 165 C 36FXE14 20049 | Na dotaz | Zadat poptávku | |
| 564 0 WHR110982 |
C00586235
481928248243 |
termostat magnetronu | 1 196 Kč
€ 47.20 |
||
| 617 0 WHR110982 |
C00336883
481928068295 |
RELÉ | 616 Kč
€ 24.30 |
||
| 622 0 WHR110982 |
C00341739
481927618111 |
MICROSWITCH VKS-SWITCH | Na dotaz | Zadat poptávku | |
| 633 0 WHR110982 |
C00338098
481927138145 |
mikrospinac | 766 Kč
€ 30.20 |
||
| 651 0 WHR110982 |
C00341832
481913428029 |
Lamp | Na dotaz | Zadat poptávku | |
| 901 0 WHR110982 |
C00335986
481940118512 |
Strain relief | Na dotaz | Zadat poptávku | |
| 902 0 WHR110982 |
C00494489
481932528039 |
IZOL?CIA *** N | Na dotaz | Zadat poptávku | |
| 971 0 WHR110982 |
C00311573
481925338019 |
pojistka T 8A | 95 Kč
€ 3.80 |
||
| 972 0 WHR110982 |
C00340624
481925338006 |
pojistka 100mA | Na dotaz | Zadat poptávku | |
