WHIRLPOOL AVM 749 AV
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AVM 749 AV |
| Kód 12NC: | 853874922190 |
| I.C. kód: | 853874922191 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás

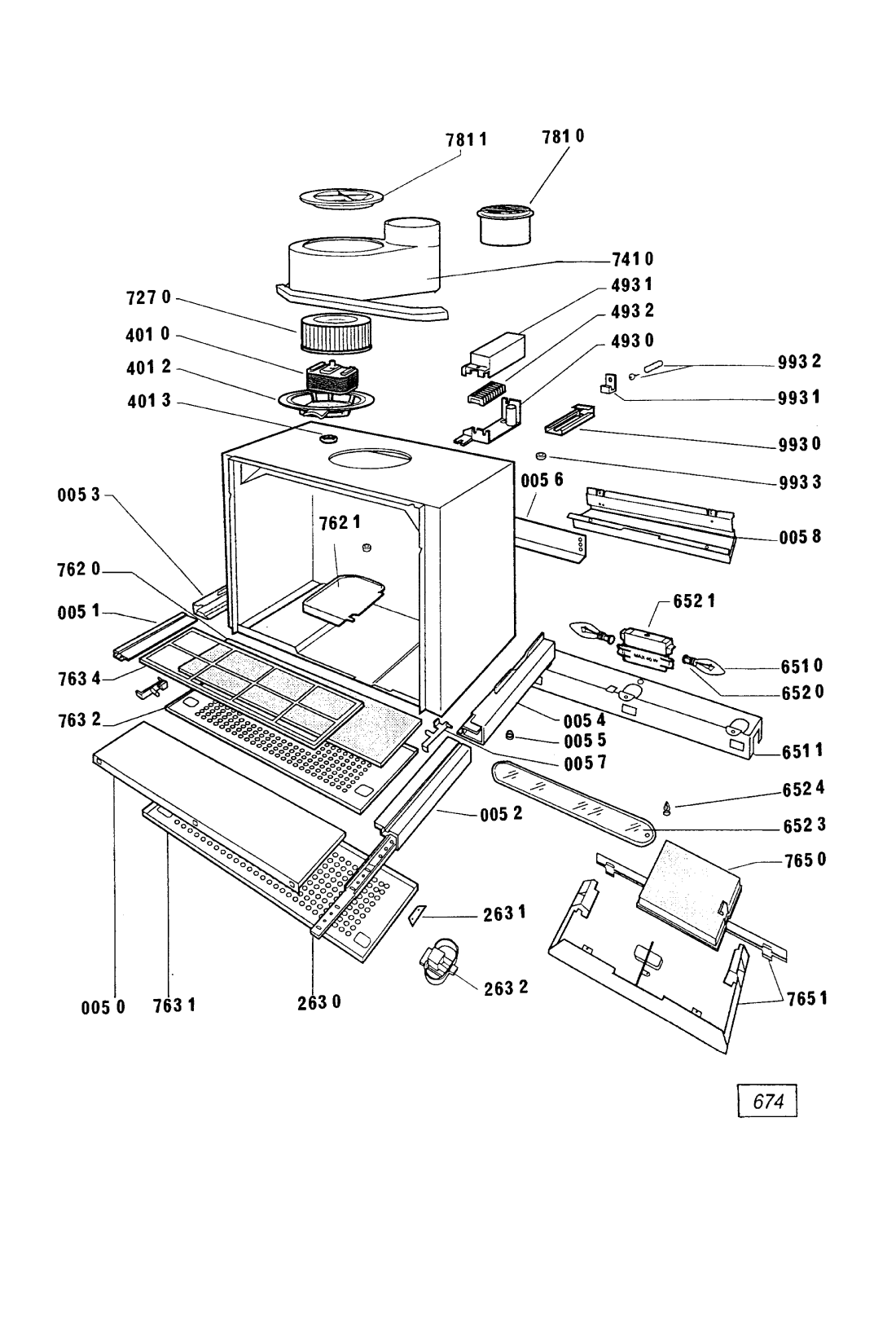

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR95430 |
C00499173
481944238359 |
Cabinet MW | Na dotaz | Zadat poptávku | |
| 002 2 WHR95430 |
C00337749
481944059444 |
Krytka slídová | 240 Kč
€ 9.50 |
||
| 002 2 WHR95430 |
C00337770
481944238357 |
Krytka slídová | 456 Kč
€ 18.00 |
||
| 005 0 WHR95430 |
C00341236
481944238365 |
Drawer DA | Na dotaz | Zadat poptávku | |
| 005 1 WHR95430 |
C00335231
481946089439 |
Trim inner le. DA | Na dotaz | Zadat poptávku | |
| 005 2 WHR95430 |
C00335230
481946089438 |
Trim inner ri. DA | Na dotaz | Zadat poptávku | |
| 005 3 WHR95430 |
C00556167
481946089437 |
Trim.. | Na dotaz | Zadat poptávku | |
| 005 4 WHR95430 |
C00532010
481946089436 |
LISTA VYSUVNA PRAVA N | Na dotaz | Zadat poptávku | |
| 005 5 WHR95430 |
C00342828
481946248442 |
zaslepka | 76 Kč
€ 3.00 |
||
| 005 6 WHR95430 |
C00336211
481946689276 |
Spacer | Na dotaz | Zadat poptávku | |
| 005 7 WHR95430 |
C00556351
481953598578 |
PIN.. | Na dotaz | Zadat poptávku | |
| 005 8 WHR95430 |
C00750301
481944278153 |
Cover rear | Na dotaz | Zadat poptávku | |
| 022 0 WHR95430 |
C00336321
481944238361 |
Side panel MW | Na dotaz | Zadat poptávku | |
| 024 0 WHR95430 |
C00344574
481946238776 |
Air guide MW | Na dotaz | Zadat poptávku | |
| 025 0 WHR95430 |
C00486828
481946689298 |
Bar | Na dotaz | Zadat poptávku | |
| 100 0 WHR95430 |
C00750304
481944238476 |
Door | Na dotaz | Zadat poptávku | |
| 111 0 WHR95430 |
C00750305
481941879322 |
Handle | Na dotaz | Zadat poptávku | |
| 124 0 WHR95430 |
C00488253
481945858657 |
Grid | Na dotaz | Zadat poptávku | |
| 130 0 WHR95430 |
C00319704
481927138148 |
Unit,pushbutton | Na dotaz | Zadat poptávku | |
| 130 1 WHR95430 |
C00338407
481940478492 |
Lever for microswitch | Na dotaz | Zadat poptávku | |
| 130 2 WHR95430 |
C00343271
481946689172 |
Clip Slide block | Na dotaz | Zadat poptávku | |
| 245 0 WHR95430 |
C00336054
481946698731 |
Stand optional | Na dotaz | Zadat poptávku | |
| 246 0 WHR95430 |
C00342308
481946689065 |
Crisp plate | Na dotaz | Zadat poptávku | |
| 246 1 WHR95430 |
C00340209
481949869875 |
Grip crisp plate | Na dotaz | Zadat poptávku | |
| 255 0 WHR95430 |
C00337373
481946678218 |
Skleněný otočný talíř VIP 20; průměr 28 cm | 805 Kč
€ 31.80 |
||
| 263 0 WHR95430 |
C00336956
481946238637 |
kolejnice AVM 955 | 1 291 Kč
€ 51.00 |
||
| 263 1 WHR95430 |
C00484462
481946238795 |
SLIDE | Na dotaz | Zadat poptávku | |
| 263 2 WHR95430 |
C00315136
481953538139 |
zamek | 222 Kč
€ 8.80 |
||
| 264 0 WHR95430 |
C00337374
481953578131 |
kříž unašecí | Na dotaz | Zadat poptávku | |
| 320 0 WHR95430 |
C00750306
481945358322 |
Control panel | Na dotaz | Zadat poptávku | |
| 333 0 WHR95430 |
C00488751
481241258879 |
Knob fan control AV | Na dotaz | Zadat poptávku | |
| 333 1 WHR95430 |
C00484383
481940479095 |
Support for knob | Na dotaz | Zadat poptávku | |
| 333 2 WHR95430 |
C00492533
481949258134 |
PRUYINA AVM401 N | Na dotaz | Zadat poptávku | |
| 334 0 WHR95430 |
C00373345
481941258511 |
Knob AV | Na dotaz | Zadat poptávku | |
| 334 1 WHR95430 |
C00343272
481941338126 |
unasec knofliku | 453 Kč
€ 17.90 |
||
| 354 0 WHR95430 |
C00341794
481913038064 |
LED | Na dotaz | Zadat poptávku | |
| 401 0 WHR95430 |
C00750296
481936118391 |
Motor le. DA | Na dotaz | Zadat poptávku | |
| 401 2 WHR95430 |
C00335829
481940479037 |
Support for motorfor motor | Na dotaz | Zadat poptávku | |
| 401 3 WHR95430 |
C00333239
481950518246 |
Nut motormotor | Na dotaz | Zadat poptávku | |
| 404 0 WHR95430 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 404 2 WHR95430 |
C00499368
481946238789 |
Air guide AIR GUIDE MAGN MWO MHC | Na dotaz | Zadat poptávku | |
| 406 0 WHR95430 |
C00341664
481936118292 |
Motor for rotary plate | Na dotaz | Zadat poptávku | |
| 406 2 WHR95430 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 411 0 WHR95430 |
C00335380
481914868059 |
transformator | 1 479 Kč
€ 58.40 |
||
| 412 0 WHR95430 |
C00555688
481914578181 |
NAHRADA 481214538026 | Na dotaz | Zadat poptávku | |
| 412 1 WHR95430 |
C00499369
481946238791 |
Air guide AIR GUIDE TRANSFORMER MHC | Na dotaz | Zadat poptávku | |
| 412 2 WHR95430 |
C00750297
481952918099 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 420 0 WHR95430 |
C00317238
481912148016 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 1 WHR95430 |
C00339686
481940478491 |
Holder | Na dotaz | Zadat poptávku | |
| 421 0 WHR95430 |
C00340941
481912118197 |
Filtr odrušovací | Na dotaz | Zadat poptávku | |
| 426 0 WHR95430 |
C00342185
481913038078 |
Dioda | 358 Kč
€ 14.10 |
||
| 442 0 WHR95430 |
C00341648
481936178229 |
motor ventilatoru | Na dotaz | Zadat poptávku | |
| 443 0 WHR95430 |
C00341050
481936118314 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 485 2 WHR95430 |
C00343873
481946698742 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR95430 |
C00332879
481932118231 |
Cable mains complete with clamp | Na dotaz | Zadat poptávku | |
| 493 0 WHR95430 |
C00586877
481941879249 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 493 1 WHR95430 |
C00486769
481946279832 |
Cover | Na dotaz | Zadat poptávku | |
| 493 2 WHR95430 |
C00337778
481929068375 |
Plate connector | Na dotaz | Zadat poptávku | |
| 503 0 WHR95430 |
C00373399
481928218566 |
spinac casovy | 2 157 Kč
€ 85.20 |
||
| 521 0 WHR95430 |
C00555706
481921478446 |
NAHRADENE 481921478544 N | Na dotaz | Zadat poptávku | |
| 521 1 WHR95430 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 522 0 WHR95430 |
C00750298
481921478532 |
Control unit | Na dotaz | Zadat poptávku | |
| 561 0 WHR95430 |
C00636129
481928248274 |
TERMOSTAT 125[C AVM4 | Na dotaz | Zadat poptávku | |
| 562 0 WHR95430 |
C00335521
481928248248 |
Thermostat 165 C 36FXE14 20049 | Na dotaz | Zadat poptávku | |
| 617 0 WHR95430 |
C00586839
481928028004 |
rele 48V | 538 Kč
€ 21.20 |
||
| 633 0 WHR95430 |
C00338098
481927138145 |
mikrospinac | 766 Kč
€ 30.20 |
||
| 651 0 WHR95430 |
C00341832
481913428029 |
Lamp | Na dotaz | Zadat poptávku | |
| 651 0 WHR95430 |
C00555683
481913488185 |
NAHRADENE 481913488186 N | Na dotaz | Zadat poptávku | |
| 651 1 WHR95430 |
C00373388
481938028022 |
REFLECTOR | Na dotaz | Zadat poptávku | |
| 652 0 WHR95430 |
C00313820
481925518173 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR95430 |
C00586856
481940449892 |
drzak objimky | 178 Kč
€ 7.00 |
||
| 652 3 WHR95430 |
C00342931
481244068018 |
Cover , lamp | Na dotaz | Zadat poptávku | |
| 652 4 WHR95430 |
C00316817
481949268622 |
Spona fixační | 364 Kč
€ 14.40 |
||
| 727 0 WHR95430 |
C00135806
481951528235 |
vrtule ventilatoru | 1 171 Kč
€ 46.20 |
||
| 741 0 WHR95430 |
C00750299
481944278151 |
Conveyor | Na dotaz | Zadat poptávku | |
| 762 0 WHR95430 |
C00486860
481948048261 |
Filtr tukový | 1 615 Kč
€ 63.80 |
||
| 762 1 WHR95430 |
C00335367
481941879251 |
Tray | Na dotaz | Zadat poptávku | |
| 763 1 WHR95430 |
C00488254
481945858662 |
GRID | Na dotaz | Zadat poptávku | |
| 763 2 WHR95430 |
C00497019
481945858661 |
GRID | Na dotaz | Zadat poptávku | |
| 763 4 WHR95430 |
C00492294
481940118778 |
CLAMPING PIECE | Na dotaz | Zadat poptávku | |
| 765 0 WHR95430 |
C00556255
481948048262 |
AMH555 NAHRADENE 481948048355 | Na dotaz | Zadat poptávku | |
| 765 1 WHR95430 |
C00335842
481940479043 |
Support DA | Na dotaz | Zadat poptávku | |
| 781 0 WHR95430 |
C00499579
481953028917 |
priruba odsavaci tr | Na dotaz | Zadat poptávku | |
| 781 1 WHR95430 |
C00342534
481946258164 |
Cover DA | Na dotaz | Zadat poptávku | |
| 901 0 WHR95430 |
C00332915
481940118494 |
Clamp | Na dotaz | Zadat poptávku | |
| 971 0 WHR95430 |
C00311573
481925338019 |
pojistka T 8A | 95 Kč
€ 3.80 |
||
| 972 0 WHR95430 |
C00315549
481925338011 |
pojistka 250mA | 228 Kč
€ 9.00 |
||
| 990 0 WHR95430 |
C00750303
481931039174 |
Mounting kit MW | Na dotaz | Zadat poptávku | |
| 993 0 WHR95430 |
C00586866
481940479042 |
KONZOLA AVM954 N | Na dotaz | Zadat poptávku | |
| 993 1 WHR95430 |
C00556344
481953538132 |
NAHRADENE 481931038722 N | Na dotaz | Zadat poptávku | |
| 993 2 WHR95430 |
C00338868
481946689274 |
VLOZKA AVM954 | 935 Kč
€ 36.90 |
||
| 993 3 WHR95430 |
C00344098
481953228266 |
Bushing | Na dotaz | Zadat poptávku | |
