WHIRLPOOL AVM 825 WP G MICROWAVE OVENS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AVM 825 WP G MICROWAVE OVENS WP |
| Kód 12NC: | 853882501390 |
| I.C. kód: | 853882501392 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
| Další podobné modely: | 853882501391 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

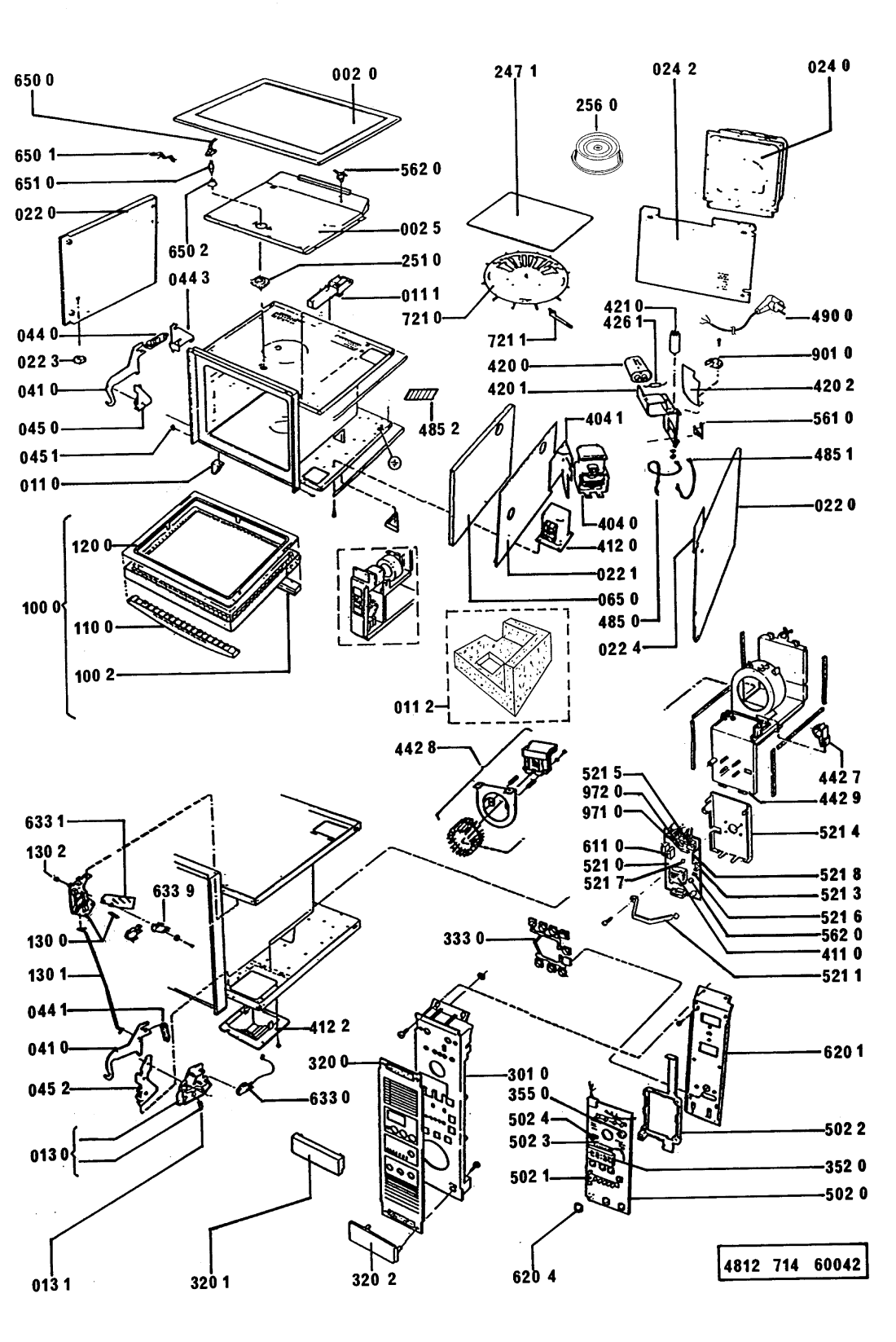

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR67947 |
C00586890
481944059379 |
Cover. | Na dotaz | Zadat poptávku | |
| 002 5 WHR67947 |
C00586888
481944058901 |
Insulator. | Na dotaz | Zadat poptávku | |
| 011 0 WHR67947 |
C00492443
481946279297 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR67947 |
C00492345
481941878446 |
Foot air channel | Na dotaz | Zadat poptávku | |
| 011 2 WHR67947 |
C00481888
481948048182 |
Filter,grease optional | Na dotaz | Zadat poptávku | |
| 013 0 WHR67947 |
C00494261
481921478401 |
Unit,pushbutton | Na dotaz | Zadat poptávku | |
| 013 1 WHR67947 |
C00496460
481949268504 |
Spring for switch unit not shown | Na dotaz | Zadat poptávku | |
| 022 0 WHR67947 |
C00492369
481944059381 |
Side panel | Na dotaz | Zadat poptávku | |
| 022 1 WHR67947 |
C00586970
481946698679 |
Insulation side. | Na dotaz | Zadat poptávku | |
| 022 3 WHR67947 |
C00586971
481946698681 |
Spacebar. | Na dotaz | Zadat poptávku | |
| 022 4 WHR67947 |
C00586964
481946688989 |
Plate protect.. | Na dotaz | Zadat poptávku | |
| 024 0 WHR67947 |
C00586950
481946248231 |
Panel rear | Na dotaz | Zadat poptávku | |
| 024 2 WHR67947 |
C00586887
481944058899 |
Bracket Back cover | Na dotaz | Zadat poptávku | |
| 041 0 WHR67947 |
C00490436
481940478053 |
Hinge (Balance arm) | Na dotaz | Zadat poptávku | |
| 044 0 WHR67947 |
C00491999
481249268168 |
Spring | Na dotaz | Zadat poptávku | |
| 044 1 WHR67947 |
C00379172
481949268508 |
Spring balance right | Na dotaz | Zadat poptávku | |
| 044 3 WHR67947 |
C00484364
481940478054 |
Bracket | Na dotaz | Zadat poptávku | |
| 045 0 WHR67947 |
C00484482
481952878053 |
Bearing left | Na dotaz | Zadat poptávku | |
| 045 1 WHR67947 |
C00586042
481953598354 |
OSKA ZAVESU N | Na dotaz | Zadat poptávku | |
| 045 2 WHR67947 |
C00490835
481952878064 |
Disc , bearing right | Na dotaz | Zadat poptávku | |
| 065 0 WHR67947 |
C00586852
481932518029 |
Insulation. | Na dotaz | Zadat poptávku | |
| 100 0 WHR67947 |
C00486563
481944238038 |
Door cpl. | Na dotaz | Zadat poptávku | |
| 100 2 WHR67947 |
C00586956
481946279458 |
Batten. | Na dotaz | Zadat poptávku | |
| 110 0 WHR67947 |
C00586976
481949869745 |
Rukojeť dveří | 1 886 Kč
€ 74.50 |
||
| 120 0 WHR67947 |
C00373313
481945948456 |
Frame door inner | Na dotaz | Zadat poptávku | |
| 130 0 WHR67947 |
C00492613
481952838351 |
Cam | Na dotaz | Zadat poptávku | |
| 130 1 WHR67947 |
C00586859
481940478049 |
Hoop (sleving bracket) | Na dotaz | Zadat poptávku | |
| 130 2 WHR67947 |
C00492586
481950518177 |
Nut for switch unit | Na dotaz | Zadat poptávku | |
| 247 1 WHR67947 |
C00373567
481246678409 |
dno MWO | Na dotaz | Zadat poptávku | |
| 251 0 WHR67947 |
C00332901
481938118151 |
Kryt žárovky | 741 Kč
€ 29.30 |
||
| 256 0 WHR67947 |
C00333131
481946689229 |
Cover for food | Na dotaz | Zadat poptávku | |
| 301 0 WHR67947 |
C00586969
481946698565 |
Bracket | Na dotaz | Zadat poptávku | |
| 320 0 WHR67947 |
C00486637
481945349473 |
Panel control | Na dotaz | Zadat poptávku | |
| 320 1 WHR67947 |
C00492448
481946279501 |
Batten Decor | Na dotaz | Zadat poptávku | |
| 320 2 WHR67947 |
C00492446
481946279459 |
Batten | Na dotaz | Zadat poptávku | |
| 333 0 WHR67947 |
C00484393
481941258224 |
Cabinet | Na dotaz | Zadat poptávku | |
| 352 0 WHR67947 |
C00586828
481913038044 |
Display. | Na dotaz | Zadat poptávku | |
| 355 0 WHR67947 |
C00343953
481928018019 |
Buzzer | Na dotaz | Zadat poptávku | |
| 404 0 WHR67947 |
C00481746
481913158025 |
Magnetron 2M244 | 2 905 Kč
€ 114.70 |
||
| 404 1 WHR67947 |
C00484404
481944058897 |
Air guide | Na dotaz | Zadat poptávku | |
| 411 0 WHR67947 |
C00455047
481214868033 |
Transformer | Na dotaz | Zadat poptávku | |
| 412 0 WHR67947 |
C00586831
481914868054 |
TRANSFORMÁTOR | 5 344 Kč
€ 211.00 |
||
| 412 2 WHR67947 |
C00484464
481946279296 |
Grid air | Na dotaz | Zadat poptávku | |
| 420 0 WHR67947 |
C00586826
481912118289 |
kondenzator VN 0.85 | Na dotaz | Zadat poptávku | |
| 420 1 WHR67947 |
C00586858
481940478048 |
Air guide , holder for capacitor. | Na dotaz | Zadat poptávku | |
| 420 2 WHR67947 |
C00586963
481946688841 |
Insulation. | Na dotaz | Zadat poptávku | |
| 421 0 WHR67947 |
C00319002
481212208004 |
Filtr odrušovací | 1 355 Kč
€ 53.50 |
||
| 426 1 WHR67947 |
C00314565
481921838038 |
Diode HV | Na dotaz | Zadat poptávku | |
| 442 7 WHR67947 |
C00492288
481940118691 |
Clamp | Na dotaz | Zadat poptávku | |
| 442 8 WHR67947 |
C00486879
481951528192 |
Ventilator assambly | Na dotaz | Zadat poptávku | |
| 442 9 WHR67947 |
C00484405
481944058898 |
Air guide | Na dotaz | Zadat poptávku | |
| 485 0 WHR67947 |
C00494478
481932118132 |
Cable HT | Na dotaz | Zadat poptávku | |
| 485 1 WHR67947 |
C00494479
481932118133 |
Cable HT | Na dotaz | Zadat poptávku | |
| 485 2 WHR67947 |
C00343873
481946698742 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR67947 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 502 0 WHR67947 |
C00484216
481921478403 |
Board printed | Na dotaz | Zadat poptávku | |
| 502 1 WHR67947 |
C00341793
481913038055 |
LED (not shown) | Na dotaz | Zadat poptávku | |
| 502 2 WHR67947 |
C00492491
481946698566 |
Spacebar | Na dotaz | Zadat poptávku | |
| 502 3 WHR67947 |
C00586832
481920988024 |
Microprocessor | Na dotaz | Zadat poptávku | |
| 502 4 WHR67947 |
C00456597
481228018032 |
Resonator Quarz | Na dotaz | Zadat poptávku | |
| 521 0 WHR67947 |
C00484215
481921478402 |
Board printed | Na dotaz | Zadat poptávku | |
| 521 1 WHR67947 |
C00586862
481940478147 |
Bracket. | Na dotaz | Zadat poptávku | |
| 521 3 WHR67947 |
C00586827
481913028011 |
Triac | Na dotaz | Zadat poptávku | |
| 521 4 WHR67947 |
C00586861
481940478146 |
Bracket. | Na dotaz | Zadat poptávku | |
| 521 5 WHR67947 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 521 6 WHR67947 |
C00494252
481913098002 |
OPTO ALEN NEZOBR. *** N | Na dotaz | Zadat poptávku | |
| 521 7 WHR67947 |
C00486410
481911628002 |
Resistor | Na dotaz | Zadat poptávku | |
| 521 8 WHR67947 |
C00492239
481931088224 |
Spring | Na dotaz | Zadat poptávku | |
| 561 0 WHR67947 |
C00481784
481927128653 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR67947 |
C00316757
481927128651 |
termostat 175 | 1 306 Kč
€ 51.60 |
||
| 611 0 WHR67947 |
C00336879
481928068323 |
rele 24V | 287 Kč
€ 11.30 |
||
| 620 1 WHR67947 |
C00586889
481944059013 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 620 4 WHR67947 |
C00620493
481927138115 |
mikrospinac | 390 Kč
€ 15.40 |
||
| 633 0 WHR67947 |
C00379188
481927138049 |
mikrospinac | 652 Kč
€ 25.70 |
||
| 633 1 WHR67947 |
C00586854
481932528007 |
Insulation. | Na dotaz | Zadat poptávku | |
| 633 9 WHR67947 |
C00338098
481927138145 |
mikrospinac | 766 Kč
€ 30.20 |
||
| 650 0 WHR67947 |
C00492210
481925518182 |
Lampholder | Na dotaz | Zadat poptávku | |
| 650 1 WHR67947 |
C00333175
481949268507 |
Spring cavity lamp assy CB / OMIN | Na dotaz | Zadat poptávku | |
| 650 2 WHR67947 |
C00332897
481938028007 |
Reflector | Na dotaz | Zadat poptávku | |
| 651 0 WHR67947 |
C00490312
481913488142 |
Lamp Halogen MWO 10W | Na dotaz | Zadat poptávku | |
| 721 0 WHR67947 |
C00493044
481230398006 |
Antenna assembly | Na dotaz | Zadat poptávku | |
| 721 1 WHR67947 |
C00494444
481930398022 |
Antenna wing | Na dotaz | Zadat poptávku | |
| 901 0 WHR67947 |
C00332915
481940118494 |
Clamp | Na dotaz | Zadat poptávku | |
| 971 0 WHR67947 |
C00311573
481925338019 |
pojistka T 8A | 95 Kč
€ 3.80 |
||
| 972 0 WHR67947 |
C00315549
481925338011 |
pojistka 250mA | 228 Kč
€ 9.00 |
||
| 972 0 WHR67947 |
C00379145
481925338005 |
Fuse T200mA | Na dotaz | Zadat poptávku | |
| 999 WHR67947 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
