WHIRLPOOL AVM 840 WP G MIKROWAVES OVENS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AVM 840 WP G MIKROWAVES OVENS WP |
| Kód 12NC: | 853884001390 |
| I.C. kód: | 853884001392 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
| Další podobné modely: | 853884001391 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 WHR63196 |
C00586841
481931018386 |
Protector PLATE. | Na dotaz | Zadat poptávku | |
| 002 WHR63196 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 003 WHR63196 |
C00494645
481946669758 |
Washer for Fa-motor not shown | Na dotaz | Zadat poptávku | |
| 004 WHR63196 |
C00481888
481948048182 |
Filter,grease optional | Na dotaz | Zadat poptávku | |
| 005 WHR63196 |
C00586985
481953268489 |
Washer FA motor | Na dotaz | Zadat poptávku | |
| 006 WHR63196 |
C00486899
481969048045 |
Silicon | Na dotaz | Zadat poptávku | |
| 412 WHR63196 |
C00373313
481945948456 |
Frame door inner | Na dotaz | Zadat poptávku | |
| 414 WHR63196 |
C00486551
481944059378 |
Door cpl. | Na dotaz | Zadat poptávku | |
| 415 WHR63196 |
C00586976
481949869745 |
Rukojeť dveří | 1 886 Kč
€ 74.40 |
||
| 416 WHR63196 |
C00586956
481946279458 |
Batten. | Na dotaz | Zadat poptávku | |
| 430 WHR63196 |
C00586863
481940478404 |
Holder capillary tube | Na dotaz | Zadat poptávku | |
| 431 WHR63196 |
C00373567
481246678409 |
dno MWO | Na dotaz | Zadat poptávku | |
| 434 WHR63196 |
C00486636
481945349202 |
Panel control | Na dotaz | Zadat poptávku | |
| 434 A WHR63196 |
C00492446
481946279459 |
Batten | Na dotaz | Zadat poptávku | |
| 434 B WHR63196 |
C00492448
481946279501 |
Batten Decor | Na dotaz | Zadat poptávku | |
| 436 WHR63196 |
C00586889
481944059013 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 437 WHR63196 |
C00490436
481940478053 |
Hinge (Balance arm) | Na dotaz | Zadat poptávku | |
| 437 A WHR63196 |
C00379172
481949268508 |
Spring balance right | Na dotaz | Zadat poptávku | |
| 437 B WHR63196 |
C00621139
481949268509 |
PRUYINA DVER? AVM840 N | Na dotaz | Zadat poptávku | |
| 437 C WHR63196 |
C00586042
481953598354 |
OSKA ZAVESU N | Na dotaz | Zadat poptávku | |
| 455 WHR63196 |
C00586962
481946688839 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 456 WHR63196 |
C00496460
481949268504 |
Spring for switch unit not shown | Na dotaz | Zadat poptávku | |
| 457 WHR63196 |
C00373386
481940118584 |
Bracket porcelain | Na dotaz | Zadat poptávku | |
| 461 WHR63196 |
C00586887
481944058899 |
Bracket Back cover | Na dotaz | Zadat poptávku | |
| 461 A WHR63196 |
C00586950
481946248231 |
Panel rear | Na dotaz | Zadat poptávku | |
| 462 A WHR63196 |
C00492369
481944059381 |
Side panel | Na dotaz | Zadat poptávku | |
| 462 B WHR63196 |
C00586964
481946688989 |
Plate protect.. | Na dotaz | Zadat poptávku | |
| 463 WHR63196 |
C00484404
481944058897 |
Air guide | Na dotaz | Zadat poptávku | |
| 463 A WHR63196 |
C00484405
481944058898 |
Air guide | Na dotaz | Zadat poptávku | |
| 463 B WHR63196 |
C00484453
481945858347 |
Air guide unfolded | Na dotaz | Zadat poptávku | |
| 466 WHR63196 |
C00484482
481952878053 |
Bearing left | Na dotaz | Zadat poptávku | |
| 466 A WHR63196 |
C00490835
481952878064 |
Disc , bearing right | Na dotaz | Zadat poptávku | |
| 467 WHR63196 |
C00484297
481936058462 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 470 WHR63196 |
C00586861
481940478146 |
Bracket. | Na dotaz | Zadat poptávku | |
| 470 A WHR63196 |
C00586862
481940478147 |
Bracket. | Na dotaz | Zadat poptávku | |
| 470 B WHR63196 |
C00492491
481946698566 |
Spacebar | Na dotaz | Zadat poptávku | |
| 470 C WHR63196 |
C00586969
481946698565 |
Bracket | Na dotaz | Zadat poptávku | |
| 471 WHR63196 |
C00493835
481269018028 |
Mechanism start | Na dotaz | Zadat poptávku | |
| 471 C WHR63196 |
C00586972
481949268559 |
Lever. | Na dotaz | Zadat poptávku | |
| 472 WHR63196 |
C00492613
481952838351 |
Cam | Na dotaz | Zadat poptávku | |
| 472 B WHR63196 |
C00586859
481940478049 |
Hoop (sleving bracket) | Na dotaz | Zadat poptávku | |
| 474 WHR63196 |
C00586984
481952838353 |
Cam assy for switch. | Na dotaz | Zadat poptávku | |
| 475 WHR63196 |
C00486807
481946669759 |
Gasket border | Na dotaz | Zadat poptávku | |
| 476 WHR63196 |
C00493044
481230398006 |
Antenna assembly | Na dotaz | Zadat poptávku | |
| 477 WHR63196 |
C00494444
481930398022 |
Antenna wing | Na dotaz | Zadat poptávku | |
| 479 WHR63196 |
C00586852
481932518029 |
Insulation. | Na dotaz | Zadat poptávku | |
| 479 A WHR63196 |
C00586853
481932518031 |
Insulation right with probehole | Na dotaz | Zadat poptávku | |
| 479 B WHR63196 |
C00586851
481932518012 |
Insulation. | Na dotaz | Zadat poptávku | |
| 479 C WHR63196 |
C00586963
481946688841 |
Insulation. | Na dotaz | Zadat poptávku | |
| 479 D WHR63196 |
C00586970
481946698679 |
Insulation side. | Na dotaz | Zadat poptávku | |
| 480 WHR63196 |
C00586888
481944058901 |
Insulator. | Na dotaz | Zadat poptávku | |
| 481 WHR63196 |
C00484364
481940478054 |
Bracket | Na dotaz | Zadat poptávku | |
| 482 WHR63196 |
C00492285
481940118492 |
VYSOKONAP. KABEL | 248 Kč
€ 9.80 |
||
| 484 WHR63196 |
C00492286
481940118495 |
Clamp lifting arm, | Na dotaz | Zadat poptávku | |
| 484 A WHR63196 |
C00586864
481940478405 |
Bracket | Na dotaz | Zadat poptávku | |

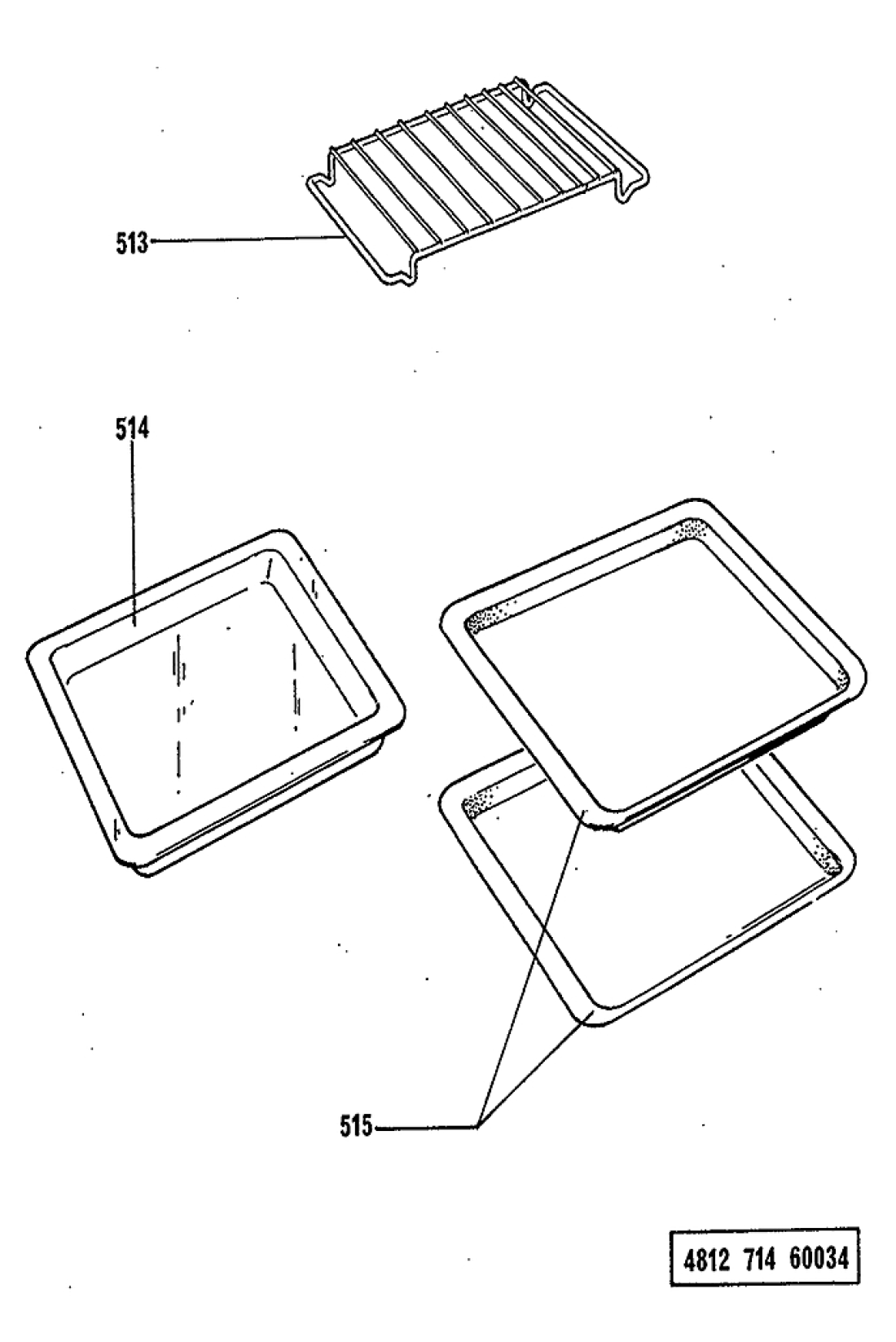

| 513 WHR63196 |
C00373315
481945858348 |
Grating | Na dotaz | Zadat poptávku | |
| 514 WHR63196 |
C00373328
481944058905 |
Fat pan | Na dotaz | Zadat poptávku | |
| 515 WHR63196 |
C00373327
481944058906 |
Baking tray | Na dotaz | Zadat poptávku | |
| 526 WHR63196 |
C00586869
481941258225 |
Control knob. | Na dotaz | Zadat poptávku | |
| 526 A WHR63196 |
C00490750
481945348976 |
Disc scale temp | Na dotaz | Zadat poptávku | |
| 535 WHR63196 |
C00484393
481941258224 |
Cabinet | Na dotaz | Zadat poptávku | |
| 547 WHR63196 |
C00484464
481946279296 |
Grid air | Na dotaz | Zadat poptávku | |
| 547 A WHR63196 |
C00586971
481946698681 |
Spacebar. | Na dotaz | Zadat poptávku | |
| 547 B WHR63196 |
C00492443
481946279297 |
Foot | Na dotaz | Zadat poptávku | |
| 547 C WHR63196 |
C00492345
481941878446 |
Foot air channel | Na dotaz | Zadat poptávku | |
| 548 WHR63196 |
C00486725
481946248233 |
Cover rubber | Na dotaz | Zadat poptávku | |
| 638 WHR63196 |
C00494287
481927138116 |
Switch | Na dotaz | Zadat poptávku | |
| 638 A WHR63196 |
C00586860
481940478056 |
Bracket oven switch. | Na dotaz | Zadat poptávku | |
| 651 WHR63196 |
C00384459
481925928693 |
Heating element 1800W 230V | Na dotaz | Zadat poptávku | |
| 652 WHR63196 |
C00320767
481925928634 |
Topné těleso trouby – kruhové, horkovzduch 1700W | 1 269 Kč
€ 50.00 |
||
| 657 WHR63196 |
C00492588
481950518248 |
MATICA | Na dotaz | Zadat poptávku | |
| 663 WHR63196 |
C00490312
481913488142 |
Lamp Halogen MWO 10W | Na dotaz | Zadat poptávku | |
| 663 B WHR63196 |
C00332897
481938028007 |
Reflector | Na dotaz | Zadat poptávku | |
| 663 C WHR63196 |
C00333175
481949268507 |
Spring cavity lamp assy CB / OMIN | Na dotaz | Zadat poptávku | |
| 664 WHR63196 |
C00492210
481925518182 |
Lampholder | Na dotaz | Zadat poptávku | |
| 666 WHR63196 |
C00481783
481927128652 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 667 WHR63196 |
C00455047
481214868033 |
Transformer | Na dotaz | Zadat poptávku | |
| 668 WHR63196 |
C00586831
481914868054 |
TRANSFORMÁTOR | 5 344 Kč
€ 210.80 |
||
| 669 WHR63196 |
C00319002
481212208004 |
Filtr odrušovací | 1 355 Kč
€ 53.40 |
||
| 670 WHR63196 |
C00486879
481951528192 |
Ventilator assambly | Na dotaz | Zadat poptávku | |
| 670 A WHR63196 |
C00492274
481936178148 |
MOTOR VENTILATORA MV-2594868 | Na dotaz | Zadat poptávku | |
| 671 WHR63196 |
C00490300
481913448257 |
Lamp neon lamp assy | Na dotaz | Zadat poptávku | |
| 671 A WHR63196 |
C00341793
481913038055 |
LED (not shown) | Na dotaz | Zadat poptávku | |
| 672 WHR63196 |
C00332901
481938118151 |
Kryt žárovky | 741 Kč
€ 29.20 |
||
| 679 WHR63196 |
C00486755
481946279298 |
Cover | Na dotaz | Zadat poptávku | |
| 680 WHR63196 |
C00492595
481951528193 |
Fan wheel FA | Na dotaz | Zadat poptávku | |
| 691 WHR63196 |
C00481784
481927128653 |
Thermostat | Na dotaz | Zadat poptávku | |
| 691 A WHR63196 |
C00316757
481927128651 |
termostat 175 | 1 306 Kč
€ 51.50 |
||
| 697 WHR63196 |
C00336879
481928068323 |
rele 24V | 287 Kč
€ 11.30 |
||
| 700 WHR63196 |
C00494478
481932118132 |
Cable HT | Na dotaz | Zadat poptávku | |
| 700 A WHR63196 |
C00494479
481932118133 |
Cable HT | Na dotaz | Zadat poptávku | |
| 701 WHR63196 |
C00586826
481912118289 |
kondenzator VN 0.85 | Na dotaz | Zadat poptávku | |
| 701 A WHR63196 |
C00586858
481940478048 |
Air guide , holder for capacitor. | Na dotaz | Zadat poptávku | |
| 701 B WHR63196 |
C00314565
481921838038 |
Diode HV | Na dotaz | Zadat poptávku | |
| 703 WHR63196 |
C00338098
481927138145 |
mikrospinac | 766 Kč
€ 30.20 |
||
| 703 B WHR63196 |
C00586854
481932528007 |
Insulation. | Na dotaz | Zadat poptávku | |
| 704 WHR63196 |
C00620493
481927138115 |
mikrospinac | 390 Kč
€ 15.40 |
||
| 705 WHR63196 |
C00481746
481913158025 |
Magnetron 2M244 | 2 905 Kč
€ 114.60 |
||
| 706 WHR63196 |
C00400595
481221479899 |
Control unit power | Na dotaz | Zadat poptávku | |
| 706 A WHR63196 |
C00586827
481913028011 |
Triac | Na dotaz | Zadat poptávku | |
| 707 WHR63196 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 708 WHR63196 |
C00311573
481925338019 |
pojistka T 8A | 95 Kč
€ 3.70 |
||
| 708 A WHR63196 |
C00379145
481925338005 |
Fuse T200mA | Na dotaz | Zadat poptávku | |
| 708 B WHR63196 |
C00315549
481925338011 |
pojistka 250mA | 228 Kč
€ 9.00 |
||
| 709 WHR63196 |
C00484212
481921478353 |
PANEL OVLÁDACÍ | 5 594 Kč
€ 220.60 |
||
| 710 WHR63196 |
C00586828
481913038044 |
Display. | Na dotaz | Zadat poptávku | |
| 711 WHR63196 |
C00586832
481920988024 |
Microprocessor | Na dotaz | Zadat poptávku | |
| 711 A WHR63196 |
C00343953
481928018019 |
Buzzer | Na dotaz | Zadat poptávku | |
| 713 WHR63196 |
C00494252
481913098002 |
OPTO ALEN NEZOBR. *** N | Na dotaz | Zadat poptávku | |
| 715 WHR63196 |
C00494435
481929068285 |
Plate connector | Na dotaz | Zadat poptávku | |
| 999 WHR63196 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
