IGNIS AWF 592 WASHER DRYERS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWF 592 WASHER DRYERS |
| Kód 12NC: | 851959215000 |
| I.C. kód: | 851959215002 |
| Značka: | IGNIS |
| Typ produktu: | Pračky se sušičkou |
Potřebujete servis? Jsme tady pro Vás

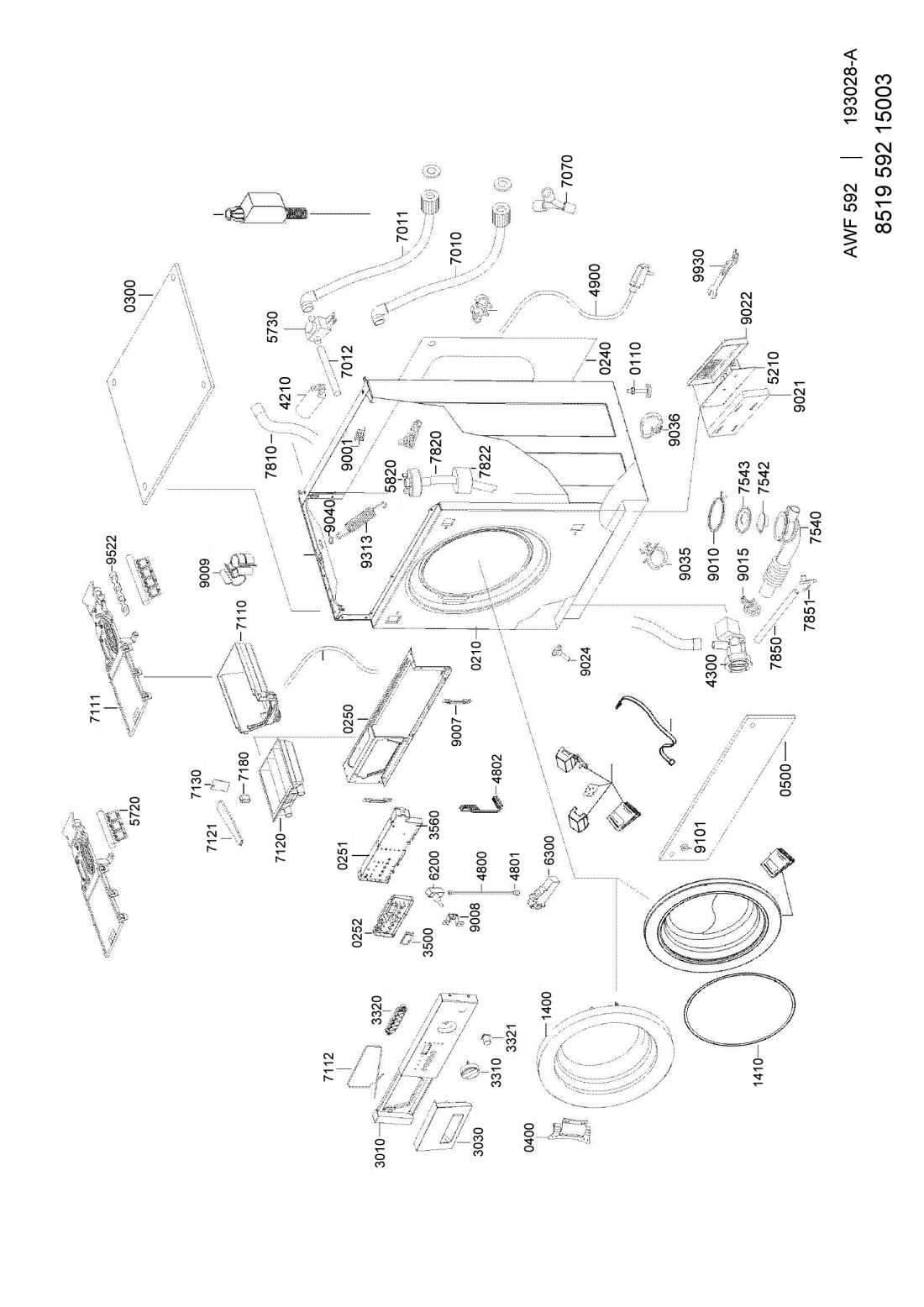

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR99170 |
C00312255
481246248432 |
noha | 602 Kč
€ 23.70 |
||
| 021 0 WHR99170 |
C00321327
480113100025 |
Panel front | Na dotaz | Zadat poptávku | |
| 024 0 WHR99170 |
C00328117
481244019674 |
Panel rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR99170 |
C00330836
481246448184 |
Bearer WM 2003 upper | Na dotaz | Zadat poptávku | |
| 025 1 WHR99170 |
C00329208
481240478714 |
Protec,el.parts | Na dotaz | Zadat poptávku | |
| 025 2 WHR99170 |
C00317001
480113100032 |
Keyboard | Na dotaz | Zadat poptávku | |
| 030 0 WHR99170 |
C00327932
481244008034 |
Panel top | Na dotaz | Zadat poptávku | |
| 040 0 WHR99170 |
C00319957
480113100028 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 0 WHR99170 |
C00316073
481231039204 |
Hinge kit hettic WDI1640E | Na dotaz | Zadat poptávku | |
| 041 1 WHR99170 |
C00329246
481240478912 |
Hinge hettic ST LVB | Na dotaz | Zadat poptávku | |
| 041 2 WHR99170 |
C00329247
481240478914 |
Support | Na dotaz | Zadat poptávku | |
| 041 3 WHR99170 |
C00330684
481246248447 |
Support rubber | Na dotaz | Zadat poptávku | |
| 050 0 WHR99170 |
C00328393
481244089063 |
Plinth | Na dotaz | Zadat poptávku | |
| 061 0 WHR99170 |
C00330999
481246688662 |
Counter weight | Na dotaz | Zadat poptávku | |
| 065 0 WHR99170 |
C00328548
481232518023 |
Panel insulatin | Na dotaz | Zadat poptávku | |
| 065 1 WHR99170 |
C00330786
481246348014 |
Panel insulatin | Na dotaz | Zadat poptávku | |
| 081 0 WHR99170 |
C00330792
481246368026 |
Shock absorber with friction | Na dotaz | Zadat poptávku | |
| 086 0 WHR99170 |
C00329827
481241778189 |
Rubber hinge | Na dotaz | Zadat poptávku | |
| 130 1 WHR99170 |
C00312826
481941753024 |
Hák | 660 Kč
€ 26.00 |
||
| 134 0 WHR99170 |
C00316684
481240478913 |
Support magnet hettic | Na dotaz | Zadat poptávku | |
| 134 1 WHR99170 |
C00314028
481952628009 |
Magnet | Na dotaz | Zadat poptávku | |
| 140 0 WHR99170 |
C00317365
481245168063 |
Door glass complete | Na dotaz | Zadat poptávku | |
| 141 0 WHR99170 |
C00330883
481246638093 |
Protector door | Na dotaz | Zadat poptávku | |
| 144 1 WHR99170 |
C00318058
481240118671 |
Clamp | Na dotaz | Zadat poptávku | |
| 144 2 WHR99170 |
C00333396
481990500304 |
STRAP | Na dotaz | Zadat poptávku | |
| 190 0 WHR99170 |
C00311680
481246688828 |
Gasket door | Na dotaz | Zadat poptávku | |
| 200 0 WHR99170 |
C00320063
480113100039 |
Tub 2000-1600G | Na dotaz | Zadat poptávku | |
| 200 2 WHR99170 |
C00327792
481241838136 |
Ledge 15/10 tub | Na dotaz | Zadat poptávku | |
| 210 0 WHR99170 |
C00315651
481252888118 |
Hub + 2 bearings | Na dotaz | Zadat poptávku | |
| 220 0 WHR99170 |
C00321333
480113100038 |
Drum assembly | Na dotaz | Zadat poptávku | |
| 220 1 WHR99170 |
C00316061
481241889048 |
Cover WM 2003 tub | Na dotaz | Zadat poptávku | |
| 223 0 WHR99170 |
C00312701
481990500312 |
DRUM LIFTER | Na dotaz | Zadat poptávku | |
| 228 0 WHR99170 |
C00313327
481240478713 |
Support drum | Na dotaz | Zadat poptávku | |
| 271 0 WHR99170 |
C00313473
481235818193 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR99170 |
C00314444
481252858038 |
Pulley 1200 G + 2 bearings | Na dotaz | Zadat poptávku | |
| 290 0 WHR99170 |
C00320039
480113100037 |
Gasket tub | Na dotaz | Zadat poptávku | |
| 301 0 WHR99170 |
C00313622
480113100138 |
Control panel AWF 592/2 | Na dotaz | Zadat poptávku | |
| 303 0 WHR99170 |
C00340037
481249878665 |
Handle drawer IGNIS AWF 592 | Na dotaz | Zadat poptávku | |
| 305 1 WHR99170 |
C00333132
481946689296 |
Insert | Na dotaz | Zadat poptávku | |
| 331 0 WHR99170 |
C00316762
481241359186 |
Selector,switch WH | Na dotaz | Zadat poptávku | |
| 332 0 WHR99170 |
C00329351
481241078183 |
Push button set white | Na dotaz | Zadat poptávku | |
| 332 1 WHR99170 |
C00314408
481241078184 |
Push button opening door | Na dotaz | Zadat poptávku | |
| 350 0 WHR99170 |
C00319408
481236738004 |
Display | Na dotaz | Zadat poptávku | |
| 356 0 WHR99170 |
C00316041
480113100031 |
LED red II | Na dotaz | Zadat poptávku | |
| 401 0 WHR99170 |
C00311511
481236158389 |
Motor | Na dotaz | Zadat poptávku | |
| 401 2 WHR99170 |
C00328975
481240418477 |
Bracket motor | Na dotaz | Zadat poptávku | |
| 420 0 WHR99170 |
C00320135
480113100046 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR99170 |
C00326774
481212118271 |
Interf.filter LBFLC2H4460 | Na dotaz | Zadat poptávku | |
| 430 0 WHR99170 |
C00311314
481236018542 |
Pump,draining | Na dotaz | Zadat poptávku | |
| 443 0 WHR99170 |
C00314751
481236118476 |
Fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR99170 |
C00312452
481225928725 |
HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 456 0 WHR99170 |
C00317081
481225948156 |
Heating element dryer | Na dotaz | Zadat poptávku | |
| 480 0 WHR99170 |
C00313677
481232058167 |
Cable door lock | Na dotaz | Zadat poptávku | |
| 480 1 WHR99170 |
C00313697
481232148025 |
Guide cable door lock | Na dotaz | Zadat poptávku | |
| 480 2 WHR99170 |
C00328507
481232128434 |
Connection timer-display | Na dotaz | Zadat poptávku | |
| 490 0 WHR99170 |
C00316254
481231618011 |
Cable mains | Na dotaz | Zadat poptávku | |
| 521 0 WHR99170 |
C00335432
480113100139 |
Timer 166800043-167100021 | Na dotaz | Zadat poptávku | |
| 551 0 WHR99170 |
C00315141
481228208662 |
Thermostat | Na dotaz | Zadat poptávku | |
| 551 9 WHR99170 |
C00318592
481221078011 |
senzor NTC | 799 Kč
€ 31.50 |
||
| 572 0 WHR99170 |
C00312841
481228128398 |
Valve magnet thrice | Na dotaz | Zadat poptávku | |
| 573 0 WHR99170 |
C00316048
481990500442 |
Valve hot water | Na dotaz | Zadat poptávku | |
| 582 0 WHR99170 |
C00315083
481227128544 |
Pressostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR99170 |
C00314587
481227618479 |
Switch,pushbut. | Na dotaz | Zadat poptávku | |
| 630 0 WHR99170 |
C00313471
481227138477 |
Door lock | Na dotaz | Zadat poptávku | |
| 691 0 WHR99170 |
C00312634
481223708014 |
Probe NTC dryer | Na dotaz | Zadat poptávku | |
| 701 0 WHR99170 |
C00314304
481253029295 |
Hose inlet L1500, cold water | Na dotaz | Zadat poptávku | |
| 701 1 WHR99170 |
C00332440
481253029296 |
Hose inlet L1 5 hot water | Na dotaz | Zadat poptávku | |
| 701 2 WHR99170 |
C00332416
481253028964 |
HOSE | Na dotaz | Zadat poptávku | |
| 707 0 WHR99170 |
C00333282
481953023139 |
CONNECTION | Na dotaz | Zadat poptávku | |
| 708 0 WHR99170 |
C00332394
481253018068 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 711 0 WHR99170 |
C00314033
481241888041 |
DISPENSER | Na dotaz | Zadat poptávku | |
| 711 1 WHR99170 |
C00315637
481226278002 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 711 2 WHR99170 |
C00321328
480113100026 |
Gasket detergent drawer | Na dotaz | Zadat poptávku | |
| 712 0 WHR99170 |
C00497845
481241848783 |
Drawer detergent | Na dotaz | Zadat poptávku | |
| 712 1 WHR99170 |
C00330495
481246228458 |
Cover detergent box | Na dotaz | Zadat poptávku | |
| 713 0 WHR99170 |
C00333405
481990500344 |
ACCESSORY | Na dotaz | Zadat poptávku | |
| 718 0 WHR99170 |
C00316063
481241889058 |
Siphon | Na dotaz | Zadat poptávku | |
| 741 0 WHR99170 |
C00318573
481252088111 |
Fan box lower | Na dotaz | Zadat poptávku | |
| 741 1 WHR99170 |
C00332301
481252088112 |
Fan box upper | Na dotaz | Zadat poptávku | |
| 743 0 WHR99170 |
C00332692
481253288035 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR99170 |
C00321334
480113100042 |
Air guide 36SH rear | Na dotaz | Zadat poptávku | |
| 743 2 WHR99170 |
C00328654
481236068494 |
Nozzle air chanel | Na dotaz | Zadat poptávku | |
| 743 3 WHR99170 |
C00320085
480113100041 |
Air guide 32SH front | Na dotaz | Zadat poptávku | |
| 754 0 WHR99170 |
C00332449
481253029343 |
Drainhose | Na dotaz | Zadat poptávku | |
| 754 1 WHR99170 |
C00332451
481253029351 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 754 2 WHR99170 |
C00333411
481990500362 |
VALVE | Na dotaz | Zadat poptávku | |
| 754 3 WHR99170 |
C00333412
481990500363 |
Valve holder | Na dotaz | Zadat poptávku | |
| 781 0 WHR99170 |
C00209686
481253008013 |
hadice vytok. mycky | 920 Kč
€ 36.30 |
||
| 781 1 WHR99170 |
C00321338
480113100047 |
Hose condenser | Na dotaz | Zadat poptávku | |
| 781 2 WHR99170 |
C00332694
481253288037 |
Sleeve drain sleeve | Na dotaz | Zadat poptávku | |
| 781 3 WHR99170 |
C00332739
481254828042 |
Hose | Na dotaz | Zadat poptávku | |
| 781 5 WHR99170 |
C00318725
481253008012 |
Hose draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR99170 |
C00313644
481990500325 |
HOSE | Na dotaz | Zadat poptávku | |
| 782 1 WHR99170 |
C00332755
481269018023 |
PROTECTIVE SLE. | Na dotaz | Zadat poptávku | |
| 782 2 WHR99170 |
C00333401
481990500327 |
INSULATION | Na dotaz | Zadat poptávku | |
| 785 0 WHR99170 |
C00332450
481253029346 |
Hose | Na dotaz | Zadat poptávku | |
| 785 1 WHR99170 |
C00317428
481990500323 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR99170 |
C00333407
481990500351 |
STEAM HOSE | Na dotaz | Zadat poptávku | |
| 900 1 WHR99170 |
C00333403
481990500332 |
Holder | Na dotaz | Zadat poptávku | |
| 900 3 WHR99170 |
C00327147
481225698024 |
Holder f. heating | Na dotaz | Zadat poptávku | |
| 900 4 WHR99170 |
C00328891
481240118592 |
Bracket dryer, back | Na dotaz | Zadat poptávku | |
| 900 5 WHR99170 |
C00328911
481240118669 |
Bracket dryer | Na dotaz | Zadat poptávku | |
| 900 6 WHR99170 |
C00311966
481990500311 |
Bracket drum | Na dotaz | Zadat poptávku | |
| 900 7 WHR99170 |
C00329207
481240478712 |
Hook front panel | Na dotaz | Zadat poptávku | |
| 900 8 WHR99170 |
C00318046
481240118668 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 9 WHR99170 |
C00329074
481240449611 |
Support criss-cross for hose | Na dotaz | Zadat poptávku | |
| 901 0 WHR99170 |
C00321331
480113100033 |
Clamp | Na dotaz | Zadat poptávku | |
| 901 1 WHR99170 |
C00321337
480113100045 |
Clamp 40x91 | Na dotaz | Zadat poptávku | |
| 901 2 WHR99170 |
C00328890
481240118591 |
Clamp 155 | Na dotaz | Zadat poptávku | |
| 901 3 WHR99170 |
C00321335
480113100043 |
Clamp 32x136 | Na dotaz | Zadat poptávku | |
| 901 4 WHR99170 |
C00321336
480113100044 |
Clamp 42x136 | Na dotaz | Zadat poptávku | |
| 901 5 WHR99170 |
C00321330
480113100029 |
Clamp | Na dotaz | Zadat poptávku | |
| 902 0 WHR99170 |
C00333397
481990500306 |
RING,RUBBER | Na dotaz | Zadat poptávku | |
| 902 1 WHR99170 |
C00329176
481240478324 |
Holder f. E-modul | Na dotaz | Zadat poptávku | |
| 902 2 WHR99170 |
C00330496
481246228471 |
Cover electronic | Na dotaz | Zadat poptávku | |
| 902 4 WHR99170 |
C00333402
481990500329 |
RUBBER | Na dotaz | Zadat poptávku | |
| 903 5 WHR99170 |
C00333408
481990500353 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 903 6 WHR99170 |
C00333409
481990500354 |
Bracket | Na dotaz | Zadat poptávku | |
| 904 0 WHR99170 |
C00333404
481990500333 |
BUSHING | Na dotaz | Zadat poptávku | |
| 904 4 WHR99170 |
C00313800
481253248049 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 910 0 WHR99170 |
C00332175
481250518398 |
Nut | Na dotaz | Zadat poptávku | |
| 910 1 WHR99170 |
C00333406
481990500347 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 2 WHR99170 |
C00332087
481250218591 |
Screw 7Px32 TC.ZN. | Na dotaz | Zadat poptávku | |
| 910 3 WHR99170 |
C00317064
481250218592 |
Screw M4x36 TC/IC INOX | Na dotaz | Zadat poptávku | |
| 910 4 WHR99170 |
C00332088
481250218593 |
Screw TC ZN 4.2x18 SP | Na dotaz | Zadat poptávku | |
| 910 5 WHR99170 |
C00332089
481250218594 |
Screw M5x18TC-IC ZN | Na dotaz | Zadat poptávku | |
| 910 6 WHR99170 |
C00336562
481240418648 |
Screw pulley fixation | Na dotaz | Zadat poptávku | |
| 912 0 WHR99170 |
C00332172
481250518375 |
Screw fastener motor | Na dotaz | Zadat poptávku | |
| 912 1 WHR99170 |
C00332666
481253248037 |
Bushing Motor | Na dotaz | Zadat poptávku | |
| 914 0 WHR99170 |
C00321332
480113100036 |
Nut | Na dotaz | Zadat poptávku | |
| 914 1 WHR99170 |
C00330376
481246068551 |
Small plate double | Na dotaz | Zadat poptávku | |
| 921 2 WHR99170 |
C00319945
481246688816 |
Seal | Na dotaz | Zadat poptávku | |
| 931 1 WHR99170 |
C00333398
481990500314 |
SPRING | Na dotaz | Zadat poptávku | |
| 931 3 WHR99170 |
C00333414
481990500373 |
SPRING | Na dotaz | Zadat poptávku | |
| 941 0 WHR99170 |
C00499552
481952023018 |
BEARING | Na dotaz | Zadat poptávku | |
| 941 1 WHR99170 |
C00332294
481252028123 |
Bearing,ball front | Na dotaz | Zadat poptávku | |
| 952 0 WHR99170 |
C00333394
481990500302 |
SEAL | Na dotaz | Zadat poptávku | |
| 952 1 WHR99170 |
C00333413
481990500364 |
SEAL | Na dotaz | Zadat poptávku | |
| 952 2 WHR99170 |
C00315090
481246698951 |
O-Ring valve | Na dotaz | Zadat poptávku | |
| 952 3 WHR99170 |
C00331000
481246688663 |
Gasket thermostat | Na dotaz | Zadat poptávku | |
| 952 4 WHR99170 |
C00331001
481246688664 |
Gasket lng. 43, dryer | Na dotaz | Zadat poptávku | |
| 952 5 WHR99170 |
C00331002
481246688665 |
Gasket lng. 761, dryer | Na dotaz | Zadat poptávku | |
| 952 6 WHR99170 |
C00331003
481246688666 |
Gasket conveyor | Na dotaz | Zadat poptávku | |
| 993 0 WHR99170 |
C00321329
480113100027 |
Tool LB 2003 | Na dotaz | Zadat poptávku | |
