WHIRLPOOL AWG 057 WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 057 WASHING MACHINES WP |
| Kód 12NC: | 857005715000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

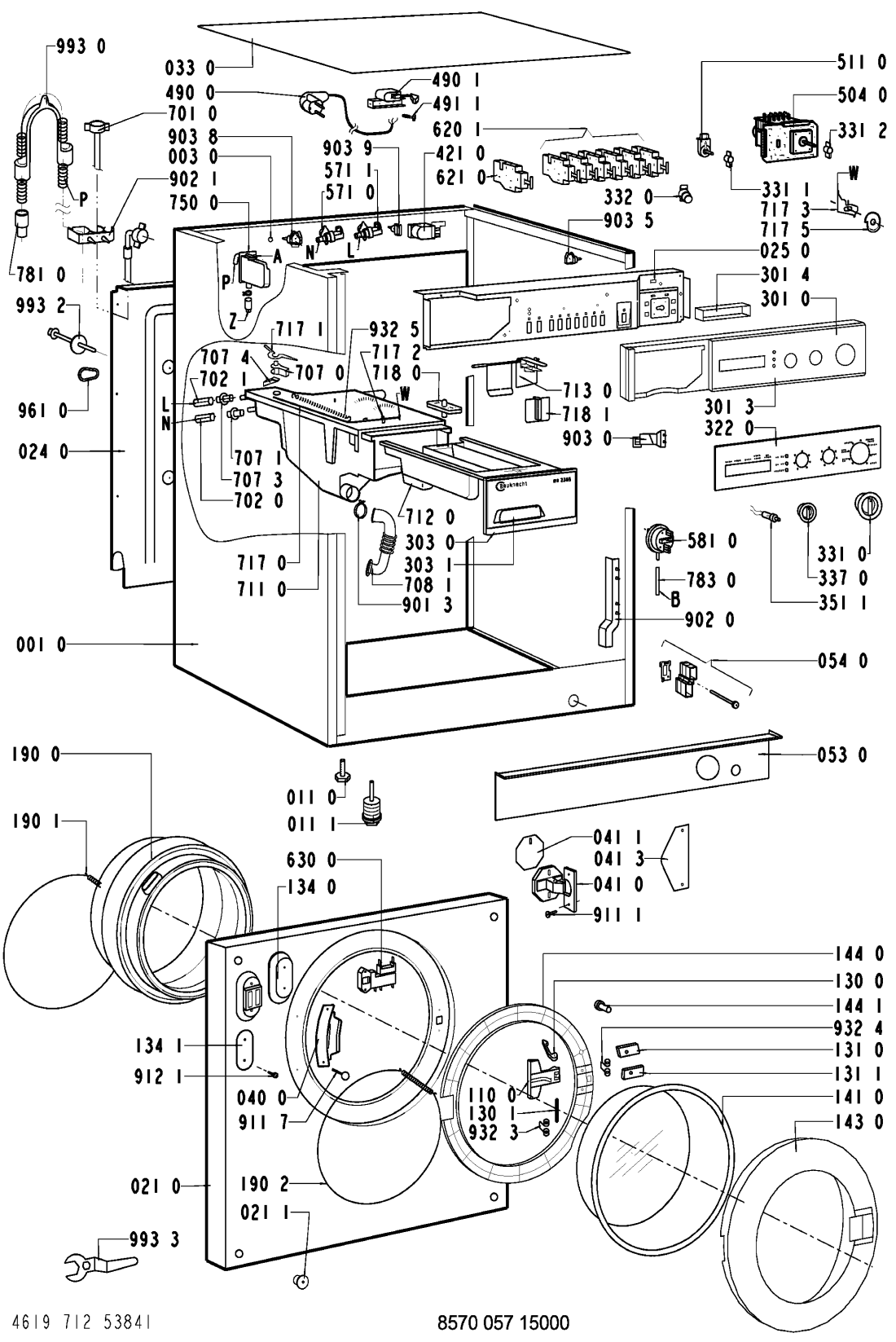

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR74869 |
C00497928
481244019419 |
skrin | 3 529 Kč
€ 139.30 |
||
| 003 0 WHR74869 |
C00342254
481246448105 |
Crossbar hot | Na dotaz | Zadat poptávku | |
| 004 0 WHR74869 |
C00497935
481244019479 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR74869 |
C00340775
481250018068 |
Nastavitelná noha pračky | 474 Kč
€ 18.70 |
||
| 011 1 WHR74869 |
C00340785
481250018075 |
Foot leveling kit 82mm | Na dotaz | Zadat poptávku | |
| 011 1 WHR74869 |
C00345894
481250018074 |
noha nastavitelna | 399 Kč
€ 15.80 |
||
| 021 0 WHR74869 |
C00314073
481244019424 |
Panel front | Na dotaz | Zadat poptávku | |
| 021 1 WHR74869 |
C00330746
481246279654 |
Stopper | Na dotaz | Zadat poptávku | |
| 024 0 WHR74869 |
C00341514
481231018653 |
Panel, rear SS KIT | Na dotaz | Zadat poptávku | |
| 025 0 WHR74869 |
C00339636
481244019425 |
Holder Control deviceControl device | Na dotaz | Zadat poptávku | |
| 033 0 WHR74869 |
C00327326
481231018414 |
Cover plate BI | Na dotaz | Zadat poptávku | |
| 040 0 WHR74869 |
C00312576
481241718794 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 0 WHR74869 |
C00312349
481941718939 |
Závěs dveří vestavné pračky AWOC 0714 | 685 Kč
€ 27.00 |
||
| 041 1 WHR74869 |
C00314485
481241728002 |
podlozka 1mm | Na dotaz | Zadat poptávku | |
| 041 1 WHR74869 |
C00338740
481241718035 |
podlozka 0,2mm | Na dotaz | Zadat poptávku | |
| 041 3 WHR74869 |
C00313388
481241718811 |
kryt zavesu | Na dotaz | Zadat poptávku | |
| 053 0 WHR74869 |
C00337720
481245938014 |
Plinth | Na dotaz | Zadat poptávku | |
| 054 0 WHR74869 |
C00336185
481244019433 |
SADA PODSTAVECA AWM0 | 616 Kč
€ 24.30 |
||
| 061 0 WHR74869 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR74869 |
C00330987
481246688462 |
Counter weight Lower | Na dotaz | Zadat poptávku | |
| 080 0 WHR74869 |
C00312055
481252918038 |
Shock absorber until 1200 | Na dotaz | Zadat poptávku | |
| 084 0 WHR74869 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 0 WHR74869 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 1 WHR74869 |
C00312274
481240118413 |
Čep tlumiče | 924 Kč
€ 36.50 |
||
| 086 2 WHR74869 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR74869 |
C00320130
481231018649 |
DOOR HANDLE KIT | Na dotaz | Zadat poptávku | |
| 130 0 WHR74869 |
C00312170
481241728051 |
Hák dveří | 705 Kč
€ 27.80 |
||
| 130 1 WHR74869 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 0 WHR74869 |
C00319956
481241728053 |
podlozka horni | 725 Kč
€ 28.60 |
||
| 131 1 WHR74869 |
C00316910
481241728052 |
podlozka dolni | 814 Kč
€ 32.10 |
||
| 134 0 WHR74869 |
C00312992
481241748001 |
Magnet dveří | 858 Kč
€ 33.90 |
||
| 134 1 WHR74869 |
C00314481
481241728001 |
Podložka magnetu | 131 Kč
€ 5.20 |
||
| 141 0 WHR74869 |
C00320431
481245068219 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR74869 |
C00316130
481244019418 |
priruba dveri | 792 Kč
€ 31.30 |
||
| 144 0 WHR74869 |
C00340710
481241718795 |
priruba dveri | 1 247 Kč
€ 49.20 |
||
| 144 1 WHR74869 |
C00315363
481240118417 |
STOPPER | Na dotaz | Zadat poptávku | |
| 190 0 WHR74869 |
C00313168
481246068532 |
DOOR BELLOW grease resistance | Na dotaz | Zadat poptávku | |
| 190 0 WHR74869 |
C00313381
481246068527 |
Door bellow standard | Na dotaz | Zadat poptávku | |
| 190 1 WHR74869 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 190 2 WHR74869 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.60 |
||
| 200 1 WHR74869 |
C00315540
481241818369 |
Tub, half front 48 l | Na dotaz | Zadat poptávku | |
| 200 2 WHR74869 |
C00636322
481241818208 |
TUB REAR PART. | Na dotaz | Zadat poptávku | |
| 200 3 WHR74869 |
C00339178
481252018068 |
Ložiskový domek AWM 248 | 2 840 Kč
€ 112.10 |
||
| 200 4 WHR74869 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR74869 |
C00312773
481941818339 |
Drum | Na dotaz | Zadat poptávku | |
| 271 0 WHR74869 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR74869 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 292 0 WHR74869 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR74869 |
C00342573
481245219346 |
PANEL OVLADACI | 935 Kč
€ 36.90 |
||
| 301 3 WHR74869 |
C00343211
481245219348 |
Control panel side part | Na dotaz | Zadat poptávku | |
| 301 4 WHR74869 |
C00340721
481245219355 |
Frame Switch 5-Fold | Na dotaz | Zadat poptávku | |
| 303 0 WHR74869 |
C00498528
481249818143 |
celo nasypky | Na dotaz | Zadat poptávku | |
| 303 1 WHR74869 |
C00340102
481249818144 |
Handle cover | Na dotaz | Zadat poptávku | |
| 322 0 WHR74869 |
C00594319
481245211376 |
INSERT PANEL. | Na dotaz | Zadat poptávku | |
| 331 0 WHR74869 |
C00594202
481241278732 |
Knob timer. | Na dotaz | Zadat poptávku | |
| 331 1 WHR74869 |
C00344645
481241318216 |
Adapter f. button | Na dotaz | Zadat poptávku | |
| 331 2 WHR74869 |
C00329501
481241318215 |
Adapter axle 90 degree | Na dotaz | Zadat poptávku | |
| 332 0 WHR74869 |
C00497619
481241028555 |
TLACIDLO AWM031 N | Na dotaz | Zadat poptávku | |
| 337 0 WHR74869 |
C00594203
481241278733 |
Knob speed spin. | Na dotaz | Zadat poptávku | |
| 351 1 WHR74869 |
C00497251
481213448221 |
SIGNALKA AWM248 | 258 Kč
€ 10.20 |
||
| 401 0 WHR74869 |
C00311965
481936158264 |
motor | 5 156 Kč
€ 203.60 |
||
| 401 1 WHR74869 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR74869 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR74869 |
C00497494
481236018369 |
CERPADLO AWM031 LOP. N | Na dotaz | Zadat poptávku | |
| 451 0 WHR74869 |
C00315047
481225928672 |
Heating element 240V - 031261C0 | Na dotaz | Zadat poptávku | |
| 480 0 WHR74869 |
C00319796
481932058358 |
CABLE MOTOR 2A PP/BUIL | Na dotaz | Zadat poptávku | |
| 490 0 WHR74869 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 490 1 WHR74869 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR74869 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 504 0 WHR74869 |
C00315569
481931039725 |
Timer KIT 4477-MASK.5 | Na dotaz | Zadat poptávku | |
| 511 0 WHR74869 |
C00336785
481241348279 |
Rotary selector + potentiometer. | Na dotaz | Zadat poptávku | |
| 571 0 WHR74869 |
C00313050
481228128382 |
Valve,magnet cold cold. | Na dotaz | Zadat poptávku | |
| 571 1 WHR74869 |
C00497346
481228128383 |
Valve,magnet hot hot. | Na dotaz | Zadat poptávku | |
| 581 0 WHR74869 |
C00337550
481227128381 |
presostat | 1 386 Kč
€ 54.70 |
||
| 620 1 WHR74869 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR74869 |
C00497334
481227618252 |
Switch On / Off | Na dotaz | Zadat poptávku | |
| 630 0 WHR74869 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 701 0 WHR74869 |
C00309500
481953028928 |
hadice napousteci | Na dotaz | Zadat poptávku | |
| 702 0 WHR74869 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 702 1 WHR74869 |
C00318765
481253028841 |
Hose hot | Na dotaz | Zadat poptávku | |
| 707 0 WHR74869 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR74869 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 707 3 WHR74869 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 707 4 WHR74869 |
C00332325
481252648034 |
Nozzle hot | Na dotaz | Zadat poptávku | |
| 708 1 WHR74869 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR74869 |
C00311924
481941879434 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR74869 |
C00312119
481241888051 |
zasuvka nasypky | Na dotaz | Zadat poptávku | |
| 713 0 WHR74869 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR74869 |
C00311569
481932128092 |
Bovden komplet | 699 Kč
€ 27.60 |
||
| 717 1 WHR74869 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR74869 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR74869 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 5 WHR74869 |
C00497352
481228218459 |
VACKA AWM031 N | Na dotaz | Zadat poptávku | |
| 718 0 WHR74869 |
C00318585
481252648027 |
viko prepadu nasypky | 121 Kč
€ 4.80 |
||
| 718 1 WHR74869 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 750 0 WHR74869 |
C00317158
481253048153 |
Chamber,expand. BUILT-IN | Na dotaz | Zadat poptávku | |
| 753 1 WHR74869 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR74869 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR74869 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR74869 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR74869 |
C00314883
481948058106 |
Filtr čerpadla | 198 Kč
€ 7.80 |
||
| 781 0 WHR74869 |
C00312966
481953028959 |
Výtoková hadice 1,5m (koncovky rovná/rovná) | Na dotaz | Zadat poptávku | |
| 781 1 WHR74869 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 783 0 WHR74869 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 3 WHR74869 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 786 0 WHR74869 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 914 Kč
€ 36.10 |
||
| 786 1 WHR74869 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR74869 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 794 5 WHR74869 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 1 WHR74869 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 901 0 WHR74869 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 901 2 WHR74869 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 901 3 WHR74869 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 902 0 WHR74869 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 902 1 WHR74869 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 903 0 WHR74869 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 903 5 WHR74869 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 903 8 WHR74869 |
C00332940
481940478449 |
Support | Na dotaz | Zadat poptávku | |
| 903 9 WHR74869 |
C00343868
481229088046 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 0 WHR74869 |
C00336553
481250218383 |
sroub M8*25loz.domu | 169 Kč
€ 6.70 |
||
| 910 1 WHR74869 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 910 5 WHR74869 |
C00316661
481250218454 |
Screw M8x45 | Na dotaz | Zadat poptávku | |
| 911 1 WHR74869 |
C00313469
481250248345 |
Šroub 4X16 | 148 Kč
€ 5.80 |
||
| 911 7 WHR74869 |
C00332781
481290308014 |
sroub M5x16 H | 89 Kč
€ 3.50 |
||
| 912 0 WHR74869 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 912 1 WHR74869 |
C00312043
481250218007 |
sroub M5x16H | 137 Kč
€ 5.40 |
||
| 923 0 WHR74869 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 931 0 WHR74869 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 932 3 WHR74869 |
C00311804
481249258025 |
Pružina madla dveří pračky | 205 Kč
€ 8.10 |
||
| 932 4 WHR74869 |
C00314204
481249258024 |
Pružina pojistna | 445 Kč
€ 17.60 |
||
| 932 5 WHR74869 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR74869 |
C00318543
481252028001 |
Bearing,ball BB1-0625 DD | Na dotaz | Zadat poptávku | |
| 941 1 WHR74869 |
C00315098
481252028002 |
Ložisko 6203 SKF 2Z C3 | 301 Kč
€ 11.90 |
||
| 941 5 WHR74869 |
C00486293
481252018069 |
Hub 800/1000,48L | Na dotaz | Zadat poptávku | |
| 953 0 WHR74869 |
C00317160
481253058097 |
gufero | Na dotaz | Zadat poptávku | |
| 953 1 WHR74869 |
C00337964
481253058096 |
krouzek lozisk.domu | 396 Kč
€ 15.60 |
||
| 961 0 WHR74869 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 962 2 WHR74869 |
C00497522
481236078035 |
Foil | Na dotaz | Zadat poptávku | |
| 990 0 WHR74869 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 990 1 WHR74869 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 993 0 WHR74869 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 2 WHR74869 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 993 3 WHR74869 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
