WHIRLPOOL AWG200/4 TUMBLE DRYER WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | AWG200/4 TUMBLE DRYER WP |
Kód 12NC: | 853720015110 |
Značka: | WHIRLPOOL |
Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás

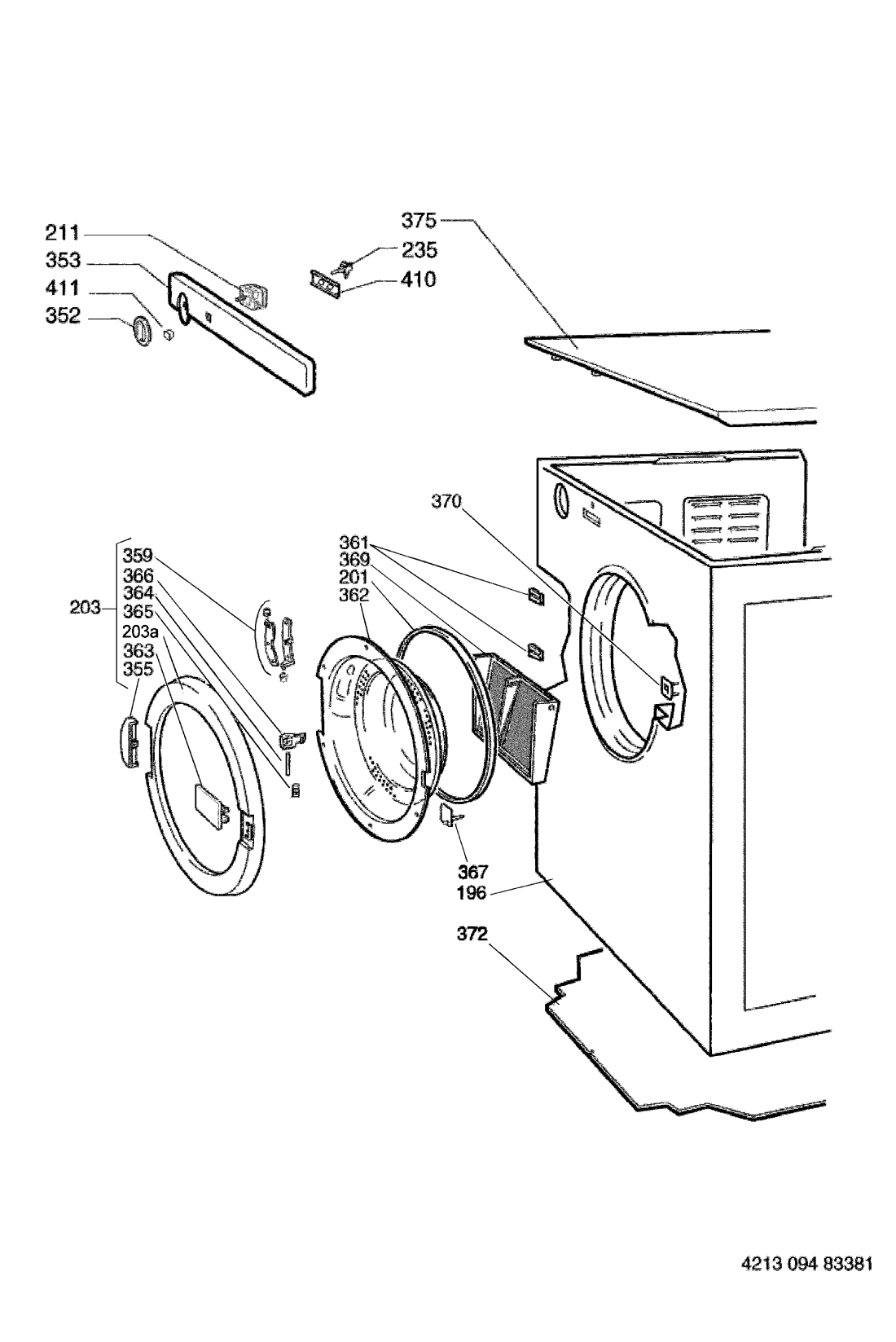

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
101 WHR67880 |
C00585280
481236158346 |
Motor cpl & capacitor. | Na dotaz | Zadat poptávku | |
101 A WHR67880 |
C00581556
481236118306 |
MOTOR. | Na dotaz | Zadat poptávku | |
112 WHR67880 |
C00313246
481912118279 |
Capacitor 8çF - 450V - 6çm dielectric | Na dotaz | Zadat poptávku | |
122 WHR67880 |
C00337064
481952888037 |
kolecko kladky | 383 Kč
€ 15.10 |
||
125 WHR67880 |
C00375230
482235820098 |
V-ribbed belt | Na dotaz | Zadat poptávku | |
141 WHR67880 |
C00311735
481232118094 |
Cable mains | Na dotaz | Zadat poptávku | |
142 WHR67880 |
C00314578
481229068217 |
Terminal Block | Na dotaz | Zadat poptávku | |
196 WHR67880 |
C00585329
481244010416 |
CABINET. | Na dotaz | Zadat poptávku | |
201 WHR67880 |
C00340408
481946668931 |
tesneni dveri | 607 Kč
€ 24.00 |
||
203 WHR67880 |
C00311644
481244019905 |
.oor cpl. | Na dotaz | Zadat poptávku | |
203 a WHR67880 |
C00314081
481244019907 |
Frame door glas | Na dotaz | Zadat poptávku | |
211 WHR67880 |
C00581555
481232818177 |
Timer CS1928. | Na dotaz | Zadat poptávku | |
227 WHR67880 |
C00585245
481225998304 |
HEATING ELEMENT. | Na dotaz | Zadat poptávku | |
228 WHR67880 |
C00313187
481928248221 |
SNIMAC PRETAZENIA | 1 161 Kč
€ 45.80 |
||
229 WHR67880 |
C00313066
481228248241 |
Thermostat exhaust | Na dotaz | Zadat poptávku | |
235 WHR67880 |
C00585250
481227628382 |
SWITCH. | Na dotaz | Zadat poptávku | |
248 WHR67880 |
C00311325
481231038505 |
icroswitch door | Na dotaz | Zadat poptávku | |
266 WHR67880 |
C00585482
481941818058 |
DRUM. | Na dotaz | Zadat poptávku | |
270 WHR67880 |
C00311275
481953578078 |
ulozeni bubnu | Na dotaz | Zadat poptávku | |
352 WHR67880 |
C00585302
481241338059 |
Knob timer. | Na dotaz | Zadat poptávku | |
353 WHR67880 |
C00585362
481245211229 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
355 WHR67880 |
C00484932
481241778051 |
Cover for hinge | Na dotaz | Zadat poptávku | |
359 WHR67880 |
C00377656
481241718942 |
Hinge Door (assy) | Na dotaz | Zadat poptávku | |
361 WHR67880 |
C00373720
481949268362 |
Nut, speed | Na dotaz | Zadat poptávku | |
362 WHR67880 |
C00337171
481945069666 |
sklo dvirek plast | 1 508 Kč
€ 59.50 |
||
363 WHR67880 |
C00574551
481246268015 |
RUKOVAT N | Na dotaz | Zadat poptávku | |
364 WHR67880 |
C00336446
481953518013 |
osa uzaveru dveri | 208 Kč
€ 8.20 |
||
365 WHR67880 |
C00336066
481949248105 |
pruzina dveri | 414 Kč
€ 16.30 |
||
366 WHR67880 |
C00315006
481941758128 |
Hook | Na dotaz | Zadat poptávku | |
367 WHR67880 |
C00314233
481940478695 |
HOLDER,ADJUST. DOOR | Na dotaz | Zadat poptávku | |
368 WHR67880 |
C00581565
481251318109 |
Button Reset. | Na dotaz | Zadat poptávku | |
369 WHR67880 |
C00557358
481248128154 |
FILTER | Na dotaz | Zadat poptávku | |
370 WHR67880 |
C00312876
481243518094 |
Latch Guide | Na dotaz | Zadat poptávku | |
372 WHR67880 |
C00585386
481246098017 |
Plate (base). | Na dotaz | Zadat poptávku | |
374 WHR67880 |
C00585233
481211018001 |
Pad f. Top. | Na dotaz | Zadat poptávku | |
375 WHR67880 |
C00585334
481244010573 |
TABLE TOP. | Na dotaz | Zadat poptávku | |
376 WHR67880 |
C00336623
482250230131 |
Screw 6 x 3/8 | Na dotaz | Zadat poptávku | |
378 WHR67880 |
C00581554
481217088003 |
Tube exhaust. | Na dotaz | Zadat poptávku | |
381 WHR67880 |
C00484572
481210028021 |
PROTEC,EL.PARTS | Na dotaz | Zadat poptávku | |
385 WHR67880 |
C00482818
481240118485 |
Bracket TOC | Na dotaz | Zadat poptávku | |
387 WHR67880 |
C00581558
481243518095 |
CLAMP. | Na dotaz | Zadat poptávku | |
388 WHR67880 |
C00585395
481246668602 |
RING. | Na dotaz | Zadat poptávku | |
389 WHR67880 |
C00581559
481244008023 |
HOUSING. | Na dotaz | Zadat poptávku | |
391 WHR67880 |
C00581620
481944019701 |
Plate (back). | Na dotaz | Zadat poptávku | |
394 WHR67880 |
C00335987
481940118531 |
Strain relief | Na dotaz | Zadat poptávku | |
396 WHR67880 |
C00581553
481212338001 |
DRUM LIFTER. | Na dotaz | Zadat poptávku | |
397 WHR67880 |
C00336615
482250230098 |
Screw 8 x 5/8 " | Na dotaz | Zadat poptávku | |
398 WHR67880 |
C00529846
481250218572 |
SCREW 10-24 x 1/2 | Na dotaz | Zadat poptávku | |
399 WHR67880 |
C00581646
481953078045 |
Ring push fix. | Na dotaz | Zadat poptávku | |
400 WHR67880 |
C00490226
481251548013 |
FAN WHEEL | Na dotaz | Zadat poptávku | |
401 WHR67880 |
C00318703
481252898005 |
Spindle Jockey | Na dotaz | Zadat poptávku | |
402 WHR67880 |
C00527548
481240418299 |
BRACKET f.jockey | Na dotaz | Zadat poptávku | |
403 WHR67880 |
C00585415
481253078043 |
RING,CIRCLIP. | Na dotaz | Zadat poptávku | |
404 WHR67880 |
C00492087
481252898007 |
Spring Jockey. | Na dotaz | Zadat poptávku | |
406 WHR67880 |
C00529855
481250238165 |
SCREW M4 x 6 | Na dotaz | Zadat poptávku | |
407 WHR67880 |
C00585399
481246818061 |
Cover f. motor. | Na dotaz | Zadat poptávku | |
410 WHR67880 |
C00482832
481240418148 |
Bracket for switch | Na dotaz | Zadat poptávku | |
411 WHR67880 |
C00491608
481241028732 |
BUTTON | Na dotaz | Zadat poptávku | |
413 WHR67880 |
C00313191
481252018079 |
Bearing Kit front | Na dotaz | Zadat poptávku | |
414 WHR67880 |
C00581552
481211518019 |
Fixation f. cable. | Na dotaz | Zadat poptávku | |
415 WHR67880 |
C00312281
481246628116 |
Gasket front/rear | Na dotaz | Zadat poptávku | |
417 WHR67880 |
C00342930
481210028029 |
Cover (thermostat) | Na dotaz | Zadat poptávku | |
418 WHR67880 |
C00318960
481210028004 |
ROLLER ASS. | Na dotaz | Zadat poptávku | |
419 WHR67880 |
C00492187
481293008009 |
Nut M8 | Na dotaz | Zadat poptávku | |
420 WHR67880 |
C00553725
481246279727 |
FOOT | Na dotaz | Zadat poptávku | |
421 WHR67880 |
C00582094
481225928764 |
Heat shield. | Na dotaz | Zadat poptávku | |
425 WHR67880 |
C00312049
481231018741 |
Hose vent short | Na dotaz | Zadat poptávku | |
427 WHR67880 |
C00311436
482231020275 |
Clamp Motor | Na dotaz | Zadat poptávku |
