WHIRLPOOL AWG 278 TUMBLE DRYER WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 278 TUMBLE DRYER WP |
| Kód 12NC: | 853727845000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

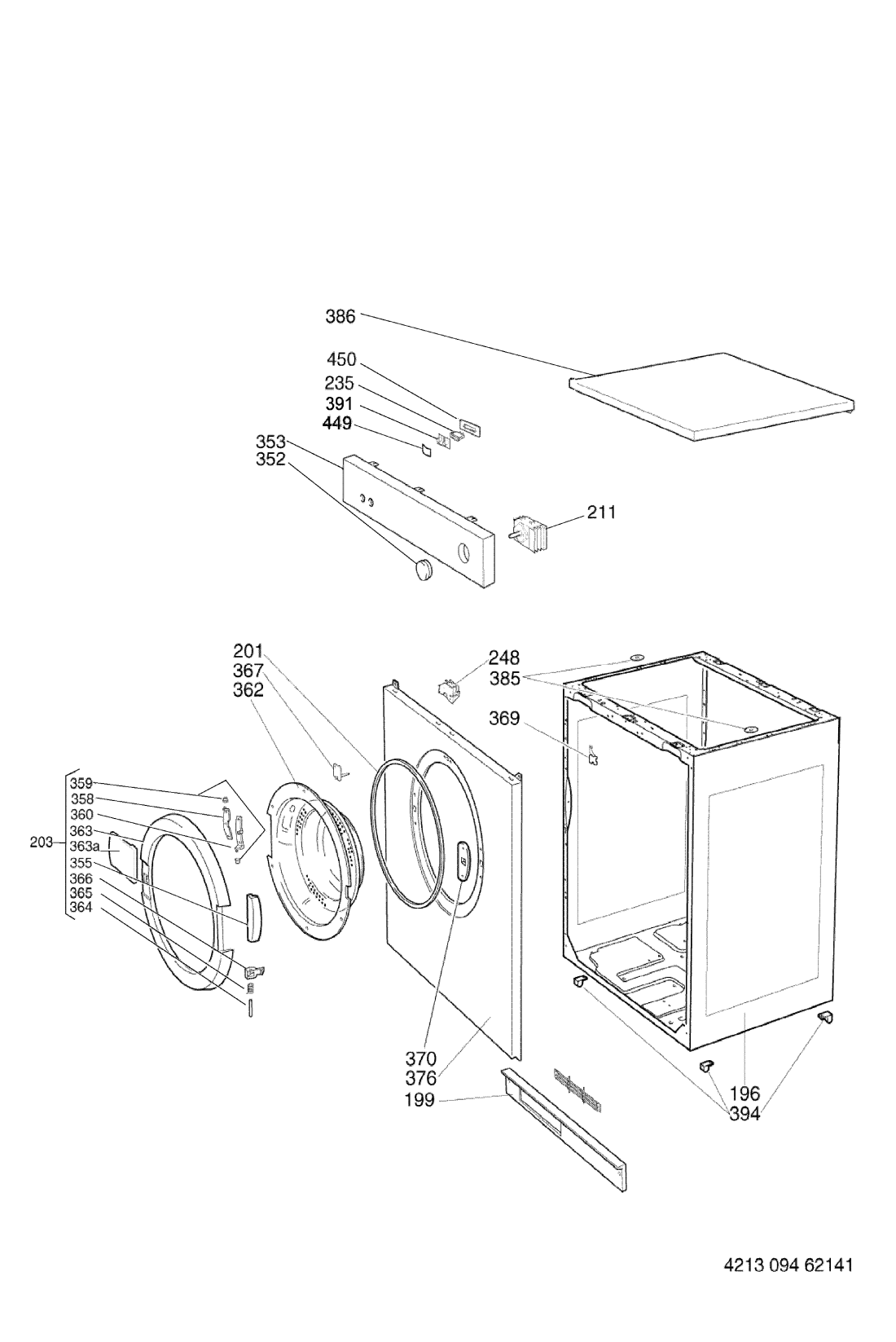

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 101 WHR93356 |
C00585279
481236158165 |
MOTOR. | Na dotaz | Zadat poptávku | |
| 112 WHR93356 |
C00748675
481212118207 |
Capacitor 8uf | Na dotaz | Zadat poptávku | |
| 125 WHR93356 |
C00748676
481235818169 |
Belt | Na dotaz | Zadat poptávku | |
| 141 WHR93356 |
C00748677
481232118095 |
Cable mains | Na dotaz | Zadat poptávku | |
| 142 WHR93356 |
C00314578
481229068217 |
Terminal Block | Na dotaz | Zadat poptávku | |
| 196 WHR93356 |
C00343890
481944019603 |
SKRIŇA | 6 704 Kč
€ 264.70 |
||
| 199 WHR93356 |
C00748678
481244019736 |
Plinth | Na dotaz | Zadat poptávku | |
| 201 WHR93356 |
C00748679
481246668624 |
Gasket Door | Na dotaz | Zadat poptávku | |
| 203 WHR93356 |
C00585348
481244019737 |
Frame door glas cpl.. | Na dotaz | Zadat poptávku | |
| 211 WHR93356 |
C00557136
481228218712 |
English description not available.. | Na dotaz | Zadat poptávku | |
| 227 WHR93356 |
C00316410
481225928753 |
HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 228 WHR93356 |
C00748680
481228248248 |
Thermostat Heat TOC (MR) | Na dotaz | Zadat poptávku | |
| 229 WHR93356 |
C00748681
481228248249 |
Thermostat exhaust | Na dotaz | Zadat poptávku | |
| 230 WHR93356 |
C00574328
481228248251 |
Thermostat inlet. | Na dotaz | Zadat poptávku | |
| 235 WHR93356 |
C00314622
481231038507 |
Switch | Na dotaz | Zadat poptávku | |
| 248 WHR93356 |
C00311325
481231038505 |
icroswitch door | Na dotaz | Zadat poptávku | |
| 266 WHR93356 |
C00311012
481241818272 |
Drum | Na dotaz | Zadat poptávku | |
| 270 WHR93356 |
C00748682
481253578047 |
Bearing kit | Na dotaz | Zadat poptávku | |
| 352 WHR93356 |
C00585301
481241258876 |
Knob Timer. | Na dotaz | Zadat poptávku | |
| 353 WHR93356 |
C00585373
481245319942 |
Control panel. | Na dotaz | Zadat poptávku | |
| 355 WHR93356 |
C00342479
481944019333 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 356 WHR93356 |
C00336624
481950238185 |
Screw 6 x 11 | Na dotaz | Zadat poptávku | |
| 358 WHR93356 |
C00748683
481241718917 |
Hinge block upper | Na dotaz | Zadat poptávku | |
| 359 WHR93356 |
C00748684
481241718918 |
Hinge | Na dotaz | Zadat poptávku | |
| 360 WHR93356 |
C00748685
481241718919 |
Hinge block lower | Na dotaz | Zadat poptávku | |
| 362 WHR93356 |
C00337171
481945069666 |
sklo dvirek plast | 1 508 Kč
€ 59.50 |
||
| 363 WHR93356 |
C00748686
481245018114 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 363 A WHR93356 |
C00748687
481245018115 |
Door handle | Na dotaz | Zadat poptávku | |
| 364 WHR93356 |
C00748688
481245018116 |
Pin | Na dotaz | Zadat poptávku | |
| 365 WHR93356 |
C00748689
481245018117 |
Spring | Na dotaz | Zadat poptávku | |
| 366 WHR93356 |
C00748690
481245018118 |
Door latch | Na dotaz | Zadat poptávku | |
| 367 WHR93356 |
C00748691
481249268153 |
Switch lever | Na dotaz | Zadat poptávku | |
| 369 WHR93356 |
C00748692
481244019738 |
Clip (Loom) | Na dotaz | Zadat poptávku | |
| 370 WHR93356 |
C00313111
481946238702 |
Latch Guide | Na dotaz | Zadat poptávku | |
| 376 WHR93356 |
C00340653
481944019642 |
Front panel white | Na dotaz | Zadat poptávku | |
| 385 WHR93356 |
C00482929
481244019741 |
Bracket Top cover | Na dotaz | Zadat poptávku | |
| 386 WHR93356 |
C00557098
481244019938 |
TABLE TOP WHITE.. | Na dotaz | Zadat poptávku | |
| 390 WHR93356 |
C00748693
481246628114 |
Gasket (thermostat) | Na dotaz | Zadat poptávku | |
| 391 WHR93356 |
C00748694
481241078082 |
Push button | Na dotaz | Zadat poptávku | |
| 393 WHR93356 |
C00574345
481240118475 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 394 WHR93356 |
C00553725
481246279727 |
FOOT | Na dotaz | Zadat poptávku | |
| 395 WHR93356 |
C00748695
481211018004 |
Clip heating element | Na dotaz | Zadat poptávku | |
| 399 WHR93356 |
C00311594
481240448707 |
Support heating element | Na dotaz | Zadat poptávku | |
| 400 WHR93356 |
C00314222
481240478376 |
Plate heating element | Na dotaz | Zadat poptávku | |
| 402 WHR93356 |
C00748696
481245279725 |
Panel Bottom,rear | Na dotaz | Zadat poptávku | |
| 405 WHR93356 |
C00582231
481250238157 |
Screw M5 X 16. | Na dotaz | Zadat poptávku | |
| 406 WHR93356 |
C00548215
481250218447 |
Washer selflock. | Na dotaz | Zadat poptávku | |
| 407 WHR93356 |
C00529857
481250518377 |
NUT M5 M5 | Na dotaz | Zadat poptávku | |
| 408 WHR93356 |
C00491698
481243518088 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 413 WHR93356 |
C00582174
481244019744 |
PANEL, REAR | Na dotaz | Zadat poptávku | |
| 427 WHR93356 |
C00748697
481242938041 |
Spring,clamping Motor | Na dotaz | Zadat poptávku | |
| 432 WHR93356 |
C00500788
481240118476 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| 437 WHR93356 |
C00744329
481253029021 |
Hose Vent(fixed Rear) | Na dotaz | Zadat poptávku | |
| 440 WHR93356 |
C00344527
481941849792 |
Banjo | Na dotaz | Zadat poptávku | |
| 441 WHR93356 |
C00748698
481252008024 |
Bearing Front (short) | Na dotaz | Zadat poptávku | |
| 442 WHR93356 |
C00319777
481246668625 |
Seal Front | Na dotaz | Zadat poptávku | |
| 444 WHR93356 |
C00748699
481251528062 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 445 WHR93356 |
C00748700
481252008025 |
Bearing Front (long) | Na dotaz | Zadat poptávku | |
| 446 WHR93356 |
C00748701
481251528063 |
Fan | Na dotaz | Zadat poptávku | |
| 447 WHR93356 |
C00748702
481246228107 |
Cover (fan) | Na dotaz | Zadat poptávku | |
| 447 A WHR93356 |
C00557115
481246228108 |
COVER.. | Na dotaz | Zadat poptávku | |
| 448 WHR93356 |
C00748703
481242938042 |
Spring fan | Na dotaz | Zadat poptávku | |
| 449 WHR93356 |
C00582101
481227898001 |
Spring switch. | Na dotaz | Zadat poptávku | |
| 450 WHR93356 |
C00748704
481240448708 |
Bracket,switch | Na dotaz | Zadat poptávku | |
| 454 WHR93356 |
C00553739
481248128152 |
FILTER | Na dotaz | Zadat poptávku | |
| 455 WHR93356 |
C00336626
481950238209 |
Screw 6 x 1/2 C.S. | Na dotaz | Zadat poptávku | |
| 456 WHR93356 |
C00311432
481246668626 |
Gasket banjo | Na dotaz | Zadat poptávku | |
| 457 WHR93356 |
C00343306
481949268296 |
SPONA "J" | 29 Kč
€ 1.10 |
||
| 458 WHR93356 |
C00313299
481240448709 |
Insert No. 2, banjo | Na dotaz | Zadat poptávku | |
| 459 WHR93356 |
C00313495
481240448711 |
Insert No. 1, banjo | Na dotaz | Zadat poptávku | |
| 519 WHR93356 |
C00557127
481250518378 |
NUT M5.. | Na dotaz | Zadat poptávku | |
| 520 WHR93356 |
C00574329
481229068216 |
Connection Earth. | Na dotaz | Zadat poptávku | |
| 537 WHR93356 |
C00748705
481252388001 |
Screw | Na dotaz | Zadat poptávku | |
