WHIRLPOOL AWG 308 WASHER DRYERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 308 WASHER DRYERS WP |
| Kód 12NC: | 853730801000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
| Další podobné modely: | 853730801001 |
Potřebujete servis? Jsme tady pro Vás

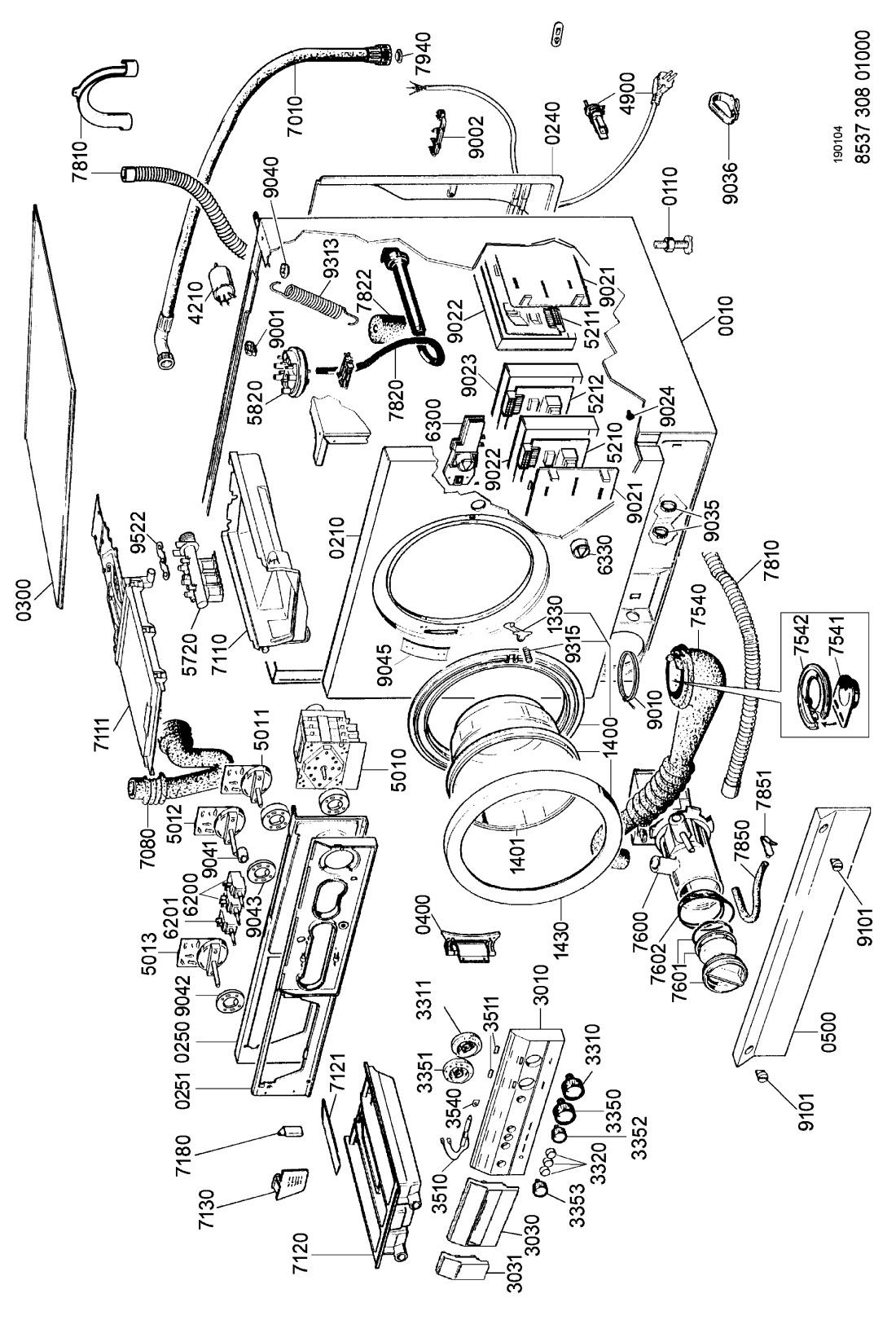

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR59062 |
C00585335
481244010676 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 011 0 WHR59062 |
C00340774
481950013031 |
FOOT, FIX | Na dotaz | Zadat poptávku | |
| 021 0 WHR59062 |
C00342990
481290448002 |
COVER | Na dotaz | Zadat poptávku | |
| 024 0 WHR59062 |
C00328117
481244019674 |
Panel rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR59062 |
C00498025
481244098139 |
Support control board | Na dotaz | Zadat poptávku | |
| 025 1 WHR59062 |
C00335827
481990500339 |
Support front panel | Na dotaz | Zadat poptávku | |
| 030 0 WHR59062 |
C00335647
481990500417 |
TABLE TOP | Na dotaz | Zadat poptávku | |
| 040 0 WHR59062 |
C00339861
481990500336 |
HINGE | Na dotaz | Zadat poptávku | |
| 041 0 WHR59062 |
C00332867
481931039207 |
Hinge kit | Na dotaz | Zadat poptávku | |
| 041 1 WHR59062 |
C00332947
481940479091 |
BASE | Na dotaz | Zadat poptávku | |
| 041 2 WHR59062 |
C00319888
481940479092 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 041 3 WHR59062 |
C00320070
481946248454 |
PLUG | Na dotaz | Zadat poptávku | |
| 041 4 WHR59062 |
C00317320
481941719469 |
HINGE | Na dotaz | Zadat poptávku | |
| 050 0 WHR59062 |
C00337709
481990500396 |
PLINTH | Na dotaz | Zadat poptávku | |
| 061 0 WHR59062 |
C00330999
481246688662 |
Counter weight | Na dotaz | Zadat poptávku | |
| 065 0 WHR59062 |
C00328548
481232518023 |
Panel insulatin | Na dotaz | Zadat poptávku | |
| 081 0 WHR59062 |
C00336355
481990500315 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 130 1 WHR59062 |
C00312826
481941753024 |
Hák | 660 Kč
€ 26.10 |
||
| 133 0 WHR59062 |
C00201667
481990500337 |
DOOR CATCH | Na dotaz | Zadat poptávku | |
| 134 0 WHR59062 |
C00316153
481940479093 |
Magnet | Na dotaz | Zadat poptávku | |
| 134 1 WHR59062 |
C00314028
481952628009 |
Magnet | Na dotaz | Zadat poptávku | |
| 140 0 WHR59062 |
C00528333
481245168051 |
Door glass complete | Na dotaz | Zadat poptávku | |
| 140 1 WHR59062 |
C00339061
481945063062 |
DOOR GLASS | Na dotaz | Zadat poptávku | |
| 143 0 WHR59062 |
C00585311
481241618688 |
Frame,door glas. | Na dotaz | Zadat poptávku | |
| 144 1 WHR59062 |
C00335976
481990500305 |
STRAP | Na dotaz | Zadat poptávku | |
| 144 2 WHR59062 |
C00333396
481990500304 |
STRAP | Na dotaz | Zadat poptávku | |
| 190 0 WHR59062 |
C00313790
481252918053 |
Door bellow | Na dotaz | Zadat poptávku | |
| 200 0 WHR59062 |
C00201823
481241818419 |
OUTER TUB | Na dotaz | Zadat poptávku | |
| 200 1 WHR59062 |
C00338385
481990500324 |
LID | Na dotaz | Zadat poptávku | |
| 200 2 WHR59062 |
C00497810
481241818252 |
Ledge tub | Na dotaz | Zadat poptávku | |
| 210 0 WHR59062 |
C00315236
481252888104 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 220 0 WHR59062 |
C00201827
481241818421 |
INNER DRUM | Na dotaz | Zadat poptávku | |
| 223 0 WHR59062 |
C00312701
481990500312 |
DRUM LIFTER | Na dotaz | Zadat poptávku | |
| 228 0 WHR59062 |
C00313678
481252888103 |
Crosspiece,drum | Na dotaz | Zadat poptávku | |
| 271 0 WHR59062 |
C00201613
481235818185 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR59062 |
C00201612
481252858036 |
PULLEY WHEEL | Na dotaz | Zadat poptávku | |
| 290 0 WHR59062 |
C00314256
481252058003 |
GASKET TUB | Na dotaz | Zadat poptávku | |
| 301 0 WHR59062 |
C00585363
481245211765 |
Control panel AWG 308 | Na dotaz | Zadat poptávku | |
| 303 0 WHR59062 |
C00339308
481249878065 |
Door detergent | Na dotaz | Zadat poptávku | |
| 303 1 WHR59062 |
C00498541
481249878064 |
PANEL DISPENSER | Na dotaz | Zadat poptávku | |
| 305 1 WHR59062 |
C00333132
481946689296 |
Insert | Na dotaz | Zadat poptávku | |
| 305 3 WHR59062 |
C00333091
481946273681 |
CAP | Na dotaz | Zadat poptávku | |
| 331 0 WHR59062 |
C00585308
481241359118 |
Knob timer | Na dotaz | Zadat poptávku | |
| 331 1 WHR59062 |
C00585310
481241378693 |
Knob disc timer. | Na dotaz | Zadat poptávku | |
| 332 0 WHR59062 |
C00318330
481990500343 |
PUSH BUTTON | Na dotaz | Zadat poptávku | |
| 335 0 WHR59062 |
C00585307
481241359117 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 335 1 WHR59062 |
C00487544
481241378692 |
Knob disc thermostat | Na dotaz | Zadat poptávku | |
| 335 2 WHR59062 |
C00585306
481241348327 |
Knob speed | Na dotaz | Zadat poptávku | |
| 335 3 WHR59062 |
C00527704
481241348326 |
Knob delay | Na dotaz | Zadat poptávku | |
| 351 0 WHR59062 |
C00341469
481913423114 |
signalka svetelna | 227 Kč
€ 9.00 |
||
| 351 1 WHR59062 |
C00499654
481990500328 |
COVER F. LAMP | Na dotaz | Zadat poptávku | |
| 354 0 WHR59062 |
C00497545
481238148007 |
Lens front panel | Na dotaz | Zadat poptávku | |
| 401 0 WHR59062 |
C00627434
481236158361 |
Motor | Na dotaz | Zadat poptávku | |
| 401 2 WHR59062 |
C00497306
481225698025 |
Holder motor | Na dotaz | Zadat poptávku | |
| 401 3 WHR59062 |
C00311966
481990500311 |
Bracket drum | Na dotaz | Zadat poptávku | |
| 420 0 WHR59062 |
C00326772
481212118244 |
capacitor1µF | Na dotaz | Zadat poptávku | |
| 421 0 WHR59062 |
C00318986
481212118203 |
INTERF.FILTER | Na dotaz | Zadat poptávku | |
| 443 0 WHR59062 |
C00341069
481251548059 |
Fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR59062 |
C00312452
481225928725 |
HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 456 0 WHR59062 |
C00317081
481225948156 |
Heating element dryer | Na dotaz | Zadat poptávku | |
| 490 0 WHR59062 |
C00493150
481232118188 |
Cable mains and clamp | Na dotaz | Zadat poptávku | |
| 501 0 WHR59062 |
C00319771
481232818186 |
Timer 3342 1600 L=14 5 | Na dotaz | Zadat poptávku | |
| 501 1 WHR59062 |
C00339887
481228219368 |
Hex.code switch L=20 | Na dotaz | Zadat poptávku | |
| 501 2 WHR59062 |
C00339886
481228248269 |
Hex.code switch L17 | Na dotaz | Zadat poptávku | |
| 501 3 WHR59062 |
C00201806
481227388004 |
Hex.code switch L=15 | Na dotaz | Zadat poptávku | |
| 521 0 WHR59062 |
C00319200
481221458104 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 521 1 WHR59062 |
C00201656
481221458105 |
Unit electrical motor | Na dotaz | Zadat poptávku | |
| 521 2 WHR59062 |
C00201816
481221458106 |
MODULE-DRYER | Na dotaz | Zadat poptávku | |
| 551 0 WHR59062 |
C00327520
481228208623 |
Safety Thermos. | Na dotaz | Zadat poptávku | |
| 551 9 WHR59062 |
C00318592
481221078011 |
senzor NTC | 799 Kč
€ 31.50 |
||
| 572 0 WHR59062 |
C00312841
481228128398 |
Valve magnet thrice | Na dotaz | Zadat poptávku | |
| 582 0 WHR59062 |
C00201643
481227128508 |
PRESSURE SWITCH | Na dotaz | Zadat poptávku | |
| 620 0 WHR59062 |
C00201819
481227618401 |
Switch,pushbut. NA | Na dotaz | Zadat poptávku | |
| 620 1 WHR59062 |
C00318245
481227618402 |
Switch,pushbut. NANA | Na dotaz | Zadat poptávku | |
| 630 0 WHR59062 |
C00319171
481227138446 |
Door lock | Na dotaz | Zadat poptávku | |
| 633 0 WHR59062 |
C00335682
481241078146 |
Switch,pushbut. | Na dotaz | Zadat poptávku | |
| 691 0 WHR59062 |
C00312634
481223708014 |
Probe NTC dryer | Na dotaz | Zadat poptávku | |
| 701 0 WHR59062 |
C00339346
481253029218 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 708 0 WHR59062 |
C00339347
481990500338 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 711 0 WHR59062 |
C00314033
481241888041 |
DISPENSER | Na dotaz | Zadat poptávku | |
| 711 1 WHR59062 |
C00485993
481246228456 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR59062 |
C00317430
481990500348 |
SOAP DISPENSER | Na dotaz | Zadat poptávku | |
| 712 1 WHR59062 |
C00330495
481246228458 |
Cover detergent box | Na dotaz | Zadat poptávku | |
| 713 0 WHR59062 |
C00333405
481990500344 |
ACCESSORY | Na dotaz | Zadat poptávku | |
| 718 0 WHR59062 |
C00317619
481990500345 |
SIPHON | Na dotaz | Zadat poptávku | |
| 741 0 WHR59062 |
C00318573
481252088111 |
Fan box lower | Na dotaz | Zadat poptávku | |
| 741 1 WHR59062 |
C00332301
481252088112 |
Fan box upper | Na dotaz | Zadat poptávku | |
| 743 0 WHR59062 |
C00332692
481253288035 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR59062 |
C00332693
481253288036 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 2 WHR59062 |
C00328654
481236068494 |
Nozzle air chanel | Na dotaz | Zadat poptávku | |
| 743 3 WHR59062 |
C00314678
481253288038 |
Air guide front | Na dotaz | Zadat poptávku | |
| 754 0 WHR59062 |
C00341280
481253029216 |
Drainhose | Na dotaz | Zadat poptávku | |
| 754 1 WHR59062 |
C00333411
481990500362 |
VALVE | Na dotaz | Zadat poptávku | |
| 754 2 WHR59062 |
C00333412
481990500363 |
Valve holder | Na dotaz | Zadat poptávku | |
| 760 0 WHR59062 |
C00318545
481236018528 |
Pump,draining | Na dotaz | Zadat poptávku | |
| 760 1 WHR59062 |
C00201629
481248058088 |
FILTER CAP | Na dotaz | Zadat poptávku | |
| 760 2 WHR59062 |
C00338744
481990500357 |
INSERT PIECE | Na dotaz | Zadat poptávku | |
| 781 0 WHR59062 |
C00339450
481990500009 |
hadice vytok. mycky | 625 Kč
€ 24.70 |
||
| 781 1 WHR59062 |
C00493736
481253029217 |
Waste air hose | Na dotaz | Zadat poptávku | |
| 781 2 WHR59062 |
C00332694
481253288037 |
Sleeve drain sleeve | Na dotaz | Zadat poptávku | |
| 781 3 WHR59062 |
C00201853
481254828036 |
HOSE-CONDENSER | Na dotaz | Zadat poptávku | |
| 782 0 WHR59062 |
C00313644
481990500325 |
HOSE | Na dotaz | Zadat poptávku | |
| 782 1 WHR59062 |
C00332755
481269018023 |
PROTECTIVE SLE. | Na dotaz | Zadat poptávku | |
| 782 2 WHR59062 |
C00333401
481990500327 |
INSULATION | Na dotaz | Zadat poptávku | |
| 785 0 WHR59062 |
C00201628
481990500352 |
EMERGENCY DRAIN HOSE | Na dotaz | Zadat poptávku | |
| 785 1 WHR59062 |
C00317428
481990500323 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR59062 |
C00333407
481990500351 |
STEAM HOSE | Na dotaz | Zadat poptávku | |
| 794 0 WHR59062 |
C00333164
481948053059 |
Filter | Na dotaz | Zadat poptávku | |
| 900 1 WHR59062 |
C00333403
481990500332 |
Holder | Na dotaz | Zadat poptávku | |
| 900 2 WHR59062 |
C00333410
481990500355 |
BRACKET | Na dotaz | Zadat poptávku | |
| 900 3 WHR59062 |
C00327147
481225698024 |
Holder f. heating | Na dotaz | Zadat poptávku | |
| 900 4 WHR59062 |
C00328891
481240118592 |
Bracket dryer, back | Na dotaz | Zadat poptávku | |
| 900 5 WHR59062 |
C00497556
481240118595 |
Bracket dryer, front | Na dotaz | Zadat poptávku | |
| 901 0 WHR59062 |
C00333395
481990500303 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 1 WHR59062 |
C00328889
481240118589 |
Clamp 40x91 | Na dotaz | Zadat poptávku | |
| 901 2 WHR59062 |
C00328890
481240118591 |
Clamp 155 | Na dotaz | Zadat poptávku | |
| 901 3 WHR59062 |
C00328892
481240118593 |
Clamp 32x136 | Na dotaz | Zadat poptávku | |
| 901 4 WHR59062 |
C00328893
481240118594 |
Clamp 42x136 | Na dotaz | Zadat poptávku | |
| 902 0 WHR59062 |
C00333397
481990500306 |
RING,RUBBER | Na dotaz | Zadat poptávku | |
| 902 1 WHR59062 |
C00339622
481240448841 |
Holder electronik | Na dotaz | Zadat poptávku | |
| 902 2 WHR59062 |
C00342528
481246228457 |
Cover electronic | Na dotaz | Zadat poptávku | |
| 902 3 WHR59062 |
C00342527
481246228459 |
Cover electronic dryer | Na dotaz | Zadat poptávku | |
| 902 4 WHR59062 |
C00333402
481990500329 |
RUBBER | Na dotaz | Zadat poptávku | |
| 903 5 WHR59062 |
C00333408
481990500353 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 903 6 WHR59062 |
C00333409
481990500354 |
Bracket | Na dotaz | Zadat poptávku | |
| 904 0 WHR59062 |
C00333404
481990500333 |
BUSHING | Na dotaz | Zadat poptávku | |
| 904 1 WHR59062 |
C00580711
481228298011 |
Fixation thermostat. | Na dotaz | Zadat poptávku | |
| 904 2 WHR59062 |
C00336203
481990500368 |
SPACER | Na dotaz | Zadat poptávku | |
| 904 3 WHR59062 |
C00336206
481253248051 |
Spacer | Na dotaz | Zadat poptávku | |
| 904 4 WHR59062 |
C00313800
481253248049 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 904 5 WHR59062 |
C00498661
481253248052 |
Spacebar 1mm window | Na dotaz | Zadat poptávku | |
| 910 0 WHR59062 |
C00332175
481250518398 |
Nut | Na dotaz | Zadat poptávku | |
| 910 1 WHR59062 |
C00333406
481990500347 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 2 WHR59062 |
C00332087
481250218591 |
Screw 7Px32 TC.ZN. | Na dotaz | Zadat poptávku | |
| 910 3 WHR59062 |
C00317064
481250218592 |
Screw M4x36 TC/IC INOX | Na dotaz | Zadat poptávku | |
| 910 4 WHR59062 |
C00332088
481250218593 |
Screw TC ZN 4.2x18 SP | Na dotaz | Zadat poptávku | |
| 910 5 WHR59062 |
C00332089
481250218594 |
Screw M5x18TC-IC ZN | Na dotaz | Zadat poptávku | |
| 912 0 WHR59062 |
C00332172
481250518375 |
Screw fastener motor | Na dotaz | Zadat poptávku | |
| 912 1 WHR59062 |
C00332666
481253248037 |
Bushing Motor | Na dotaz | Zadat poptávku | |
| 914 0 WHR59062 |
C00332794
481293008003 |
NUT | Na dotaz | Zadat poptávku | |
| 914 1 WHR59062 |
C00330376
481246068551 |
Small plate double | Na dotaz | Zadat poptávku | |
| 921 0 WHR59062 |
C00333310
481953213446 |
WASHER | Na dotaz | Zadat poptávku | |
| 921 2 WHR59062 |
C00320241
481253298016 |
Ring | Na dotaz | Zadat poptávku | |
| 931 1 WHR59062 |
C00333398
481990500314 |
SPRING | Na dotaz | Zadat poptávku | |
| 931 3 WHR59062 |
C00333414
481990500373 |
SPRING | Na dotaz | Zadat poptávku | |
| 931 5 WHR59062 |
C00336116
481990500349 |
SPRING | Na dotaz | Zadat poptávku | |
| 941 0 WHR59062 |
C00318561
481252028168 |
Bearing,ball | Na dotaz | Zadat poptávku | |
| 952 0 WHR59062 |
C00333394
481990500302 |
SEAL | Na dotaz | Zadat poptávku | |
| 952 1 WHR59062 |
C00333413
481990500364 |
SEAL | Na dotaz | Zadat poptávku | |
| 952 2 WHR59062 |
C00315090
481246698951 |
O-Ring valve | Na dotaz | Zadat poptávku | |
| 952 3 WHR59062 |
C00331000
481246688663 |
Gasket thermostat | Na dotaz | Zadat poptávku | |
| 952 4 WHR59062 |
C00331001
481246688664 |
Gasket lng. 43, dryer | Na dotaz | Zadat poptávku | |
| 952 5 WHR59062 |
C00331002
481246688665 |
Gasket lng. 761, dryer | Na dotaz | Zadat poptávku | |
| 952 6 WHR59062 |
C00331003
481246688666 |
Gasket conveyor | Na dotaz | Zadat poptávku | |
| 953 0 WHR59062 |
C00319903
481246688661 |
Gasket | Na dotaz | Zadat poptávku | |
| 965 0 WHR59062 |
C00333399
481990500318 |
CAP | Na dotaz | Zadat poptávku | |
