WHIRLPOOL AWG 334/4 WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 334/4 WASHING MACHINES WP |
| Kód 12NC: | 853733438030 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
| Další podobné modely: | 853733410030 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

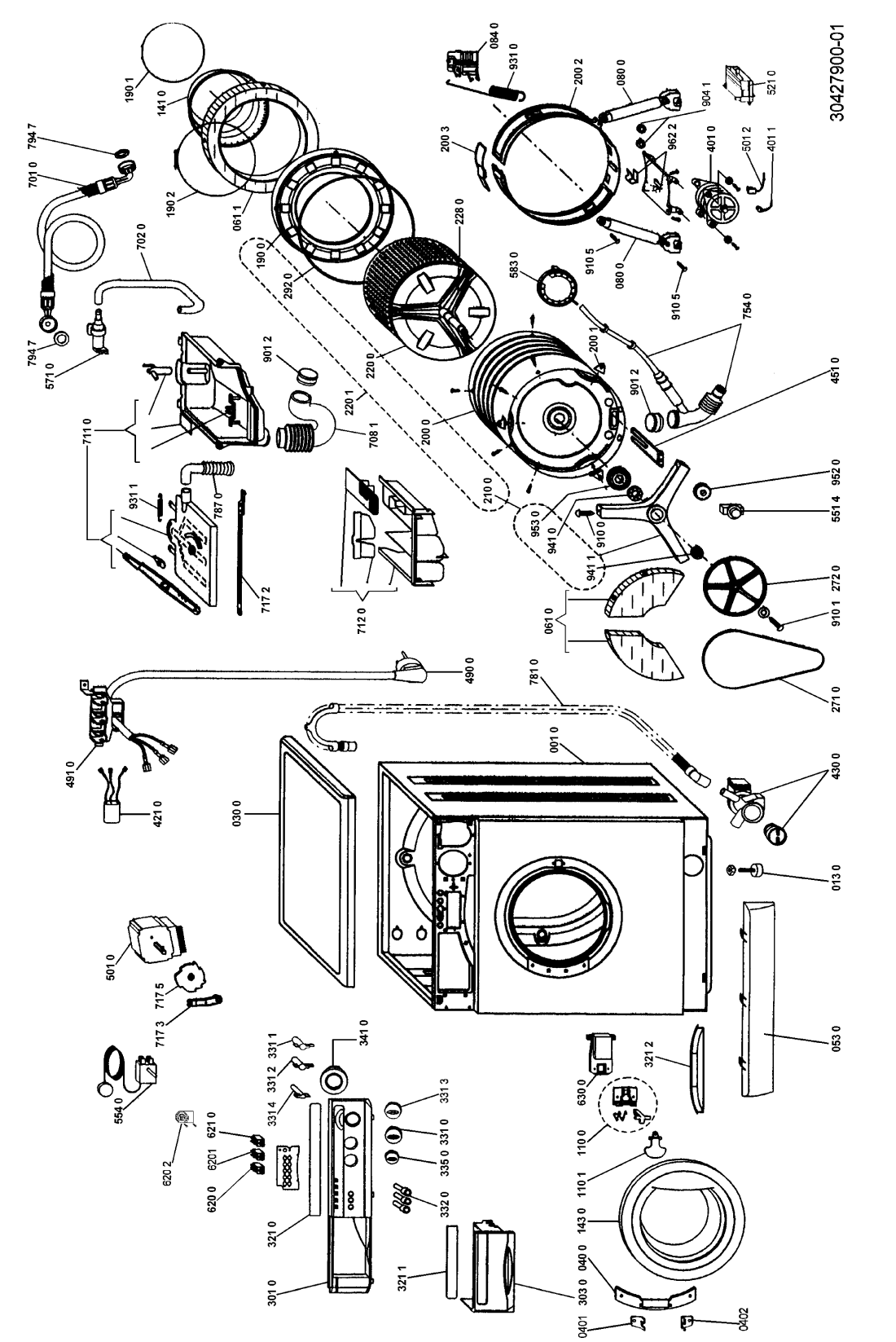

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR60313 |
C00585502
481944019934 |
Cabinet | Na dotaz | Zadat poptávku | |
| 013 0 WHR60313 |
C00053874
481946258273 |
noha pracky | 192 Kč
€ 7.60 |
||
| 030 0 WHR60313 |
C00585497
481944019835 |
deska horni | 3 490 Kč
€ 137.80 |
||
| 040 0 WHR60313 |
C00585480
481941719367 |
Z?VES DVIEROK AWG322 *** N | Na dotaz | Zadat poptávku | |
| 040 1 WHR60313 |
C00553405
481240118463 |
Hinge Bracket upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR60313 |
C00527537
481240118464 |
Hinge Bracket lower Bracket lower | Na dotaz | Zadat poptávku | |
| 053 0 WHR60313 |
C00585489
481944019646 |
SOKEL | Na dotaz | Zadat poptávku | |
| 061 0 WHR60313 |
C00585550
481946689406 |
PROTIZAVAZIE CELNE AWG324 N | Na dotaz | Zadat poptávku | |
| 061 1 WHR60313 |
C00556829
481246688493 |
PROTIZAVAZIE CELNE AWG334/10020 N | Na dotaz | Zadat poptávku | |
| 080 0 WHR60313 |
C00380592
481952918125 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 084 0 WHR60313 |
C00053899
481946699139 |
SUSPENSION SPRING ANCHORAGE PAD | Na dotaz | Zadat poptávku | |
| 110 0 WHR60313 |
C00621262
481941758129 |
HAK UZAVERU DVIER AWG316,322 **kovN | Na dotaz | Zadat poptávku | |
| 110 1 WHR60313 |
C00556834
481249868203 |
Handle.. | Na dotaz | Zadat poptávku | |
| 141 0 WHR60313 |
C00621137
481946818275 |
TVO GUMA | Na dotaz | Zadat poptávku | |
| 143 0 WHR60313 |
C00585344
481244019658 |
DVERE KOMPLET AWG328/10020 skl | Na dotaz | Zadat poptávku | |
| 190 0 WHR60313 |
C00585500
481944019852 |
Bočnice nádrže | 2 458 Kč
€ 97.00 |
||
| 190 1 WHR60313 |
C00492688
481953288043 |
SPONA TVO AWG322 N | Na dotaz | Zadat poptávku | |
| 190 2 WHR60313 |
C00053886
481940118723 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 0 WHR60313 |
C00556880
481941818357 |
NADRZ N | Na dotaz | Zadat poptávku | |
| 200 1 WHR60313 |
C00063347
481240478462 |
BRACKET | Na dotaz | Zadat poptávku | |
| 200 2 WHR60313 |
C00053883
481946689422 |
CLAMPING BAND - OUTER TANK BACK | Na dotaz | Zadat poptávku | |
| 200 3 WHR60313 |
C00053884
481941758144 |
SPOJOVACI KUS | 776 Kč
€ 30.60 |
||
| 210 0 WHR60313 |
C00053892
481940479252 |
BEARING SPIDER ASSEMBLY | Na dotaz | Zadat poptávku | |
| 220 0 WHR60313 |
C00556881
481941818358 |
BUBON AWG334 N | Na dotaz | Zadat poptávku | |
| 220 1 WHR60313 |
C00585314
481241818247 |
nadrz kompletni | 5 211 Kč
€ 205.70 |
||
| 228 0 WHR60313 |
C00585586
481953578155 |
nosic bubnu | 2 431 Kč
€ 96.00 |
||
| 271 0 WHR60313 |
C00378056
481935818159 |
*UNI*BELT PV 1192 J4 EL P | Na dotaz | Zadat poptávku | |
| 272 0 WHR60313 |
C00621148
481952888115 |
REMENICA | Na dotaz | Zadat poptávku | |
| 292 0 WHR60313 |
C00053882
481946818225 |
SEAL - TANKBACK | Na dotaz | Zadat poptávku | |
| 301 0 WHR60313 |
C00621125
481945319887 |
panel ovladaci | 1 394 Kč
€ 55.00 |
||
| 303 0 WHR60313 |
C00377843
481249878044 |
Čelo násypky pračky Whirlpool | 730 Kč
€ 28.80 |
||
| 321 0 WHR60313 |
C00529623
481246078901 |
Insert control panel control panel | Na dotaz | Zadat poptávku | |
| 321 1 WHR60313 |
C00585383
481246078902 |
Insert soap drawer. | Na dotaz | Zadat poptávku | |
| 321 2 WHR60313 |
C00053875
481946078533 |
PROTECTION | Na dotaz | Zadat poptávku | |
| 331 0 WHR60313 |
C00487173
481241258854 |
knoflik termostatu | 538 Kč
€ 21.20 |
||
| 331 1 WHR60313 |
C00585582
481953518127 |
GOMBIK PRORAMATORA PLAST PRACKA | Na dotaz | Zadat poptávku | |
| 331 2 WHR60313 |
C00378117
481953518128 |
Shaft temp.knob | Na dotaz | Zadat poptávku | |
| 331 3 WHR60313 |
C00585297
481241258856 |
GOMBIK PROGRAMATORA | Na dotaz | Zadat poptávku | |
| 331 4 WHR60313 |
C00378118
481953518129 |
Shaft potentiom.knob | Na dotaz | Zadat poptávku | |
| 332 0 WHR60313 |
C00585293
481241028845 |
TLACITKO PLAST | 145 Kč
€ 5.70 |
||
| 335 0 WHR60313 |
C00585299
481241258858 |
Knob Potentiometer | Na dotaz | Zadat poptávku | |
| 341 0 WHR60313 |
C00585418
481253228921 |
Ring f. timer knob | Na dotaz | Zadat poptávku | |
| 401 0 WHR60313 |
C00585451
481936158256 |
motor | 6 514 Kč
€ 257.20 |
||
| 401 1 WHR60313 |
C00484356
481936248012 |
KEFKA MOTORA AWG328 uhlikova N | Na dotaz | Zadat poptávku | |
| 401 1 WHR60313 |
C00636141
481936248011 |
Brush,carbon motor ceset. | Na dotaz | Zadat poptávku | |
| 421 0 WHR60313 |
C00585236
481212118229 |
Interf.filter. | Na dotaz | Zadat poptávku | |
| 430 0 WHR60313 |
C00380590
481936118484 |
Pump draining cpl. | Na dotaz | Zadat poptávku | |
| 451 0 WHR60313 |
C00490334
481925928901 |
topeni s pojistkou | 1 027 Kč
€ 40.50 |
||
| 490 0 WHR60313 |
C00053924
481932118284 |
SUPPLY CABLE | Na dotaz | Zadat poptávku | |
| 491 0 WHR60313 |
C00085334
481229068197 |
CROSSING OF CABLE | Na dotaz | Zadat poptávku | |
| 500 0 WHR60313 |
C00585259
481228218908 |
PROGRAMATOR ele | 3 854 Kč
€ 152.20 |
||
| 501 2 WHR60313 |
C00063375
481921478589 |
TACHO GENERATOR | Na dotaz | Zadat poptávku | |
| 501 2 WHR60313 |
C00063376
481921478591 |
TACHO GENERATOR | Na dotaz | Zadat poptávku | |
| 521 0 WHR60313 |
C00063377
481921478676 |
DIGITAL MODULE | Na dotaz | Zadat poptávku | |
| 551 4 WHR60313 |
C00063370
481928228678 |
termostat pračky AWG 324 | Na dotaz | Zadat poptávku | |
| 554 0 WHR60313 |
C00585255
481228208616 |
termostat kapilarni | Na dotaz | Zadat poptávku | |
| 571 0 WHR60313 |
C00481059
481928128263 |
ventil napousteci | 1 085 Kč
€ 42.80 |
||
| 583 0 WHR60313 |
C00063426
481927129064 |
presostat pračky | 1 205 Kč
€ 47.60 |
||
| 620 0 WHR60313 |
C00585432
481927638367 |
Switch option.CO | Na dotaz | Zadat poptávku | |
| 620 1 WHR60313 |
C00053930
481927618382 |
spinac tlacitkovy | Na dotaz | Zadat poptávku | |
| 620 2 WHR60313 |
C00585249
481227328209 |
Selector. | Na dotaz | Zadat poptávku | |
| 621 0 WHR60313 |
C00635741
481927618447 |
SPINAC AWG328 | 556 Kč
€ 22.00 |
||
| 630 0 WHR60313 |
C00053931
481969018139 |
MIKROSP.BLOKOVÁNÍ DVÍŘEK 'IAR' | Na dotaz | Zadat poptávku | |
| 701 0 WHR60313 |
C00635784
481953028882 |
HADICA PRIVODOVA AWG322 G/T N | Na dotaz | Zadat poptávku | |
| 702 0 WHR60313 |
C00585578
481953029014 |
Hose. | Na dotaz | Zadat poptávku | |
| 708 1 WHR60313 |
C00585573
481952918197 |
hadice k nasypce | 1 550 Kč
€ 61.20 |
||
| 711 0 WHR60313 |
C00053914
481941879792 |
DISPENSER TOP | Na dotaz | Zadat poptávku | |
| 712 0 WHR60313 |
C00053922
481241879654 |
DETERGENT DRAWER KIT | Na dotaz | Zadat poptávku | |
| 717 2 WHR60313 |
C00063359
481953598625 |
tahlo nasypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR60313 |
C00063360
481953598627 |
METAL OPERATING ROD RIGHT | Na dotaz | Zadat poptávku | |
| 717 3 WHR60313 |
C00496866
481246698991 |
Actuator | Na dotaz | Zadat poptávku | |
| 717 5 WHR60313 |
C00063363
481952838448 |
vacka | 307 Kč
€ 12.10 |
||
| 754 0 WHR60313 |
C00585577
481953029009 |
HADICA GUMA | Na dotaz | Zadat poptávku | |
| 781 0 WHR60313 |
C00063357
481953028982 |
DRAIN HOSE - TO SINK | Na dotaz | Zadat poptávku | |
| 787 0 WHR60313 |
C00053911
481952918116 |
STEAM EXHAUST HOSE | Na dotaz | Zadat poptávku | |
| 794 7 WHR60313 |
C00340492
482248050121 |
Gasket + filter | Na dotaz | Zadat poptávku | |
| 901 2 WHR60313 |
C00053909
481940118804 |
klapka | 208 Kč
€ 8.20 |
||
| 904 1 WHR60313 |
C00063380
481953268858 |
MOTOR RUBBER BUSH | Na dotaz | Zadat poptávku | |
| 910 0 WHR60313 |
C00053893
481950218446 |
BOLT | Na dotaz | Zadat poptávku | |
| 910 1 WHR60313 |
C00053897
481950218447 |
BOLT - DRUM PULLEY FIXING | Na dotaz | Zadat poptávku | |
| 910 5 WHR60313 |
C00492576
481950218448 |
SKRUTKA N | Na dotaz | Zadat poptávku | |
| 931 0 WHR60313 |
C00378099
481949238146 |
Spring | Na dotaz | Zadat poptávku | |
| 931 1 WHR60313 |
C00053917
481949238142 |
pruzina trysky | Na dotaz | Zadat poptávku | |
| 941 0 WHR60313 |
C00636273
481952028032 |
LOZISKO BOCNICE AWG322 GULICKOVE N | Na dotaz | Zadat poptávku | |
| 941 1 WHR60313 |
C00636274
481952028033 |
LOZISKO BOCNICE AWG322 N | Na dotaz | Zadat poptávku | |
| 952 0 WHR60313 |
C00636283
481953268716 |
tesneni termostatu | 218 Kč
€ 8.60 |
||
| 953 0 WHR60313 |
C00573002
481953268802 |
KRUZOK TESNIACI PLAST N | Na dotaz | Zadat poptávku | |
| 962 2 WHR60313 |
C00053894
481946689368 |
PODPERA AWG322 | 974 Kč
€ 38.50 |
||
