WHIRLPOOL AWG 6101/M
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG 6101/M |
| Kód 12NC: | 853304286000 |
| I.C. kód: | 853304286001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 853304286000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR22555 |
C00454932
481202308202 |
Table top | Na dotaz | Zadat poptávku | |
| 003 WHR22555 |
C00467023
482000008986 |
Front panel | Na dotaz | Zadat poptávku | |
| 004 WHR22555 |
C00467094
482000009778 |
Plinth | Na dotaz | Zadat poptávku | |
| 005 WHR22555 |
C00318055
481202308004 |
noha | 806 Kč
€ 31.80 |
||
| 006 WHR22555 |
C00426290
480111101851 |
Frame | Na dotaz | Zadat poptávku | |
| 007 WHR22555 |
C00454880
481202308134 |
Door glass | Na dotaz | Zadat poptávku | |
| 008 WHR22555 |
C00426811
480111102572 |
Příruba dveří | 445 Kč
€ 17.60 |
||
| 009 WHR22555 |
C00343394
480111101025 |
spona predni | 175 Kč
€ 6.90 |
||
| 010 WHR22555 |
C00317322
481202308009 |
Blokování dveří | 965 Kč
€ 38.10 |
||
| 012 WHR22555 |
C00466468
482000005854 |
Hinge | Na dotaz | Zadat poptávku | |
| 013 WHR22555 |
C00467028
482000008995 |
Bushing Hinge | Na dotaz | Zadat poptávku | |
| 014 WHR22555 |
C00326633
481202308012 |
Rukojeť Dveří Pračky | Na dotaz | Zadat poptávku | |
| 015 WHR22555 |
C00326634
481202308013 |
pruzina | 131 Kč
€ 5.20 |
||
| 016 WHR22555 |
C00326635
481202308014 |
Pin | Na dotaz | Zadat poptávku | |
| 017 WHR22555 |
C00326636
481202308015 |
hak dveri | 139 Kč
€ 5.50 |
||
| 018 WHR22555 |
C00326637
481202308016 |
Fixation | Na dotaz | Zadat poptávku | |
| 018 WHR22555 |
C00467096
482000009780 |
Bracket wire, blue | Na dotaz | Zadat poptávku | |
| 019 WHR22555 |
C00425856
480111101049 |
Support | Na dotaz | Zadat poptávku | |
| 020 WHR22555 |
C00319944
481202308018 |
hadice | 987 Kč
€ 39.00 |
||
| 028 WHR22555 |
C00326640
481202308021 |
sroub | 83 Kč
€ 3.30 |
||
| 029 WHR22555 |
C00326641
481202308022 |
sroub | 56 Kč
€ 2.20 |
||
| 030 WHR22555 |
C00467098
482000009782 |
Screw M5x14 TSB Spiral form | Na dotaz | Zadat poptávku | |
| 100 WHR22555 |
C00344358
481202308116 |
remen vicekl.1228H8 | 716 Kč
€ 28.30 |
||
| 101 WHR22555 |
C00326643
481202308025 |
pulley | Na dotaz | Zadat poptávku | |
| 102 WHR22555 |
C00454890
481202308151 |
Motor | Na dotaz | Zadat poptávku | |
| 103 WHR22555 |
C00345259
480111104553 |
Tub rear part | Na dotaz | Zadat poptávku | |
| 104 WHR22555 |
C00326645
481202308028 |
tlumic | 861 Kč
€ 34.00 |
||
| 105 WHR22555 |
C00326646
481202308029 |
Pin Shockabsorber | 187 Kč
€ 7.40 |
||
| 112 WHR22555 |
C00326647
481202308031 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 113 WHR22555 |
C00326648
481202308032 |
tesneni nadrze | 423 Kč
€ 16.70 |
||
| 115 WHR22555 |
C00466472
482000005859 |
Clip heating | Na dotaz | Zadat poptávku | |
| 117 WHR22555 |
C00326650
481202308034 |
Tub front | Na dotaz | Zadat poptávku | |
| 118 WHR22555 |
C00314811
481202308153 |
Gasket door 42 li 1000 rpm | Na dotaz | Zadat poptávku | |
| 119 WHR22555 |
C00345144
480111101026 |
spona zadni | 672 Kč
€ 26.50 |
||
| 120 WHR22555 |
C00326652
481202308037 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 122 WHR22555 |
C00336685
480111101027 |
Screw | Na dotaz | Zadat poptávku | |
| 124 WHR22555 |
C00326653
481202308041 |
Screw M8*25 | Na dotaz | Zadat poptávku | |
| 126 WHR22555 |
C00345176
482000005862 |
Screw 6 x 30 | Na dotaz | Zadat poptávku | |
| 126 WHR22555 |
C00466537
482000006037 |
Screw M 6x22 | Na dotaz | Zadat poptávku | |
| 132 WHR22555 |
C00466475
482000005863 |
Cable earth/tub | Na dotaz | Zadat poptávku | |
| 160 WHR22555 |
C00326656
481202308044 |
Drum | Na dotaz | Zadat poptávku | |
| 200 WHR22555 |
C00425857
480111101053 |
Drawer | Na dotaz | Zadat poptávku | |
| 202 WHR22555 |
C00425858
480111101054 |
Cover siphon | Na dotaz | Zadat poptávku | |
| 203 WHR22555 |
C00425859
480111101055 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 205 WHR22555 |
C00425861
480111101057 |
Dispenser housing | Na dotaz | Zadat poptávku | |
| 206 WHR22555 |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 207 WHR22555 |
C00326660
481202308054 |
Hose | Na dotaz | Zadat poptávku | |
| 208 WHR22555 |
C00326659
481202308053 |
Hose valve / deterg. box | Na dotaz | Zadat poptávku | |
| 209 WHR22555 |
C00326661
481202308055 |
ventil | 1 416 Kč
€ 55.90 |
||
| 210 WHR22555 |
C00466512
482000006001 |
Ball | Na dotaz | Zadat poptávku | |
| 211 WHR22555 |
C00326662
481202308056 |
Hose pressure switch | Na dotaz | Zadat poptávku | |
| 212 WHR22555 |
C00326663
481202308057 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 213 WHR22555 |
C00318077
481202308058 |
hadice | 408 Kč
€ 16.10 |
||
| 215 WHR22555 |
C00340962
480111101028 |
Odrušovací filtr pračky Whirlpool, Ignis | 920 Kč
€ 36.30 |
||
| 219 WHR22555 |
C00326665
481202308061 |
Hose drain | Na dotaz | Zadat poptávku | |
| 220 WHR22555 |
C00326666
481202308062 |
koleno | 124 Kč
€ 4.90 |
||
| 222 WHR22555 |
C00326668
481202308064 |
drzak presostatu | Na dotaz | Zadat poptávku | |
| 225 WHR22555 |
C00318079
481202308065 |
presostat | 1 027 Kč
€ 40.50 |
||
| 228 WHR22555 |
C00326669
481202308066 |
Clamp | Na dotaz | Zadat poptávku | |
| 231 WHR22555 |
C00345065
482000006035 |
Crossbar spring | Na dotaz | Zadat poptávku | |
| 234 WHR22555 |
C00326671
481202308068 |
Clamp | Na dotaz | Zadat poptávku | |
| 235 WHR22555 |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 238 WHR22555 |
C00326675
481202308073 |
kryt | 134 Kč
€ 5.30 |
||
| 239 WHR22555 |
C00342894
481202308122 |
kabelaz | 1 309 Kč
€ 51.70 |
||
| 244 WHR22555 |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 285 WHR22555 |
C00312887
480111101853 |
Čerpadlo vypouštěcí | 1 917 Kč
€ 75.70 |
||
| 290 WHR22555 |
C00336552
480111101365 |
Screw transport kit | Na dotaz | Zadat poptávku | |
| 295 WHR22555 |
C00466965
482000008404 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 296 WHR22555 |
C00467113
482000009812 |
Cable Kit | Na dotaz | Zadat poptávku | |

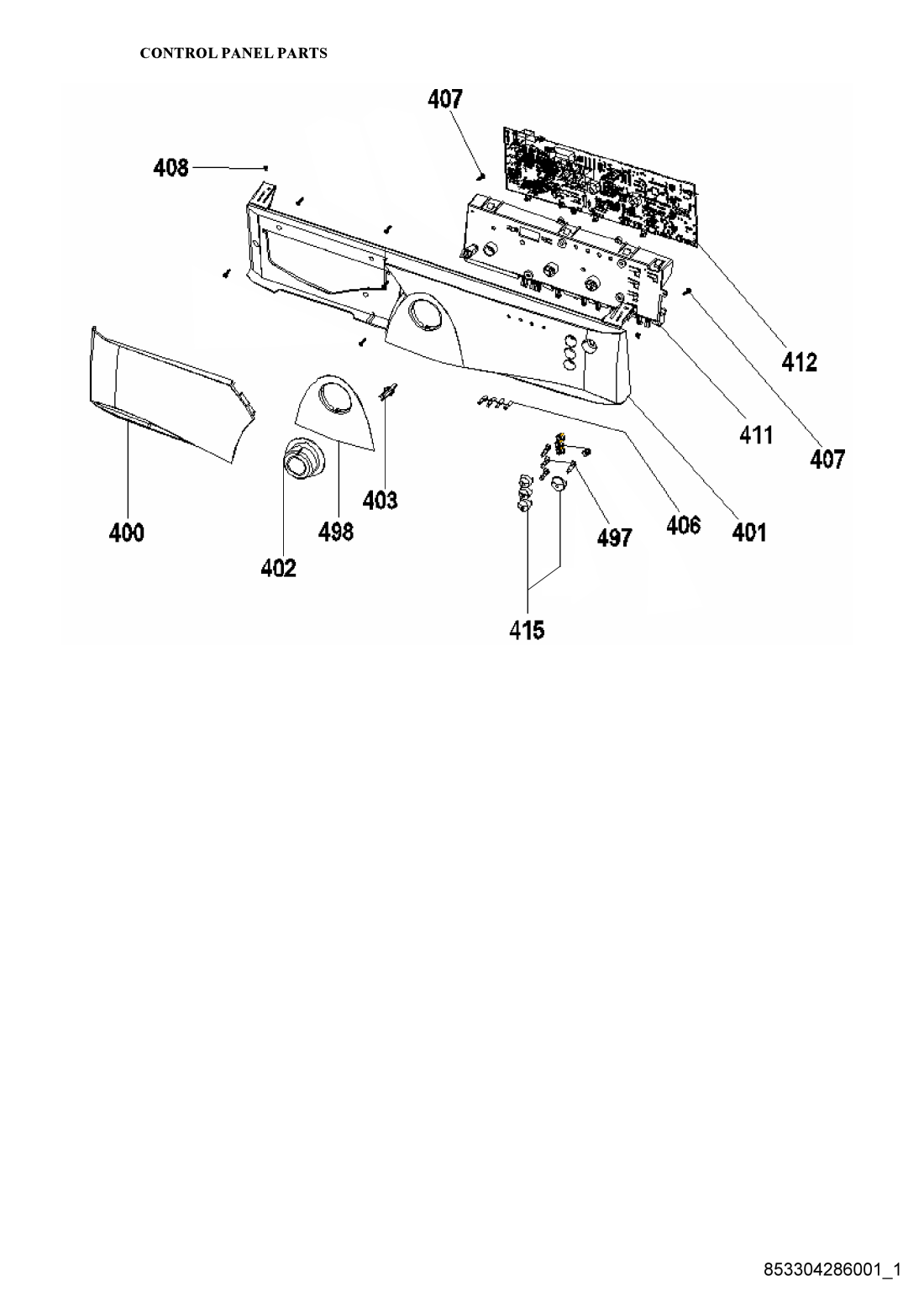

| 400 WHR22555 |
C00427324
480111103215 |
Handle | Na dotaz | Zadat poptávku | |
| 401 WHR22555 |
C00427325
480111103216 |
Control panel | Na dotaz | Zadat poptávku | |
| 402 WHR22555 |
C00454921
481202308188 |
Knob timer | Na dotaz | Zadat poptávku | |
| 403 WHR22555 |
C00336453
481202308189 |
Shaft adapter | Na dotaz | Zadat poptávku | |
| 406 WHR22555 |
C00454913
481202308177 |
Light guide four way | Na dotaz | Zadat poptávku | |
| 407 WHR22555 |
C00317348
481202308092 |
sroub | 56 Kč
€ 2.20 |
||
| 408 WHR22555 |
C00326689
481202308093 |
sroub | 56 Kč
€ 2.20 |
||
| 411 WHR22555 |
C00426292
480111101855 |
Holder | Na dotaz | Zadat poptávku | |
| 412 WHR22555 |
C00467130
482000009836 |
Control unit V-436480F20000-W | Na dotaz | Zadat poptávku | |
| 415 WHR22555 |
C00454915
481202308179 |
Knob | Na dotaz | Zadat poptávku | |
| 497 WHR22555 |
C00454916
481202308181 |
Light guide Start button | Na dotaz | Zadat poptávku | |
| 498 WHR22555 |
C00426288
480111101848 |
Insert | Na dotaz | Zadat poptávku | |
| 700 WHR22555 |
C00326699
481202308107 |
pruzina | 174 Kč
€ 6.90 |
||
| 800 WHR22555 |
C00466535
482000006034 |
Spring | Na dotaz | Zadat poptávku | |
| 806 WHR22555 |
C00326702
481202308111 |
Washer 8,4*28*3 | Na dotaz | Zadat poptávku | |
| 807 WHR22555 |
C00326701
481202308109 |
Screw PT 8*40 | Na dotaz | Zadat poptávku | |
| 808 WHR22555 |
C00425873
480111101071 |
Screw | Na dotaz | Zadat poptávku | |
| 811 WHR22555 |
C00326704
481202308113 |
Support | Na dotaz | Zadat poptávku | |
| 812 WHR22555 |
C00326705
481202308114 |
Nut M 8 | Na dotaz | Zadat poptávku | |
| 813 WHR22555 |
C00312961
481202308115 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 899 WHR22555 |
C00466518
482000006007 |
Heating element with hole | Na dotaz | Zadat poptávku | |
| 919 WHR22555 |
C00466519
482000006008 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 920 WHR22555 |
C00466520
482000006009 |
Fastener front panel, plastic | Na dotaz | Zadat poptávku | |
| 998 WHR22555 |
C00326674
481202308072 |
Lever,security | Na dotaz | Zadat poptávku | |
| 999 WHR22555 |
C00466487
482000005876 |
Sensor temper. NTC | Na dotaz | Zadat poptávku | |
