| Komerční kód: | AWG 7081 WASHING MACHINE |
| Kód 12NC: | 853303084100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

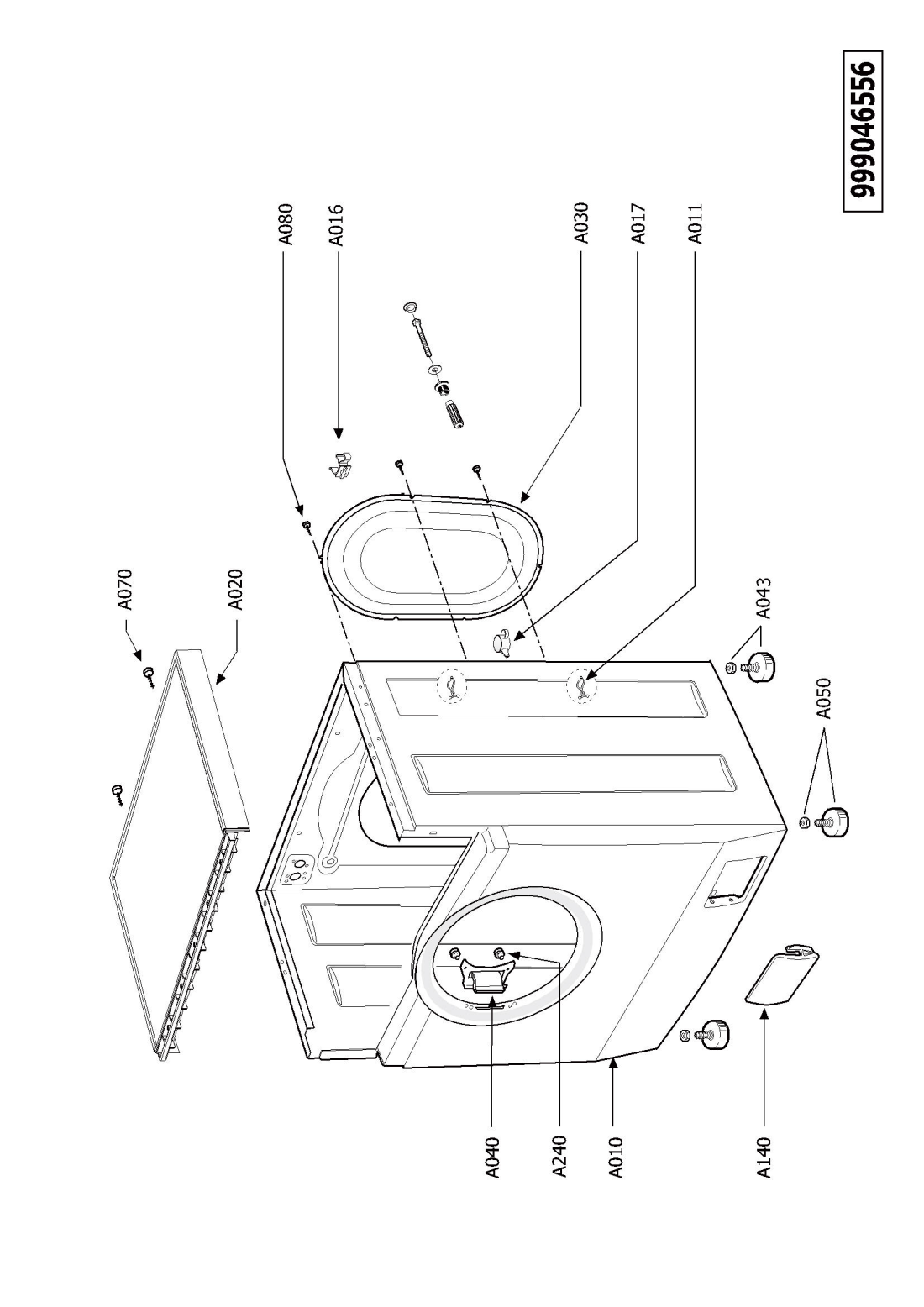

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A01 0 WHR50800 |
C00426025
480111101291 |
Cabinet | Na dotaz | Zadat poptávku | |
| A01 1 WHR50800 |
C00332908
481940113349 |
Hook | Na dotaz | Zadat poptávku | |
| A01 6 WHR50800 |
C00425984
480111101228 |
Holder hose | Na dotaz | Zadat poptávku | |
| A01 7 WHR50800 |
C00425985
480111101229 |
Holder hose | Na dotaz | Zadat poptávku | |
| A02 0 WHR50800 |
C00376746
480111101292 |
Table top | Na dotaz | Zadat poptávku | |
| A03 0 WHR50800 |
C00425928
480111101145 |
Panel rear | Na dotaz | Zadat poptávku | |
| A04 0 WHR50800 |
C00316906
481241719513 |
Hinge | Na dotaz | Zadat poptávku | |
| A04 3 WHR50800 |
C00377803
481246248426 |
Foot adjustable rear | Na dotaz | Zadat poptávku | |
| A05 0 WHR50800 |
C00425933
480111101153 |
noha | 1 160 Kč
€ 45.80 |
||
| A06 2 WHR50800 |
C00425986
480111101231 |
Holder hose | Na dotaz | Zadat poptávku | |
| A07 0 WHR50800 |
C00332099
481250218651 |
Screw Torx D=4,2 H=13 | Na dotaz | Zadat poptávku | |
| A08 0 WHR50800 |
C00425658
480111100791 |
Screw | Na dotaz | Zadat poptávku | |
| A14 0 WHR50800 |
C00425935
480111101155 |
cover | Na dotaz | Zadat poptávku | |
| A20 0 WHR50800 |
C00426006
480111101254 |
Holder electronic | Na dotaz | Zadat poptávku | |
| A21 0 WHR50800 |
C00313170
481221458558 |
modul | 3 752 Kč
€ 148.10 |
||
| A24 0 WHR50800 |
C00336813
481990310139 |
nyt plastovy | 950 Kč
€ 37.50 |
||
| A32 0 WHR50800 |
C00425936
480111101156 |
Holder electronic | Na dotaz | Zadat poptávku | |
| B00 2 WHR50800 |
C00336751
481250218822 |
šroub | 903 Kč
€ 35.60 |
||
| B01 0 WHR50800 |
C00427348
480111103369 |
Control panel | Na dotaz | Zadat poptávku | |
| B02 2 WHR50800 |
C00388439
480111103351 |
Selector,switch | Na dotaz | Zadat poptávku | |
| B02 9 WHR50800 |
C00332100
481250218652 |
Screw | Na dotaz | Zadat poptávku | |
| B03 6 WHR50800 |
C00331508
481246688793 |
tesneni | 669 Kč
€ 26.40 |
||
| B05 8 WHR50800 |
C00426080
480111101411 |
Cable flat, E-modul-buttons PCB | Na dotaz | Zadat poptávku | |
| B06 1 WHR50800 |
C00457651
481240449886 |
Support box buttons | Na dotaz | Zadat poptávku | |
| B09 5 WHR50800 |
C00316710
481241078237 |
knoflik programatoru | Na dotaz | Zadat poptávku | |
| B09 9 WHR50800 |
C00343860
481232128511 |
Cable flat, Potentiometer | Na dotaz | Zadat poptávku | |
| B21 0 WHR50800 |
C00333165
481949238135 |
pruzina | 977 Kč
€ 38.60 |
||
| B26 0 WHR50800 |
C00457800
481241078236 |
Push button | Na dotaz | Zadat poptávku | |
| B29 0 WHR50800 |
C00332098
481250218649 |
Screw Torx D=4,2 H=9,5 | Na dotaz | Zadat poptávku | |
| C01 0 WHR50800 |
C00425988
480111101233 |
dno nasypky | 645 Kč
€ 25.50 |
||
| C02 0 WHR50800 |
C00425989
480111101234 |
viko | 836 Kč
€ 33.00 |
||
| C03 0 WHR50800 |
C00425990
480111101235 |
dávkovač na mýdlo | Na dotaz | Zadat poptávku | |
| C04 0 WHR50800 |
C00425938
480111101159 |
celo nasypky | Na dotaz | Zadat poptávku | |
| C04 2 WHR50800 |
C00425991
480111101236 |
prepazka nasypky | 613 Kč
€ 24.20 |
||
| C05 0 WHR50800 |
C00425992
480111101237 |
vlozka nasypky | 290 Kč
€ 11.40 |
||
| C06 0 WHR50800 |
C00315106
481253029501 |
Hadice vnitřní pračky Whirlpool, Indesit | 2 052 Kč
€ 81.00 |
||
| C07 0 WHR50800 |
C00493733
481253029165 |
Hose inlet | Na dotaz | Zadat poptávku | |
| C13 0 WHR50800 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| C14 0 WHR50800 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| C15 0 WHR50800 |
C00332156
481250238362 |
Screw | Na dotaz | Zadat poptávku | |
| D01 0 WHR50800 |
C00376737
480111101161 |
Valve magnet cold water | Na dotaz | Zadat poptávku | |
| D01 3 WHR50800 |
C00425993
480111101238 |
Holder pressos. | Na dotaz | Zadat poptávku | |
| D02 0 WHR50800 |
C00376747
480111101293 |
presostat | 2 642 Kč
€ 104.30 |
||
| D04 0 WHR50800 |
C00314542
481953028932 |
Přívodní hadice 1,5m (koncovky rovná/zahnutá): vysoce kvalitní řada | Na dotaz | Zadat poptávku | |
| D10 0 WHR50800 |
C00384590
480111101163 |
Cable mains with antidisturbfilter | Na dotaz | Zadat poptávku | |
| D25 0 WHR50800 |
C00426081
480111101412 |
Cable harness | Na dotaz | Zadat poptávku | |
| E00 2 WHR50800 |
C00333389
481990310173 |
SCREW | Na dotaz | Zadat poptávku | |
| E01 0 WHR50800 |
C00311492
481253298024 |
spona TVO | 667 Kč
€ 26.30 |
||
| E02 0 WHR50800 |
C00377824
481246689019 |
Manžeta (TVO) předem plněné pračky Whirlpool AWG 910 D, AWG 912 D | Na dotaz | Zadat poptávku | |
| E03 0 WHR50800 |
C00313802
481253298025 |
spona TVO | 701 Kč
€ 27.70 |
||
| E04 0 WHR50800 |
C00376739
480111101165 |
Sklo dveří pračky | 2 835 Kč
€ 111.90 |
||
| E05 0 WHR50800 |
C00313560
481245928081 |
ram dveri vnejsi | 1 488 Kč
€ 58.70 |
||
| E06 0 WHR50800 |
C00377527
481228058046 |
Door lock | Na dotaz | Zadat poptávku | |
| E08 0 WHR50800 |
C00339036
481246269024 |
Rukojeť dveří pračky | Na dotaz | Zadat poptávku | |
| E09 0 WHR50800 |
C00376740
480111101166 |
rukojet dveri sada | Na dotaz | Zadat poptávku | |
| E10 0 WHR50800 |
C00333386
481990310165 |
Screw f.Door Glass expired | Na dotaz | Zadat poptávku | |
| E11 0 WHR50800 |
C00425996
480111101242 |
Door glass insert | Na dotaz | Zadat poptávku | |
| E12 0 WHR50800 |
C00498566
481250218672 |
Screw | Na dotaz | Zadat poptávku | |
| E16 0 WHR50800 |
C00320717
481249268225 |
pruzina | 811 Kč
€ 32.00 |
||
| E20 0 WHR50800 |
C00315905
481246238341 |
Osa madla dveří předem plněné pračky Whirlpool | 154 Kč
€ 6.10 |
||
| E21 0 WHR50800 |
C00315432
481246268968 |
Door latch | Na dotaz | Zadat poptávku | |
| E23 0 WHR50800 |
C00336076
481249268226 |
pružina | 865 Kč
€ 34.10 |
||
| E25 0 WHR50800 |
C00376745
480111101265 |
priruba dveri | 660 Kč
€ 26.10 |
||
| F01 0 WHR50800 |
C00376741
480111101167 |
Čerpadlo vypouštěcí | 1 821 Kč
€ 71.90 |
||
| F02 9 WHR50800 |
C00332495
481253029502 |
spojka | 452 Kč
€ 17.80 |
||
| F03 1 WHR50800 |
C00331555
481246689021 |
těsnění | 399 Kč
€ 15.80 |
||
| F07 0 WHR50800 |
C00332388
481252918065 |
Hadice k čerpadlu | Na dotaz | Zadat poptávku | |
| F09 0 WHR50800 |
C00376748
480111101294 |
Hadice | 1 227 Kč
€ 48.40 |
||
| F10 0 WHR50800 |
C00332911
481940118351 |
SPONA HADICE NÁDRŽ-F | 87 Kč
€ 3.40 |
||
| F11 0 WHR50800 |
C00328943
481240118893 |
spona hadice | 180 Kč
€ 7.10 |
||
| F13 0 WHR50800 |
C00333224
481950218534 |
Šroub | 56 Kč
€ 2.20 |
||
| F14 0 WHR50800 |
C00332909
481940118345 |
koleno vyt. hadice | 76 Kč
€ 3.00 |
||
| F15 0 WHR50800 |
C00332913
481940118429 |
SPONA VYT. HADICE | 1 151 Kč
€ 45.40 |
||
| F19 0 WHR50800 |
C00426004
480111101251 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| G00 5 WHR50800 |
C00376806
480113100008 |
senzor NTC | 1 511 Kč
€ 59.70 |
||
| G02 0 WHR50800 |
C00426026
480111101295 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| G02 9 WHR50800 |
C00318413
481250218803 |
Screw pulley | Na dotaz | Zadat poptávku | |
| G07 7 WHR50800 |
C00464726
481250218798 |
Screw counterweight upper | Na dotaz | Zadat poptávku | |
| G07 8 WHR50800 |
C00457695
481240478924 |
Kolík tlumiče | 533 Kč
€ 21.00 |
||
| G08 0 WHR50800 |
C00426027
480111101296 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| G09 3 WHR50800 |
C00426028
480111101297 |
nadrz kompletni | 18 631 Kč
€ 735.50 |
||
| G09 5 WHR50800 |
C00425999
480111101245 |
Silent bloc | Na dotaz | Zadat poptávku | |
| G13 0 WHR50800 |
C00376749
480111101298 |
motor | Na dotaz | Zadat poptávku | |
| G14 0 WHR50800 |
C00376750
480111101299 |
Heating element | Na dotaz | Zadat poptávku | |
| G16 0 WHR50800 |
C00317124
481252888138 |
Remenice | 1 741 Kč
€ 68.70 |
||
| G17 0 WHR50800 |
C00376762
480111103353 |
Belt,driving | Na dotaz | Zadat poptávku | |
| G20 0 WHR50800 |
C00426029
480111101301 |
Spring,suspens. | Na dotaz | Zadat poptávku | |
| G38 0 WHR50800 |
C00332144
481250218823 |
šroub | 404 Kč
€ 15.90 |
||
| G45 0 WHR50800 |
C00318411
481250218802 |
Screw counterweight | Na dotaz | Zadat poptávku | |
| G69 0 WHR50800 |
C00404931
481246368037 |
TLUMIC | Na dotaz | Zadat poptávku | |
| G71 0 WHR50800 |
C00426030
480111101302 |
Nut shockabsorber | Na dotaz | Zadat poptávku | |
| LVK 1 WHR50800 |
C00376763
480111103371 |
Module buttons | Na dotaz | Zadat poptávku | |
