Komerční kód: | WWQ22 WASHING MACHINES WP |
Kód 12NC: | 853784165000 |
Značka: | WHIRLPOOL |
Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

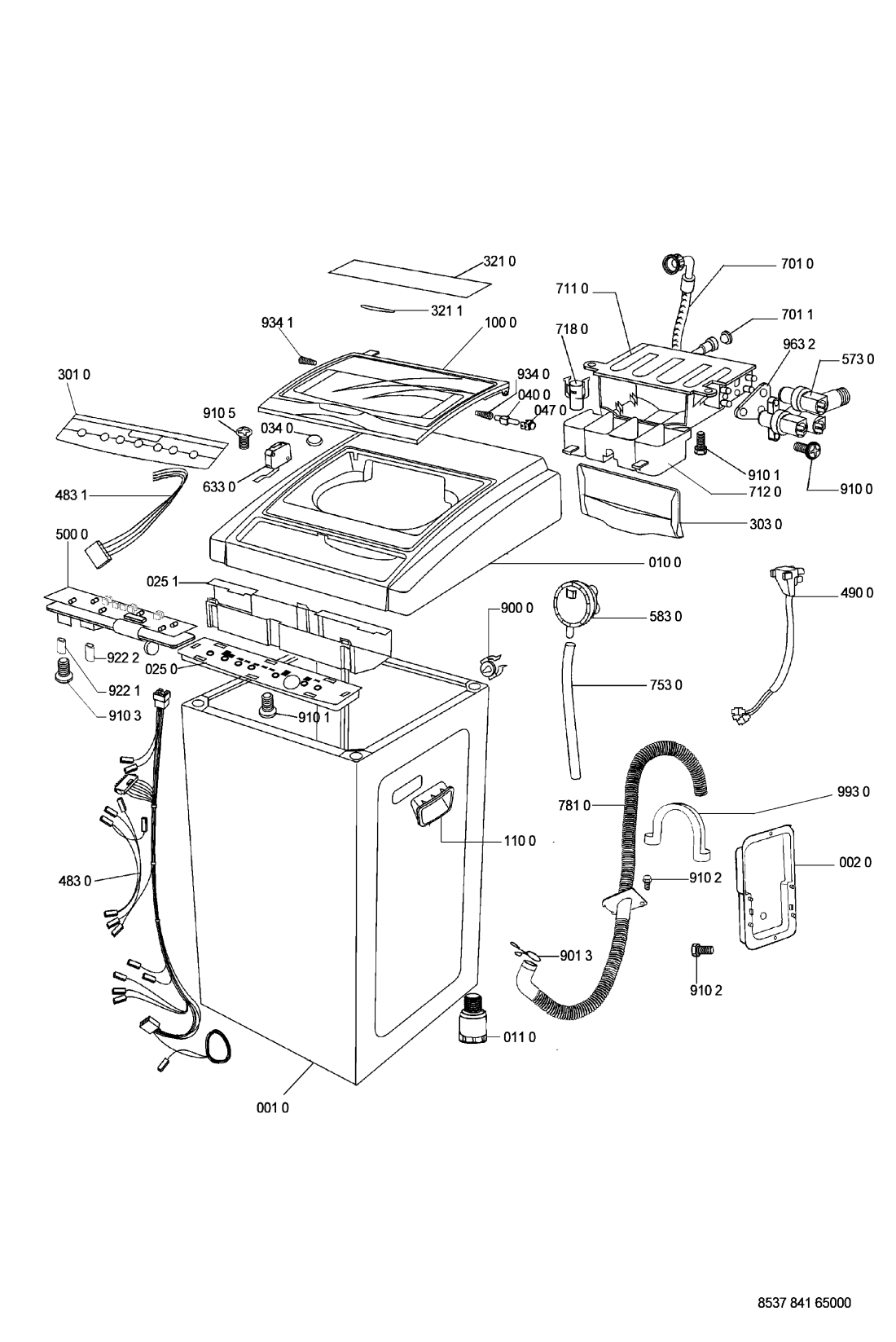

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
001 0 WHR93373 |
C00585698
481244010463 |
Cabinet and handle. | Na dotaz | Zadat poptávku | |
002 0 WHR93373 |
C00585825
481246228169 |
Cover ,inspection. | Na dotaz | Zadat poptávku | |
010 0 WHR93373 |
C00585821
481245948118 |
Cover ,door frame. | Na dotaz | Zadat poptávku | |
011 0 WHR93373 |
C00585896
481250018088 |
Foot until march 2005. | Na dotaz | Zadat poptávku | |
025 0 WHR93373 |
C00585694
481244010316 |
Holder Timer. | Na dotaz | Zadat poptávku | |
025 1 WHR93373 |
C00585826
481246228171 |
Protector timer. | Na dotaz | Zadat poptávku | |
034 0 WHR93373 |
C00529776
481246818078 |
Buffer cover | Na dotaz | Zadat poptávku | |
040 0 WHR93373 |
C00488937
481241718986 |
Hinge ,door | Na dotaz | Zadat poptávku | |
047 0 WHR93373 |
C00585920
481252958004 |
Bushing for hinge. | Na dotaz | Zadat poptávku | |
061 0 WHR93373 |
C00585871
481246688563 |
Counter weight. | Na dotaz | Zadat poptávku | |
081 0 WHR93373 |
C00486127
481246648075 |
Shock absorber | Na dotaz | Zadat poptávku | |
081 2 WHR93373 |
C00585868
481246648074 |
Rod suspension. | Na dotaz | Zadat poptávku | |
086 0 WHR93373 |
C00493352
481240118508 |
Ball suspension | Na dotaz | Zadat poptávku | |
100 0 WHR93373 |
C00585697
481244010462 |
Door. | Na dotaz | Zadat poptávku | |
110 0 WHR93373 |
C00487757
481249818193 |
Handle ,cabinet | Na dotaz | Zadat poptávku | |
144 0 WHR93373 |
C00486332
481253248039 |
Frame Tub | Na dotaz | Zadat poptávku | |
200 0 WHR93373 |
C00585684
481241818349 |
Tub. | Na dotaz | Zadat poptávku | |
210 0 WHR93373 |
C00484777
481240478426 |
Crosspiece + bearing | Na dotaz | Zadat poptávku | |
220 0 WHR93373 |
C00585681
481241818308 |
DRUM. | Na dotaz | Zadat poptávku | |
223 0 WHR93373 |
C00585916
481251528077 |
Agitator upper. | Na dotaz | Zadat poptávku | |
223 1 WHR93373 |
C00490221
481251528078 |
Agitator lower | Na dotaz | Zadat poptávku | |
223 2 WHR93373 |
C00491379
481229068235 |
Holder upper agitator | Na dotaz | Zadat poptávku | |
223 3 WHR93373 |
C00490220
481251528076 |
Lock agitator | Na dotaz | Zadat poptávku | |
228 0 WHR93373 |
C00491672
481241828132 |
Holder Basket | Na dotaz | Zadat poptávku | |
271 0 WHR93373 |
C00482701
481235818173 |
Belt drive V | Na dotaz | Zadat poptávku | |
272 0 WHR93373 |
C00621481
481252858031 |
Pulley drive. | Na dotaz | Zadat poptávku | |
276 1 WHR93373 |
C00484066
481246818074 |
Slide | Na dotaz | Zadat poptávku | |
276 2 WHR93373 |
C00621480
481252838059 |
Cam. | Na dotaz | Zadat poptávku | |
276 3 WHR93373 |
C00492077
481252838061 |
Cam Snapin | Na dotaz | Zadat poptávku | |
277 0 WHR93373 |
C00484659
481227858002 |
Actuator | Na dotaz | Zadat poptávku | |
277 1 WHR93373 |
C00493673
481252218003 |
Gear case | Na dotaz | Zadat poptávku | |
277 3 WHR93373 |
C00486126
481246648073 |
Brake Band | Na dotaz | Zadat poptávku | |
277 4 WHR93373 |
C00486036
481246248081 |
Brake arm | Na dotaz | Zadat poptávku | |
277 5 WHR93373 |
C00585931
481253518038 |
Pin Brake. | Na dotaz | Zadat poptávku | |
277 6 WHR93373 |
C00585662
481240438565 |
Holder f.motor. | Na dotaz | Zadat poptávku | |
301 0 WHR93373 |
C00585731
481245310035 |
Control panel. | Na dotaz | Zadat poptávku | |
303 0 WHR93373 |
C00487756
481249818192 |
Handle , drawer | Na dotaz | Zadat poptávku | |
321 0 WHR93373 |
C00491799
481245210969 |
Panel label | Na dotaz | Zadat poptávku | |
321 1 WHR93373 |
C00490020
481245918205 |
Insert logo | Na dotaz | Zadat poptávku | |
400 0 WHR93373 |
C00488677
481236158184 |
Motor cpl. | Na dotaz | Zadat poptávku | |
401 0 WHR93373 |
C00492081
481252888092 |
Pulley motor | Na dotaz | Zadat poptávku | |
420 0 WHR93373 |
C00482193
481212118218 |
Capacitor 12uF | Na dotaz | Zadat poptávku | |
430 0 WHR93373 |
C00491434
481236018496 |
Pump | Na dotaz | Zadat poptávku | |
451 0 WHR93373 |
C00488493
481225928781 |
Heating element 1500 W | Na dotaz | Zadat poptávku | |
483 0 WHR93373 |
C00585645
481232178107 |
Cable. | Na dotaz | Zadat poptávku | |
483 1 WHR93373 |
C00585641
481232178088 |
Cable harness upper. | Na dotaz | Zadat poptávku | |
490 0 WHR93373 |
C00585634
481232118125 |
Cable,mains. | Na dotaz | Zadat poptávku | |
500 0 WHR93373 |
C00585625
481228218904 |
Timer. | Na dotaz | Zadat poptávku | |
573 0 WHR93373 |
C00492959
481228128411 |
ventil trojcestný | 1 500 Kč
€ 59.20 |
||
583 0 WHR93373 |
C00585620
481227128456 |
PRESSOSTAT. | Na dotaz | Zadat poptávku | |
633 0 WHR93373 |
C00621331
481227138408 |
Switch door. | Na dotaz | Zadat poptávku | |
701 0 WHR93373 |
C00585921
481253018016 |
Hose ,inlet. | Na dotaz | Zadat poptávku | |
701 1 WHR93373 |
C00585880
481248028045 |
Filter f.hose. | Na dotaz | Zadat poptávku | |
711 0 WHR93373 |
C00485028
481241888058 |
Dispenser | Na dotaz | Zadat poptávku | |
712 0 WHR93373 |
C00485029
481241888059 |
Drawer dispenser | Na dotaz | Zadat poptávku | |
718 0 WHR93373 |
C00489123
481241888057 |
SIPHON | Na dotaz | Zadat poptávku | |
753 0 WHR93373 |
C00585923
481253029039 |
Hose pressostat. | Na dotaz | Zadat poptávku | |
760 1 WHR93373 |
C00751508
481246668658 |
Seal pump | Na dotaz | Zadat poptávku | |
781 0 WHR93373 |
C00493726
481253029124 |
Hose outlet | Na dotaz | Zadat poptávku | |
794 1 WHR93373 |
C00585926
481253068018 |
Ring cap. | Na dotaz | Zadat poptávku | |
900 0 WHR93373 |
C00491484
481240148579 |
Holder ,hose | Na dotaz | Zadat poptávku | |
901 3 WHR93373 |
C00585660
481240118506 |
Clamp for hose. | Na dotaz | Zadat poptávku | |
902 0 WHR93373 |
C00585661
481240418151 |
Holder Heater. | Na dotaz | Zadat poptávku | |
902 6 WHR93373 |
C00482820
481240118509 |
Bracket ,capacitor | Na dotaz | Zadat poptávku | |
903 0 WHR93373 |
C00482819
481240118507 |
Bracket | Na dotaz | Zadat poptávku | |
910 0 WHR93373 |
C00585897
481250218483 |
Screw. | Na dotaz | Zadat poptávku | |
910 1 WHR93373 |
C00621957
481250218484 |
Screw. | Na dotaz | Zadat poptávku | |
910 2 WHR93373 |
C00585898
481250218485 |
Screw. | Na dotaz | Zadat poptávku | |
910 3 WHR93373 |
C00585899
481250218486 |
Screw. | Na dotaz | Zadat poptávku | |
910 5 WHR93373 |
C00585900
481250218487 |
Screw. | Na dotaz | Zadat poptávku | |
911 0 WHR93373 |
C00585901
481250218488 |
Screw. | Na dotaz | Zadat poptávku | |
911 1 WHR93373 |
C00585902
481250218489 |
Screw. | Na dotaz | Zadat poptávku | |
911 2 WHR93373 |
C00585903
481250218491 |
Screw. | Na dotaz | Zadat poptávku | |
911 3 WHR93373 |
C00585910
481250218567 |
Screw. | Na dotaz | Zadat poptávku | |
913 0 WHR93373 |
C00585904
481250218492 |
Screw. | Na dotaz | Zadat poptávku | |
913 1 WHR93373 |
C00621958
481250218493 |
Screw. | Na dotaz | Zadat poptávku | |
913 2 WHR93373 |
C00585905
481250218494 |
Screw. | Na dotaz | Zadat poptávku | |
913 3 WHR93373 |
C00585911
481250218662 |
Screw. | Na dotaz | Zadat poptávku | |
913 4 WHR93373 |
C00585906
481250218495 |
Screw. | Na dotaz | Zadat poptávku | |
913 5 WHR93373 |
C00585908
481250218497 |
Screw. | Na dotaz | Zadat poptávku | |
913 6 WHR93373 |
C00585909
481250218498 |
Screw. | Na dotaz | Zadat poptávku | |
913 7 WHR93373 |
C00585913
481250518384 |
Nut. | Na dotaz | Zadat poptávku | |
913 9 WHR93373 |
C00585914
481250518385 |
Nut. | Na dotaz | Zadat poptávku | |
921 2 WHR93373 |
C00585929
481253228924 |
Washer. | Na dotaz | Zadat poptávku | |
921 4 WHR93373 |
C00585928
481253218061 |
Ring. | Na dotaz | Zadat poptávku | |
922 1 WHR93373 |
C00492071
481252648087 |
Spacer ,short | Na dotaz | Zadat poptávku | |
922 2 WHR93373 |
C00529879
481252648088 |
Spacer big | Na dotaz | Zadat poptávku | |
923 0 WHR93373 |
C00492118
481253518039 |
Fastener | Na dotaz | Zadat poptávku | |
931 0 WHR93373 |
C00491986
481249218019 |
Spring brake | Na dotaz | Zadat poptávku | |
931 1 WHR93373 |
C00585883
481249218021 |
Spring clutch. | Na dotaz | Zadat poptávku | |
934 0 WHR93373 |
C00583959
481249248173 |
Spring right. | Na dotaz | Zadat poptávku | |
934 1 WHR93373 |
C00585885
481249248172 |
Spring left. | Na dotaz | Zadat poptávku | |
941 0 WHR93373 |
C00484074
481252028126 |
Bearing | Na dotaz | Zadat poptávku | |
952 0 WHR93373 |
C00484060
481246668657 |
Tub seal | Na dotaz | Zadat poptávku | |
963 0 WHR93373 |
C00585867
481246638032 |
Protector pulley. | Na dotaz | Zadat poptávku | |
963 2 WHR93373 |
C00621446
481246668656 |
Gasket, door | Na dotaz | Zadat poptávku | |
965 0 WHR93373 |
C00751509
481246228301 |
Cap f.agitator | Na dotaz | Zadat poptávku | |
993 0 WHR93373 |
C00493718
481253029038 |
Bow | Na dotaz | Zadat poptávku |
