| Komerční kód: | WWQ24 WASHING MACHINES WP |
| Kód 12NC: | 853784243000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

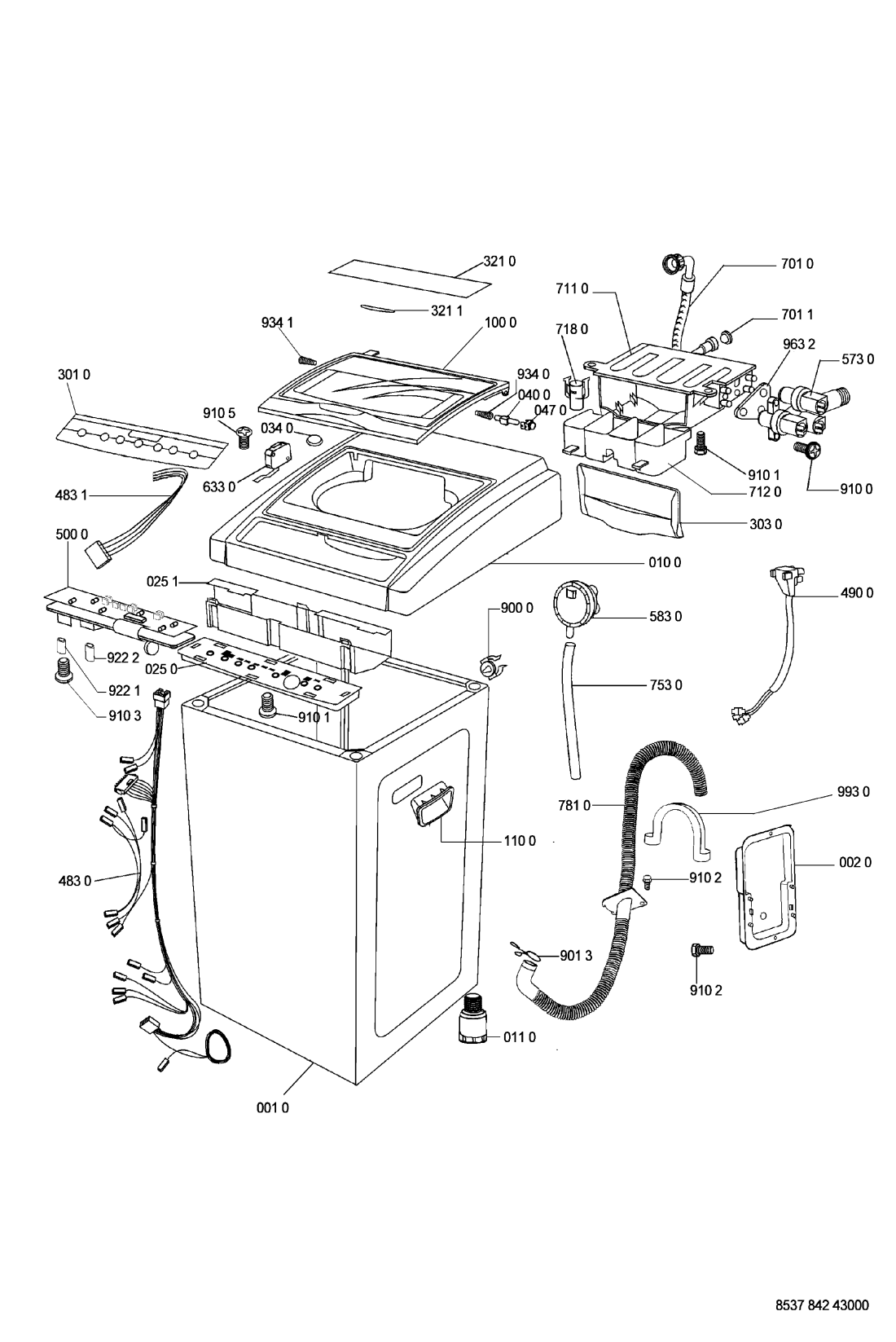

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR93375 |
C00585696
481244010318 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 002 0 WHR93375 |
C00585825
481246228169 |
Cover ,inspection. | Na dotaz | Zadat poptávku | |
| 010 0 WHR93375 |
C00585819
481245948103 |
Cover frame door. | Na dotaz | Zadat poptávku | |
| 011 0 WHR93375 |
C00585896
481250018088 |
Foot until march 2005. | Na dotaz | Zadat poptávku | |
| 025 0 WHR93375 |
C00585694
481244010316 |
Holder Timer. | Na dotaz | Zadat poptávku | |
| 025 1 WHR93375 |
C00585826
481246228171 |
Protector timer. | Na dotaz | Zadat poptávku | |
| 034 0 WHR93375 |
C00585879
481246818073 |
Buffer ,cover. | Na dotaz | Zadat poptávku | |
| 040 0 WHR93375 |
C00488937
481241718986 |
Hinge ,door | Na dotaz | Zadat poptávku | |
| 047 0 WHR93375 |
C00585920
481252958004 |
Bushing for hinge. | Na dotaz | Zadat poptávku | |
| 061 0 WHR93375 |
C00585872
481246688564 |
Counter weight. | Na dotaz | Zadat poptávku | |
| 081 0 WHR93375 |
C00486128
481246648077 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 081 2 WHR93375 |
C00585869
481246648076 |
Rod suspension. | Na dotaz | Zadat poptávku | |
| 086 0 WHR93375 |
C00493352
481240118508 |
Ball suspension | Na dotaz | Zadat poptávku | |
| 100 0 WHR93375 |
C00585695
481244010317 |
Door. | Na dotaz | Zadat poptávku | |
| 110 0 WHR93375 |
C00487757
481249818193 |
Handle ,cabinet | Na dotaz | Zadat poptávku | |
| 144 0 WHR93375 |
C00585930
481253248041 |
Ring tub. | Na dotaz | Zadat poptávku | |
| 200 0 WHR93375 |
C00585683
481241818312 |
TUB. | Na dotaz | Zadat poptávku | |
| 210 0 WHR93375 |
C00484777
481240478426 |
Crosspiece + bearing | Na dotaz | Zadat poptávku | |
| 220 0 WHR93375 |
C00585682
481241818311 |
Drum. | Na dotaz | Zadat poptávku | |
| 223 0 WHR93375 |
C00585916
481251528077 |
Agitator upper. | Na dotaz | Zadat poptávku | |
| 223 1 WHR93375 |
C00490221
481251528078 |
Agitator lower | Na dotaz | Zadat poptávku | |
| 223 2 WHR93375 |
C00491379
481229068235 |
Holder upper agitator | Na dotaz | Zadat poptávku | |
| 223 3 WHR93375 |
C00490220
481251528076 |
Lock agitator | Na dotaz | Zadat poptávku | |
| 228 0 WHR93375 |
C00491672
481241828132 |
Holder Basket | Na dotaz | Zadat poptávku | |
| 271 0 WHR93375 |
C00482701
481235818173 |
Belt drive V | Na dotaz | Zadat poptávku | |
| 272 0 WHR93375 |
C00621481
481252858031 |
Pulley drive. | Na dotaz | Zadat poptávku | |
| 276 1 WHR93375 |
C00484066
481246818074 |
Slide | Na dotaz | Zadat poptávku | |
| 276 2 WHR93375 |
C00621480
481252838059 |
Cam. | Na dotaz | Zadat poptávku | |
| 276 3 WHR93375 |
C00492077
481252838061 |
Cam Snapin | Na dotaz | Zadat poptávku | |
| 277 0 WHR93375 |
C00484659
481227858002 |
Actuator | Na dotaz | Zadat poptávku | |
| 277 1 WHR93375 |
C00751505
481252218002 |
Gear Case | Na dotaz | Zadat poptávku | |
| 277 3 WHR93375 |
C00486126
481246648073 |
Brake Band | Na dotaz | Zadat poptávku | |
| 277 4 WHR93375 |
C00486036
481246248081 |
Brake arm | Na dotaz | Zadat poptávku | |
| 277 5 WHR93375 |
C00585931
481253518038 |
Pin Brake. | Na dotaz | Zadat poptávku | |
| 277 6 WHR93375 |
C00585662
481240438565 |
Holder f.motor. | Na dotaz | Zadat poptávku | |
| 301 0 WHR93375 |
C00585732
481245319989 |
Control panel. | Na dotaz | Zadat poptávku | |
| 303 0 WHR93375 |
C00487756
481249818192 |
Handle , drawer | Na dotaz | Zadat poptávku | |
| 321 0 WHR93375 |
C00585725
481245210587 |
Panel label. | Na dotaz | Zadat poptávku | |
| 321 1 WHR93375 |
C00490020
481245918205 |
Insert logo | Na dotaz | Zadat poptávku | |
| 400 0 WHR93375 |
C00585655
481236158185 |
MOTOR. | Na dotaz | Zadat poptávku | |
| 401 0 WHR93375 |
C00492081
481252888092 |
Pulley motor | Na dotaz | Zadat poptávku | |
| 420 0 WHR93375 |
C00482194
481212118219 |
Capacitor 15mf | Na dotaz | Zadat poptávku | |
| 451 0 WHR93375 |
C00488493
481225928781 |
Heating element 1500 W | Na dotaz | Zadat poptávku | |
| 483 0 WHR93375 |
C00585642
481232178089 |
Cable harness. | Na dotaz | Zadat poptávku | |
| 483 1 WHR93375 |
C00585641
481232178088 |
Cable harness upper. | Na dotaz | Zadat poptávku | |
| 490 0 WHR93375 |
C00585633
481232118119 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 500 0 WHR93375 |
C00491231
481228218821 |
Timer | Na dotaz | Zadat poptávku | |
| 573 0 WHR93375 |
C00492959
481228128411 |
ventil trojcestný | 1 500 Kč
€ 59.20 |
||
| 583 0 WHR93375 |
C00491008
481227128457 |
Pressostat | Na dotaz | Zadat poptávku | |
| 633 0 WHR93375 |
C00491031
481227138407 |
Switch Door | Na dotaz | Zadat poptávku | |
| 701 0 WHR93375 |
C00585921
481253018016 |
Hose ,inlet. | Na dotaz | Zadat poptávku | |
| 701 1 WHR93375 |
C00585880
481248028045 |
Filter f.hose. | Na dotaz | Zadat poptávku | |
| 711 0 WHR93375 |
C00485028
481241888058 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR93375 |
C00485029
481241888059 |
Drawer dispenser | Na dotaz | Zadat poptávku | |
| 718 0 WHR93375 |
C00489123
481241888057 |
SIPHON | Na dotaz | Zadat poptávku | |
| 753 0 WHR93375 |
C00585923
481253029039 |
Hose pressostat. | Na dotaz | Zadat poptávku | |
| 760 0 WHR93375 |
C00491434
481236018496 |
Pump | Na dotaz | Zadat poptávku | |
| 760 1 WHR93375 |
C00751508
481246668658 |
Seal pump | Na dotaz | Zadat poptávku | |
| 781 0 WHR93375 |
C00585922
481253029037 |
Hose outlet. | Na dotaz | Zadat poptávku | |
| 794 1 WHR93375 |
C00585926
481253068018 |
Ring cap. | Na dotaz | Zadat poptávku | |
| 900 0 WHR93375 |
C00491484
481240148579 |
Holder ,hose | Na dotaz | Zadat poptávku | |
| 901 3 WHR93375 |
C00585660
481240118506 |
Clamp for hose. | Na dotaz | Zadat poptávku | |
| 902 0 WHR93375 |
C00585661
481240418151 |
Holder Heater. | Na dotaz | Zadat poptávku | |
| 902 6 WHR93375 |
C00482820
481240118509 |
Bracket ,capacitor | Na dotaz | Zadat poptávku | |
| 903 0 WHR93375 |
C00482819
481240118507 |
Bracket | Na dotaz | Zadat poptávku | |
| 910 0 WHR93375 |
C00585897
481250218483 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 1 WHR93375 |
C00621957
481250218484 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 2 WHR93375 |
C00585898
481250218485 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 3 WHR93375 |
C00585899
481250218486 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 5 WHR93375 |
C00585900
481250218487 |
Screw. | Na dotaz | Zadat poptávku | |
| 911 0 WHR93375 |
C00585901
481250218488 |
Screw. | Na dotaz | Zadat poptávku | |
| 911 1 WHR93375 |
C00585902
481250218489 |
Screw. | Na dotaz | Zadat poptávku | |
| 911 2 WHR93375 |
C00585903
481250218491 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 0 WHR93375 |
C00585904
481250218492 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 1 WHR93375 |
C00621958
481250218493 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 2 WHR93375 |
C00585905
481250218494 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 3 WHR93375 |
C00585907
481250218496 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 4 WHR93375 |
C00585906
481250218495 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 5 WHR93375 |
C00585908
481250218497 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 6 WHR93375 |
C00585909
481250218498 |
Screw. | Na dotaz | Zadat poptávku | |
| 913 7 WHR93375 |
C00585913
481250518384 |
Nut. | Na dotaz | Zadat poptávku | |
| 913 9 WHR93375 |
C00585914
481250518385 |
Nut. | Na dotaz | Zadat poptávku | |
| 921 2 WHR93375 |
C00585929
481253228924 |
Washer. | Na dotaz | Zadat poptávku | |
| 921 4 WHR93375 |
C00585928
481253218061 |
Ring. | Na dotaz | Zadat poptávku | |
| 922 1 WHR93375 |
C00492071
481252648087 |
Spacer ,short | Na dotaz | Zadat poptávku | |
| 922 2 WHR93375 |
C00529879
481252648088 |
Spacer big | Na dotaz | Zadat poptávku | |
| 923 0 WHR93375 |
C00492118
481253518039 |
Fastener | Na dotaz | Zadat poptávku | |
| 931 0 WHR93375 |
C00491986
481249218019 |
Spring brake | Na dotaz | Zadat poptávku | |
| 931 1 WHR93375 |
C00585883
481249218021 |
Spring clutch. | Na dotaz | Zadat poptávku | |
| 934 0 WHR93375 |
C00583959
481249248173 |
Spring right. | Na dotaz | Zadat poptávku | |
| 934 1 WHR93375 |
C00585885
481249248172 |
Spring left. | Na dotaz | Zadat poptávku | |
| 941 0 WHR93375 |
C00484074
481252028126 |
Bearing | Na dotaz | Zadat poptávku | |
| 952 0 WHR93375 |
C00484060
481246668657 |
Tub seal | Na dotaz | Zadat poptávku | |
| 963 0 WHR93375 |
C00585867
481246638032 |
Protector pulley. | Na dotaz | Zadat poptávku | |
| 963 2 WHR93375 |
C00621446
481246668656 |
Gasket, door | Na dotaz | Zadat poptávku | |
| 965 0 WHR93375 |
C00585827
481246228172 |
Cap f.agitator. | Na dotaz | Zadat poptávku | |
| 993 0 WHR93375 |
C00493718
481253029038 |
Bow | Na dotaz | Zadat poptávku | |
| 993 1 WHR93375 |
C00585592
481213718001 |
Tool dismount.(not sh.) | Na dotaz | Zadat poptávku | |
