WHIRLPOOL AWG/B M6060
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG/B M6060 |
| Kód 12NC: | 857549186100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0002 WHR29981 |
C00425854
480111101041 |
Table top | Na dotaz | Zadat poptávku | |
| 0003 WHR29981 |
C00466467
482000005853 |
Front panel | Na dotaz | Zadat poptávku | |
| 0004 WHR29981 |
C00427020
480111102825 |
Plinth complete | Na dotaz | Zadat poptávku | |
| 0005 WHR29981 |
C00318055
481202308004 |
noha | 806 Kč
€ 31.80 |
||
| 0006 WHR29981 |
C00339291
480111101043 |
Door frame outer | Na dotaz | Zadat poptávku | |
| 0007 WHR29981 |
C00454880
481202308134 |
Door glass | Na dotaz | Zadat poptávku | |
| 0008 WHR29981 |
C00339295
480111101044 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 0009 WHR29981 |
C00343394
480111101025 |
spona predni | 175 Kč
€ 6.90 |
||
| 0010 WHR29981 |
C00338989
480111101045 |
Blokování dveří | 504 Kč
€ 19.90 |
||
| 0012 WHR29981 |
C00466468
482000005854 |
Hinge | Na dotaz | Zadat poptávku | |
| 0013 WHR29981 |
C00467028
482000008995 |
Bushing Hinge | Na dotaz | Zadat poptávku | |
| 0014 WHR29981 |
C00426052
480111101335 |
Handle door | Na dotaz | Zadat poptávku | |
| 0015 WHR29981 |
C00326634
481202308013 |
pruzina | 131 Kč
€ 5.20 |
||
| 0016 WHR29981 |
C00326635
481202308014 |
Pin | Na dotaz | Zadat poptávku | |
| 0017 WHR29981 |
C00426447
480111102063 |
Hook | Na dotaz | Zadat poptávku | |
| 0020 WHR29981 |
C00319944
481202308018 |
hadice | 987 Kč
€ 39.00 |
||
| 0022 WHR29981 |
C00337705
480111101047 |
Plinth | Na dotaz | Zadat poptávku | |
| 0023 WHR29981 |
C00342376
480111101048 |
Cover plinth | Na dotaz | Zadat poptávku | |
| 0024 WHR29981 |
C00467097
482000009781 |
Bracket | Na dotaz | Zadat poptávku | |
| 0026 WHR29981 |
C00336108
480111101051 |
Spring | Na dotaz | Zadat poptávku | |
| 0027 WHR29981 |
C00341461
480111101052 |
Pin | Na dotaz | Zadat poptávku | |
| 0028 WHR29981 |
C00326640
481202308021 |
sroub | 83 Kč
€ 3.30 |
||
| 0100 WHR29981 |
C00469505
482000020922 |
Belt | Na dotaz | Zadat poptávku | |
| 0101 WHR29981 |
C00314512
482000015838 |
Pulley | Na dotaz | Zadat poptávku | |
| 0102 WHR29981 |
C00467009
482000008794 |
Motor 800 RPM 32/40/41/42 | Na dotaz | Zadat poptávku | |
| 0103 WHR29981 |
C00467951
482000015839 |
Tub rear part | Na dotaz | Zadat poptávku | |
| 0104 WHR29981 |
C00326645
481202308028 |
tlumic | 861 Kč
€ 34.00 |
||
| 0105 WHR29981 |
C00326646
481202308029 |
Pin Shockabsorber | 187 Kč
€ 7.40 |
||
| 0112 WHR29981 |
C00469506
482000020923 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 0113 WHR29981 |
C00326648
481202308032 |
tesneni nadrze | 423 Kč
€ 16.70 |
||
| 0115 WHR29981 |
C00345123
482000009783 |
Clip Heating | Na dotaz | Zadat poptávku | |
| 0117 WHR29981 |
C00466473
482000005860 |
Tub half front | Na dotaz | Zadat poptávku | |
| 0118 WHR29981 |
C00314811
481202308153 |
Gasket door 42 li 1000 rpm | Na dotaz | Zadat poptávku | |
| 0119 WHR29981 |
C00345144
480111101026 |
spona zadni | 672 Kč
€ 26.50 |
||
| 0120 WHR29981 |
C00467953
482000015841 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 0121 WHR29981 |
C00469068
482000019783 |
Heating element | Na dotaz | Zadat poptávku | |
| 0122 WHR29981 |
C00336685
480111101027 |
Screw | Na dotaz | Zadat poptávku | |
| 0124 WHR29981 |
C00316905
482000015843 |
Screw M8x29 THB | Na dotaz | Zadat poptávku | |
| 0126 WHR29981 |
C00345176
482000005862 |
Screw 6 x 30 | Na dotaz | Zadat poptávku | |
| 0132 WHR29981 |
C00469069
482000019784 |
Cable earth/tub | Na dotaz | Zadat poptávku | |
| 0160 WHR29981 |
C00467955
482000015844 |
Drum | Na dotaz | Zadat poptávku | |
| 0200 WHR29981 |
C00425857
480111101053 |
Drawer | Na dotaz | Zadat poptávku | |
| 0201 WHR29981 |
C00467099
482000009784 |
Separator liquid detergent | Na dotaz | Zadat poptávku | |
| 0202 WHR29981 |
C00425858
480111101054 |
Cover siphon | Na dotaz | Zadat poptávku | |
| 0203 WHR29981 |
C00425859
480111101055 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 0205 WHR29981 |
C00425861
480111101057 |
Dispenser housing | Na dotaz | Zadat poptávku | |
| 0206 WHR29981 |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 0207 WHR29981 |
C00326659
481202308053 |
Hose valve / deterg. box | Na dotaz | Zadat poptávku | |
| 0208 WHR29981 |
C00326711
481202308139 |
Hose inlet valve / box | Na dotaz | Zadat poptávku | |
| 0209 WHR29981 |
C00326661
481202308055 |
ventil | 1 416 Kč
€ 55.90 |
||
| 0211 WHR29981 |
C00467281
482000010583 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 0212 WHR29981 |
C00467011
482000008797 |
Chamber air 4 | Na dotaz | Zadat poptávku | |
| 0213 WHR29981 |
C00335133
482000019771 |
Drainhose | Na dotaz | Zadat poptávku | |
| 0215 WHR29981 |
C00466477
482000005865 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 0219 WHR29981 |
C00319124
482000005866 |
Hose draining | Na dotaz | Zadat poptávku | |
| 0220 WHR29981 |
C00326666
481202308062 |
koleno | 124 Kč
€ 4.90 |
||
| 0221 WHR29981 |
C00326667
481202308063 |
Suspension hook | Na dotaz | Zadat poptávku | |
| 0225 WHR29981 |
C00318079
481202308065 |
presostat | 1 027 Kč
€ 40.50 |
||
| 0228 WHR29981 |
C00326669
481202308066 |
Clamp | Na dotaz | Zadat poptávku | |
| 0231 WHR29981 |
C00467447
482000012151 |
Crossbar spring | Na dotaz | Zadat poptávku | |
| 0234 WHR29981 |
C00326671
481202308068 |
Clamp | Na dotaz | Zadat poptávku | |
| 0235 WHR29981 |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 0238 WHR29981 |
C00326675
481202308073 |
kryt | 134 Kč
€ 5.30 |
||
| 0239 WHR29981 |
C00467282
482000010584 |
Cable mains | Na dotaz | Zadat poptávku | |
| 0240 WHR29981 |
C00469057
482000019772 |
Screw | Na dotaz | Zadat poptávku | |
| 0241 WHR29981 |
C00469058
482000019773 |
Washer 8.30x29x2 | Na dotaz | Zadat poptávku | |
| 0242 WHR29981 |
C00326684
481202308085 |
Lever,security cpl. | Na dotaz | Zadat poptávku | |
| 0243 WHR29981 |
C00469059
482000019774 |
Screw plastic | Na dotaz | Zadat poptávku | |
| 0244 WHR29981 |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 0270 WHR29981 |
C00425862
480111101058 |
Dispenser complete | Na dotaz | Zadat poptávku | |
| 0275 WHR29981 |
C00467956
482000015845 |
Kit detergent box | Na dotaz | Zadat poptávku | |
| 0280 WHR29981 |
C00467957
482000015846 |
Kit detergent box | Na dotaz | Zadat poptávku | |
| 0285 WHR29981 |
C00466479
482000005868 |
Pump draining | Na dotaz | Zadat poptávku | |
| 0290 WHR29981 |
C00345093
482000009785 |
Screw transport kit | Na dotaz | Zadat poptávku | |
| 0295 WHR29981 |
C00467958
482000015847 |
Kit drainhose | Na dotaz | Zadat poptávku | |
| 0296 WHR29981 |
C00466480
482000005869 |
Cable Kit | Na dotaz | Zadat poptávku | |
| 0400 WHR29981 |
C00469507
482000020924 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 0401 WHR29981 |
C00469508
482000020925 |

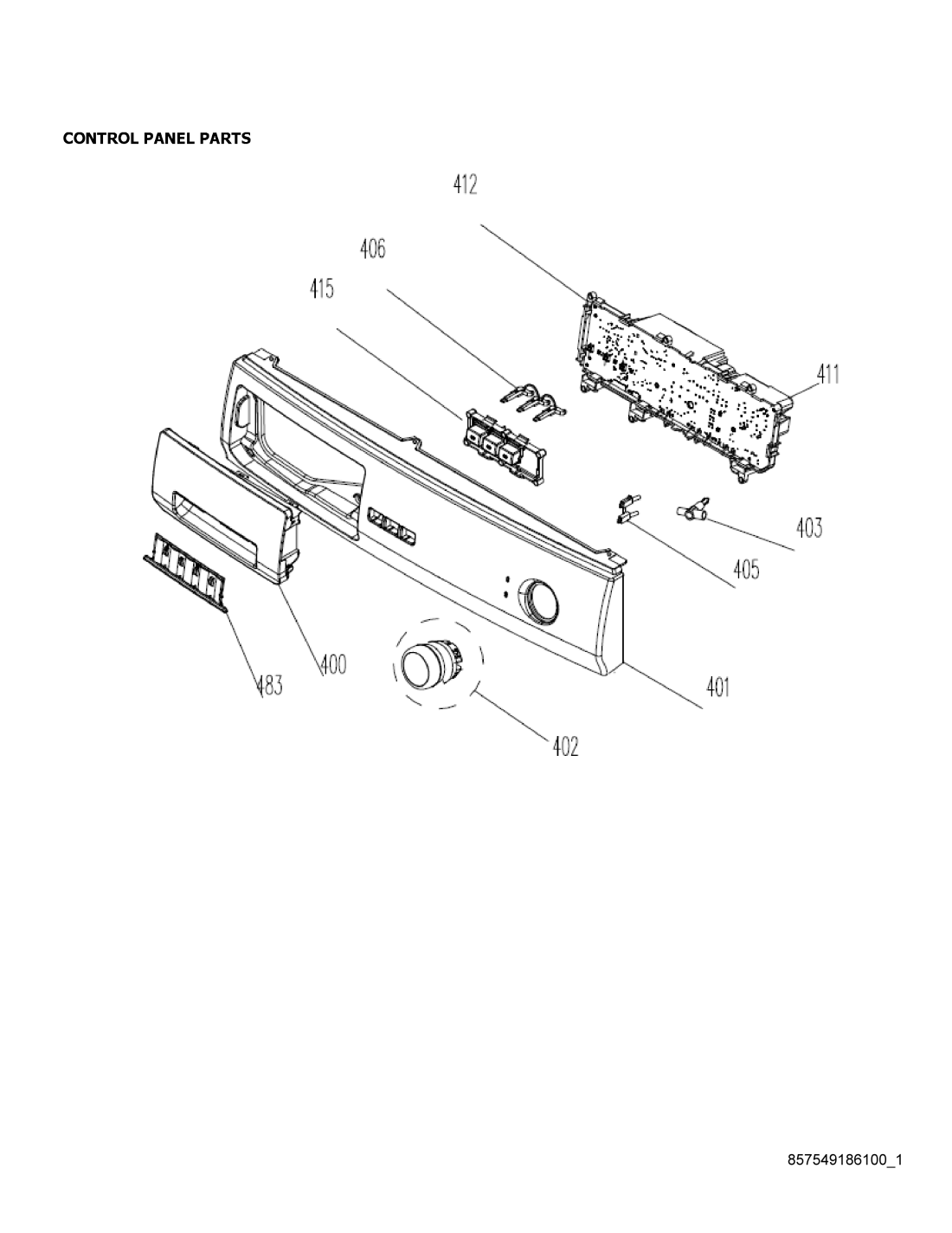

Control panel | Na dotaz | Zadat poptávku | |
| 0402 WHR29981 |
C00426054
480111101337 |
Knob timer | Na dotaz | Zadat poptávku | |
| 0403 WHR29981 |
C00425866
480111101063 |
Adapter | Na dotaz | Zadat poptávku | |
| 0405 WHR29981 |
C00426055
480111101338 |
Light guide 2X | Na dotaz | Zadat poptávku | |
| 0406 WHR29981 |
C00426056
480111101339 |
Light guide 3X | Na dotaz | Zadat poptávku | |
| 0411 WHR29981 |
C00469064
482000019779 |
Holder | Na dotaz | Zadat poptávku | |
| 0412 WHR29981 |
C00469509
482000020926 |
Control unit B1-30-22492FF00400 | Na dotaz | Zadat poptávku | |
| 0415 WHR29981 |
C00426057
480111101341 |
Button 3X | Na dotaz | Zadat poptávku | |
| 0483 WHR29981 |
C00426058
480111101342 |
Insert handle | Na dotaz | Zadat poptávku | |
| 0700 WHR29981 |
C00326699
481202308107 |
pruzina | 174 Kč
€ 6.90 |
||
| 0800 WHR29981 |
C00466484
482000005873 |
Spring Tub | Na dotaz | Zadat poptávku | |
| 0807 WHR29981 |
C00326701
481202308109 |
Screw PT 8*40 | Na dotaz | Zadat poptávku | |
| 0808 WHR29981 |
C00425873
480111101071 |
Screw | Na dotaz | Zadat poptávku | |
| 0811 WHR29981 |
C00467257
482000010467 |
Support | Na dotaz | Zadat poptávku | |
| 0812 WHR29981 |
C00326705
481202308114 |
Nut M 8 | Na dotaz | Zadat poptávku | |
| 0813 WHR29981 |
C00312961
481202308115 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 0898 WHR29981 |
C00467967
482000015856 |
Rubber 10mm | Na dotaz | Zadat poptávku | |
| 0899 WHR29981 |
C00466486
482000005875 |
Heating element with hole | Na dotaz | Zadat poptávku | |
| 0999 WHR29981 |
C00467111
482000009807 |
Sensor temper. NTC | Na dotaz | Zadat poptávku | |
| 999 WHR29983 |
C00540400 | Technical Instruction WHP | Na dotaz | Zadat poptávku | |
| 999 WHR29983 |
C00541113 | Testprogram WHP | Na dotaz | Zadat poptávku | |
