WHIRLPOOL AWG/BM 7081 S/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWG/BM 7081 S/1 |
| Kód 12NC: | 859991568540 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

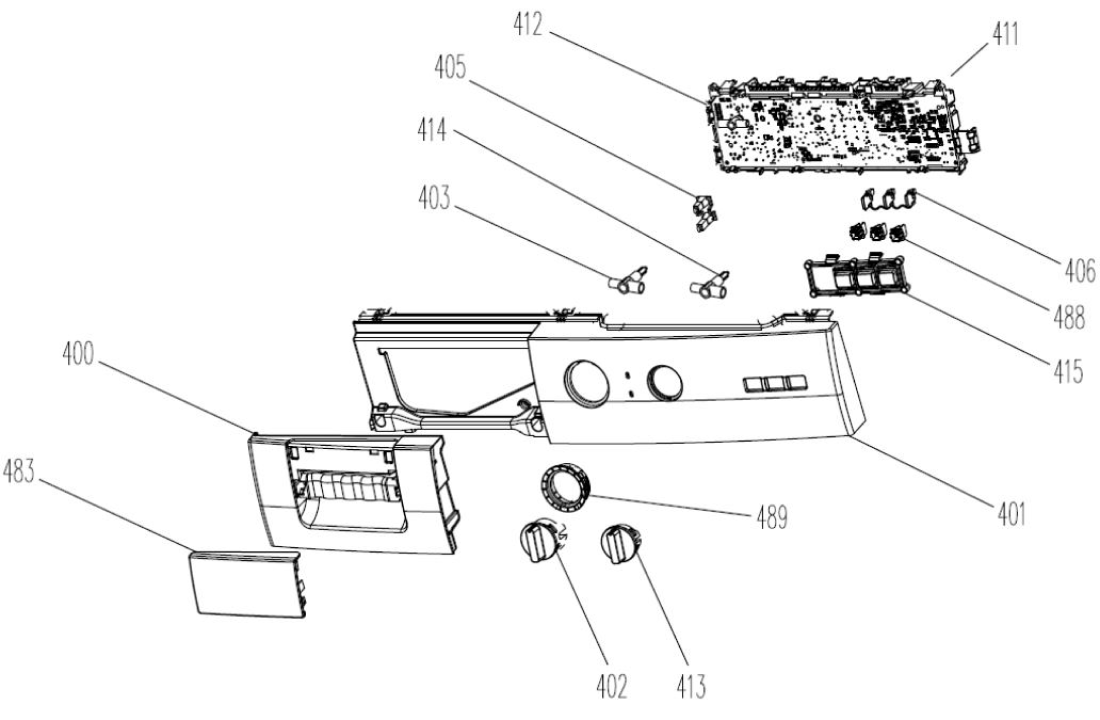

| 400 VEWS01a |
C00540836
488000540836 |
DETERGENT DRAWER COVER / LISSOTIS | Na dotaz | Zadat poptávku | |
| 401 VEWS01a |
C00540835
488000540835 |
CON.PAN.WHIRLPOOL LR3 (AWG / BM 7081 S / | Na dotaz | Zadat poptávku | |
| 403 VEWS01a |
C00425866
480111101063 |
Adapter | Na dotaz | Zadat poptávku | |
| 405 VEWS01a |
C00466565
482000006069 |
Light guide 2x | Na dotaz | Zadat poptávku | |
| 406 VEWS01a |
C00466566
482000006070 |
Light guide 3x | Na dotaz | Zadat poptávku | |
| 412 VEWS01a |
C00540829
488000540829 |
E.CARD R3-31097FF02020-PCB-REMEPS-NL-E | Na dotaz | Zadat poptávku | |
| 483 VEWS01a |
C00540837
488000540837 |
DETERGENT DRAWER COVER INSERT/LISSOTIS(I | Na dotaz | Zadat poptávku | |
| 488 VEWS01a |
C00467965
482000015854 |
Shaft button group | Na dotaz | Zadat poptávku | |
| 500 VEWS01a |
C00540834
488000540834 |
CON.PAN.GR. WHIRLPOOL LR3 (AWG / BM 7081 | Na dotaz | Zadat poptávku | |
| 001 VEWS01b |
C00521825
482000098865 |
Body group painted 420ALV | Na dotaz | Zadat poptávku | |
| 002 VEWS01b |
C00469067
482000019782 |
Table top | Na dotaz | Zadat poptávku | |
| 003 VEWS01b |
C00466523
482000006022 |
Front panel | Na dotaz | Zadat poptávku | |
| 004 VEWS01b |
C00469054
482000019767 |
Plinth | Na dotaz | Zadat poptávku | |
| 005 VEWS01b |
C00540502
488000540502 |
NASTAVITELNÉ PÁSY SBR-H | Na dotaz | Zadat poptávku | |
| 009 VEWS01b |
C00505647
482000094813 |
Clamp | Na dotaz | Zadat poptávku | |
| 010 VEWS01b |
C00338989
480111101045 |
Blokování dveří | 504 Kč
€ 19.90 |
||
| 020 VEWS01b |
C00517341
482000097674 |
Hose inlet water group | Na dotaz | Zadat poptávku | |
| 022 VEWS01b |
C00426892
480111102669 |
Plinth | Na dotaz | Zadat poptávku | |
| 023 VEWS01b |
C00426893
480111102671 |
Cover plinth | Na dotaz | Zadat poptávku | |
| 024 VEWS01b |
C00505679
482000094818 |
Bracket bearing | Na dotaz | Zadat poptávku | |
| 100 VEWS01c |
C00466469
482000005855 |
Belt | Na dotaz | Zadat poptávku | |
| 101 VEWS01c |
C00314512
482000015838 |
Pulley | Na dotaz | Zadat poptávku | |
| 102 VEWS01c |
C00540830
488000540830 |
MOTOR(32/40/41/42-4/5/6/8 RPM)AL.WELLING | Na dotaz | Zadat poptávku | |
| 103 VEWS01c |
C00517317
482000097676 |
Tub rear group | Na dotaz | Zadat poptávku | |
| 104 VEWS01c |
C00469085
482000019803 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 105 VEWS01c |
C00326646
481202308029 |
Pin Shockabsorber | 187 Kč
€ 7.40 |
||
| 112 VEWS01c |
C00517318
482000097677 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 113 VEWS01c |
C00326648
481202308032 |
tesneni nadrze | 423 Kč
€ 16.70 |
||
| 115 VEWS01c |
C00345123
482000009783 |
Clip Heating | Na dotaz | Zadat poptávku | |
| 117 VEWS01c |
C00469086
482000019804 |
Tub half front | Na dotaz | Zadat poptávku | |
| 118 VEWS01c |
C00466474
482000005861 |
Door bellow | Na dotaz | Zadat poptávku | |
| 119 VEWS01c |
C00505727
482000094831 |
TUB-GASKET CLAMP-ALVA -2 | Na dotaz | Zadat poptávku | |
| 120 VEWS01c |
C00517319
482000097678 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 121 VEWS01c |
C00505729
482000094833 |
Heating element | Na dotaz | Zadat poptávku | |
| 124 VEWS01c |
C00505731
482000094835 |
Screw | Na dotaz | Zadat poptávku | |
| 160 VEWS01c |
C00517342
482000097679 |
Drum group | Na dotaz | Zadat poptávku | |
| 206 VEWS01c |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 213 VEWS01c |
C00335133
482000019771 |
Drainhose | Na dotaz | Zadat poptávku | |
| 700 VEWS01c |
C00326699
481202308107 |
pruzina | 174 Kč
€ 6.90 |
||
| 800 VEWS01c |
C00517343
482000097680 |
Spring hanger | Na dotaz | Zadat poptávku | |
| 808 VEWS01c |
C00425873
480111101071 |
Screw | Na dotaz | Zadat poptávku | |
| 811 VEWS01c |
C00505818
482000094890 |
Support | Na dotaz | Zadat poptávku | |
| 812 VEWS01c |
C00505819
482000094891 |
Nut AKB,M8,C,FE,RPM-L | Na dotaz | Zadat poptávku | |
| 813 VEWS01c |
C00517345
482000097682 |
Filter plastic | Na dotaz | Zadat poptávku | |
| 898 VEWS01c |
C00505821
482000094894 |
PSW HOSE MOUNTING RUBBER-10MM | Na dotaz | Zadat poptávku | |
| 899 VEWS01c |
C00505822
482000094895 |
Wire,resistance | Na dotaz | Zadat poptávku | |
| 999 VEWS01c |
C00469094
482000019812 |
Sensor temper. NTC | Na dotaz | Zadat poptávku | |
| 200 VEWS01d |
C00466526
482000006025 |
Drawer | Na dotaz | Zadat poptávku | |
| 201 VEWS01d |
C00469056
482000019770 |
Drawer cpl. | Na dotaz | Zadat poptávku | |
| 202 VEWS01d |
C00466527
482000006026 |
Cover siphon | Na dotaz | Zadat poptávku | |
| 203 VEWS01d |
C00505772
482000094842 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 205 VEWS01d |
C00425861
480111101057 |
Dispenser housing | Na dotaz | Zadat poptávku | |
| 207 VEWS01d |
C00326659
481202308053 |
Hose valve / deterg. box | Na dotaz | Zadat poptávku | |
| 208 VEWS01d |
C00326711
481202308139 |
Hose inlet valve / box | Na dotaz | Zadat poptávku | |
| 209 VEWS01d |
C00505777
482000094847 |
Valve | Na dotaz | Zadat poptávku | |
| 228 VEWS01d |
C00326669
481202308066 |
Clamp | Na dotaz | Zadat poptávku | |
| 270 VEWS01d |
C00426895
480111102673 |
Dispenser box compl. | Na dotaz | Zadat poptávku | |
| 275 VEWS01d |
C00469070
482000019785 |
Dispenser | Na dotaz | Zadat poptávku | |
| 280 VEWS01d |
C00469071
482000019786 |
Dispenser cpl. | Na dotaz | Zadat poptávku | |
| 211 VEWS01e |
C00467281
482000010583 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 212 VEWS01e |
C00467253
482000010463 |
Chamber air | Na dotaz | Zadat poptávku | |
| 234 VEWS01e |
C00517346
482000097683 |
Clamp hose 32,7 | Na dotaz | Zadat poptávku | |
| 244 VEWS01e |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 295 VEWS01e |
C00505800
482000094870 |
Pressostat HOSE | Na dotaz | Zadat poptávku | |
| 215 VEWS01f |
C00505778
482000094848 |
Filter | Na dotaz | Zadat poptávku | |
| 219 VEWS01f |
C00505779
482000094849 |
Hose draining | Na dotaz | Zadat poptávku | |
| 220 VEWS01f |
C00505780
482000094850 |
Hose | Na dotaz | Zadat poptávku | |
| 221 VEWS01f |
C00517353
482000097690 |
Spring hanger sheetiron PLS | Na dotaz | Zadat poptávku | |
| 222 VEWS01f |
C00505782
482000094852 |
Clip | Na dotaz | Zadat poptávku | |
| 225 VEWS01f |
C00505783
482000094853 |
Pressostat | Na dotaz | Zadat poptávku | |
| 231 VEWS01f |
C00467447
482000012151 |
Crossbar spring | Na dotaz | Zadat poptávku | |
| 235 VEWS01f |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 238 VEWS01f |
C00521853
482000098879 |
Zátka III | Na dotaz | Zadat poptávku | |
| 239 VEWS01f |
C00505788
482000094858 |
Mains cable | Na dotaz | Zadat poptávku | |
| 249 VEWS01f |
C00517350
482000097687 |
Cable harness | Na dotaz | Zadat poptávku | |
| 250 VEWS01f |
C00469677
482000023710 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 251 VEWS01f |
C00505791
482000094861 |
Cable holder | Na dotaz | Zadat poptávku | |
| 254 VEWS01f |
C00505794
482000094864 |
Holder | Na dotaz | Zadat poptávku | |
| 285 VEWS01f |
C00540831
488000540831 |
PUMP(HANNING-ALU-50HZ) | Na dotaz | Zadat poptávku | |
| 918 VEWS01f |
C00540832
488000540832 |
FILTROVACÍ ZAŘÍZENÍ 32007280 | Na dotaz | Zadat poptávku | |
| 920 VEWS01f |
C00466520
482000006009 |
Fastener front panel, plastic | Na dotaz | Zadat poptávku | |
| 006 VEWS01g |
C00540511
488000540511 |
PORTHOLOVÉ VNĚJŠÍ PLASTY / K-CLS MALENÉ | Na dotaz | Zadat poptávku | |
| 007 VEWS01g |
C00454880
481202308134 |
Door glass | Na dotaz | Zadat poptávku | |
| 008 VEWS01g |
C00540509
488000540509 |
PORTHOL INNEER PLS II / SIGMA PLUS 440 / | Na dotaz | Zadat poptávku | |
| 012 VEWS01g |
C00467949
482000015836 |
Hinge III-M5 | Na dotaz | Zadat poptávku | |
| 014 VEWS01g |
C00540512
488000540512 |
KABELY DVEŘÍ / K-CLS MAINTED | Na dotaz | Zadat poptávku | |
| 015 VEWS01g |
C00326634
481202308013 |
pruzina | 131 Kč
€ 5.20 |
||
| 017 VEWS01g |
C00426447
480111102063 |
Hook | Na dotaz | Zadat poptávku | |
| 026 VEWS01g |
C00428090
480111104548 |
Spring handle | Na dotaz | Zadat poptávku | |
| 027 VEWS01g |
C00326635
481202308014 |
Pin | Na dotaz | Zadat poptávku | |
| 050 VEWS01g |
C00540508
488000540508 |
PORTHOLE GROUP(K-C)CLS PAINTED | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00466475
482000005863 |
Cable earth/tub | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00540828
488000540828 |
PODPORA HINGE-II-M5 | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521832
482000098872 |
Clamp VHK C65 A3B | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00469461
482000020741 |
Clamp hose 72 | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521834
482000098875 |
Clamp YHK C38.8 A3B, V2 | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521849
482000098873 |
Washer DUZ 10.5x30x2,5 ST | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00540491
488000540491 |
PAKIET GRUPA / 42 (SHRINK) SIGMA PLUS-WH | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00469400
482000020680 |
Staple 110x2.5mm | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00469463
482000020743 |
Clamp hose 35.0 | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00469676
482000023709 |
Holder hose | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00505733
482000094837 |
Tie | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521833
482000098874 |
Clamp YHK C9 1A3B | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00469681
482000023714 |
Box PCB | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521854
482000098880 |
Box PCB series cover | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00466559
482000006063 |
Support Hinge | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00517355
482000097692 |
Stopper transport screw | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521827
482000098867 |
Hinge spring hanger 1C | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521830
482000098870 |
Cable push mount 150*3,6MM | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521831
482000098871 |
Clamp YHK A3B DD-Kesit | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521850
482000098876 |
Detergent liquid level plate/3 | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521859
482000098885 |
Pump protection foil-4 | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00521860
482000098886 |
Strip package (0,8mm*11,5) | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00540516
488000540516 |
PR.ADJ.KNOB / LISSOTIS-CLS PAINTED | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00540517
488000540517 |
TLAČÍTKO TRIPLE / LISSOTIS-CLS PAI | Na dotaz | Zadat poptávku | |
| 999 VEWS01g |
C00540833
488000540833 |
TĚSNĚNÍ III | Na dotaz | Zadat poptávku | |
