WHIRLPOOL AWZ 508 WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 508 WP |
| Kód 12NC: | 857594763000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
Potřebujete servis? Jsme tady pro Vás

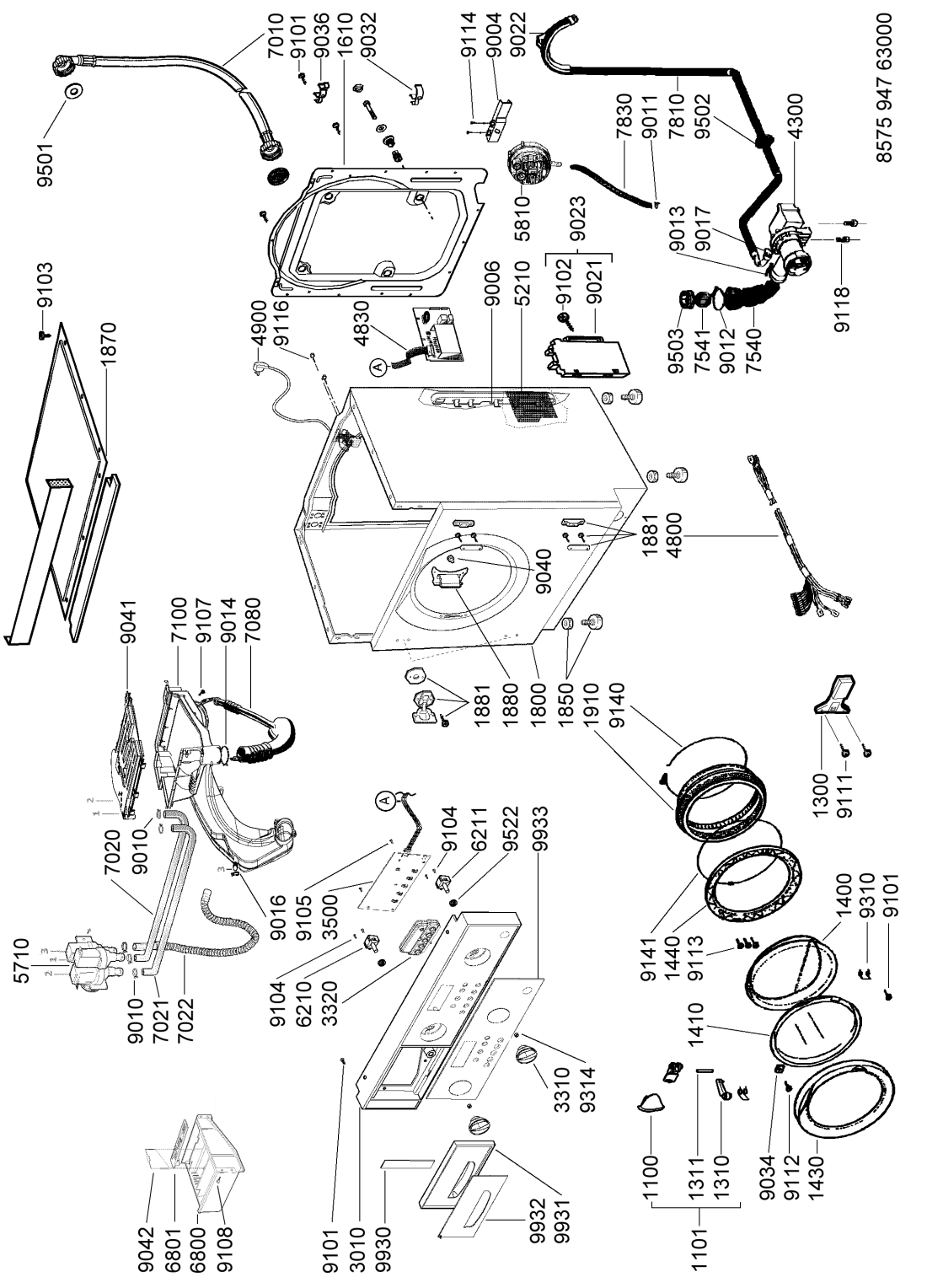

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 110 0 WHR30329 |
C00333380
481990308146 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR30329 |
C00333381
481990308147 |
Handle cpl. | Na dotaz | Zadat poptávku | |
| 130 0 WHR30329 |
C00313146
481228058043 |
Blokování dveří pračky Whirlpool AWG 870 | 179 Kč
€ 7.10 |
||
| 131 0 WHR30329 |
C00332912
481940118414 |
HOOK | Na dotaz | Zadat poptávku | |
| 131 1 WHR30329 |
C00333372
481990302505 |
Osa uzávěru dvířek | 216 Kč
€ 8.50 |
||
| 140 0 WHR30329 |
C00488236
481945058319 |
Door glass | Na dotaz | Zadat poptávku | |
| 141 0 WHR30329 |
C00333142
481946698878 |
sklo dveri ochrane | 1 821 Kč
€ 71.90 |
||
| 143 0 WHR30329 |
C00330213
481245928046 |
GLASSDOOR FRAME | Na dotaz | Zadat poptávku | |
| 144 0 WHR30329 |
C00333382
481990308148 |
Frame | Na dotaz | Zadat poptávku | |
| 161 0 WHR30329 |
C00328090
481244011763 |
Panel rear | Na dotaz | Zadat poptávku | |
| 180 0 WHR30329 |
C00328093
481244011787 |
Cabinet | Na dotaz | Zadat poptávku | |
| 181 0 WHR30329 |
C00330796
481246368035 |
Tlumič třecí - sada | Na dotaz | Zadat poptávku | |
| 182 0 WHR30329 |
C00331556
481246689025 |
Counter weight upper right | Na dotaz | Zadat poptávku | |
| 182 1 WHR30329 |
C00320031
481246689028 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 182 2 WHR30329 |
C00331574
481246699091 |
Shock absorber | 768 Kč
€ 30.30 |
||
| 183 0 WHR30329 |
C00332936
481940443391 |
Bearer hook crosspiece | Na dotaz | Zadat poptávku | |
| 185 0 WHR30329 |
C00333071
481946247014 |
noha nastavitelna | 587 Kč
€ 23.20 |
||
| 187 0 WHR30329 |
C00328094
481244011788 |
Panel top | Na dotaz | Zadat poptávku | |
| 188 0 WHR30329 |
C00332988
481941719231 |
Hinge | Na dotaz | Zadat poptávku | |
| 188 1 WHR30329 |
C00314775
481941719605 |
Hinge Set | Na dotaz | Zadat poptávku | |
| 191 0 WHR30329 |
C00312091
481246818405 |
Gasket door | Na dotaz | Zadat poptávku | |
| 203 0 WHR30329 |
C00328547
481232518002 |
Insulation | Na dotaz | Zadat poptávku | |
| 210 0 WHR30329 |
C00315646
481241808013 |
Tub with drum kit | Na dotaz | Zadat poptávku | |
| 223 0 WHR30329 |
C00311320
481241888993 |
Žebro bubnu | 911 Kč
€ 36.00 |
||
| 271 0 WHR30329 |
C00313280
481235818205 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR30329 |
C00317124
481252888138 |
Remenice | 1 741 Kč
€ 68.70 |
||
| 301 0 WHR30329 |
C00330871
481246469386 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR30329 |
C00316712
481241078251 |
Knob potentiom. | Na dotaz | Zadat poptávku | |
| 332 0 WHR30329 |
C00319995
481241078255 |
Button front panel with seal | Na dotaz | Zadat poptávku | |
| 350 0 WHR30329 |
C00315413
481241078252 |
Display PCB, buttons | Na dotaz | Zadat poptávku | |
| 400 0 WHR30329 |
C00312266
481236138142 |
Motor | Na dotaz | Zadat poptávku | |
| 430 0 WHR30329 |
C00313089
481236018602 |
Pump,draining | Na dotaz | Zadat poptávku | |
| 440 0 WHR30329 |
C00312695
481236178006 |
motor ventilatoru | 2 811 Kč
€ 111.00 |
||
| 451 0 WHR30329 |
C00425137
480111100033 |
Heating element | Na dotaz | Zadat poptávku | |
| 451 1 WHR30329 |
C00311768
481225928969 |
topeni susicky | 2 907 Kč
€ 114.80 |
||
| 451 2 WHR30329 |
C00320422
481290308212 |
senzor NTC | 1 262 Kč
€ 49.80 |
||
| 480 0 WHR30329 |
C00429240
480113100156 |
Cable harness | Na dotaz | Zadat poptávku | |
| 483 0 WHR30329 |
C00313695
481232128507 |
Cable flat electronic | Na dotaz | Zadat poptávku | |
| 490 0 WHR30329 |
C00317664
481232118328 |
Cable mains with interf.filter | Na dotaz | Zadat poptávku | |
| 521 0 WHR30329 |
C00429239
480113100155 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 554 0 WHR30329 |
C00311988
481228208693 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 554 1 WHR30329 |
C00429184
480113100089 |
Thermostat | Na dotaz | Zadat poptávku | |
| 571 0 WHR30329 |
C00311801
481227118088 |
ventil | 1 435 Kč
€ 56.70 |
||
| 581 0 WHR30329 |
C00314372
481227128594 |
pressostat | 1 490 Kč
€ 58.80 |
||
| 621 0 WHR30329 |
C00319917
481227328296 |
Selector program | Na dotaz | Zadat poptávku | |
| 621 1 WHR30329 |
C00311270
481227328282 |
Selector,switch program | Na dotaz | Zadat poptávku | |
| 680 0 WHR30329 |
C00327888
481241870046 |
Drawer | Na dotaz | Zadat poptávku | |
| 680 1 WHR30329 |
C00327889
481241870047 |
Tray | Na dotaz | Zadat poptávku | |
| 701 0 WHR30329 |
C00493706
481253028933 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 702 0 WHR30329 |
C00339354
481253029523 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 702 1 WHR30329 |
C00339479
481253029357 |
Hose | Na dotaz | Zadat poptávku | |
| 702 2 WHR30329 |
C00320407
481253029505 |
Hose | Na dotaz | Zadat poptávku | |
| 708 0 WHR30329 |
C00315106
481253029501 |
Hadice vnitřní pračky Whirlpool, Indesit | 2 052 Kč
€ 81.00 |
||
| 710 0 WHR30329 |
C00317095
481241868439 |
Dispenser | Na dotaz | Zadat poptávku | |
| 741 0 WHR30329 |
C00313805
481236078054 |
kryt | 690 Kč
€ 27.20 |
||
| 743 0 WHR30329 |
C00314258
481252518045 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR30329 |
C00317110
481252648275 |
kanal vzduchu | 1 961 Kč
€ 77.40 |
||
| 743 2 WHR30329 |
C00318579
481252518043 |
Air guide bottom | Na dotaz | Zadat poptávku | |
| 743 3 WHR30329 |
C00318631
481252648277 |
Air guide upper | Na dotaz | Zadat poptávku | |
| 743 4 WHR30329 |
C00318581
481252518044 |
Conveyor rubber | Na dotaz | Zadat poptávku | |
| 754 0 WHR30329 |
C00332388
481252918065 |
Hadice k čerpadlu | Na dotaz | Zadat poptávku | |
| 754 1 WHR30329 |
C00332495
481253029502 |
spojka | 452 Kč
€ 17.80 |
||
| 781 0 WHR30329 |
C00333291
481953028942 |
Hose draining | Na dotaz | Zadat poptávku | |
| 783 0 WHR30329 |
C00333283
481953028682 |
hadice | Na dotaz | Zadat poptávku | |
| 900 4 WHR30329 |
C00329149
481240449889 |
Bracket pressure switch | Na dotaz | Zadat poptávku | |
| 900 6 WHR30329 |
C00329182
481240478506 |
kabelaz | 660 Kč
€ 26.10 |
||
| 900 8 WHR30329 |
C00332735
481253598114 |
kolik tlumice | 1 872 Kč
€ 73.90 |
||
| 901 0 WHR30329 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR30329 |
C00333370
481990302487 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 2 WHR30329 |
C00328943
481240118893 |
spona hadice | 180 Kč
€ 7.10 |
||
| 901 3 WHR30329 |
C00332911
481940118351 |
SPONA HADICE NÁDRŽ-F | 87 Kč
€ 3.40 |
||
| 901 4 WHR30329 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 901 6 WHR30329 |
C00328876
481240118458 |
Strap | Na dotaz | Zadat poptávku | |
| 901 7 WHR30329 |
C00328958
481240148604 |
Clamp drain pipe hose | Na dotaz | Zadat poptávku | |
| 902 1 WHR30329 |
C00329051
481240448907 |
drzak modulu | 1 212 Kč
€ 47.80 |
||
| 902 2 WHR30329 |
C00332909
481940118345 |
koleno vyt. hadice | 76 Kč
€ 3.00 |
||
| 902 3 WHR30329 |
C00314973
481221479195 |
drzak regulatoru | 1 206 Kč
€ 47.60 |
||
| 902 4 WHR30329 |
C00319185
481240448664 |
Holder | Na dotaz | Zadat poptávku | |
| 903 2 WHR30329 |
C00333384
481990308165 |
drzak hadice | Na dotaz | Zadat poptávku | |
| 903 4 WHR30329 |
C00333138
481946698404 |
prichytka dveri | 1 081 Kč
€ 42.70 |
||
| 903 6 WHR30329 |
C00333383
481990308162 |
Holder hose 2 | Na dotaz | Zadat poptávku | |
| 904 0 WHR30329 |
C00333342
481953538111 |
Rivet | Na dotaz | Zadat poptávku | |
| 904 1 WHR30329 |
C00315883
481246228725 |
Víko násypky | 1 586 Kč
€ 62.60 |
||
| 904 2 WHR30329 |
C00327890
481241870048 |
Separator | Na dotaz | Zadat poptávku | |
| 904 3 WHR30329 |
C00317362
481946698528 |
Clamping piece | Na dotaz | Zadat poptávku | |
| 904 4 WHR30329 |
C00332365
481252648276 |
Bushing heater element | Na dotaz | Zadat poptávku | |
| 910 1 WHR30329 |
C00332098
481250218649 |
Screw Torx D=4,2 H=9,5 | Na dotaz | Zadat poptávku | |
| 910 2 WHR30329 |
C00332099
481250218651 |
Screw Torx D=4,2 H=13 | Na dotaz | Zadat poptávku | |
| 910 3 WHR30329 |
C00332106
481250218677 |
Screw | Na dotaz | Zadat poptávku | |
| 910 4 WHR30329 |
C00332795
481293008011 |
sroub | 192 Kč
€ 7.60 |
||
| 910 5 WHR30329 |
C00332100
481250218652 |
Screw | Na dotaz | Zadat poptávku | |
| 910 6 WHR30329 |
C00332144
481250218823 |
šroub | 404 Kč
€ 15.90 |
||
| 910 7 WHR30329 |
C00332156
481250238362 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR30329 |
C00333210
481950218386 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 9 WHR30329 |
C00332307
481252318024 |
spojka | 317 Kč
€ 12.50 |
||
| 911 1 WHR30329 |
C00333389
481990310173 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 2 WHR30329 |
C00333224
481950218534 |
Šroub | 56 Kč
€ 2.20 |
||
| 911 3 WHR30329 |
C00333208
481950218352 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 4 WHR30329 |
C00333226
481950233254 |
Screw | Na dotaz | Zadat poptávku | |
| 911 5 WHR30329 |
C00318411
481250218802 |
Screw counterweight | Na dotaz | Zadat poptávku | |
| 911 6 WHR30329 |
C00425658
480111100791 |
Screw | Na dotaz | Zadat poptávku | |
| 911 7 WHR30329 |
C00332063
481250218414 |
Screw | Na dotaz | Zadat poptávku | |
| 911 8 WHR30329 |
C00498562
481250218479 |
šroub | 547 Kč
€ 21.60 |
||
| 911 9 WHR30329 |
C00332145
481250218825 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR30329 |
C00318413
481250218803 |
Screw pulley | Na dotaz | Zadat poptávku | |
| 912 1 WHR30329 |
C00332309
481252318039 |
podložka | 528 Kč
€ 20.80 |
||
| 912 2 WHR30329 |
C00333015
481944019616 |
Screw | Na dotaz | Zadat poptávku | |
| 912 3 WHR30329 |
C00332146
481250218826 |
Screw | Na dotaz | Zadat poptávku | |
| 912 4 WHR30329 |
C00429232
480113100147 |
Screw Thermostat | Na dotaz | Zadat poptávku | |
| 914 0 WHR30329 |
C00311492
481253298024 |
spona TVO | 667 Kč
€ 26.30 |
||
| 914 1 WHR30329 |
C00333371
481990302494 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 914 2 WHR30329 |
C00332192
481250568028 |
Nut blower fan motor | Na dotaz | Zadat poptávku | |
| 931 0 WHR30329 |
C00333167
481949248141 |
pruzina uzaveru dve. | 1 118 Kč
€ 44.10 |
||
| 931 3 WHR30329 |
C00311641
481249268228 |
Pružina agregátu | Na dotaz | Zadat poptávku | |
| 931 4 WHR30329 |
C00333165
481949238135 |
pruzina | 977 Kč
€ 38.60 |
||
| 950 0 WHR30329 |
C00316631
481246689027 |
těsnění | 1 020 Kč
€ 40.30 |
||
| 950 1 WHR30329 |
C00333379
481990304978 |
Gasket | Na dotaz | Zadat poptávku | |
| 950 2 WHR30329 |
C00331553
481246689011 |
Gasket drain hose protection | Na dotaz | Zadat poptávku | |
| 950 3 WHR30329 |
C00331555
481246689021 |
těsnění | 399 Kč
€ 15.80 |
||
| 950 4 WHR30329 |
C00331498
481246688763 |
Seal conveyor | Na dotaz | Zadat poptávku | |
| 950 5 WHR30329 |
C00320037
481246689038 |
Gasket conveyer | Na dotaz | Zadat poptávku | |
| 950 6 WHR30329 |
C00316833
481953057019 |
tesneni ventilatoru | 608 Kč
€ 24.00 |
||
| 950 7 WHR30329 |
C00319769
481246668593 |
Seal for blower | Na dotaz | Zadat poptávku | |
| 952 2 WHR30329 |
C00331508
481246688793 |
tesneni | 669 Kč
€ 26.40 |
||
| 993 0 WHR30329 |
C00331575
481246699092 |
Plate front panel | Na dotaz | Zadat poptávku | |
| 993 1 WHR30329 |
C00345893
481249878724 |
Handle detergent drawer | Na dotaz | Zadat poptávku | |
| 993 2 WHR30329 |
C00330356
481246049885 |
Insert f.Handle drawer | Na dotaz | Zadat poptávku | |
| 993 3 WHR30329 |
C00429241
480113100157 |
Insert control panel | Na dotaz | Zadat poptávku | |
| 999 0 WHR30329 |
C00313290
481251548011 |
vrtule ventilatoru | 1 423 Kč
€ 56.20 |
||
