| Komerční kód: | AWL 791 |
| Kód 12NC: | 854079120000 |
| Značka: | IGNIS |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

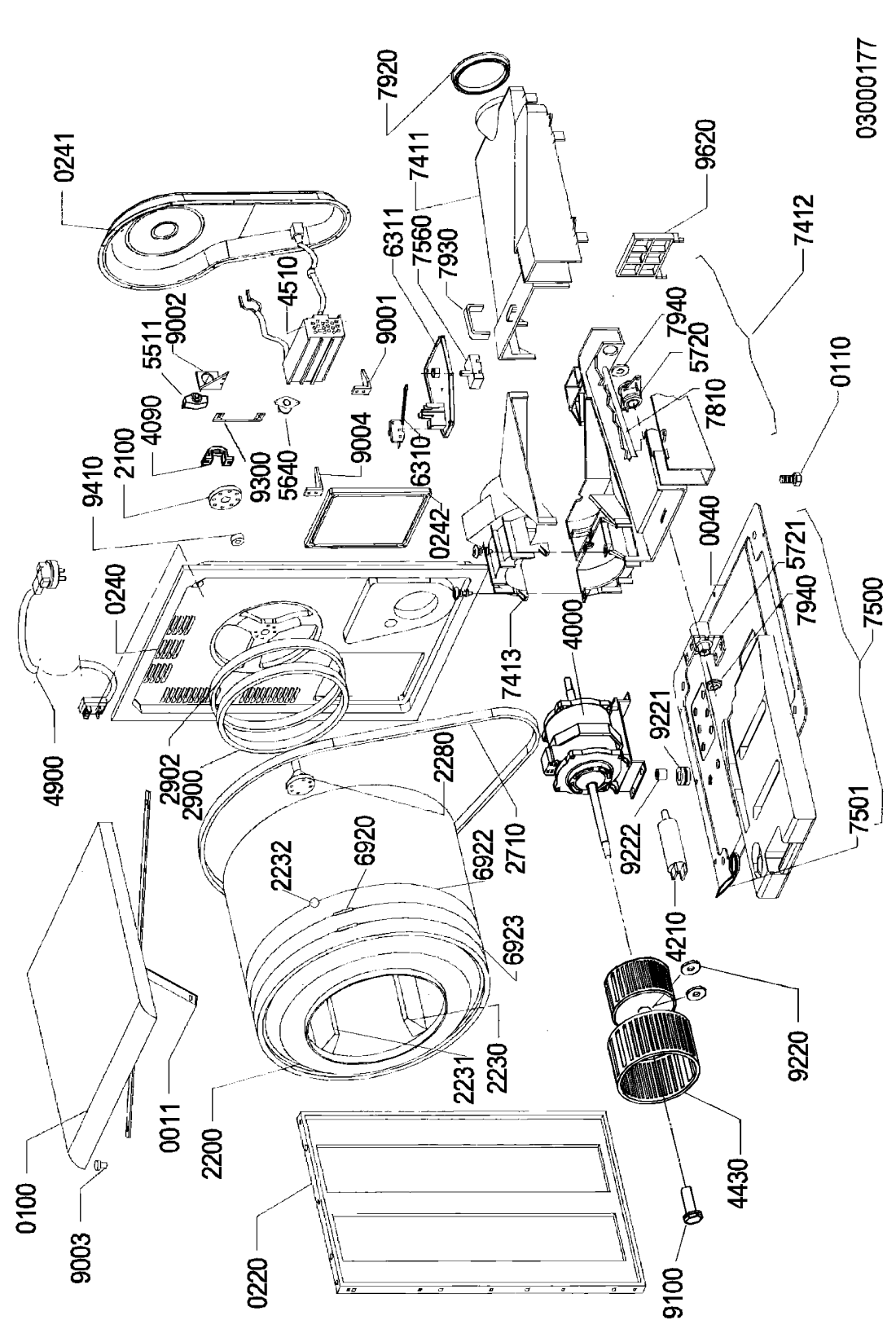

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR96170 |
C00746591
481940479502 |
Bearer | Na dotaz | Zadat poptávku | |
| 004 0 WHR96170 |
C00746592
481944019919 |
Bottom | Na dotaz | Zadat poptávku | |
| 010 0 WHR96170 |
C00746593
481944019908 |
Table top | Na dotaz | Zadat poptávku | |
| 011 0 WHR96170 |
C00746594
481946248505 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR96170 |
C00746595
481944019921 |
Front | Na dotaz | Zadat poptávku | |
| 022 0 WHR96170 |
C00746596
481944019909 |
Side panel | Na dotaz | Zadat poptávku | |
| 024 0 WHR96170 |
C00746597
481944019911 |
Panel rear | Na dotaz | Zadat poptávku | |
| 024 1 WHR96170 |
C00746598
481944019912 |
Cover | Na dotaz | Zadat poptávku | |
| 024 2 WHR96170 |
C00746599
481944019913 |
Cover | Na dotaz | Zadat poptávku | |
| 040 0 WHR96170 |
C00746600
481940118887 |
Small plate | Na dotaz | Zadat poptávku | |
| 040 1 WHR96170 |
C00746601
481941719638 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR96170 |
C00746602
481946818356 |
Gasket | Na dotaz | Zadat poptávku | |
| 040 3 WHR96170 |
C00746603
481953538163 |
Pivot | Na dotaz | Zadat poptávku | |
| 100 0 WHR96170 |
C00746604
481946288121 |
Flap | Na dotaz | Zadat poptávku | |
| 105 0 WHR96170 |
C00746605
481953538162 |
Hook | Na dotaz | Zadat poptávku | |
| 105 1 WHR96170 |
C00746606
481940118886 |
Small plate | Na dotaz | Zadat poptávku | |
| 110 0 WHR96170 |
C00746607
481949878434 |
Handle | Na dotaz | Zadat poptávku | |
| 130 0 WHR96170 |
C00532079
481949878469 |
Door lock cpl. | Na dotaz | Zadat poptávku | |
| 143 0 WHR96170 |
C00746608
481953228292 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| 191 0 WHR96170 |
C00746609
481953058097 |
Gasket | Na dotaz | Zadat poptávku | |
| 210 0 WHR96170 |
C00746610
481940118885 |
Flange f. Bearing | Na dotaz | Zadat poptávku | |
| 220 0 WHR96170 |
C00746674
481941818376 |
Drum | Na dotaz | Zadat poptávku | |
| 223 0 WHR96170 |
C00746612
481951528297 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 223 1 WHR96170 |
C00746675
481951528301 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 223 2 WHR96170 |
C00746676
481946288142 |
Plug | Na dotaz | Zadat poptávku | |
| 228 0 WHR96170 |
C00746613
481953598669 |
Pivot | Na dotaz | Zadat poptávku | |
| 271 0 WHR96170 |
C00746614
481935818158 |
Belt 1932 H MAEL | Na dotaz | Zadat poptávku | |
| 290 0 WHR96170 |
C00746615
481935818157 |
Felt,strip | Na dotaz | Zadat poptávku | |
| 290 1 WHR96170 |
C00746616
481953058095 |
Gasket | Na dotaz | Zadat poptávku | |
| 290 2 WHR96170 |
C00746617
481953058096 |
Gasket | Na dotaz | Zadat poptávku | |
| 301 0 WHR96170 |
C00743207
481945919606 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR96170 |
C00746619
481941258808 |
Knob timer | Na dotaz | Zadat poptávku | |
| 332 0 WHR96170 |
C00746620
481941029142 |
Button | Na dotaz | Zadat poptávku | |
| 351 0 WHR96170 |
C00746621
481913448525 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 352 0 WHR96170 |
C00746622
481938118256 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 352 1 WHR96170 |
C00746623
481938118257 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 400 0 WHR96170 |
C00746624
481936158283 |
Motor | Na dotaz | Zadat poptávku | |
| 409 0 WHR96170 |
C00746678
481936248013 |
Contact | Na dotaz | Zadat poptávku | |
| 409 1 WHR96170 |
C00484479
481947918007 |
Brush | Na dotaz | Zadat poptávku | |
| 409 2 WHR96170 |
C00746679
481949268878 |
Spring | Na dotaz | Zadat poptávku | |
| 409 3 WHR96170 |
C00746680
481947918006 |
Brush | Na dotaz | Zadat poptávku | |
| 409 4 WHR96170 |
C00746681
481940479533 |
Holder | Na dotaz | Zadat poptávku | |
| 421 0 WHR96170 |
C00746625
481912118315 |
Capacitor | Na dotaz | Zadat poptávku | |
| 443 0 WHR96170 |
C00746626
481951528298 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 451 0 WHR96170 |
C00746627
481925928964 |
Heating element | Na dotaz | Zadat poptávku | |
| 490 0 WHR96170 |
C00494485
481932118331 |
Cable mains | Na dotaz | Zadat poptávku | |
| 501 0 WHR96170 |
C00746682
481928218784 |
Timer | Na dotaz | Zadat poptávku | |
| 501 1 WHR96170 |
C00746683
481928218783 |
Timer EATON P55 MY5072C | Na dotaz | Zadat poptávku | |
| 501 2 WHR96170 |
C00746684
481921478681 |
Control unit | Na dotaz | Zadat poptávku | |
| 551 0 WHR96170 |
C00746629
481928228715 |
Thermostat | Na dotaz | Zadat poptávku | |
| 551 1 WHR96170 |
C00746630
481928228716 |
TERMOSTAT BIMET | 665 Kč
€ 26.20 |
||
| 564 0 WHR96170 |
C00746631
481928228717 |
Thermostat | Na dotaz | Zadat poptávku | |
| 572 0 WHR96170 |
C00746632
481952648554 |
Coupling piece | Na dotaz | Zadat poptávku | |
| 572 1 WHR96170 |
C00746633
481953029041 |
Valve | Na dotaz | Zadat poptávku | |
| 620 0 WHR96170 |
C00746634
481927618418 |
SPINAC | 683 Kč
€ 26.90 |
||
| 620 1 WHR96170 |
C00494333
481927618419 |
Switch on/off | Na dotaz | Zadat poptávku | |
| 621 0 WHR96170 |
C00746635
481927138282 |
Microswitch | Na dotaz | Zadat poptávku | |
| 631 0 WHR96170 |
C00746636
481927138279 |
Microswitch | Na dotaz | Zadat poptávku | |
| 631 1 WHR96170 |
C00746637
481944019914 |
Cover f. floater | Na dotaz | Zadat poptávku | |
| 633 0 WHR96170 |
C00746638
481927138281 |
Microswitch | Na dotaz | Zadat poptávku | |
| 692 0 WHR96170 |
C00746685
481949268876 |
Spring | Na dotaz | Zadat poptávku | |
| 692 2 WHR96170 |
C00746686
481953228298 |
Insulator | Na dotaz | Zadat poptávku | |
| 692 3 WHR96170 |
C00746687
481953228299 |
Ring | Na dotaz | Zadat poptávku | |
| 740 0 WHR96170 |
C00746639
481951148668 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR96170 |
C00746640
481953598672 |
Lever | Na dotaz | Zadat poptávku | |
| 741 1 WHR96170 |
C00746641
481944019916 |
Cover | Na dotaz | Zadat poptávku | |
| 741 2 WHR96170 |
C00746642
481944019917 |
Cover | Na dotaz | Zadat poptávku | |
| 741 3 WHR96170 |
C00746643
481944019915 |
Cover | Na dotaz | Zadat poptávku | |
| 741 4 WHR96170 |
C00746644
481944278437 |
Conveyor | Na dotaz | Zadat poptávku | |
| 741 5 WHR96170 |
C00746645
481953288053 |
Ring | Na dotaz | Zadat poptávku | |
| 750 0 WHR96170 |
C00746646
481941818373 |
Container f. water | Na dotaz | Zadat poptávku | |
| 750 1 WHR96170 |
C00746647
481944019918 |
Stopper | Na dotaz | Zadat poptávku | |
| 756 0 WHR96170 |
C00746648
481936058739 |
Floater | Na dotaz | Zadat poptávku | |
| 761 0 WHR96170 |
C00746649
481948058139 |
Filter | Na dotaz | Zadat poptávku | |
| 761 1 WHR96170 |
C00746650
481953228293 |
Frame | Na dotaz | Zadat poptávku | |
| 781 0 WHR96170 |
C00746651
481953029039 |
Hose | Na dotaz | Zadat poptávku | |
| 792 0 WHR96170 |
C00746652
481946818354 |
Gasket | Na dotaz | Zadat poptávku | |
| 792 1 WHR96170 |
C00746653
481946818355 |
Gasket | Na dotaz | Zadat poptávku | |
| 792 3 WHR96170 |
C00746654
481946818358 |
Gasket | Na dotaz | Zadat poptávku | |
| 792 4 WHR96170 |
C00746655
481953058091 |
Gasket | Na dotaz | Zadat poptávku | |
| 792 5 WHR96170 |
C00746656
481953058093 |
Gasket | Na dotaz | Zadat poptávku | |
| 793 0 WHR96170 |
C00746657
481946878353 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 0 WHR96170 |
C00746658
481953058092 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 1 WHR96170 |
C00746659
481944278436 |
Holder left | Na dotaz | Zadat poptávku | |
| 900 2 WHR96170 |
C00531650
481940479503 |
Bracket f.thermostat | Na dotaz | Zadat poptávku | |
| 900 3 WHR96170 |
C00746660
481940118884 |
Clip | Na dotaz | Zadat poptávku | |
| 900 4 WHR96170 |
C00746661
481944278435 |
Holder right | Na dotaz | Zadat poptávku | |
| 900 5 WHR96170 |
C00746662
481953058094 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 6 WHR96170 |
C00746688
481940479532 |
Bracket | Na dotaz | Zadat poptávku | |
| 910 1 WHR96170 |
C00746664
481950218505 |
Screw | Na dotaz | Zadat poptávku | |
| 910 2 WHR96170 |
C00746665
481950218506 |
Screw | Na dotaz | Zadat poptávku | |
| 921 0 WHR96170 |
C00746666
481953258288 |
Washer | Na dotaz | Zadat poptávku | |
| 922 0 WHR96170 |
C00746667
481953258289 |
Washer | Na dotaz | Zadat poptávku | |
| 922 1 WHR96170 |
C00746668
481946248506 |
Silent bloc | Na dotaz | Zadat poptávku | |
| 922 2 WHR96170 |
C00746669
481946699156 |
Spacer | Na dotaz | Zadat poptávku | |
| 930 0 WHR96170 |
C00746670
481940118889 |
Bridge rect. | Na dotaz | Zadat poptávku | |
| 941 0 WHR96170 |
C00746671
481952018043 |
Bearing,ball SKF 508-2Z/C3HT | Na dotaz | Zadat poptávku | |
| 945 0 WHR96170 |
C00746672
481940118888 |
Hoop | Na dotaz | Zadat poptávku | |
| 962 0 WHR96170 |
C00746673
481945868263 |
Grid | Na dotaz | Zadat poptávku | |
