WHIRLPOOL AWM 029/WS-GB
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 029/WS-GB |
| Kód 12NC: | 857002901000 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

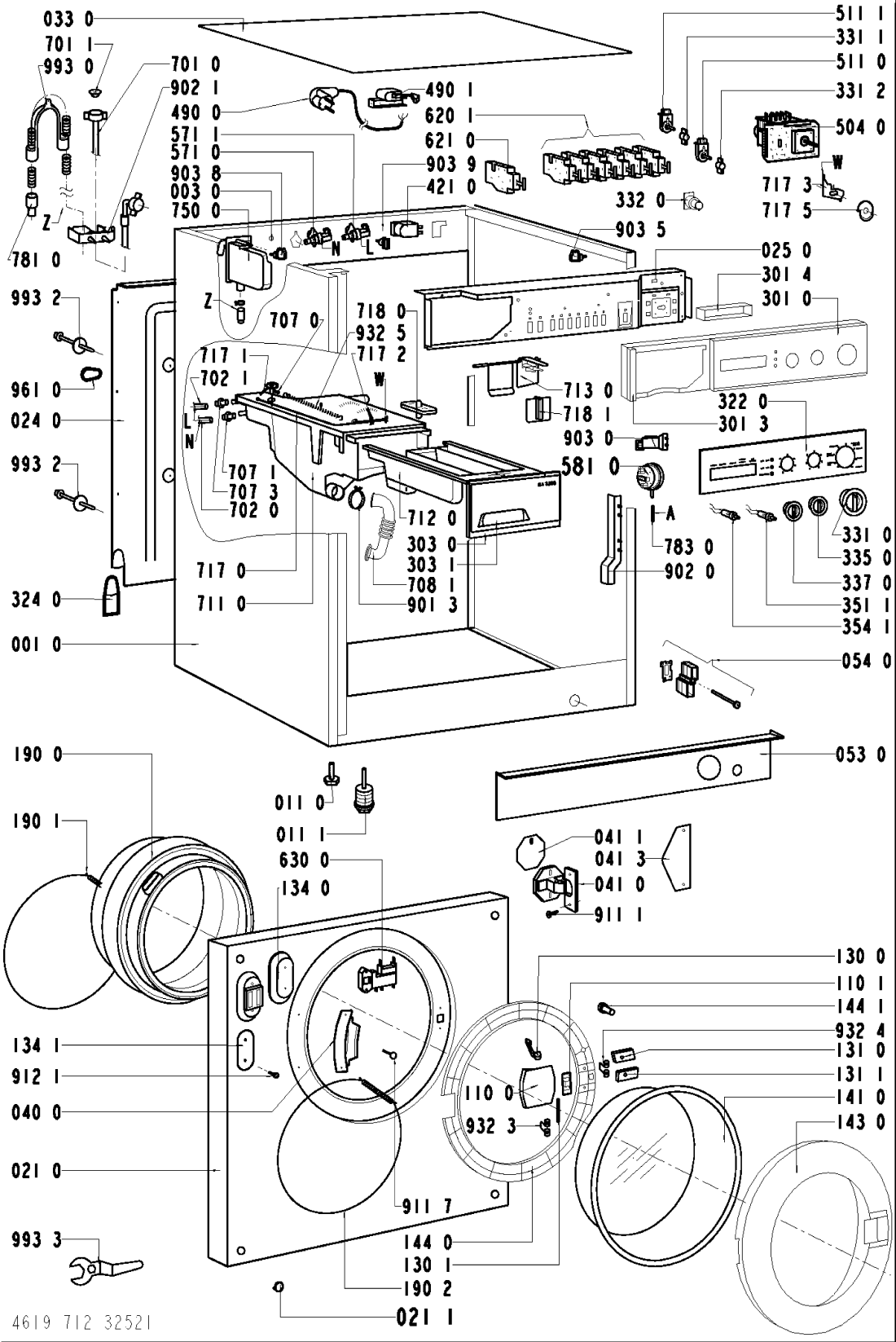

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR114433 |
C00497928
481244019419 |
skrin | 3 529 Kč
€ 139.30 |
||
| 003 0 WHR114433 |
C00342254
481246448105 |
Crossbar hot | Na dotaz | Zadat poptávku | |
| 004 0 WHR114433 |
C00497929
481244019423 |
DRIP TRAY ASSY | Na dotaz | Zadat poptávku | |
| 011 0 WHR114433 |
C00340775
481250018068 |
Nastavitelná noha pračky | 474 Kč
€ 18.70 |
||
| 011 1 WHR114433 |
C00340785
481250018075 |
Foot leveling kit 82mm | Na dotaz | Zadat poptávku | |
| 011 1 WHR114433 |
C00345894
481250018074 |
noha nastavitelna | 399 Kč
€ 15.80 |
||
| 021 0 WHR114433 |
C00314073
481244019424 |
Panel front | Na dotaz | Zadat poptávku | |
| 021 1 WHR114433 |
C00330746
481246279654 |
Stopper | Na dotaz | Zadat poptávku | |
| 024 0 WHR114433 |
C00341521
481244018997 |
PANEL, REAR | Na dotaz | Zadat poptávku | |
| 025 0 WHR114433 |
C00339636
481244019425 |
Holder Control deviceControl device | Na dotaz | Zadat poptávku | |
| 033 0 WHR114433 |
C00342377
481231018383 |
Cover plate WA/WT9,DEL | Na dotaz | Zadat poptávku | |
| 040 0 WHR114433 |
C00312576
481241718794 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 0 WHR114433 |
C00339869
481241718034 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 1 WHR114433 |
C00314485
481241728002 |
podlozka 1mm | Na dotaz | Zadat poptávku | |
| 041 1 WHR114433 |
C00338740
481241718035 |
podlozka 0,2mm | Na dotaz | Zadat poptávku | |
| 041 3 WHR114433 |
C00342323
481241718033 |
Cover,hinge | Na dotaz | Zadat poptávku | |
| 053 0 WHR114433 |
C00337720
481245938014 |
Plinth | Na dotaz | Zadat poptávku | |
| 054 0 WHR114433 |
C00336185
481244019433 |
SADA PODSTAVECA AWM0 | 616 Kč
€ 24.30 |
||
| 061 0 WHR114433 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR114433 |
C00330987
481246688462 |
Counter weight Lower | Na dotaz | Zadat poptávku | |
| 080 0 WHR114433 |
C00313744
481252918036 |
Shock absorber 600-120 | Na dotaz | Zadat poptávku | |
| 084 0 WHR114433 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 0 WHR114433 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 1 WHR114433 |
C00312274
481240118413 |
Čep tlumiče | 924 Kč
€ 36.50 |
||
| 086 2 WHR114433 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR114433 |
C00339972
481249818142 |
Handle,door | Na dotaz | Zadat poptávku | |
| 110 1 WHR114433 |
C00319614
481241718796 |
Lever grip door | Na dotaz | Zadat poptávku | |
| 130 0 WHR114433 |
C00312170
481241728051 |
Hák dveří | 705 Kč
€ 27.80 |
||
| 130 1 WHR114433 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 0 WHR114433 |
C00319956
481241728053 |
podlozka horni | 725 Kč
€ 28.60 |
||
| 131 1 WHR114433 |
C00316910
481241728052 |
podlozka dolni | 814 Kč
€ 32.10 |
||
| 134 0 WHR114433 |
C00312992
481241748001 |
Magnet dveří | 858 Kč
€ 33.90 |
||
| 134 1 WHR114433 |
C00314481
481241728001 |
Podložka magnetu | 131 Kč
€ 5.20 |
||
| 141 0 WHR114433 |
C00320431
481245068219 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR114433 |
C00316130
481244019418 |
priruba dveri | 792 Kč
€ 31.30 |
||
| 144 0 WHR114433 |
C00340710
481241718795 |
priruba dveri | 1 247 Kč
€ 49.20 |
||
| 144 1 WHR114433 |
C00315363
481240118417 |
STOPPER | Na dotaz | Zadat poptávku | |
| 190 0 WHR114433 |
C00342114
481246668527 |
DOOR BELLOW | Na dotaz | Zadat poptávku | |
| 190 1 WHR114433 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 190 2 WHR114433 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.60 |
||
| 200 1 WHR114433 |
C00317773
481241818188 |
TUB FRONT PART 48L,120 | Na dotaz | Zadat poptávku | |
| 200 2 WHR114433 |
C00337431
481241818192 |
Tub rear part | Na dotaz | Zadat poptávku | |
| 200 3 WHR114433 |
C00339178
481252018068 |
Ložiskový domek AWM 248 | 2 840 Kč
€ 112.10 |
||
| 200 4 WHR114433 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR114433 |
C00318856
481241818196 |
Drum 800-1000 | Na dotaz | Zadat poptávku | |
| 223 0 WHR114433 |
C00341177
481951528244 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR114433 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR114433 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 292 0 WHR114433 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR114433 |
C00342573
481245219346 |
PANEL OVLADACI | 935 Kč
€ 36.90 |
||
| 301 3 WHR114433 |
C00343211
481245219348 |
Control panel side part | Na dotaz | Zadat poptávku | |
| 301 4 WHR114433 |
C00340721
481245219355 |
Frame Switch 5-Fold | Na dotaz | Zadat poptávku | |
| 303 0 WHR114433 |
C00498528
481249818143 |
celo nasypky | Na dotaz | Zadat poptávku | |
| 303 1 WHR114433 |
C00340102
481249818144 |
Handle cover | Na dotaz | Zadat poptávku | |
| 322 0 WHR114433 |
C00338813
481245918168 |
INSERT PANEL | Na dotaz | Zadat poptávku | |
| 324 0 WHR114433 |
C00338357
481244018992 |
Lid Rearcover | Na dotaz | Zadat poptávku | |
| 331 0 WHR114433 |
C00341894
481241348246 |
Knob timer 2A- | Na dotaz | Zadat poptávku | |
| 331 1 WHR114433 |
C00344654
481241318207 |
Adapter | Na dotaz | Zadat poptávku | |
| 331 2 WHR114433 |
C00344651
481241318201 |
Adapter | Na dotaz | Zadat poptávku | |
| 332 0 WHR114433 |
C00497619
481241028555 |
TLACIDLO AWM031 N | Na dotaz | Zadat poptávku | |
| 335 0 WHR114433 |
C00338436
481241348245 |
knoflik termostatu | 471 Kč
€ 18.60 |
||
| 337 0 WHR114433 |
C00338458
481241348261 |
Knob Spin Speed WH-BI | Na dotaz | Zadat poptávku | |
| 351 1 WHR114433 |
C00497251
481213448221 |
SIGNALKA AWM248 | 258 Kč
€ 10.20 |
||
| 354 1 WHR114433 |
C00341485
481213448196 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 401 0 WHR114433 |
C00315331
481236158094 |
Motor 1000,1200 MCA52/ | Na dotaz | Zadat poptávku | |
| 401 1 WHR114433 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR114433 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR114433 |
C00497494
481236018369 |
CERPADLO AWM031 LOP. N | Na dotaz | Zadat poptávku | |
| 451 0 WHR114433 |
C00315047
481225928672 |
Heating element 240V - 031261C0 | Na dotaz | Zadat poptávku | |
| 490 0 WHR114433 |
C00343505
481232128379 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 490 1 WHR114433 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 504 0 WHR114433 |
C00335421
481228218458 |
Timer MASK 3 2A | Na dotaz | Zadat poptávku | |
| 511 0 WHR114433 |
C00336534
481241348223 |
Selector Temp./Spin | Na dotaz | Zadat poptávku | |
| 511 1 WHR114433 |
C00498852
481927328435 |
SWITCH,ROTARY | Na dotaz | Zadat poptávku | |
| 571 0 WHR114433 |
C00337283
481228128378 |
VALVE,MAGNET | Na dotaz | Zadat poptávku | |
| 571 1 WHR114433 |
C00497346
481228128383 |
Valve,magnet hot hot. | Na dotaz | Zadat poptávku | |
| 581 0 WHR114433 |
C00337571
481227128373 |
Pressostat | Na dotaz | Zadat poptávku | |
| 620 1 WHR114433 |
C00335726
481227618238 |
Switch Options | Na dotaz | Zadat poptávku | |
| 621 0 WHR114433 |
C00497334
481227618252 |
Switch On / Off | Na dotaz | Zadat poptávku | |
| 630 0 WHR114433 |
C00320776
481228058023 |
Door lock | Na dotaz | Zadat poptávku | |
| 701 0 WHR114433 |
C00339225
481253028837 |
Hose, inlet | Na dotaz | Zadat poptávku | |
| 701 1 WHR114433 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 702 0 WHR114433 |
C00339219
481253028828 |
Hose, inlet intern | Na dotaz | Zadat poptávku | |
| 702 1 WHR114433 |
C00318765
481253028841 |
Hose hot | Na dotaz | Zadat poptávku | |
| 707 0 WHR114433 |
C00341590
481252648036 |
Nozzle cold/hot | Na dotaz | Zadat poptávku | |
| 707 1 WHR114433 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 707 3 WHR114433 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 708 1 WHR114433 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR114433 |
C00311924
481941879434 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR114433 |
C00341234
481241878922 |
DRAWER DETERGENT | Na dotaz | Zadat poptávku | |
| 713 0 WHR114433 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR114433 |
C00344284
481232128377 |
Bowden cable | Na dotaz | Zadat poptávku | |
| 717 1 WHR114433 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR114433 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR114433 |
C00336270
481227888007 |
posouvac | Na dotaz | Zadat poptávku | |
| 717 5 WHR114433 |
C00497352
481228218459 |
VACKA AWM031 N | Na dotaz | Zadat poptávku | |
| 718 0 WHR114433 |
C00318585
481252648027 |
viko prepadu nasypky | 121 Kč
€ 4.80 |
||
| 718 1 WHR114433 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 750 0 WHR114433 |
C00317158
481253048153 |
Chamber,expand. BUILT-IN | Na dotaz | Zadat poptávku | |
| 753 1 WHR114433 |
C00342743
481241868153 |
CHAMBER,AIR | Na dotaz | Zadat poptávku | |
| 754 0 WHR114433 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR114433 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR114433 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR114433 |
C00340937
481248058078 |
FILTER SET PUMP | Na dotaz | Zadat poptávku | |
| 781 0 WHR114433 |
C00339213
481253028815 |
HOSE,DRAINING | Na dotaz | Zadat poptávku | |
| 781 1 WHR114433 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 783 0 WHR114433 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 3 WHR114433 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 786 0 WHR114433 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 914 Kč
€ 36.10 |
||
| 786 1 WHR114433 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR114433 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 794 5 WHR114433 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 901 0 WHR114433 |
C00343335
481240118415 |
CLAMP,HOSE TUB | Na dotaz | Zadat poptávku | |
| 901 3 WHR114433 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 902 0 WHR114433 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 902 1 WHR114433 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 903 0 WHR114433 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 903 5 WHR114433 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 903 8 WHR114433 |
C00332940
481940478449 |
Support | Na dotaz | Zadat poptávku | |
| 903 9 WHR114433 |
C00343868
481229088046 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 904 0 WHR114433 |
C00336812
481252958002 |
Rivet Base | Na dotaz | Zadat poptávku | |
| 910 0 WHR114433 |
C00336553
481250218383 |
sroub M8*25loz.domu | 169 Kč
€ 6.70 |
||
| 910 1 WHR114433 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 910 5 WHR114433 |
C00336591
481250218359 |
Screw damper | Na dotaz | Zadat poptávku | |
| 911 1 WHR114433 |
C00336631
481250248004 |
Screw 4x15H | Na dotaz | Zadat poptávku | |
| 911 7 WHR114433 |
C00332781
481290308014 |
sroub M5x16 H | 89 Kč
€ 3.50 |
||
| 912 0 WHR114433 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 912 1 WHR114433 |
C00312043
481250218007 |
sroub M5x16H | 137 Kč
€ 5.40 |
||
| 923 0 WHR114433 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 931 0 WHR114433 |
C00336129
481249238363 |
Spring | Na dotaz | Zadat poptávku | |
| 932 3 WHR114433 |
C00311804
481249258025 |
Pružina madla dveří pračky | 205 Kč
€ 8.10 |
||
| 932 4 WHR114433 |
C00314204
481249258024 |
Pružina pojistna | 445 Kč
€ 17.60 |
||
| 932 5 WHR114433 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR114433 |
C00497385
481231018365 |
loziska sada | 1 259 Kč
€ 49.70 |
||
| 941 5 WHR114433 |
C00339180
481252018067 |
Hub 1200,48L | Na dotaz | Zadat poptávku | |
| 953 0 WHR114433 |
C00317160
481253058097 |
gufero | Na dotaz | Zadat poptávku | |
| 953 1 WHR114433 |
C00337964
481253058096 |
krouzek lozisk.domu | 396 Kč
€ 15.60 |
||
| 961 0 WHR114433 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 962 2 WHR114433 |
C00497522
481236078035 |
Foil | Na dotaz | Zadat poptávku | |
| 990 0 WHR114433 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 990 1 WHR114433 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 993 0 WHR114433 |
C00344289
481253048017 |
Bow | Na dotaz | Zadat poptávku | |
| 993 2 WHR114433 |
C00338394
481226818015 |
Lever,security | Na dotaz | Zadat poptávku | |
| 993 3 WHR114433 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
