| Komerční kód: | AWM 041 WASHING MACHINES WP |
| Kód 12NC: | 857004138900 |
| I.C. kód: | 857004138907 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857004101907, 857004138000, 857004138900, 857004101900, 857004101000, 857004101004 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

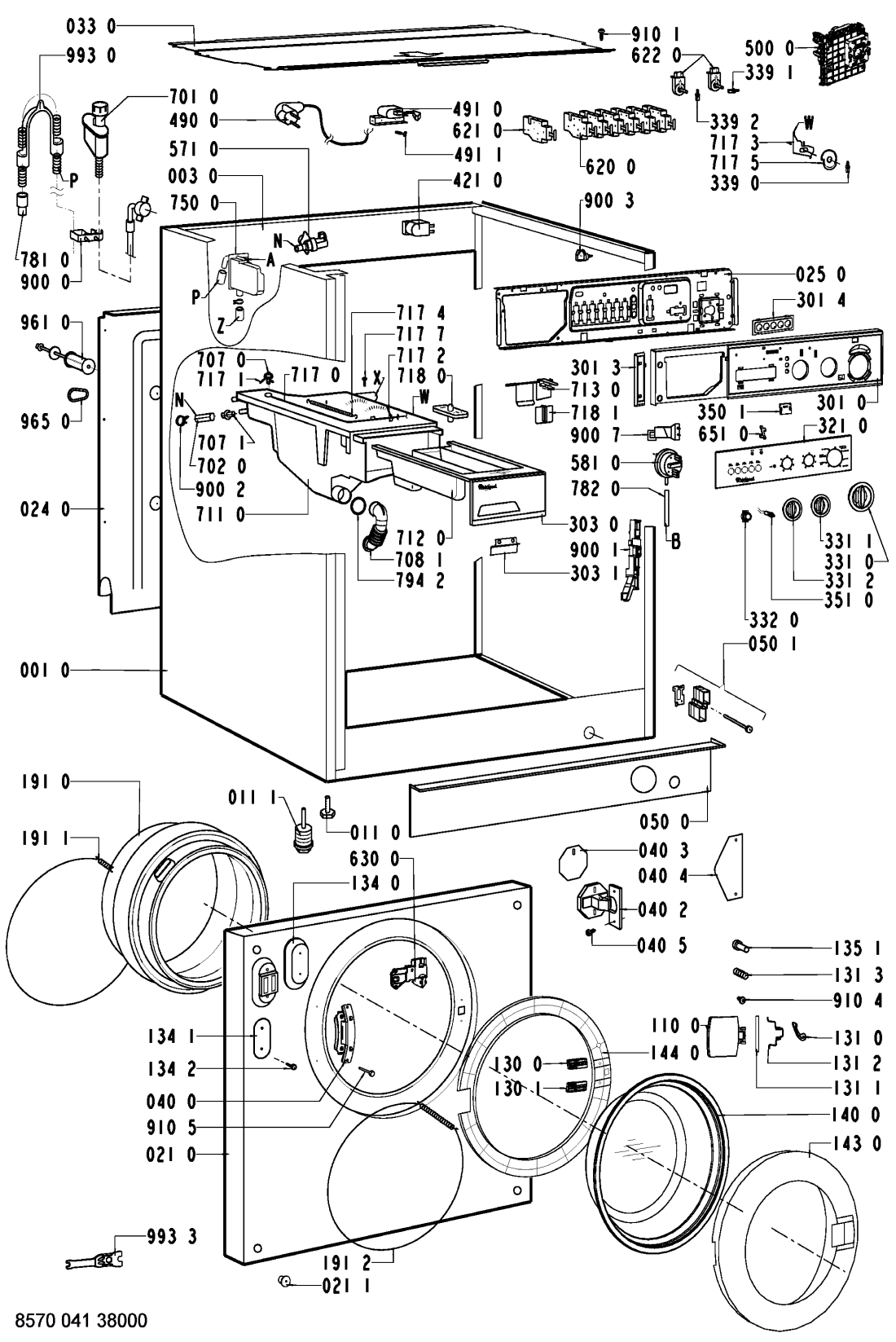

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR53871 |
C00343910
481244010748 |
Cabinet GW | Na dotaz | Zadat poptávku | |
| 003 0 WHR53871 |
C00342257
481246448112 |
pricka skrine zadni | 498 Kč
€ 19.60 |
||
| 004 0 WHR53871 |
C00497935
481244019479 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR53871 |
C00340775
481250018068 |
Nastavitelná noha pračky | 474 Kč
€ 18.70 |
||
| 011 1 WHR53871 |
C00340785
481250018075 |
Foot leveling kit 82mm | Na dotaz | Zadat poptávku | |
| 011 1 WHR53871 |
C00345894
481250018074 |
noha nastavitelna | 399 Kč
€ 15.70 |
||
| 011 1 WHR53871 |
C00492016
481250018104 |
Foot leveling kit 112mm | Na dotaz | Zadat poptávku | |
| 021 0 WHR53871 |
C00527961
481244010922 |
Panel,front | Na dotaz | Zadat poptávku | |
| 021 1 WHR53871 |
C00330746
481246279654 |
Stopper | Na dotaz | Zadat poptávku | |
| 024 0 WHR53871 |
C00341514
481231018653 |
Panel, rear SS KIT | Na dotaz | Zadat poptávku | |
| 025 0 WHR53871 |
C00332949
481940479271 |
Holder Contr. Device | Na dotaz | Zadat poptávku | |
| 033 0 WHR53871 |
C00327326
481231018414 |
Cover plate BI | Na dotaz | Zadat poptávku | |
| 040 0 WHR53871 |
C00312576
481241718794 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR53871 |
C00312349
481941718939 |
Závěs dveří vestavné pračky AWOC 0714 | 685 Kč
€ 27.00 |
||
| 040 3 WHR53871 |
C00314485
481241728002 |
podlozka 1mm | Na dotaz | Zadat poptávku | |
| 040 3 WHR53871 |
C00338740
481241718035 |
podlozka 0,2mm | Na dotaz | Zadat poptávku | |
| 040 4 WHR53871 |
C00313388
481241718811 |
kryt zavesu | Na dotaz | Zadat poptávku | |
| 040 5 WHR53871 |
C00313469
481250248345 |
Šroub 4X16 | 148 Kč
€ 5.80 |
||
| 050 0 WHR53871 |
C00330221
481245938059 |
Plinth GW | Na dotaz | Zadat poptávku | |
| 050 1 WHR53871 |
C00336185
481244019433 |
SADA PODSTAVECA AWM0 | 616 Kč
€ 24.30 |
||
| 061 0 WHR53871 |
C00320755
481246688833 |
zavazi horni | 2 012 Kč
€ 79.40 |
||
| 061 1 WHR53871 |
C00330987
481246688462 |
Counter weight Lower | Na dotaz | Zadat poptávku | |
| 061 2 WHR53871 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR53871 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 081 0 WHR53871 |
C00312055
481252918038 |
Shock absorber until 1200 | Na dotaz | Zadat poptávku | |
| 081 1 WHR53871 |
C00316661
481250218454 |
Screw M8x45 | Na dotaz | Zadat poptávku | |
| 084 0 WHR53871 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 0 WHR53871 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 1 WHR53871 |
C00312274
481240118413 |
Čep tlumiče | 924 Kč
€ 36.40 |
||
| 086 2 WHR53871 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.00 |
||
| 110 0 WHR53871 |
C00311084
481231028224 |
Rukojeť dveří pro vestavné pračky Whirlpool | 836 Kč
€ 33.00 |
||
| 130 0 WHR53871 |
C00319956
481241728053 |
podlozka horni | 725 Kč
€ 28.60 |
||
| 130 1 WHR53871 |
C00316910
481241728052 |
podlozka dolni | 814 Kč
€ 32.10 |
||
| 131 0 WHR53871 |
C00312170
481241728051 |
Hák dveří | 705 Kč
€ 27.80 |
||
| 131 1 WHR53871 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR53871 |
C00311804
481249258025 |
Pružina madla dveří pračky | 205 Kč
€ 8.10 |
||
| 131 3 WHR53871 |
C00314204
481249258024 |
Pružina pojistna | 445 Kč
€ 17.60 |
||
| 134 0 WHR53871 |
C00312992
481241748001 |
Magnet dveří | 858 Kč
€ 33.80 |
||
| 134 1 WHR53871 |
C00314481
481241728001 |
Podložka magnetu | 131 Kč
€ 5.20 |
||
| 134 2 WHR53871 |
C00312043
481250218007 |
sroub M5x16H | 137 Kč
€ 5.40 |
||
| 135 1 WHR53871 |
C00315363
481240118417 |
STOPPER | Na dotaz | Zadat poptávku | |
| 140 0 WHR53871 |
C00320431
481245068219 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR53871 |
C00311358
481244010749 |
Rám dveří vnější | 1 582 Kč
€ 62.40 |
||
| 144 0 WHR53871 |
C00312366
481241719168 |
priruba dveri | 1 588 Kč
€ 62.60 |
||
| 191 0 WHR53871 |
C00313168
481246068532 |
DOOR BELLOW grease resistance | Na dotaz | Zadat poptávku | |
| 191 1 WHR53871 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR53871 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.50 |
||
| 200 1 WHR53871 |
C00315540
481241818369 |
Tub, half front 48 l | Na dotaz | Zadat poptávku | |
| 200 2 WHR53871 |
C00311334
481241818228 |
nadrz zadni cast | Na dotaz | Zadat poptávku | |
| 200 4 WHR53871 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR53871 |
C00312773
481941818339 |
Drum | Na dotaz | Zadat poptávku | |
| 271 0 WHR53871 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR53871 |
C00313543
481252858041 |
remenice bubnu | 1 562 Kč
€ 61.60 |
||
| 272 2 WHR53871 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR53871 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 290 0 WHR53871 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR53871 |
C00343236
481245212212 |
Control panel GW | Na dotaz | Zadat poptávku | |
| 301 3 WHR53871 |
C00343210
481245212213 |
Control panel side part GW | Na dotaz | Zadat poptávku | |
| 301 4 WHR53871 |
C00331258
481245212214 |
Frame Switch 5-Fold GW | Na dotaz | Zadat poptávku | |
| 303 0 WHR53871 |
C00314214
481249818257 |
HANDLE, DRAWER GW | Na dotaz | Zadat poptávku | |
| 303 1 WHR53871 |
C00345880
481249818258 |
Handle cover GW | Na dotaz | Zadat poptávku | |
| 321 0 WHR53871 |
C00594395
481245213864 |
Insert panel AWM 041 | Na dotaz | Zadat poptávku | |
| 331 0 WHR53871 |
C00594217
481241348335 |
Knoflík časovače | 426 Kč
€ 16.80 |
||
| 331 1 WHR53871 |
C00341916
481241348336 |
Knoflík termostatu | 287 Kč
€ 11.30 |
||
| 331 2 WHR53871 |
C00487440
481241348371 |
Knob GW spin speed blue | Na dotaz | Zadat poptávku | |
| 332 0 WHR53871 |
C00329281
481241029029 |
Push button Options GW | Na dotaz | Zadat poptávku | |
| 339 0 WHR53871 |
C00344645
481241318216 |
Adapter f. button | Na dotaz | Zadat poptávku | |
| 339 1 WHR53871 |
C00329501
481241318215 |
Adapter axle 90 degree | Na dotaz | Zadat poptávku | |
| 339 2 WHR53871 |
C00344644
481223318007 |
Adapter f. Knob | Na dotaz | Zadat poptávku | |
| 350 1 WHR53871 |
C00456439
481223958047 |
Display | Na dotaz | Zadat poptávku | |
| 351 0 WHR53871 |
C00314291
481213418011 |
Lamp | Na dotaz | Zadat poptávku | |
| 400 0 WHR53871 |
C00492273
481936158273 |
motor | 5 080 Kč
€ 200.40 |
||
| 400 1 WHR53871 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 409 0 WHR53871 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR53871 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR53871 |
C00311671
481236018532 |
Čerpadlo vypouštěcí | 1 917 Kč
€ 75.60 |
||
| 451 0 WHR53871 |
C00538515
481225928835 |
nahradene 481225928919 | Na dotaz | Zadat poptávku | |
| 480 0 WHR53871 |
C00311380
481232178109 |
vodice svazek motor | 981 Kč
€ 38.70 |
||
| 490 0 WHR53871 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR53871 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR53871 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 500 0 WHR53871 |
C00501396
481228219438 |
Timer SC1, 800 | Na dotaz | Zadat poptávku | |
| 500 0 WHR53871 |
C00591620
481228219406 |
Timer Basic SC1 SD "IKEA" | Na dotaz | Zadat poptávku | |
| 571 0 WHR53871 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR53871 |
C00313403
481227128441 |
presostat | 1 536 Kč
€ 60.60 |
||
| 620 0 WHR53871 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR53871 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 622 0 WHR53871 |
C00327276
481227348002 |
prepinac otocny | 913 Kč
€ 36.00 |
||
| 630 0 WHR53871 |
C00311146
481228058044 |
Blokování dveří předem plněné pračky Whirlpool | 488 Kč
€ 19.20 |
||
| 631 0 WHR53871 |
C00317471
481227138358 |
mikrospinac plovaku | 1 114 Kč
€ 43.90 |
||
| 631 1 WHR53871 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 651 0 WHR53871 |
C00326833
481213448294 |
Light guide | Na dotaz | Zadat poptávku | |
| 691 0 WHR53871 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR53871 |
C00309499
481253029256 |
Přívodní hadice 1,5m s Aqua Stopem | 897 Kč
€ 35.40 |
||
| 701 0 WHR53871 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR53871 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 702 0 WHR53871 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 707 0 WHR53871 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR53871 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR53871 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR53871 |
C00317871
481241888025 |
teleso nasypky | 2 101 Kč
€ 82.90 |
||
| 712 0 WHR53871 |
C00312119
481241888051 |
zasuvka nasypky | Na dotaz | Zadat poptávku | |
| 713 0 WHR53871 |
C00314041
481241889037 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR53871 |
C00311569
481932128092 |
Bovden komplet | 699 Kč
€ 27.60 |
||
| 717 1 WHR53871 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR53871 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.20 |
||
| 717 3 WHR53871 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 4 WHR53871 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 717 5 WHR53871 |
C00327532
481228219435 |
Cam 3 C. for built in | Na dotaz | Zadat poptávku | |
| 717 7 WHR53871 |
C00332095
481250218623 |
Screw PT3,5x20-TORx20 | Na dotaz | Zadat poptávku | |
| 718 0 WHR53871 |
C00315497
481252648157 |
mrizka kryci | 147 Kč
€ 5.80 |
||
| 718 1 WHR53871 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 750 0 WHR53871 |
C00317158
481253048153 |
Chamber,expand. BUILT-IN | Na dotaz | Zadat poptávku | |
| 753 1 WHR53871 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR53871 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR53871 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR53871 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR53871 |
C00314883
481948058106 |
Filtr čerpadla | 198 Kč
€ 7.80 |
||
| 781 0 WHR53871 |
C00312966
481953028959 |
Výtoková hadice 1,5m (koncovky rovná/rovná) | Na dotaz | Zadat poptávku | |
| 782 0 WHR53871 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR53871 |
C00332412
481253028822 |
hadice násypka-přepad | Na dotaz | Zadat poptávku | |
| 783 3 WHR53871 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 783 4 WHR53871 |
C00317150
481253029354 |
hadice | Na dotaz | Zadat poptávku | |
| 785 0 WHR53871 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 914 Kč
€ 36.00 |
||
| 785 1 WHR53871 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR53871 |
C00332411
481253028819 |
Hose with hole(exhaust) | Na dotaz | Zadat poptávku | |
| 787 2 WHR53871 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 794 2 WHR53871 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR53871 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR53871 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR53871 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR53871 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.50 |
||
| 900 3 WHR53871 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR53871 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR53871 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 6 WHR53871 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR53871 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 910 1 WHR53871 |
C00332096
481250218624 |
Screw 3.5x10-F A2F | Na dotaz | Zadat poptávku | |
| 910 4 WHR53871 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 910 5 WHR53871 |
C00315224
481250218619 |
Screw M5/8 | Na dotaz | Zadat poptávku | |
| 930 0 WHR53871 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 941 0 WHR53871 |
C00318543
481252028001 |
Bearing,ball BB1-0625 DD | Na dotaz | Zadat poptávku | |
| 941 1 WHR53871 |
C00315098
481252028002 |
Ložisko 6203 SKF 2Z C3 | 301 Kč
€ 11.90 |
||
| 953 0 WHR53871 |
C00317160
481253058097 |
gufero | Na dotaz | Zadat poptávku | |
| 961 0 WHR53871 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 962 2 WHR53871 |
C00497522
481236078035 |
Foil | Na dotaz | Zadat poptávku | |
| 965 0 WHR53871 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR53871 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR53871 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
