| Komerční kód: | 075 WT/GY WASHING MACHINES WP |
| Kód 12NC: | 857007580040 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857007580042, 857007580041, 857007580043, 857007597041, 857007597042, 857007597040 |
Potřebujete servis? Jsme tady pro Vás

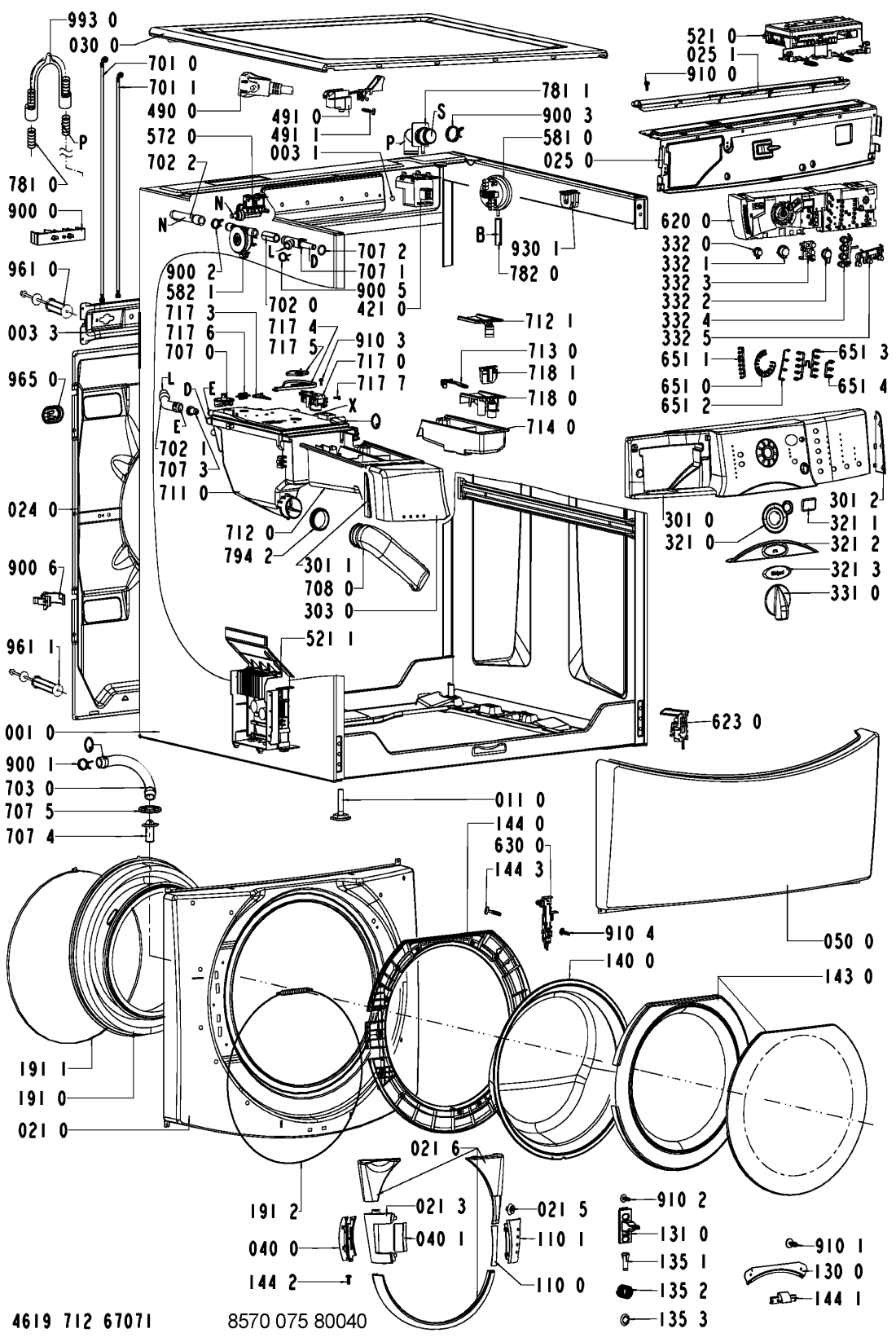

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR60831 |
C00594251
481244010775 |
Cabinet assembly. | Na dotaz | Zadat poptávku | |
| 003 1 WHR60831 |
C00594458
481246448174 |
Crossbar rear. | Na dotaz | Zadat poptávku | |
| 003 3 WHR60831 |
C00330834
481246448176 |
Crossbar transport | Na dotaz | Zadat poptávku | |
| 004 0 WHR60831 |
C00327958
481244010786 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR60831 |
C00330454
481246218261 |
noha nastavitelna | 343 Kč
€ 13.50 |
||
| 021 0 WHR60831 |
C00327966
481244010807 |
Front panel white | Na dotaz | Zadat poptávku | |
| 021 3 WHR60831 |
C00594276
481244098183 |
Cover hinge platinum. | Na dotaz | Zadat poptávku | |
| 021 5 WHR60831 |
C00319577
481240478466 |
SPONA PLAST | 296 Kč
€ 11.70 |
||
| 021 6 WHR60831 |
C00594268
481244098159 |
Shield cpl. platinum. | Na dotaz | Zadat poptávku | |
| 024 0 WHR60831 |
C00327960
481244010788 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR60831 |
C00327961
481244010789 |
Bracket control board | Na dotaz | Zadat poptávku | |
| 025 1 WHR60831 |
C00327962
481244010791 |
TRUBKA PLAST | 444 Kč
€ 17.50 |
||
| 030 0 WHR60831 |
C00327965
481244010798 |
Table top white | Na dotaz | Zadat poptávku | |
| 040 0 WHR60831 |
C00329713
481241719179 |
Hinge cpl. | Na dotaz | Zadat poptávku | |
| 040 1 WHR60831 |
C00594232
481241778111 |
Cover Hinge. | Na dotaz | Zadat poptávku | |
| 050 0 WHR60831 |
C00337651
481245938061 |
Plinth white | Na dotaz | Zadat poptávku | |
| 061 0 WHR60831 |
C00343075
481246688595 |
zavazi zadni | 1 635 Kč
€ 64.50 |
||
| 061 1 WHR60831 |
C00331494
481246688706 |
zavazi predni | 1 765 Kč
€ 69.70 |
||
| 081 0 WHR60831 |
C00311627
481246648095 |
Tlumič | 1 016 Kč
€ 40.10 |
||
| 086 0 WHR60831 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 086 1 WHR60831 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 110 0 WHR60831 |
C00339967
481249818274 |
vlozka | 341 Kč
€ 13.50 |
||
| 110 1 WHR60831 |
C00594469
481249818269 |
Handle door cpl.. | Na dotaz | Zadat poptávku | |
| 130 0 WHR60831 |
C00329783
481241728086 |
Plate door lock | Na dotaz | Zadat poptávku | |
| 131 0 WHR60831 |
C00316912
481241728087 |
hak uzaveru dveri | 729 Kč
€ 28.80 |
||
| 135 1 WHR60831 |
C00345882
481249818264 |
Pin door safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR60831 |
C00345874
481249258044 |
Spring doof safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR60831 |
C00332658
481253218068 |
Washer door safety | Na dotaz | Zadat poptávku | |
| 140 0 WHR60831 |
C00331180
481245078019 |
SKLO DVERI | 2 364 Kč
€ 93.30 |
||
| 143 0 WHR60831 |
C00345251
481244010993 |
Glassdoor frame + Protector, platinum | Na dotaz | Zadat poptávku | |
| 144 0 WHR60831 |
C00314061
481244010834 |
priruba dveri | 2 173 Kč
€ 85.80 |
||
| 144 1 WHR60831 |
C00497565
481240148585 |
Clamp | Na dotaz | Zadat poptávku | |
| 144 2 WHR60831 |
C00332749
481256018068 |
ScrewDIN 7500, CM 5x14 | Na dotaz | Zadat poptávku | |
| 144 3 WHR60831 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 191 0 WHR60831 |
C00342116
481246668756 |
Door bellow | Na dotaz | Zadat poptávku | |
| 191 0 WHR60831 |
C00319801
481246668759 |
TVO | 1 644 Kč
€ 64.90 |
||
| 191 1 WHR60831 |
C00328900
481240118619 |
Strap | Na dotaz | Zadat poptávku | |
| 191 2 WHR60831 |
C00313447
481240118621 |
spona TVO | Na dotaz | Zadat poptávku | |
| 200 1 WHR60831 |
C00493537
481241818452 |
Tub USA, frontpart cpl. | Na dotaz | Zadat poptávku | |
| 200 2 WHR60831 |
C00594235
481241818408 |
Tub USA, rear part mid | Na dotaz | Zadat poptávku | |
| 200 4 WHR60831 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR60831 |
C00610537
481241818409 |
DRUM.. | Na dotaz | Zadat poptávku | |
| 223 0 WHR60831 |
C00317051
481241848647 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR60831 |
C00318179
481235818187 |
BeltJ7 | Na dotaz | Zadat poptávku | |
| 272 0 WHR60831 |
C00314756
481252858037 |
Řemenice bubnu | 1 666 Kč
€ 65.80 |
||
| 272 1 WHR60831 |
C00332661
481253228941 |
NutM16 f.pulley, drum | Na dotaz | Zadat poptávku | |
| 290 0 WHR60831 |
C00312613
481253268124 |
tesneni bocnice | 932 Kč
€ 36.80 |
||
| 301 0 WHR60831 |
C00594344
481245212284 |
Control panel Plat./white cpl.. | Na dotaz | Zadat poptávku | |
| 301 1 WHR60831 |
C00331260
481245212276 |
End cap left | Na dotaz | Zadat poptávku | |
| 301 2 WHR60831 |
C00331261
481245212277 |
End cap right | Na dotaz | Zadat poptávku | |
| 303 0 WHR60831 |
C00594472
481249818273 |
Handle drawer Plat. mid. | Na dotaz | Zadat poptávku | |
| 321 0 WHR60831 |
C00331259
481245212273 |
Insert rear Knob | Na dotaz | Zadat poptávku | |
| 321 1 WHR60831 |
C00594340
481245212274 |
Display window. | Na dotaz | Zadat poptávku | |
| 321 2 WHR60831 |
C00493565
481245213466 |
Filling piece door | Na dotaz | Zadat poptávku | |
| 321 3 WHR60831 |
C00330201
481245918237 |
Sticker WH-Logo | Na dotaz | Zadat poptávku | |
| 331 0 WHR60831 |
C00488806
481241318291 |
Knob platinum | Na dotaz | Zadat poptávku | |
| 332 0 WHR60831 |
C00594180
481241029073 |
Button Power | Na dotaz | Zadat poptávku | |
| 332 1 WHR60831 |
C00594185
481241029086 |
Button Start. | Na dotaz | Zadat poptávku | |
| 332 2 WHR60831 |
C00594186
481241029087 |
Button Cancel printed | Na dotaz | Zadat poptávku | |
| 332 3 WHR60831 |
C00493385
481241029077 |
Button assy Soil, platinum | Na dotaz | Zadat poptávku | |
| 332 4 WHR60831 |
C00594183
481241029082 |
Button assy Opt. Plat. mid. | Na dotaz | Zadat poptávku | |
| 332 5 WHR60831 |
C00493386
481241029084 |
Button assy platinum | Na dotaz | Zadat poptávku | |
| 400 0 WHR60831 |
C00328829
481236158375 |
Motor | 4 336 Kč
€ 171.20 |
||
| 421 0 WHR60831 |
C00594112
481212118257 |
Interf.filter. | Na dotaz | Zadat poptávku | |
| 430 0 WHR60831 |
C00594169
481236018535 |
Pump. | Na dotaz | Zadat poptávku | |
| 430 1 WHR60831 |
C00330928
481246668757 |
Damper rubber gear - 92516200 | Na dotaz | Zadat poptávku | |
| 430 2 WHR60831 |
C00330929
481246668758 |
Damper rubber front | Na dotaz | Zadat poptávku | |
| 480 0 WHR60831 |
C00493204
481232178168 |
Cable harness motor | Na dotaz | Zadat poptávku | |
| 480 1 WHR60831 |
C00594168
481232178171 |
Cable harness main MID. | Na dotaz | Zadat poptávku | |
| 480 2 WHR60831 |
C00493205
481232178172 |
Cable harness valve | Na dotaz | Zadat poptávku | |
| 490 0 WHR60831 |
C00493156
481232118202 |
Cable mains | Na dotaz | Zadat poptávku | |
| 491 0 WHR60831 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR60831 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR60831 |
C00594129
481221479047 |
Control board OMEGA, programmed. | Na dotaz | Zadat poptávku | |
| 521 1 WHR60831 |
C00594128
481221479046 |
Control unit motor cpl.. | Na dotaz | Zadat poptávku | |
| 572 0 WHR60831 |
C00492961
481228128444 |
Valve magnet double | Na dotaz | Zadat poptávku | |
| 581 0 WHR60831 |
C00497320
481227128521 |
pressostat | Na dotaz | Zadat poptávku | |
| 582 1 WHR60831 |
C00311355
481227128522 |
prutokomer | 2 196 Kč
€ 86.70 |
||
| 620 0 WHR60831 |
C00594139
481227628412 |
User board CUIO. | Na dotaz | Zadat poptávku | |
| 623 0 WHR60831 |
C00491036
481227138455 |
Microswitch Grounding + Fixation | Na dotaz | Zadat poptávku | |
| 630 0 WHR60831 |
C00594142
481228058042 |
Door lock USA. | Na dotaz | Zadat poptávku | |
| 651 0 WHR60831 |
C00594118
481213448309 |
Light guide Program mid. | Na dotaz | Zadat poptávku | |
| 651 1 WHR60831 |
C00594113
481213448303 |
Light guide Status. | Na dotaz | Zadat poptávku | |
| 651 2 WHR60831 |
C00594114
481213448304 |
Light guide 4x high/mid. | Na dotaz | Zadat poptávku | |
| 651 3 WHR60831 |
C00594115
481213448306 |
Light guide 10x mid/high. | Na dotaz | Zadat poptávku | |
| 651 4 WHR60831 |
C00594116
481213448307 |
Light guide 3x. | Na dotaz | Zadat poptávku | |
| 691 0 WHR60831 |
C00311549
481225928863 |
senzor NTC | 1 140 Kč
€ 45.00 |
||
| 691 1 WHR60831 |
C00312100
481246688708 |
tesneni NTC | 416 Kč
€ 16.40 |
||
| 701 0 WHR60831 |
C00594514
481253018044 |
Hose inlet cold water. | Na dotaz | Zadat poptávku | |
| 701 1 WHR60831 |
C00594515
481253018045 |
Hose inlet warm water. | Na dotaz | Zadat poptávku | |
| 702 0 WHR60831 |
C00493738
481253029275 |
Hose Y-part, flowmeter | Na dotaz | Zadat poptávku | |
| 702 1 WHR60831 |
C00332433
481253029276 |
Hose Y-part, dispenser | Na dotaz | Zadat poptávku | |
| 702 2 WHR60831 |
C00318817
481253029277 |
Hose flowmeter | Na dotaz | Zadat poptávku | |
| 703 0 WHR60831 |
C00332514
481253048625 |
Hose box to bellow | Na dotaz | Zadat poptávku | |
| 707 0 WHR60831 |
C00332340
481252648158 |
Nozzle distribution | Na dotaz | Zadat poptávku | |
| 707 1 WHR60831 |
C00332341
481252648159 |
Nozzle inlet cold with Y-part | Na dotaz | Zadat poptávku | |
| 707 2 WHR60831 |
C00317192
481263058102 |
O-Ring 8,1 x 1,6 mm | Na dotaz | Zadat poptávku | |
| 707 3 WHR60831 |
C00498600
481252648161 |
Nozzle window rinse | Na dotaz | Zadat poptávku | |
| 707 4 WHR60831 |
C00332343
481252648162 |
tryska sprchovaci | 370 Kč
€ 14.60 |
||
| 707 5 WHR60831 |
C00332649
481253078011 |
podlozka trysky spr. | 485 Kč
€ 19.10 |
||
| 708 0 WHR60831 |
C00332515
481253048626 |
Bend | Na dotaz | Zadat poptávku | |
| 711 0 WHR60831 |
C00594240
481241868291 |
teleso nasypky komp. | 2 539 Kč
€ 100.20 |
||
| 712 0 WHR60831 |
C00313376
481241889012 |
zasuvka nasypky | 1 778 Kč
€ 70.20 |
||
| 712 1 WHR60831 |
C00594497
481249878292 |
Cover pre-wash. | Na dotaz | Zadat poptávku | |
| 713 0 WHR60831 |
C00317127
481241889013 |
Hook drawer | Na dotaz | Zadat poptávku | |
| 714 0 WHR60831 |
C00314025
481241879819 |
vlozka nasypky | 308 Kč
€ 12.20 |
||
| 717 0 WHR60831 |
C00484710
481232318187 |
Actuator dispenser | Na dotaz | Zadat poptávku | |
| 717 3 WHR60831 |
C00328524
481232138026 |
Lever connection | Na dotaz | Zadat poptávku | |
| 717 4 WHR60831 |
C00318028
481232138027 |
PACKA PLAST | 163 Kč
€ 6.40 |
||
| 717 5 WHR60831 |
C00318635
481252838069 |
VACKA PLAST | 194 Kč
€ 7.70 |
||
| 717 6 WHR60831 |
C00313668
481249258045 |
Spring f. lever | Na dotaz | Zadat poptávku | |
| 717 7 WHR60831 |
C00332095
481250218623 |
Screw PT3,5x20-TORx20 | Na dotaz | Zadat poptávku | |
| 718 0 WHR60831 |
C00594512
481252648163 |
Siphon | Na dotaz | Zadat poptávku | |
| 718 1 WHR60831 |
C00594243
481241889004 |
Separator set 3-chamber, mid. | Na dotaz | Zadat poptávku | |
| 753 0 WHR60831 |
C00315669
481241868292 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR60831 |
C00332434
481253029278 |
Hadice nádrž - čerpadlo pračky Whirlpool, Bauknecht | 1 060 Kč
€ 41.80 |
||
| 754 1 WHR60831 |
C00332435
481253029279 |
Lockeco ball | Na dotaz | Zadat poptávku | |
| 754 4 WHR60831 |
C00328901
481240118623 |
Clamp 98,5 mm | Na dotaz | Zadat poptávku | |
| 760 0 WHR60831 |
C00315672
481248058317 |
filtr cerpadla 8900 | Na dotaz | Zadat poptávku | |
| 760 1 WHR60831 |
C00314405
481246688707 |
Těsnění | 1 002 Kč
€ 39.60 |
||
| 781 0 WHR60831 |
C00332436
481253029281 |
hadice vytokova | 544 Kč
€ 21.50 |
||
| 781 1 WHR60831 |
C00332437
481253029282 |
Hose connection outlet | Na dotaz | Zadat poptávku | |
| 782 0 WHR60831 |
C00332438
481253029283 |
Hosepressostat, 700mm | Na dotaz | Zadat poptávku | |
| 783 4 WHR60831 |
C00318819
481253029284 |
Hadice čerpadlo - vypouštění pračky Whirlpool, Bauknecht | 564 Kč
€ 22.30 |
||
| 787 0 WHR60831 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 787 1 WHR60831 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 787 2 WHR60831 |
C00332439
481253029285 |
Steam hose tub rear | Na dotaz | Zadat poptávku | |
| 787 3 WHR60831 |
C00594517
481253029286 |
Steam hose rear panel | Na dotaz | Zadat poptávku | |
| 787 4 WHR60831 |
C00489339
481244508013 |
Grille Air tube | Na dotaz | Zadat poptávku | |
| 787 5 WHR60831 |
C00328902
481240118624 |
spona | 147 Kč
€ 5.80 |
||
| 794 2 WHR60831 |
C00317164
481253058164 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 5 WHR60831 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR60831 |
C00328903
481240118625 |
Holder drainhose outside | Na dotaz | Zadat poptávku | |
| 900 1 WHR60831 |
C00317847
482240110492 |
spona12-20/9A | 222 Kč
€ 8.80 |
||
| 900 2 WHR60831 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR60831 |
C00328904
481240118626 |
Clamp 32,7 mm | Na dotaz | Zadat poptávku | |
| 900 4 WHR60831 |
C00328905
481240118627 |
Clamp 40 mm | Na dotaz | Zadat poptávku | |
| 900 5 WHR60831 |
C00328906
481240118628 |
Clamp hose 15,5 mm | Na dotaz | Zadat poptávku | |
| 900 6 WHR60831 |
C00327122
481225518249 |
Holder drainhose inner | Na dotaz | Zadat poptávku | |
| 910 0 WHR60831 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 1 WHR60831 |
C00332096
481250218624 |
Screw 3.5x10-F A2F | Na dotaz | Zadat poptávku | |
| 910 2 WHR60831 |
C00332153
481250238352 |
Screw 4x10 | Na dotaz | Zadat poptávku | |
| 910 3 WHR60831 |
C00332062
481250218409 |
Screw cam actuator | Na dotaz | Zadat poptávku | |
| 910 4 WHR60831 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 910 5 WHR60831 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 910 6 WHR60831 |
C00332154
481250238355 |
Screw 4,2x16 T20 | Na dotaz | Zadat poptávku | |
| 910 7 WHR60831 |
C00314893
481250218635 |
Screw 4.2x9.5 | Na dotaz | Zadat poptávku | |
| 921 0 WHR60831 |
C00336832
481201118522 |
Ring,circlip 52x252x2 | Na dotaz | Zadat poptávku | |
| 930 0 WHR60831 |
C00318191
481249238387 |
pruzina | 372 Kč
€ 14.70 |
||
| 930 1 WHR60831 |
C00345868
481249238388 |
Silent bloc | 95 Kč
€ 3.80 |
||
| 941 0 WHR60831 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 941 1 WHR60831 |
C00318543
481252028001 |
Bearing,ball BB1-0625 DD | Na dotaz | Zadat poptávku | |
| 952 1 WHR60831 |
C00594510
481252448003 |
Bushing f. shaft seal | Na dotaz | Zadat poptávku | |
| 953 0 WHR60831 |
C00332646
481253068029 |
Shaft seal | Na dotaz | Zadat poptávku | |
| 961 0 WHR60831 |
C00594166
481231018931 |
Distance sleeve upper. | Na dotaz | Zadat poptávku | |
| 961 1 WHR60831 |
C00594167
481231018932 |
Distance sleeve lower. | Na dotaz | Zadat poptávku | |
| 962 1 WHR60831 |
C00327339
481231018863 |
Cover lidKIT | Na dotaz | Zadat poptávku | |
| 965 0 WHR60831 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 965 0 WHR60831 |
C00330934
481246668812 |
Cover | Na dotaz | Zadat poptávku | |
| 993 0 WHR60831 |
C00344293
481253029095 |
Bow | Na dotaz | Zadat poptávku | |
