| Komerční kód: | AWM 221 |
| Kód 12NC: | 857022115020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | |
| Další podobné modely: | 857022115120 |
Potřebujete servis? Jsme tady pro Vás

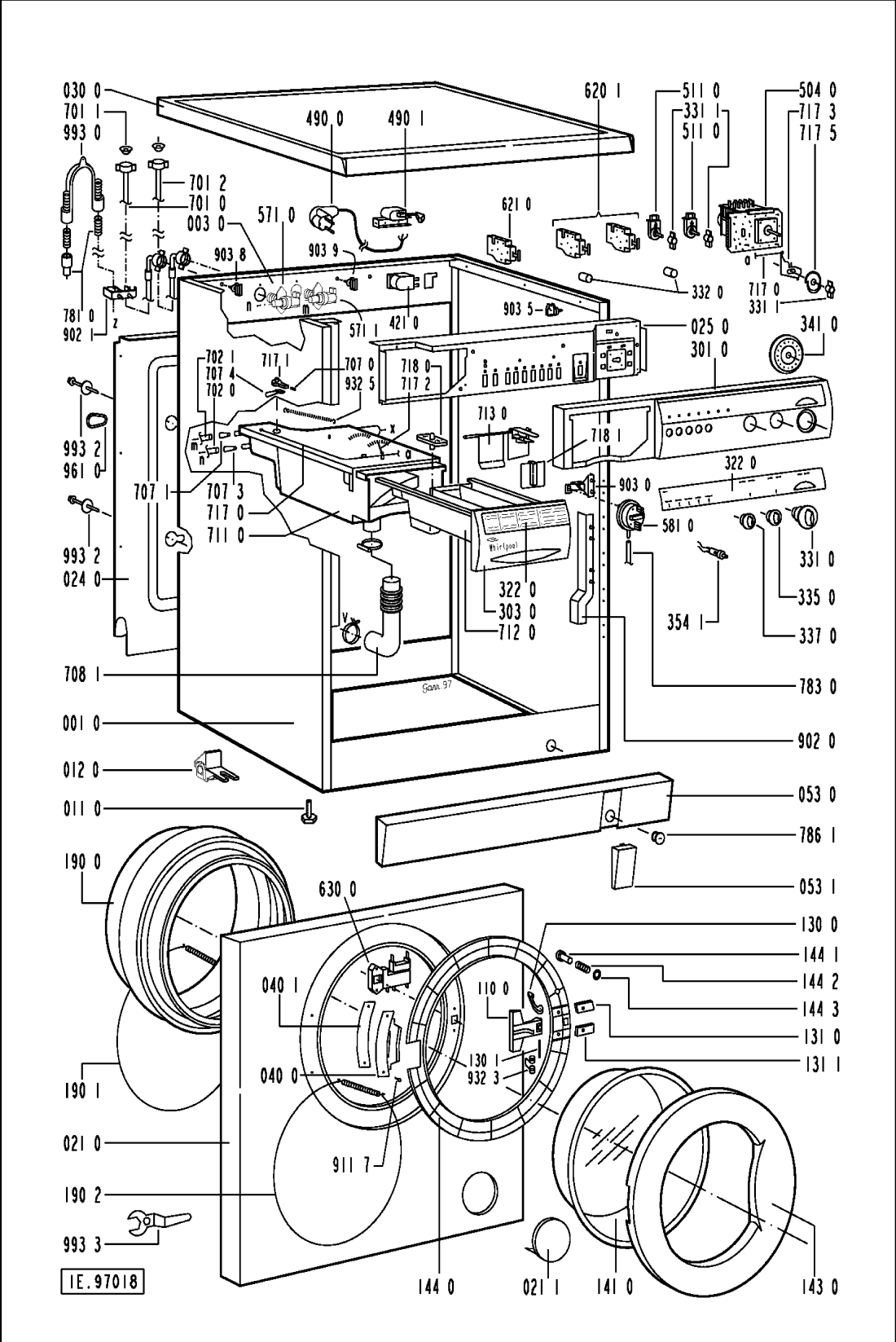

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR114488 |
C00343944
481944019716 |
skrin pracky | 4 336 Kč
€ 171.20 |
||
| 003 0 WHR114488 |
C00335370
481246448099 |
Traverse | Na dotaz | Zadat poptávku | |
| 011 0 WHR114488 |
C00340775
481250018068 |
Nastavitelná noha pračky | 474 Kč
€ 18.70 |
||
| 012 0 WHR114488 |
C00761114
481969018153 |
Trolley kit | Na dotaz | Zadat poptávku | |
| 021 0 WHR114488 |
C00340691
481944019715 |
stena predni | 2 702 Kč
€ 106.70 |
||
| 021 1 WHR114488 |
C00340881
481244019343 |
kryt filtru | 634 Kč
€ 25.00 |
||
| 024 0 WHR114488 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.50 |
||
| 025 0 WHR114488 |
C00497925
481244019345 |
LI?TA PREDNA AWM242 *** plast. N | Na dotaz | Zadat poptávku | |
| 030 0 WHR114488 |
C00335637
481244019341 |
TABLE TOP | Na dotaz | Zadat poptávku | |
| 040 0 WHR114488 |
C00339842
481241718793 |
HINGE | Na dotaz | Zadat poptávku | |
| 040 1 WHR114488 |
C00497791
481241728009 |
PODLOZKA ZAVESU AWM 242 N | Na dotaz | Zadat poptávku | |
| 053 0 WHR114488 |
C00337726
481944019714 |
Plinth | Na dotaz | Zadat poptávku | |
| 053 1 WHR114488 |
C00498299
481245938013 |
VLOZKA SOKLA AWM248 N | Na dotaz | Zadat poptávku | |
| 061 0 WHR114488 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR114488 |
C00343085
481246688459 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 080 0 WHR114488 |
C00336353
481246648054 |
SHOCK ABSORBER 1000-14 | Na dotaz | Zadat poptávku | |
| 084 0 WHR114488 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR114488 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR114488 |
C00339968
481249818139 |
Handle,door white | Na dotaz | Zadat poptávku | |
| 130 0 WHR114488 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 130 1 WHR114488 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 0 WHR114488 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 131 1 WHR114488 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 141 0 WHR114488 |
C00320431
481245068219 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR114488 |
C00340323
481244019342 |
ram dveri | 1 173 Kč
€ 46.30 |
||
| 144 0 WHR114488 |
C00340711
481245928043 |
Frame,door glas | Na dotaz | Zadat poptávku | |
| 144 1 WHR114488 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 144 2 WHR114488 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 144 3 WHR114488 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 190 0 WHR114488 |
C00313381
481246068527 |
Door bellow standard | Na dotaz | Zadat poptávku | |
| 190 1 WHR114488 |
C00336859
481953058061 |
Ring | Na dotaz | Zadat poptávku | |
| 190 2 WHR114488 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR114488 |
C00337428
481941818313 |
nadrz predni cast | 3 145 Kč
€ 124.20 |
||
| 200 2 WHR114488 |
C00337441
481941818315 |
Tub, half | Na dotaz | Zadat poptávku | |
| 200 3 WHR114488 |
C00339172
481931039229 |
Hub Set | Na dotaz | Zadat poptávku | |
| 200 4 WHR114488 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR114488 |
C00341199
481241818201 |
Drum | Na dotaz | Zadat poptávku | |
| 223 0 WHR114488 |
C00341177
481951528244 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR114488 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR114488 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 292 0 WHR114488 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR114488 |
C00761115
481945319713 |
Control panel | Na dotaz | Zadat poptávku | |
| 303 0 WHR114488 |
C00761116
481949878143 |
Handle | Na dotaz | Zadat poptávku | |
| 322 0 WHR114488 |
C00761117
481945919749 |
Insert panel AWM 221 | Na dotaz | Zadat poptávku | |
| 331 0 WHR114488 |
C00760968
481241348227 |
Knob 2A | Na dotaz | Zadat poptávku | |
| 331 1 WHR114488 |
C00344646
481241318198 |
Adapter f. button | Na dotaz | Zadat poptávku | |
| 332 0 WHR114488 |
C00337033
481241028547 |
Push button | Na dotaz | Zadat poptávku | |
| 335 0 WHR114488 |
C00338527
481241348228 |
Knob | Na dotaz | Zadat poptávku | |
| 337 0 WHR114488 |
C00760990
481241348233 |
Knob Spin Speed 1200 | Na dotaz | Zadat poptávku | |
| 341 0 WHR114488 |
C00761020
481241318203 |
Disc,indication Timer2A/2A- | Na dotaz | Zadat poptávku | |
| 354 1 WHR114488 |
C00341485
481213448196 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 401 0 WHR114488 |
C00315331
481236158094 |
Motor 1000,1200 MCA52/ | Na dotaz | Zadat poptávku | |
| 401 1 WHR114488 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR114488 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR114488 |
C00337062
481236018362 |
PUMP | Na dotaz | Zadat poptávku | |
| 451 0 WHR114488 |
C00339950
481225928662 |
Heating element 2050W + NTC PROBE | Na dotaz | Zadat poptávku | |
| 490 0 WHR114488 |
C00342896
481932118139 |
Cable mains | Na dotaz | Zadat poptávku | |
| 490 1 WHR114488 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 504 0 WHR114488 |
C00335421
481228218458 |
Timer MASK 3 2A | Na dotaz | Zadat poptávku | |
| 511 0 WHR114488 |
C00336534
481241348223 |
Selector Temp./Spin | Na dotaz | Zadat poptávku | |
| 571 0 WHR114488 |
C00337287
481228128368 |
VALVE,MAGNET SINGLE | Na dotaz | Zadat poptávku | |
| 571 1 WHR114488 |
C00337285
481928128259 |
Valve,magnet | Na dotaz | Zadat poptávku | |
| 581 0 WHR114488 |
C00337555
481227128366 |
PRESSOSTAT | Na dotaz | Zadat poptávku | |
| 620 1 WHR114488 |
C00335726
481227618238 |
Switch Options | Na dotaz | Zadat poptávku | |
| 621 0 WHR114488 |
C00554937
481227618245 |
NAHRADENE 481941029004 N | Na dotaz | Zadat poptávku | |
| 630 0 WHR114488 |
C00320776
481228058023 |
Door lock | Na dotaz | Zadat poptávku | |
| 701 0 WHR114488 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR114488 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 701 2 WHR114488 |
C00499569
481953028768 |
HADICA PRIVODOVA G/T N | Na dotaz | Zadat poptávku | |
| 702 0 WHR114488 |
C00339219
481253028828 |
Hose, inlet intern | Na dotaz | Zadat poptávku | |
| 702 1 WHR114488 |
C00314283
481953028971 |
Hose intern | Na dotaz | Zadat poptávku | |
| 707 0 WHR114488 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR114488 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 707 3 WHR114488 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 707 4 WHR114488 |
C00332325
481252648034 |
Nozzle hot | Na dotaz | Zadat poptávku | |
| 708 1 WHR114488 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR114488 |
C00311924
481941879434 |
Dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR114488 |
C00341235
481241878036 |
DRAWER DETERGENT | Na dotaz | Zadat poptávku | |
| 713 0 WHR114488 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR114488 |
C00344284
481232128377 |
Bowden cable | Na dotaz | Zadat poptávku | |
| 717 1 WHR114488 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR114488 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR114488 |
C00336270
481227888007 |
posouvac | Na dotaz | Zadat poptávku | |
| 717 5 WHR114488 |
C00497352
481228218459 |
VACKA AWM031 N | Na dotaz | Zadat poptávku | |
| 718 0 WHR114488 |
C00318585
481252648027 |
viko prepadu nasypky | 121 Kč
€ 4.80 |
||
| 718 1 WHR114488 |
C00344665
481241888024 |
Accessory 4ch | Na dotaz | Zadat poptávku | |
| 753 1 WHR114488 |
C00342745
481241868143 |
vzdusnik | 218 Kč
€ 8.60 |
||
| 754 0 WHR114488 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR114488 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR114488 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR114488 |
C00340935
481248058075 |
Filter Set Pump | Na dotaz | Zadat poptávku | |
| 760 1 WHR114488 |
C00340427
481241868138 |
Gasket Sieve / Rough | Na dotaz | Zadat poptávku | |
| 781 0 WHR114488 |
C00339372
481253028831 |
HOSE,DRAINING | Na dotaz | Zadat poptávku | |
| 783 0 WHR114488 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 786 0 WHR114488 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 914 Kč
€ 36.10 |
||
| 786 1 WHR114488 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR114488 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 794 5 WHR114488 |
C00340485
481253058095 |
tesneni vzdusniku | 35 Kč
€ 1.40 |
||
| 901 0 WHR114488 |
C00343335
481240118415 |
CLAMP,HOSE TUB | Na dotaz | Zadat poptávku | |
| 901 2 WHR114488 |
C00335973
481240118401 |
Strap | Na dotaz | Zadat poptávku | |
| 901 3 WHR114488 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 902 0 WHR114488 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 902 1 WHR114488 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 903 0 WHR114488 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 903 5 WHR114488 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 903 8 WHR114488 |
C00332940
481940478449 |
Support | Na dotaz | Zadat poptávku | |
| 903 9 WHR114488 |
C00343868
481229088046 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 0 WHR114488 |
C00336553
481250218383 |
sroub M8*25loz.domu | 169 Kč
€ 6.70 |
||
| 911 7 WHR114488 |
C00332781
481290308014 |
sroub M5x16 H | 89 Kč
€ 3.50 |
||
| 915 2 WHR114488 |
C00337990
481250518368 |
Nut M10M10 | Na dotaz | Zadat poptávku | |
| 923 0 WHR114488 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 931 0 WHR114488 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 932 3 WHR114488 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 932 5 WHR114488 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR114488 |
C00344371
481231018366 |
Bearing, kit KD Set Ag KD Set Agg2 | Na dotaz | Zadat poptávku | |
| 941 5 WHR114488 |
C00339180
481252018067 |
Hub 1200,48L | Na dotaz | Zadat poptávku | |
| 953 0 WHR114488 |
C00313798
481253058099 |
Shaft seal 1200 | Na dotaz | Zadat poptávku | |
| 953 1 WHR114488 |
C00337964
481253058096 |
krouzek lozisk.domu | 396 Kč
€ 15.60 |
||
| 961 0 WHR114488 |
C00343009
481232148004 |
Cover | Na dotaz | Zadat poptávku | |
| 990 0 WHR114488 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 990 1 WHR114488 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 993 0 WHR114488 |
C00344289
481253048017 |
Bow | Na dotaz | Zadat poptávku | |
| 993 2 WHR114488 |
C00338394
481226818015 |
Lever,security | Na dotaz | Zadat poptávku | |
| 993 3 WHR114488 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
