WHIRLPOOL AWM 312/3
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 312/3 |
| Kód 12NC: | 857031263010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | |
| Další podobné modely: | 857031253010 |
Potřebujete servis? Jsme tady pro Vás

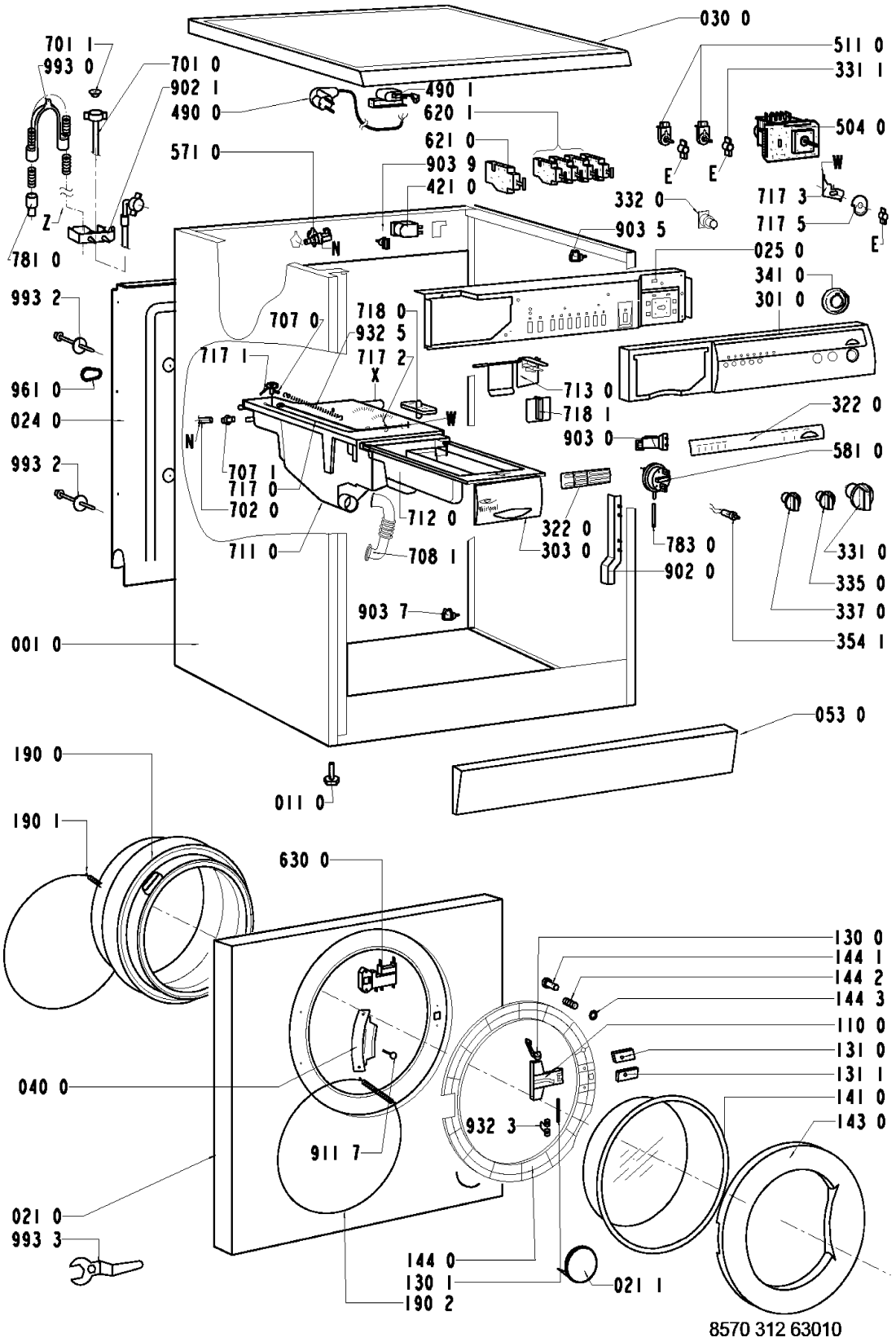

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR114696 |
C00343944
481944019716 |
skrin pracky | 4 336 Kč
€ 171.20 |
||
| 011 0 WHR114696 |
C00340814
481946248472 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR114696 |
C00340691
481944019715 |
stena predni | 2 702 Kč
€ 106.70 |
||
| 021 1 WHR114696 |
C00340881
481244019343 |
kryt filtru | 634 Kč
€ 25.00 |
||
| 024 0 WHR114696 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.50 |
||
| 025 0 WHR114696 |
C00339637
481244019346 |
Holder Control Device | Na dotaz | Zadat poptávku | |
| 030 0 WHR114696 |
C00342437
481231018396 |
deska horni | Na dotaz | Zadat poptávku | |
| 040 0 WHR114696 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 053 0 WHR114696 |
C00337727
481944019791 |
Plinth | Na dotaz | Zadat poptávku | |
| 061 0 WHR114696 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR114696 |
C00343085
481246688459 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 080 0 WHR114696 |
C00312055
481252918038 |
Shock absorber until 1200 | Na dotaz | Zadat poptávku | |
| 084 0 WHR114696 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR114696 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR114696 |
C00339968
481249818139 |
Handle,door white | Na dotaz | Zadat poptávku | |
| 130 0 WHR114696 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 130 1 WHR114696 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 0 WHR114696 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 131 1 WHR114696 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 141 0 WHR114696 |
C00320431
481245068219 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR114696 |
C00340324
481953228286 |
ram dveri | 975 Kč
€ 38.50 |
||
| 144 0 WHR114696 |
C00340711
481245928043 |
Frame,door glas | Na dotaz | Zadat poptávku | |
| 144 1 WHR114696 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 144 2 WHR114696 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 144 3 WHR114696 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 190 0 WHR114696 |
C00313381
481246068527 |
Door bellow standard | Na dotaz | Zadat poptávku | |
| 190 1 WHR114696 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 190 2 WHR114696 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR114696 |
C00337436
481241818226 |
Tub front | Na dotaz | Zadat poptávku | |
| 200 2 WHR114696 |
C00337456
481941818384 |
Tub | Na dotaz | Zadat poptávku | |
| 200 3 WHR114696 |
C00339179
481252018065 |
Ložiskový domek AWM 250 | 2 151 Kč
€ 84.90 |
||
| 200 4 WHR114696 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR114696 |
C00312242
481241818191 |
Drum 1200 0,5MM PP 48L | Na dotaz | Zadat poptávku | |
| 271 0 WHR114696 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR114696 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 292 0 WHR114696 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR114696 |
C00594535
481945319742 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 303 0 WHR114696 |
C00621256
481249818147 |
CELO NASYPKY PLAST. AWG 248 N | Na dotaz | Zadat poptávku | |
| 322 0 WHR114696 |
C00489769
481245279721 |
Insert | Na dotaz | Zadat poptávku | |
| 331 0 WHR114696 |
C00373796
481241348272 |
knoflik programatoru | 495 Kč
€ 19.50 |
||
| 331 1 WHR114696 |
C00344646
481241318198 |
Adapter f. button | Na dotaz | Zadat poptávku | |
| 332 0 WHR114696 |
C00337034
481241028562 |
Tlačítko - plast | 134 Kč
€ 5.30 |
||
| 335 0 WHR114696 |
C00338438
481941258742 |
knoflik termostatu | 224 Kč
€ 8.80 |
||
| 337 0 WHR114696 |
C00341853
481941258762 |
knoflik regulatoru | 287 Kč
€ 11.30 |
||
| 341 0 WHR114696 |
C00339145
481941379239 |
krouzek knofliku | 399 Kč
€ 15.80 |
||
| 354 1 WHR114696 |
C00497251
481213448221 |
SIGNALKA AWM248 | 258 Kč
€ 10.20 |
||
| 401 0 WHR114696 |
C00315331
481236158094 |
Motor 1000,1200 MCA52/ | Na dotaz | Zadat poptávku | |
| 421 0 WHR114696 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR114696 |
C00555034
481236018383 |
NAHRADENE 481231018458 N | Na dotaz | Zadat poptávku | |
| 451 0 WHR114696 |
C00339950
481225928662 |
Heating element 2050W + NTC PROBE | Na dotaz | Zadat poptávku | |
| 490 0 WHR114696 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 490 1 WHR114696 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 504 0 WHR114696 |
C00315569
481931039725 |
Timer KIT 4477-MASK.5 | Na dotaz | Zadat poptávku | |
| 511 0 WHR114696 |
C00336785
481241348279 |
Rotary selector + potentiometer. | Na dotaz | Zadat poptávku | |
| 571 0 WHR114696 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR114696 |
C00373832
481227128379 |
presostat | Na dotaz | Zadat poptávku | |
| 620 1 WHR114696 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR114696 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 630 0 WHR114696 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 701 0 WHR114696 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR114696 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR114696 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 707 0 WHR114696 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR114696 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR114696 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR114696 |
C00317871
481241888025 |
teleso nasypky | 2 101 Kč
€ 82.90 |
||
| 712 0 WHR114696 |
C00317123
481241888029 |
Drawer DetergentDetergent | Na dotaz | Zadat poptávku | |
| 713 0 WHR114696 |
C00317121
481241888019 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR114696 |
C00497352
481228218459 |
VACKA AWM031 N | Na dotaz | Zadat poptávku | |
| 717 1 WHR114696 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR114696 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR114696 |
C00336270
481227888007 |
posouvac | Na dotaz | Zadat poptávku | |
| 717 5 WHR114696 |
C00311569
481932128092 |
Bovden komplet | 699 Kč
€ 27.60 |
||
| 718 0 WHR114696 |
C00318585
481252648027 |
viko prepadu nasypky | 121 Kč
€ 4.80 |
||
| 718 1 WHR114696 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 753 1 WHR114696 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR114696 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR114696 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR114696 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR114696 |
C00340935
481248058075 |
Filter Set Pump | Na dotaz | Zadat poptávku | |
| 760 1 WHR114696 |
C00340427
481241868138 |
Gasket Sieve / Rough | Na dotaz | Zadat poptávku | |
| 781 0 WHR114696 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 783 0 WHR114696 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR114696 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 794 5 WHR114696 |
C00340485
481253058095 |
tesneni vzdusniku | 35 Kč
€ 1.40 |
||
| 901 0 WHR114696 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 901 2 WHR114696 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 901 3 WHR114696 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 902 0 WHR114696 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 902 1 WHR114696 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 903 0 WHR114696 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 903 5 WHR114696 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 903 7 WHR114696 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 903 9 WHR114696 |
C00343868
481229088046 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 0 WHR114696 |
C00760974
481250218379 |
Screw M 8 x 25 | Na dotaz | Zadat poptávku | |
| 910 1 WHR114696 |
C00337990
481250518368 |
Nut M10M10 | Na dotaz | Zadat poptávku | |
| 911 7 WHR114696 |
C00332781
481290308014 |
sroub M5x16 H | 89 Kč
€ 3.50 |
||
| 923 0 WHR114696 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 931 0 WHR114696 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 932 3 WHR114696 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 932 5 WHR114696 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 1 WHR114696 |
C00315230
481252028066 |
Ložisko 6204 2Z C3 GJN (SKF) | 297 Kč
€ 11.70 |
||
| 941 5 WHR114696 |
C00339180
481252018067 |
Hub 1200,48L | Na dotaz | Zadat poptávku | |
| 953 0 WHR114696 |
C00313798
481253058099 |
Shaft seal 1200 | Na dotaz | Zadat poptávku | |
| 953 1 WHR114696 |
C00337964
481253058096 |
krouzek lozisk.domu | 396 Kč
€ 15.60 |
||
| 961 0 WHR114696 |
C00343009
481232148004 |
Cover | Na dotaz | Zadat poptávku | |
| 990 0 WHR114696 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 990 1 WHR114696 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 993 0 WHR114696 |
C00344289
481253048017 |
Bow | Na dotaz | Zadat poptávku | |
| 993 2 WHR114696 |
C00338394
481226818015 |
Lever,security | Na dotaz | Zadat poptávku | |
| 993 3 WHR114696 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
