WHIRLPOOL AWM 5100/3 WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 5100/3 WASHING MACHINES WP |
| Kód 12NC: | 857051061900 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857051061903, 857051061910 |
Potřebujete servis? Jsme tady pro Vás

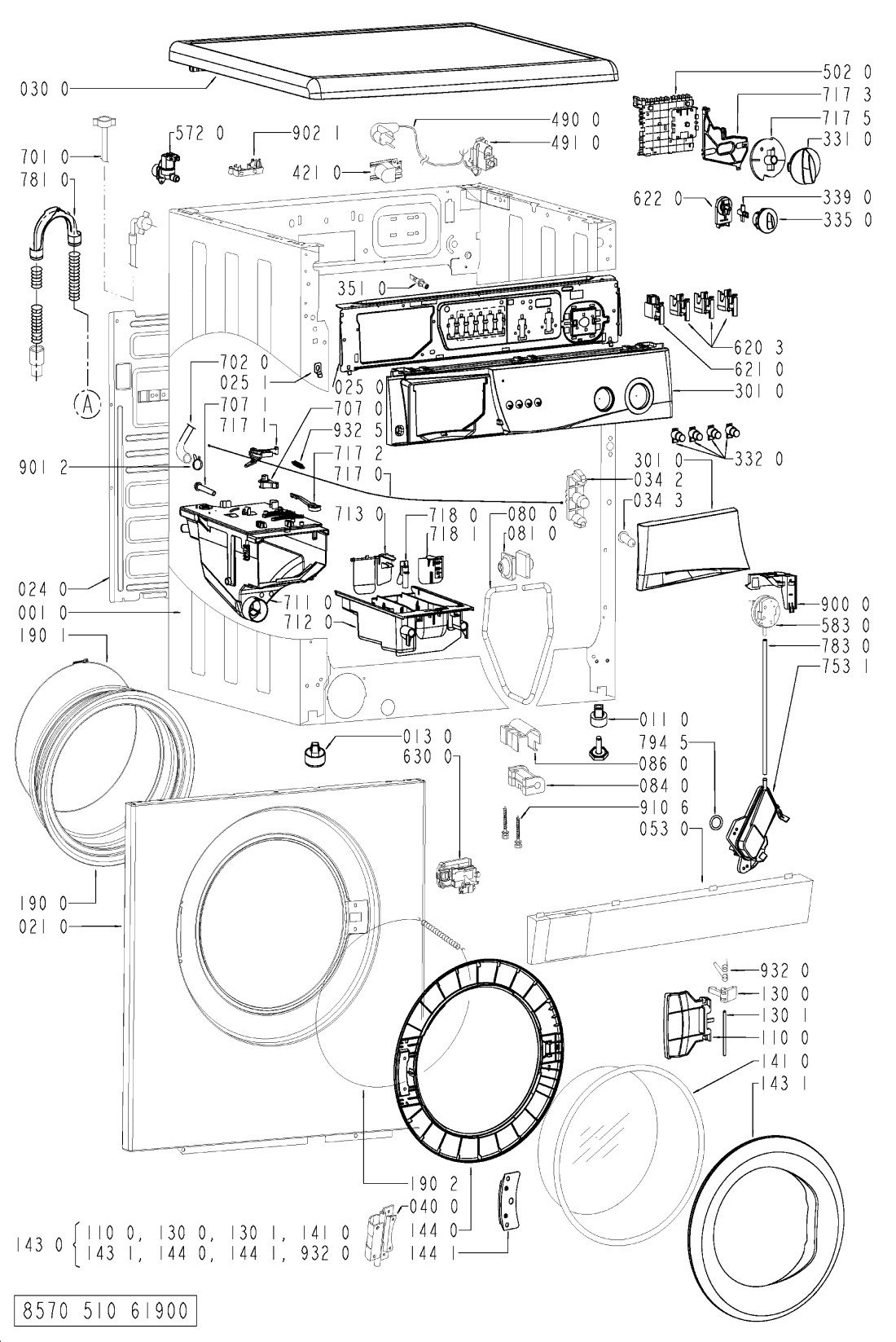

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR94359 |
C00557997
481244010328 |
skrin pracky | 2 146 Kč
€ 84.70 |
||
| 011 0 WHR94359 |
C00340795
481246248077 |
Noha pračky | 428 Kč
€ 16.90 |
||
| 013 0 WHR94359 |
C00340788
481246248078 |
Foot fix | Na dotaz | Zadat poptávku | |
| 021 0 WHR94359 |
C00591688
481244019481 |
stena predni nt. | 2 241 Kč
€ 88.50 |
||
| 024 0 WHR94359 |
C00341562
481944019897 |
Panel rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR94359 |
C00335852
481240438636 |
Držák spínačů | Na dotaz | Zadat poptávku | |
| 025 1 WHR94359 |
C00339610
481245219849 |
Holder Frontpanel | Na dotaz | Zadat poptávku | |
| 030 0 WHR94359 |
C00594244
481244010481 |
deska horni | Na dotaz | Zadat poptávku | |
| 034 2 WHR94359 |
C00341034
481949268458 |
Držák přední stěny pračky | 39 Kč
€ 1.50 |
||
| 034 3 WHR94359 |
C00499595
481953268243 |
P#zdro prednej steny | Na dotaz | Zadat poptávku | |
| 040 0 WHR94359 |
C00339862
481941719232 |
zaves dveri pracky | 1 026 Kč
€ 40.50 |
||
| 053 0 WHR94359 |
C00636190
481944019901 |
sokl pracky | 167 Kč
€ 6.60 |
||
| 061 0 WHR94359 |
C00343090
481946689453 |
Counter weight ,top | Na dotaz | Zadat poptávku | |
| 061 1 WHR94359 |
C00343091
481946689454 |
Counter weight ,bottom | Na dotaz | Zadat poptávku | |
| 080 0 WHR94359 |
C00336063
481249238386 |
Spring,suspens. | Na dotaz | Zadat poptávku | |
| 081 0 WHR94359 |
C00341494
481246648093 |
desticka tlumice | 423 Kč
€ 16.70 |
||
| 083 1 WHR94359 |
C00340704
481946238925 |
plech ke trecim dest | 357 Kč
€ 14.10 |
||
| 084 0 WHR94359 |
C00336288
481946248049 |
tlumic gumovy tl. | Na dotaz | Zadat poptávku | |
| 086 0 WHR94359 |
C00498986
481940118607 |
PRICHYTKA TLMICA TATRA N | Na dotaz | Zadat poptávku | |
| 110 0 WHR94359 |
C00591500
481949878444 |
NAHRADENE 481249878299 | Na dotaz | Zadat poptávku | |
| 130 0 WHR94359 |
C00318866
481941738117 |
Hák uzávěru dveří | 548 Kč
€ 21.60 |
||
| 130 1 WHR94359 |
C00318868
481953538062 |
osa uzaveru dve | 471 Kč
€ 18.60 |
||
| 141 0 WHR94359 |
C00339063
481945069519 |
sklo dveri | 1 111 Kč
€ 43.90 |
||
| 143 0 WHR94359 |
C00527945
481244010652 |
Door cpl. WH VBL WH VBL | Na dotaz | Zadat poptávku | |
| 143 1 WHR94359 |
C00557998
481244010483 |
nahradene 4812 440 10847 | Na dotaz | Zadat poptávku | |
| 144 0 WHR94359 |
C00557595
481953228288 |
nahradene 481253228943 | Na dotaz | Zadat poptávku | |
| 144 1 WHR94359 |
C00337775
481946689077 |
Plate door frame | Na dotaz | Zadat poptávku | |
| 190 0 WHR94359 |
C00557569
481946818344 |
nahradene 481246668775 | Na dotaz | Zadat poptávku | |
| 190 1 WHR94359 |
C00335943
481949238119 |
spona TVO - vnitřní | 416 Kč
€ 16.40 |
||
| 190 2 WHR94359 |
C00335945
481949268515 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 0 WHR94359 |
C00337453
481241818411 |
nadrz | 3 893 Kč
€ 153.70 |
||
| 201 0 WHR94359 |
C00314896
481246448165 |
dno nadrze | 3 375 Kč
€ 133.20 |
||
| 201 1 WHR94359 |
C00336858
481953288052 |
obruc nadrze | Na dotaz | Zadat poptávku | |
| 210 0 WHR94359 |
C00342240
481253578064 |
nosic bubnu | Na dotaz | Zadat poptávku | |
| 220 0 WHR94359 |
C00555233
481241818412 |
Drum | Na dotaz | Zadat poptávku | |
| 220 1 WHR94359 |
C00314123
481241818413 |
buben | 5 238 Kč
€ 206.80 |
||
| 228 0 WHR94359 |
C00337799
481241818212 |
Podložka | 440 Kč
€ 17.40 |
||
| 271 0 WHR94359 |
C00319989
481235818158 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR94359 |
C00337068
481252888102 |
Pulley AC Tatry | Na dotaz | Zadat poptávku | |
| 292 0 WHR94359 |
C00320302
481946669797 |
Gasket | Na dotaz | Zadat poptávku | |
| 301 0 WHR94359 |
C00759349
481245211915 |
Control panel AWM 5100/3 | Na dotaz | Zadat poptávku | |
| 331 0 WHR94359 |
C00594226
481241458175 |
knoflik programatoru | 317 Kč
€ 12.50 |
||
| 332 0 WHR94359 |
C00621257
481251318118 |
Tlacitko plast | 396 Kč
€ 15.60 |
||
| 335 0 WHR94359 |
C00594227
481241458176 |
knoflik termostatu | 111 Kč
€ 4.40 |
||
| 339 0 WHR94359 |
C00317982
481223318006 |
unasec knofliku | 593 Kč
€ 23.40 |
||
| 351 0 WHR94359 |
C00341466
481212498001 |
Pilot lampmains | Na dotaz | Zadat poptávku | |
| 401 0 WHR94359 |
C00341662
481236158357 |
motor | 4 093 Kč
€ 161.60 |
||
| 421 0 WHR94359 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR94359 |
C00319372
481236018527 |
Čerpadlo vypouštěcí NT uz nebude !!!!!! | Na dotaz | Zadat poptávku | |
| 451 0 WHR94359 |
C00538515
481225928835 |
nahradene 481225928919 | Na dotaz | Zadat poptávku | |
| 490 0 WHR94359 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR94359 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 502 0 WHR94359 |
C00373822
481228219328 |
Timer SC1 1020/3313 | Na dotaz | Zadat poptávku | |
| 572 0 WHR94359 |
C00314928
481227128506 |
Ventil napouštěcí 1cestný přímý | Na dotaz | Zadat poptávku | |
| 583 0 WHR94359 |
C00337572
481227128507 |
presostat | 1 268 Kč
€ 50.10 |
||
| 620 3 WHR94359 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR94359 |
C00335728
481227618276 |
Switch ON/OFF | Na dotaz | Zadat poptávku | |
| 622 0 WHR94359 |
C00336785
481241348279 |
Rotary selector + potentiometer. | Na dotaz | Zadat poptávku | |
| 630 0 WHR94359 |
C00320399
481927618416 |
blokovani dveri | 915 Kč
€ 36.10 |
||
| 701 0 WHR94359 |
C00557593
481953029034 |
Pr#vodov# hadica so sitkom | Na dotaz | Zadat poptávku | |
| 702 0 WHR94359 |
C00339382
481253029128 |
hadice od ventilu | 120 Kč
€ 4.70 |
||
| 707 0 WHR94359 |
C00341584
481252648033 |
Tryska násypky pračky | 694 Kč
€ 27.40 |
||
| 707 1 WHR94359 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR94359 |
C00344346
481253048358 |
Hadice násypka - nádrž pračky Whirlpool, Bauknecht, Ignis | 339 Kč
€ 13.40 |
||
| 711 0 WHR94359 |
C00594238
481241868245 |
nahradene 481241868294 | Na dotaz | Zadat poptávku | |
| 712 0 WHR94359 |
C00594239
481241868246 |
zasuvka nasypky | 1 048 Kč
€ 41.40 |
||
| 713 0 WHR94359 |
C00538524
481241888028 |
vlozka nasypky klap. | 624 Kč
€ 24.60 |
||
| 717 0 WHR94359 |
C00344285
481232138022 |
bovden | Na dotaz | Zadat poptávku | |
| 717 1 WHR94359 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR94359 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR94359 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 5 WHR94359 |
C00342857
481223318003 |
vacka | 179 Kč
€ 7.10 |
||
| 718 0 WHR94359 |
C00332332
481252648051 |
sifon do nasypky | 723 Kč
€ 28.50 |
||
| 718 1 WHR94359 |
C00344665
481241888024 |
Accessory 4ch | Na dotaz | Zadat poptávku | |
| 753 1 WHR94359 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR94359 |
C00499557
481952648255 |
hadica nadrz cerpadlo-TATRA GUM./TEX | Na dotaz | Zadat poptávku | |
| 754 1 WHR94359 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 781 0 WHR94359 |
C00315302
481953029035 |
Hadice výtoková | 302 Kč
€ 11.90 |
||
| 783 0 WHR94359 |
C00318250
481953029036 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR94359 |
C00336043
481253029129 |
hadice odparovaci | 208 Kč
€ 8.20 |
||
| 794 5 WHR94359 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR94359 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 901 0 WHR94359 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 901 1 WHR94359 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 901 2 WHR94359 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 901 3 WHR94359 |
C00343407
481940118882 |
Spona násypka - nádr | 464 Kč
€ 18.30 |
||
| 901 6 WHR94359 |
C00343362
481940118436 |
Spona nádrž-čerpadlo | 263 Kč
€ 10.40 |
||
| 902 1 WHR94359 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 910 6 WHR94359 |
C00336706
481950238005 |
sroub tlumice | 122 Kč
€ 4.80 |
||
| 912 2 WHR94359 |
C00336468
481931038685 |
SPOJOVACI MATERIÁL T | 343 Kč
€ 13.50 |
||
| 914 0 WHR94359 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 931 0 WHR94359 |
C00336064
481949238138 |
pruzina zavesna | 327 Kč
€ 12.90 |
||
| 932 0 WHR94359 |
C00317751
481949268666 |
Pružina uzávěru dveří | 420 Kč
€ 16.60 |
||
| 932 5 WHR94359 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR94359 |
C00344391
481990300802 |
BEARING 6204 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR94359 |
C00318543
481252028001 |
Bearing,ball BB1-0625 DD | Na dotaz | Zadat poptávku | |
| 951 0 WHR94359 |
C00317160
481253058097 |
gufero | Na dotaz | Zadat poptávku | |
| 990 0 WHR94359 |
C00341619
481931039124 |
Spoj. mat. hor. prot | 456 Kč
€ 18.00 |
||
| 990 1 WHR94359 |
C00341620
481931038684 |
sada na zajištění | 887 Kč
€ 35.00 |
||
| 990 2 WHR94359 |
C00344679
481931039099 |
Accessories CROSSPIECE | Na dotaz | Zadat poptávku | |
