WHIRLPOOL AWM 8143 WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 8143 WASHING MACHINES WP |
| Kód 12NC: | 857081453900 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857081449700, 857081463004, 857081463000 |
Potřebujete servis? Jsme tady pro Vás

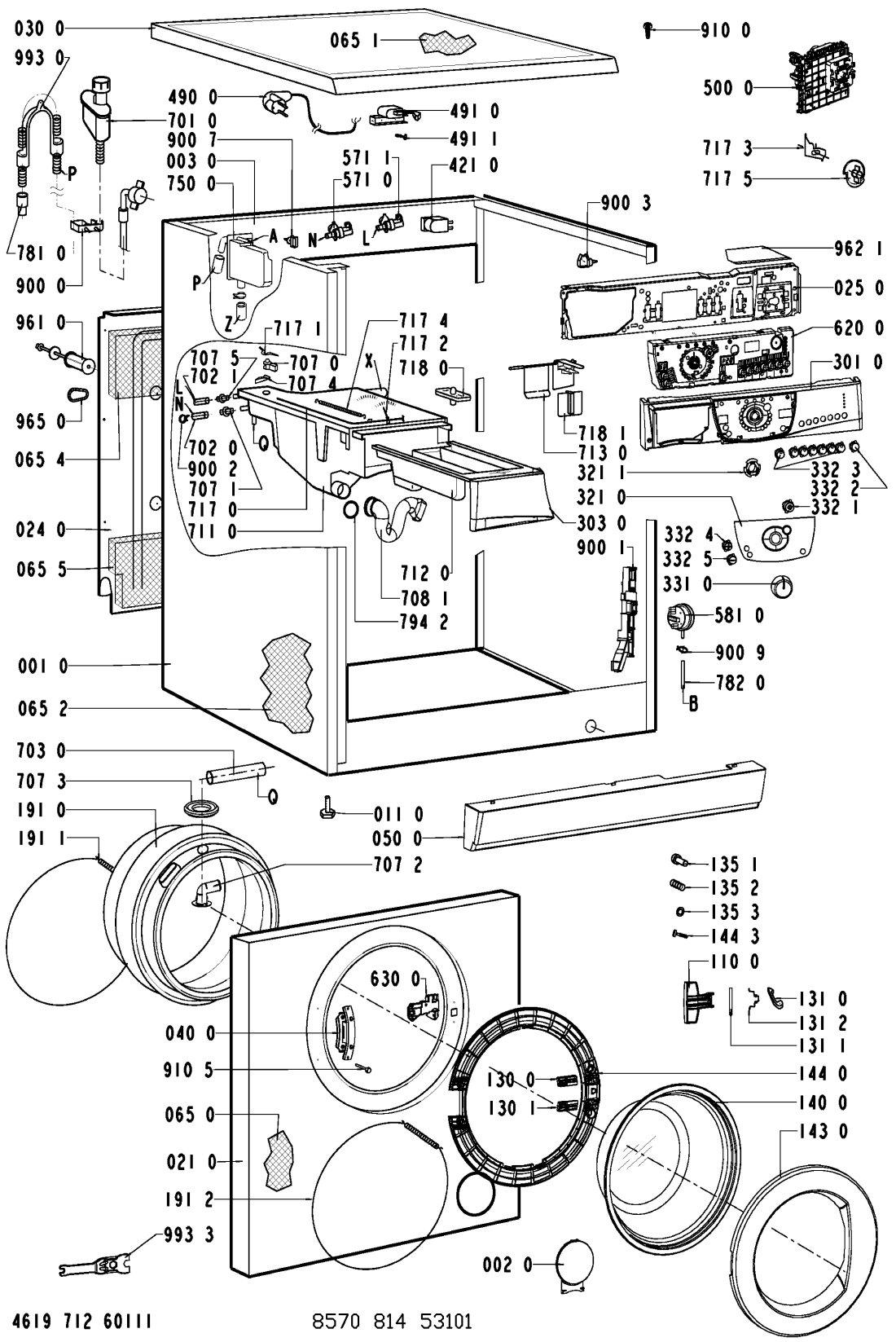

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR74983 |
C00343945
481244010816 |
Cabinet | Na dotaz | Zadat poptávku | |
| 002 0 WHR74983 |
C00340831
481244010778 |
kryt filtru | 643 Kč
€ 25.40 |
||
| 003 0 WHR74983 |
C00594926
481246448115 |
Crossbar rear Top. | Na dotaz | Zadat poptávku | |
| 004 0 WHR74983 |
C00497924
481244018993 |
ZBERAC AQUA DELTA | Na dotaz | Zadat poptávku | |
| 011 0 WHR74983 |
C00340775
481250018068 |
Nastavitelná noha pračky | 474 Kč
€ 18.70 |
||
| 021 0 WHR74983 |
C00340694
481244010874 |
Front | Na dotaz | Zadat poptávku | |
| 024 0 WHR74983 |
C00341514
481231018653 |
Panel, rear SS KIT | Na dotaz | Zadat poptávku | |
| 025 0 WHR74983 |
C00335851
481240438551 |
Support control board VBL WH | Na dotaz | Zadat poptávku | |
| 030 0 WHR74983 |
C00316328
481231018937 |
deska horni vyřazeno | Na dotaz | Zadat poptávku | |
| 040 0 WHR74983 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR74983 |
C00337676
481244010823 |
sokl pracky GW | 1 453 Kč
€ 57.40 |
||
| 061 1 WHR74983 |
C00498469
481246688464 |
Counter weight SS-TUB, SS-TUB,1400,1600 | Na dotaz | Zadat poptávku | |
| 065 0 WHR74983 |
C00497383
481231018339 |
Insulation Front Pane | Na dotaz | Zadat poptávku | |
| 065 1 WHR74983 |
C00338692
481231018236 |
Insulation table top | Na dotaz | Zadat poptávku | |
| 065 2 WHR74983 |
C00497386
481231018399 |
Insulation | Na dotaz | Zadat poptávku | |
| 065 4 WHR74983 |
C00338701
481231018335 |
Insulation Middle Pane | Na dotaz | Zadat poptávku | |
| 065 5 WHR74983 |
C00338702
481231018336 |
Insulation Lower | Na dotaz | Zadat poptávku | |
| 081 0 WHR74983 |
C00336357
481246648057 |
tlumic | 889 Kč
€ 35.10 |
||
| 081 1 WHR74983 |
C00336592
481250218424 |
Screw damper | Na dotaz | Zadat poptávku | |
| 084 0 WHR74983 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 084 1 WHR74983 |
C00339699
481240468021 |
Holder | Na dotaz | Zadat poptávku | |
| 086 0 WHR74983 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 2 WHR74983 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR74983 |
C00316653
481249818261 |
Rukojeť dveří GW UZ NEBUDE !!!!!!! | Na dotaz | Zadat poptávku | |
| 130 0 WHR74983 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR74983 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR74983 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR74983 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR74983 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR74983 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR74983 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR74983 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR74983 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR74983 |
C00311758
481244010817 |
Rám dveří vnější GW | 1 494 Kč
€ 59.00 |
||
| 144 0 WHR74983 |
C00340712
481244010785 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR74983 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 191 0 WHR74983 |
C00319757
481246668557 |
Door bellow DELTA EPDM | Na dotaz | Zadat poptávku | |
| 191 1 WHR74983 |
C00335947
481249218015 |
Strap Fix. Bellow | Na dotaz | Zadat poptávku | |
| 191 2 WHR74983 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.60 |
||
| 200 0 WHR74983 |
C00337457
481241818181 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR74983 |
C00344300
481246448002 |
bocnice | 3 844 Kč
€ 151.80 |
||
| 210 0 WHR74983 |
C00318535
481252018034 |
Crosspiece,asm. | Na dotaz | Zadat poptávku | |
| 210 1 WHR74983 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 220 0 WHR74983 |
C00341187
481241818246 |
DRUM 1600/SS/48L/D | Na dotaz | Zadat poptávku | |
| 271 0 WHR74983 |
C00344354
481235818157 |
Řemen vicekl. 1254J4 | 753 Kč
€ 29.70 |
||
| 272 0 WHR74983 |
C00337074
481252858004 |
Pulley | Na dotaz | Zadat poptávku | |
| 272 1 WHR74983 |
C00344074
481253228006 |
pouzdro plastove | 202 Kč
€ 8.00 |
||
| 272 2 WHR74983 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR74983 |
C00336705
481950218417 |
sroub remenice NT | 117 Kč
€ 4.60 |
||
| 292 0 WHR74983 |
C00340417
481253058003 |
tesneni bocnice | 637 Kč
€ 25.10 |
||
| 301 0 WHR74983 |
C00594758
481245212572 |
Control panel GW. | Na dotaz | Zadat poptávku | |
| 303 0 WHR74983 |
C00594931
481249818292 |
Handle drawer VBL WH print. GW. | Na dotaz | Zadat poptávku | |
| 321 0 WHR74983 |
C00594757
481245212571 |
VLOZKA PANELU | 1 018 Kč
€ 40.20 |
||
| 321 1 WHR74983 |
C00341002
481253298011 |
unasec knofliku | 183 Kč
€ 7.20 |
||
| 331 0 WHR74983 |
C00341875
481241458201 |
Knoflík programátoru VBL | 623 Kč
€ 24.60 |
||
| 332 1 WHR74983 |
C00317086
481251318126 |
tlacitko | 114 Kč
€ 4.50 |
||
| 332 2 WHR74983 |
C00336968
481251318127 |
tlacitko | 39 Kč
€ 1.50 |
||
| 332 3 WHR74983 |
C00336971
481251318128 |
tlacitko | 83 Kč
€ 3.30 |
||
| 332 4 WHR74983 |
C00336993
481251318129 |
Push button Plustemp. + VBL WH GW | Na dotaz | Zadat poptávku | |
| 332 5 WHR74983 |
C00336979
481251318131 |
Push button temp. - VBL WH GW | Na dotaz | Zadat poptávku | |
| 400 0 WHR74983 |
C00488681
481236158352 |
MOTOR SIEMENS BSH 1B 1400RPM-/DELTA | Na dotaz | Zadat poptávku | |
| 400 1 WHR74983 |
C00336566
481250218361 |
Screw M8x30 | Na dotaz | Zadat poptávku | |
| 409 0 WHR74983 |
C00311761
481236248434 |
Uhlíky motoru - pár 12,4x5x36 mm Whirlpool,Bosch - Siemens | 195 Kč
€ 7.70 |
||
| 421 0 WHR74983 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR74983 |
C00491400
481231028145 |
Pump KIT | Na dotaz | Zadat poptávku | |
| 451 0 WHR74983 |
C00488490
481225928772 |
Heating element 2050W 240V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR74983 |
C00379065
481232178108 |
CABLE MOTOR SC1 SS | Na dotaz | Zadat poptávku | |
| 490 0 WHR74983 |
C00338659
481231018404 |
Kit cable, mains 1.62 m x3 | Na dotaz | Zadat poptávku | |
| 491 0 WHR74983 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR74983 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 500 0 WHR74983 |
C00501346
481228219312 |
Timer SC1, 1400 | Na dotaz | Zadat poptávku | |
| 571 0 WHR74983 |
C00313050
481228128382 |
Valve,magnet cold cold. | Na dotaz | Zadat poptávku | |
| 571 1 WHR74983 |
C00312072
481227128449 |
Valve magnet hot | Na dotaz | Zadat poptávku | |
| 581 0 WHR74983 |
C00491004
481227128434 |
PRESSOSTAT SC1-SS SC1-SS | Na dotaz | Zadat poptávku | |
| 620 0 WHR74983 |
C00341735
481223958002 |
Module "A" C/DS | Na dotaz | Zadat poptávku | |
| 630 0 WHR74983 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 631 0 WHR74983 |
C00317471
481227138358 |
mikrospinac plovaku | 1 114 Kč
€ 44.00 |
||
| 631 1 WHR74983 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 691 0 WHR74983 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 67.00 |
||
| 701 0 WHR74983 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR74983 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 702 0 WHR74983 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 702 1 WHR74983 |
C00318765
481253028841 |
Hose hot | Na dotaz | Zadat poptávku | |
| 703 0 WHR74983 |
C00339211
481253048466 |
Hosedoor rinsing 535 MM | Na dotaz | Zadat poptávku | |
| 707 0 WHR74983 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR74983 |
C00341590
481252648036 |
Nozzle cold/hot | Na dotaz | Zadat poptávku | |
| 707 2 WHR74983 |
C00498636
481253048161 |
Fitting | Na dotaz | Zadat poptávku | |
| 707 3 WHR74983 |
C00332649
481253078011 |
podlozka trysky spr. | 485 Kč
€ 19.10 |
||
| 707 4 WHR74983 |
C00332325
481252648034 |
Nozzle hot | Na dotaz | Zadat poptávku | |
| 707 5 WHR74983 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 708 1 WHR74983 |
C00344350
481253048141 |
Bend | Na dotaz | Zadat poptávku | |
| 711 0 WHR74983 |
C00527890
481241868175 |
Dispenser hot/cold 3 C hot/cold 3 Ch. | Na dotaz | Zadat poptávku | |
| 712 0 WHR74983 |
C00312119
481241888051 |
zasuvka nasypky | Na dotaz | Zadat poptávku | |
| 713 0 WHR74983 |
C00340880
481241889009 |
Flap | Na dotaz | Zadat poptávku | |
| 717 0 WHR74983 |
C00344286
481241878925 |
Bovden komplet | Na dotaz | Zadat poptávku | |
| 717 1 WHR74983 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR74983 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR74983 |
C00336270
481227888007 |
posouvac | Na dotaz | Zadat poptávku | |
| 717 4 WHR74983 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 717 5 WHR74983 |
C00316494
481228218807 |
SOSOVKA PLAST | 413 Kč
€ 16.30 |
||
| 718 0 WHR74983 |
C00315497
481252648157 |
mrizka kryci | 147 Kč
€ 5.80 |
||
| 718 1 WHR74983 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 750 0 WHR74983 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 287 Kč
€ 11.30 |
||
| 753 1 WHR74983 |
C00342744
481241868125 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR74983 |
C00498615
481253028838 |
HADICA NADRZ-CERPADLO/DELTA | Na dotaz | Zadat poptávku | |
| 754 1 WHR74983 |
C00343364
481240118054 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 760 0 WHR74983 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR74983 |
C00312966
481953028959 |
Výtoková hadice 1,5m (koncovky rovná/rovná) | Na dotaz | Zadat poptávku | |
| 782 0 WHR74983 |
C00339268
481253028816 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR74983 |
C00332412
481253028822 |
hadice násypka-přepad | Na dotaz | Zadat poptávku | |
| 783 3 WHR74983 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 783 4 WHR74983 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 785 0 WHR74983 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 914 Kč
€ 36.10 |
||
| 785 1 WHR74983 |
C00335472
481246279663 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR74983 |
C00332411
481253028819 |
Hose with hole(exhaust) | Na dotaz | Zadat poptávku | |
| 787 2 WHR74983 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 794 2 WHR74983 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR74983 |
C00498646
481253058015 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 0 WHR74983 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR74983 |
C00344192
481229088043 |
Bracket Door lock | Na dotaz | Zadat poptávku | |
| 900 2 WHR74983 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR74983 |
C00327310
481229088048 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR74983 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 7 WHR74983 |
C00332940
481940478449 |
Support | Na dotaz | Zadat poptávku | |
| 900 9 WHR74983 |
C00343347
481240148569 |
Clamp hose pressostat | Na dotaz | Zadat poptávku | |
| 910 0 WHR74983 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR74983 |
C00316731
481290308196 |
sroub | 67 Kč
€ 2.60 |
||
| 921 0 WHR74983 |
C00336832
481201118522 |
Ring,circlip 52x252x2 | Na dotaz | Zadat poptávku | |
| 930 0 WHR74983 |
C00498517
481249238361 |
Spring Suspension Suspension | Na dotaz | Zadat poptávku | |
| 941 0 WHR74983 |
C00314254
481252028003 |
BEARING 6306 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR74983 |
C00315491
481252028005 |
BEARING 6304 2Z C3 | Na dotaz | Zadat poptávku | |
| 953 0 WHR74983 |
C00320177
481253068001 |
tesneni bubnu VA-40 | 915 Kč
€ 36.10 |
||
| 961 0 WHR74983 |
C00342138
481239598005 |
Distance sleeve Delta | Na dotaz | Zadat poptávku | |
| 962 0 WHR74983 |
C00342374
481246638011 |
Cover protect. heating element | Na dotaz | Zadat poptávku | |
| 962 1 WHR74983 |
C00587005
481223858001 |
PROTEC,EL.PARTS. | Na dotaz | Zadat poptávku | |
| 965 0 WHR74983 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR74983 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR74983 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
