WHIRLPOOL AWM 8500
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 8500 |
| Kód 12NC: | 857007815500 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | Q0923560000 |
Potřebujete servis? Jsme tady pro Vás

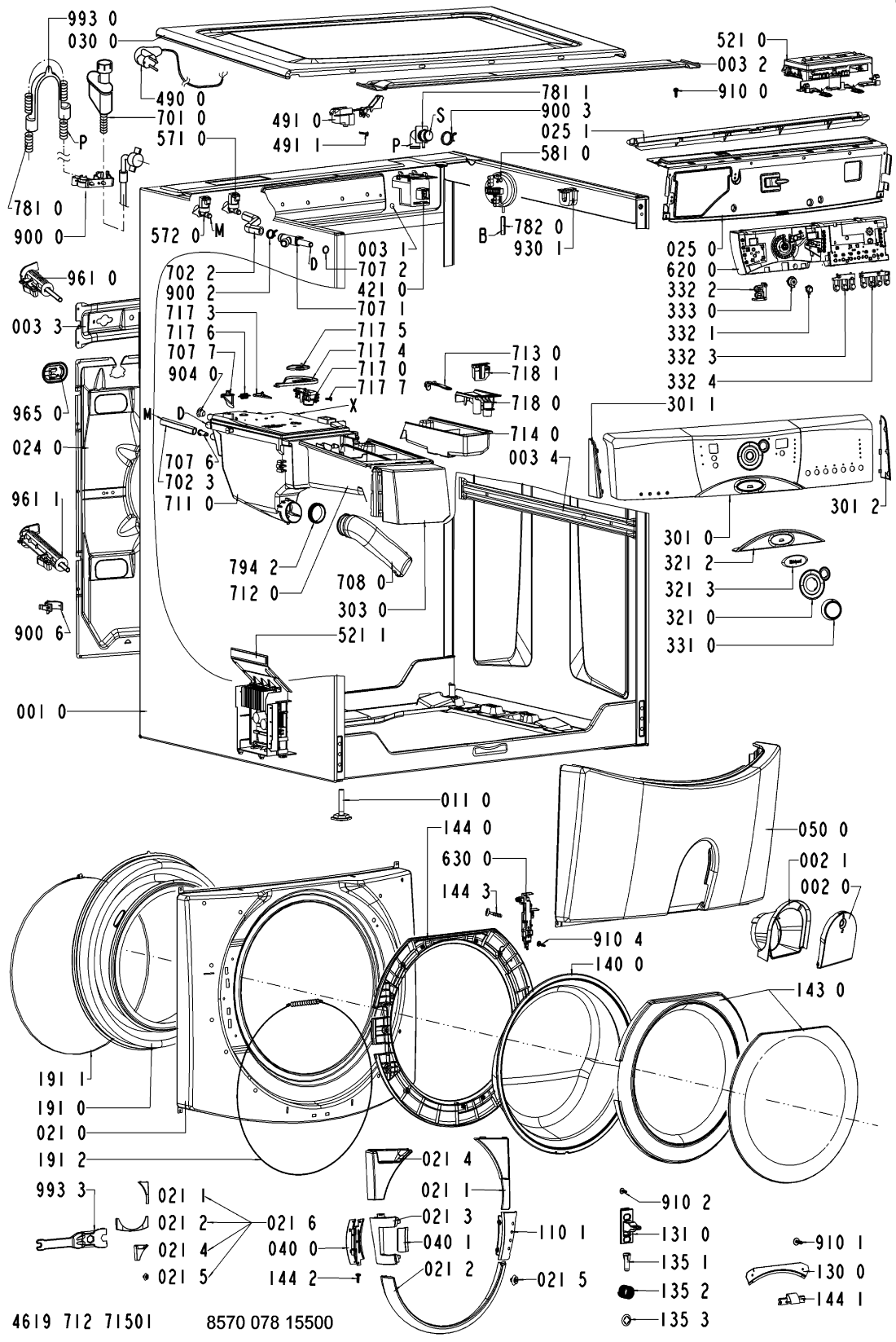

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR05901 |
C00343943 | Cabinet | Na dotaz | Zadat poptávku | |
| 002 0 WHR05901 |
C00316453
481244010966 |
kryt filtru | Na dotaz | Zadat poptávku | |
| 002 1 WHR05901 |
C00320815
481244098221 |
Protector | Na dotaz | Zadat poptávku | |
| 003 1 WHR05901 |
C00330831
481246448169 |
Crossbar rear | Na dotaz | Zadat poptávku | |
| 003 2 WHR05901 |
C00342251 | Crossbar table top | Na dotaz | Zadat poptávku | |
| 003 3 WHR05901 |
C00330834
481246448176 |
Crossbar transport | Na dotaz | Zadat poptávku | |
| 003 4 WHR05901 |
C00344274
481246448164 |
Brace side | Na dotaz | Zadat poptávku | |
| 004 0 WHR05901 |
C00341217
481244010623 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR05901 |
C00330454
481246218261 |
noha nastavitelna | 343 Kč
€ 13.50 |
||
| 021 0 WHR05901 |
C00327966
481244010807 |
Front panel white | Na dotaz | Zadat poptávku | |
| 021 1 WHR05901 |
C00328420
481244098134 |
ShieldTop right, light blue | Na dotaz | Zadat poptávku | |
| 021 2 WHR05901 |
C00328421
481244098135 |
ShieldBase, light blue | Na dotaz | Zadat poptávku | |
| 021 3 WHR05901 |
C00316372
481244098136 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 021 4 WHR05901 |
C00328419
481244098133 |
Shield Top left, light blue | Na dotaz | Zadat poptávku | |
| 021 5 WHR05901 |
C00319577
481240478466 |
SPONA PLAST | 296 Kč
€ 11.70 |
||
| 021 6 WHR05901 |
C00316374
481244098154 |
sti ochranny | 1 696 Kč
€ 67.00 |
||
| 024 0 WHR05901 |
C00327960
481244010788 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR05901 |
C00327961
481244010789 |
Bracket control board | Na dotaz | Zadat poptávku | |
| 025 1 WHR05901 |
C00327962
481244010791 |
TRUBKA PLAST | 444 Kč
€ 17.50 |
||
| 030 0 WHR05901 |
C00335620
481244010626 |
Table top white | Na dotaz | Zadat poptávku | |
| 040 0 WHR05901 |
C00329713
481241719179 |
Hinge cpl. | Na dotaz | Zadat poptávku | |
| 040 1 WHR05901 |
C00329799
481241778091 |
Cover Hinge WH | Na dotaz | Zadat poptávku | |
| 050 0 WHR05901 |
C00330223
481245938064 |
Plinth white | Na dotaz | Zadat poptávku | |
| 061 0 WHR05901 |
C00343077
481246688752 |
zavazi zadni | 1 098 Kč
€ 43.30 |
||
| 061 1 WHR05901 |
C00331494
481246688706 |
zavazi predni | 1 765 Kč
€ 69.70 |
||
| 081 0 WHR05901 |
C00312770
481246648092 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 086 0 WHR05901 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 086 1 WHR05901 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 110 1 WHR05901 |
C00312360
481249818366 |
Rukojeť dveří pračky uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 130 0 WHR05901 |
C00329783
481241728086 |
Plate door lock | Na dotaz | Zadat poptávku | |
| 131 0 WHR05901 |
C00316912
481241728087 |
hak uzaveru dveri | 729 Kč
€ 28.80 |
||
| 135 1 WHR05901 |
C00345882
481249818264 |
Pin door safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR05901 |
C00345874
481249258044 |
Spring doof safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR05901 |
C00332658
481253218068 |
Washer door safety | Na dotaz | Zadat poptávku | |
| 140 0 WHR05901 |
C00317746
481245078023 |
sklo dveří | 2 834 Kč
€ 111.90 |
||
| 143 0 WHR05901 |
C00320296
481244011197 |
ram dveri vnejsi | 2 032 Kč
€ 80.20 |
||
| 144 0 WHR05901 |
C00314061
481244010834 |
priruba dveri | 2 173 Kč
€ 85.80 |
||
| 144 1 WHR05901 |
C00328946 | Clamp door glass | Na dotaz | Zadat poptávku | |
| 144 2 WHR05901 |
C00332749
481256018068 |
ScrewDIN 7500, CM 5x14 | Na dotaz | Zadat poptávku | |
| 144 3 WHR05901 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 191 0 WHR05901 |
C00313179
481246668785 |
TVO 8000/1 | 865 Kč
€ 34.10 |
||
| 191 0 WHR05901 |
C00311191
481246668784 |
Těsnění dveří pračky (TVO 8900) | Na dotaz | Zadat poptávku | |
| 191 1 WHR05901 |
C00312587
481240118657 |
spona TVO - nadrz - VYŘAZENO | Na dotaz | Zadat poptávku | |
| 191 2 WHR05901 |
C00313447
481240118621 |
spona TVO | Na dotaz | Zadat poptávku | |
| 200 1 WHR05901 |
C00337427
481241818405 |
nadrz predni cast | 4 983 Kč
€ 196.70 |
||
| 200 2 WHR05901 |
C00312181
481241818449 |
nadrz zadni cast 8000 480111101804 | 6 572 Kč
€ 259.50 |
||
| 200 4 WHR05901 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR05901 |
C00341203 | Drum | Na dotaz | Zadat poptávku | |
| 223 0 WHR05901 |
C00312559 | Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR05901 |
C00318179
481235818187 |
BeltJ7 | Na dotaz | Zadat poptávku | |
| 272 0 WHR05901 |
C00314756
481252858037 |
Řemenice bubnu | 1 666 Kč
€ 65.80 |
||
| 272 1 WHR05901 |
C00320189
481253228944 |
Nut M16 f. pulley, drum | Na dotaz | Zadat poptávku | |
| 290 0 WHR05901 |
C00312613
481253268124 |
tesneni bocnice | 932 Kč
€ 36.80 |
||
| 301 0 WHR05901 |
C00343681
481245215248 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 301 1 WHR05901 |
C00331260
481245212276 |
End cap left | Na dotaz | Zadat poptávku | |
| 301 2 WHR05901 |
C00331261
481245212277 |
End cap right | Na dotaz | Zadat poptávku | |
| 303 0 WHR05901 |
C00317833
481249878637 |
Handle drawer 6.SENSE | Na dotaz | Zadat poptávku | |
| 321 0 WHR05901 |
C00331259
481245212273 |
Insert rear Knob | Na dotaz | Zadat poptávku | |
| 321 2 WHR05901 |
C00331262
481245214756 |
Filling piece door silver | Na dotaz | Zadat poptávku | |
| 321 3 WHR05901 |
C00330201
481245918237 |
Sticker WH-Logo | Na dotaz | Zadat poptávku | |
| 331 0 WHR05901 |
C00329423
481241259089 |
knoflik programatoru | 660 Kč
€ 26.10 |
||
| 332 1 WHR05901 |
C00329271
481241028963 |
Button Start Delay | Na dotaz | Zadat poptávku | |
| 332 2 WHR05901 |
C00329275
481241028967 |
Button assy +/- | Na dotaz | Zadat poptávku | |
| 332 3 WHR05901 |
C00329273
481241028965 |
Button assy Option 3x | Na dotaz | Zadat poptávku | |
| 332 4 WHR05901 |
C00329272
481241028964 |
Button assy Option 4x | Na dotaz | Zadat poptávku | |
| 333 0 WHR05901 |
C00329274
481241028966 |
Button Start | Na dotaz | Zadat poptávku | |
| 400 0 WHR05901 |
C00316560 | Motor 3-phases | Na dotaz | Zadat poptávku | |
| 421 0 WHR05901 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR05901 |
C00337053
481236018548 |
Pump cpl. | Na dotaz | Zadat poptávku | |
| 430 1 WHR05901 |
C00330928
481246668757 |
Damper rubber gear - 92516200 | Na dotaz | Zadat poptávku | |
| 430 2 WHR05901 |
C00330929
481246668758 |
Damper rubber front | Na dotaz | Zadat poptávku | |
| 451 0 WHR05901 |
C00311143
481225928823 |
Heating element 240 V + NTC | Na dotaz | Zadat poptávku | |
| 451 1 WHR05901 |
C00328887
481240118581 |
drzak topeni | Na dotaz | Zadat poptávku | |
| 451 2 WHR05901 |
C00332750
481256018069 |
Screw MP 1951, M4x14 SS | Na dotaz | Zadat poptávku | |
| 480 0 WHR05901 |
C00319031
481232178152 |
vodice svazek motor | 1 004 Kč
€ 39.60 |
||
| 480 1 WHR05901 |
C00343773
481232178154 |
vodice svazek -hlavn | 2 517 Kč
€ 99.40 |
||
| 480 2 WHR05901 |
C00343761 | Cable harness valve | Na dotaz | Zadat poptávku | |
| 490 0 WHR05901 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 491 0 WHR05901 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 1 WHR05901 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR05901 |
C00311435
481221458159 |
Control board | Na dotaz | Zadat poptávku | |
| 521 1 WHR05901 |
C00327014
481221479471 |
Control unit | Na dotaz | Zadat poptávku | |
| 571 0 WHR05901 |
C00311295
481228128429 |
ventil | 1 477 Kč
€ 58.30 |
||
| 572 0 WHR05901 |
C00311352
481228128432 |
ventil napousteci | 1 418 Kč
€ 56.00 |
||
| 581 0 WHR05901 |
C00317397
481227128504 |
presostat | 1 479 Kč
€ 58.40 |
||
| 620 0 WHR05901 |
C00337315 | User board CUIO | Na dotaz | Zadat poptávku | |
| 630 0 WHR05901 |
C00311292
481228058041 |
Blokování dveří pračky | 3 119 Kč
€ 123.10 |
||
| 631 0 WHR05901 |
C00315275
481236058336 |
plovak | 528 Kč
€ 20.80 |
||
| 691 0 WHR05901 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 67.00 |
||
| 701 0 WHR05901 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR05901 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 702 2 WHR05901 |
C00339389
481253029209 |
Hose cold | Na dotaz | Zadat poptávku | |
| 702 3 WHR05901 |
C00339234
481253029208 |
Hose Valve-Dispenser hot | Na dotaz | Zadat poptávku | |
| 707 1 WHR05901 |
C00332345 | Nozzle; inlet cold | Na dotaz | Zadat poptávku | |
| 707 2 WHR05901 |
C00317192
481263058102 |
O-Ring 8,1 x 1,6 mm | Na dotaz | Zadat poptávku | |
| 707 6 WHR05901 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 707 7 WHR05901 |
C00332338 | Reflector; hot water | Na dotaz | Zadat poptávku | |
| 708 0 WHR05901 |
C00332515
481253048626 |
Bend | Na dotaz | Zadat poptávku | |
| 711 0 WHR05901 |
C00314273
481241868352 |
Dispenser without window rinse | Na dotaz | Zadat poptávku | |
| 712 0 WHR05901 |
C00313376
481241889012 |
zasuvka nasypky | 1 778 Kč
€ 70.20 |
||
| 713 0 WHR05901 |
C00317127
481241889013 |
Hook drawer | Na dotaz | Zadat poptávku | |
| 714 0 WHR05901 |
C00314025
481241879819 |
vlozka nasypky | 308 Kč
€ 12.20 |
||
| 717 0 WHR05901 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.30 |
||
| 717 3 WHR05901 |
C00328524
481232138026 |
Lever connection | Na dotaz | Zadat poptávku | |
| 717 4 WHR05901 |
C00318028
481232138027 |
PACKA PLAST | 163 Kč
€ 6.40 |
||
| 717 5 WHR05901 |
C00318635
481252838069 |
VACKA PLAST | 194 Kč
€ 7.70 |
||
| 717 6 WHR05901 |
C00313668
481249258045 |
Spring f. lever | Na dotaz | Zadat poptávku | |
| 717 7 WHR05901 |
C00332095
481250218623 |
Screw PT3,5x20-TORx20 | Na dotaz | Zadat poptávku | |
| 718 0 WHR05901 |
C00316004
481252648132 |
mrizka | 238 Kč
€ 9.40 |
||
| 718 1 WHR05901 |
C00314039
481241888994 |
vlozka nasypky | 274 Kč
€ 10.80 |
||
| 753 0 WHR05901 |
C00315669
481241868292 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR05901 |
C00332434
481253029278 |
Hadice nádrž - čerpadlo pračky Whirlpool, Bauknecht | 1 060 Kč
€ 41.80 |
||
| 754 1 WHR05901 |
C00332435
481253029279 |
Lockeco ball | Na dotaz | Zadat poptávku | |
| 754 4 WHR05901 |
C00328901
481240118623 |
Clamp 98,5 mm | Na dotaz | Zadat poptávku | |
| 760 0 WHR05901 |
C00340926
481248058294 |
Filter set pump | Na dotaz | Zadat poptávku | |
| 760 1 WHR05901 |
C00314405
481246688707 |
Těsnění | 1 002 Kč
€ 39.60 |
||
| 781 0 WHR05901 |
C00332436
481253029281 |
hadice vytokova | 544 Kč
€ 21.50 |
||
| 781 1 WHR05901 |
C00332437
481253029282 |
Hose connection outlet | Na dotaz | Zadat poptávku | |
| 782 0 WHR05901 |
C00314458
481253029196 |
Hose pressostat,with protector | Na dotaz | Zadat poptávku | |
| 783 4 WHR05901 |
C00318819
481253029284 |
Hadice čerpadlo - vypouštění pračky Whirlpool, Bauknecht | 564 Kč
€ 22.30 |
||
| 785 0 WHR05901 |
C00313794
481253029303 |
hadice cerpadlo vyp. | Na dotaz | Zadat poptávku | |
| 785 1 WHR05901 |
C00330744 | Stopper | Na dotaz | Zadat poptávku | |
| 787 0 WHR05901 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 787 1 WHR05901 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 787 5 WHR05901 |
C00328902
481240118624 |
spona | 147 Kč
€ 5.80 |
||
| 794 2 WHR05901 |
C00317164
481253058164 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 5 WHR05901 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR05901 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 2 WHR05901 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR05901 |
C00328904
481240118626 |
Clamp 32,7 mm | Na dotaz | Zadat poptávku | |
| 900 4 WHR05901 |
C00328905
481240118627 |
Clamp 40 mm | Na dotaz | Zadat poptávku | |
| 900 6 WHR05901 |
C00327122
481225518249 |
Holder drainhose inner | Na dotaz | Zadat poptávku | |
| 904 0 WHR05901 |
C00330758
481246279893 |
Threaded cap for dispenser | Na dotaz | Zadat poptávku | |
| 910 0 WHR05901 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 1 WHR05901 |
C00332096
481250218624 |
Screw 3.5x10-F A2F | Na dotaz | Zadat poptávku | |
| 910 2 WHR05901 |
C00332153
481250238352 |
Screw 4x10 | Na dotaz | Zadat poptávku | |
| 910 4 WHR05901 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 910 5 WHR05901 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 910 6 WHR05901 |
C00332154
481250238355 |
Screw 4,2x16 T20 | Na dotaz | Zadat poptávku | |
| 910 7 WHR05901 |
C00314893
481250218635 |
Screw 4.2x9.5 | Na dotaz | Zadat poptávku | |
| 921 0 WHR05901 |
C00325593
481201118523 |
spona | 199 Kč
€ 7.90 |
||
| 930 0 WHR05901 |
C00318191
481249238387 |
pruzina | 372 Kč
€ 14.70 |
||
| 930 1 WHR05901 |
C00345868
481249238388 |
Silent bloc | 95 Kč
€ 3.80 |
||
| 941 0 WHR05901 |
C00315000
481252028183 |
Ložisko 6307 2Z C3 GJN (SKF) | 767 Kč
€ 30.30 |
||
| 941 1 WHR05901 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 952 1 WHR05901 |
C00332314
481252448014 |
Bushingf. shaft seal | Na dotaz | Zadat poptávku | |
| 953 0 WHR05901 |
C00332646
481253068029 |
Shaft seal | Na dotaz | Zadat poptávku | |
| 961 0 WHR05901 |
C00327221
481226818018 |
Distance sleeve upper | Na dotaz | Zadat poptávku | |
| 961 1 WHR05901 |
C00327222
481226818019 |
kus distancni | 401 Kč
€ 15.80 |
||
| 962 1 WHR05901 |
C00327339
481231018863 |
Cover lidKIT | Na dotaz | Zadat poptávku | |
| 965 0 WHR05901 |
C00330934
481246668812 |
Cover | Na dotaz | Zadat poptávku | |
| 965 1 WHR05901 |
C00317606
481226278011 |
Threaded cap tub rear part | Na dotaz | Zadat poptávku | |
| 993 0 WHR05901 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR05901 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR05901 |
C00362015 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362016 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362017 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362018 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362019 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362020 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362021 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362022 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362023 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362024 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05901 |
C00362025 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
