WHIRLPOOL AWM 9100 WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 9100 WASHING MACHINES WP |
| Kód 12NC: | 857008329000 |
| I.C. kód: | 857008329003 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857008301000, 857008301001, 857008329000, 857008329002, 857008329001 |
Potřebujete servis? Jsme tady pro Vás

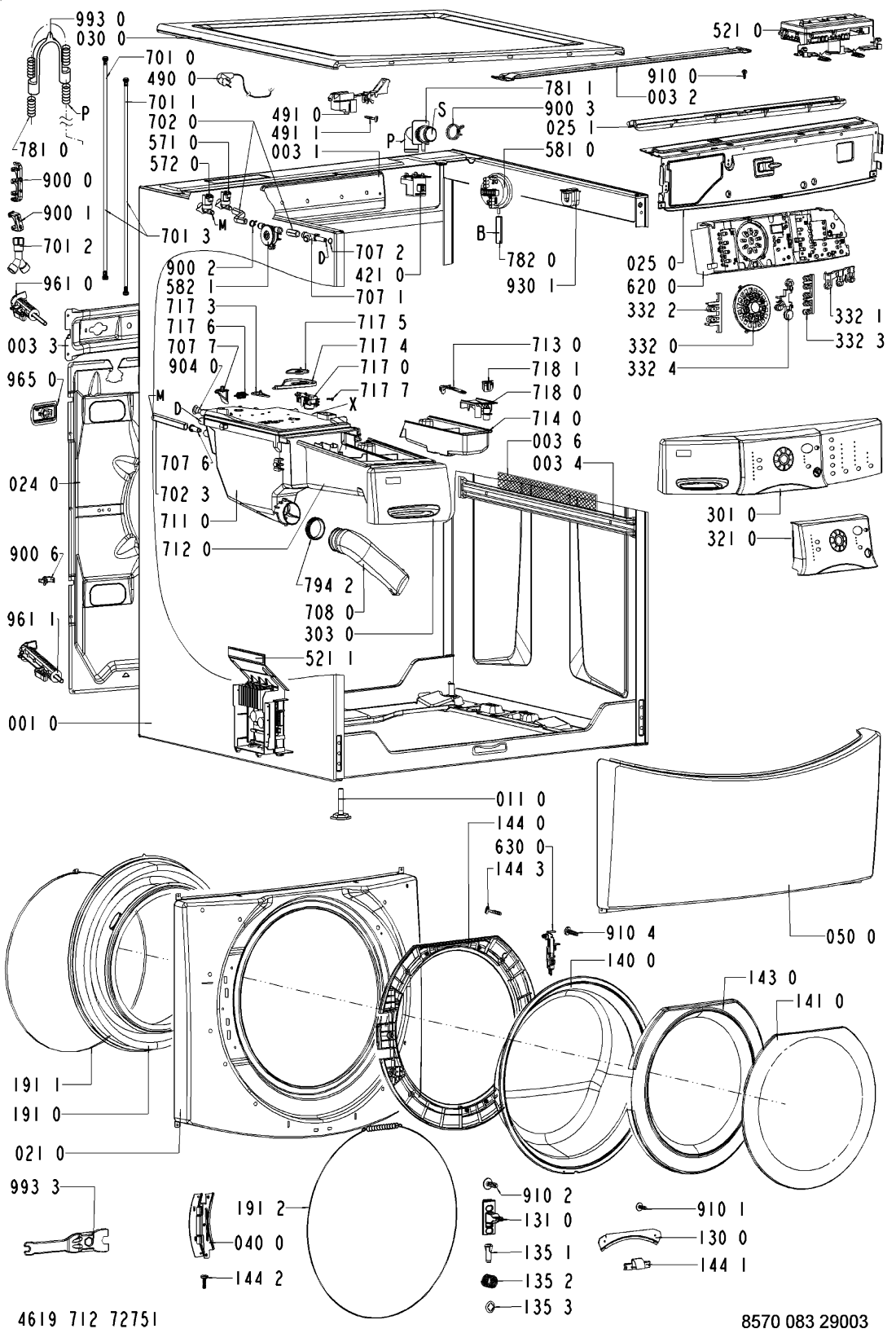

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR86842 |
C00327945
481244010725 |
Cabinet Service-Kit silv. calypso | Na dotaz | Zadat poptávku | |
| 003 1 WHR86842 |
C00330831
481246448169 |
Crossbar rear | Na dotaz | Zadat poptávku | |
| 003 2 WHR86842 |
C00330833
481246448175 |
Crossbar table top | Na dotaz | Zadat poptávku | |
| 003 3 WHR86842 |
C00330834
481246448176 |
Crossbar transport | Na dotaz | Zadat poptávku | |
| 003 4 WHR86842 |
C00330835
481246448177 |
Brace side | Na dotaz | Zadat poptávku | |
| 003 6 WHR86842 |
C00457551
481239038005 |
Strip,masking | Na dotaz | Zadat poptávku | |
| 004 0 WHR86842 |
C00327958
481244010786 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR86842 |
C00330454
481246218261 |
noha nastavitelna | 343 Kč
€ 13.50 |
||
| 021 0 WHR86842 |
C00327944
481244010724 |
Front panel silv. calypso | Na dotaz | Zadat poptávku | |
| 024 0 WHR86842 |
C00328003
481244011437 |
Panel rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR86842 |
C00327961
481244010789 |
Bracket control board | Na dotaz | Zadat poptávku | |
| 025 1 WHR86842 |
C00328040
481244011543 |
TRUBKA PLAST | 390 Kč
€ 15.40 |
||
| 030 0 WHR86842 |
C00327975
481244010988 |
Table top silv. calypso | Na dotaz | Zadat poptávku | |
| 040 0 WHR86842 |
C00315496
481241719178 |
Hinge kit door | Na dotaz | Zadat poptávku | |
| 050 0 WHR86842 |
C00330216
481245938055 |
Plinth silv.calypso | Na dotaz | Zadat poptávku | |
| 061 0 WHR86842 |
C00331009
481246688705 |
Counter weight rear | Na dotaz | Zadat poptávku | |
| 061 1 WHR86842 |
C00331494
481246688706 |
zavazi predni | 1 765 Kč
€ 69.70 |
||
| 081 0 WHR86842 |
C00311627
481246648095 |
Tlumič | 1 016 Kč
€ 40.10 |
||
| 086 0 WHR86842 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 086 1 WHR86842 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 130 0 WHR86842 |
C00329783
481241728086 |
Plate door lock | Na dotaz | Zadat poptávku | |
| 131 0 WHR86842 |
C00316912
481241728087 |
hak uzaveru dveri | 729 Kč
€ 28.80 |
||
| 135 1 WHR86842 |
C00345882
481249818264 |
Pin door safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR86842 |
C00345874
481249258044 |
Spring doof safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR86842 |
C00332658
481253218068 |
Washer door safety | Na dotaz | Zadat poptávku | |
| 140 0 WHR86842 |
C00331180
481245078019 |
SKLO DVERI | 2 364 Kč
€ 93.30 |
||
| 141 0 WHR86842 |
C00315453
481246688692 |
Protector door grey | Na dotaz | Zadat poptávku | |
| 143 0 WHR86842 |
C00312886
481244011174 |
Frame door glas grey | Na dotaz | Zadat poptávku | |
| 144 0 WHR86842 |
C00316499
481244011293 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 1 WHR86842 |
C00497565
481240148585 |
Clamp | Na dotaz | Zadat poptávku | |
| 144 2 WHR86842 |
C00332749
481256018068 |
ScrewDIN 7500, CM 5x14 | Na dotaz | Zadat poptávku | |
| 144 3 WHR86842 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 191 0 WHR86842 |
C00311191
481246668784 |
Těsnění dveří pračky (TVO 8900) | Na dotaz | Zadat poptávku | |
| 191 0 WHR86842 |
C00313179
481246668785 |
TVO 8000/1 | 865 Kč
€ 34.10 |
||
| 191 1 WHR86842 |
C00312587
481240118657 |
spona TVO - nadrz - VYŘAZENO | Na dotaz | Zadat poptávku | |
| 191 2 WHR86842 |
C00313447
481240118621 |
spona TVO | Na dotaz | Zadat poptávku | |
| 200 1 WHR86842 |
C00312060
481241818448 |
Tub USA, Frontpart cpl. | Na dotaz | Zadat poptávku | |
| 200 2 WHR86842 |
C00312181
481241818449 |
nadrz zadni cast 8000 480111101804 | 6 572 Kč
€ 259.50 |
||
| 200 4 WHR86842 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR86842 |
C00312442
481241818525 |
Drum high cpl. | Na dotaz | Zadat poptávku | |
| 223 0 WHR86842 |
C00312455
481241848766 |
Drum lifter 1x | Na dotaz | Zadat poptávku | |
| 223 1 WHR86842 |
C00312688
481241848765 |
Drum lifter Set 3x | Na dotaz | Zadat poptávku | |
| 271 0 WHR86842 |
C00318179
481235818187 |
BeltJ7 | Na dotaz | Zadat poptávku | |
| 272 0 WHR86842 |
C00314756
481252858037 |
Řemenice bubnu | 1 666 Kč
€ 65.80 |
||
| 272 1 WHR86842 |
C00320189
481253228944 |
Nut M16 f. pulley, drum | Na dotaz | Zadat poptávku | |
| 290 0 WHR86842 |
C00312613
481253268124 |
tesneni bocnice | 932 Kč
€ 36.80 |
||
| 301 0 WHR86842 |
C00461008
481245216758 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR86842 |
C00620453
481249818314 |
Handle drawer silv.calypso | Na dotaz | Zadat poptávku | |
| 321 0 WHR86842 |
C00461009
481245216759 |
Insert panel | Na dotaz | Zadat poptávku | |
| 332 0 WHR86842 |
C00457706
481241029346 |
Button assy program, green | Na dotaz | Zadat poptávku | |
| 332 1 WHR86842 |
C00493400
481241029137 |
Button assy temperatur silv.calypso | Na dotaz | Zadat poptávku | |
| 332 2 WHR86842 |
C00329277
481241028999 |
Button assy cycle | Na dotaz | Zadat poptávku | |
| 332 3 WHR86842 |
C00493401
481241029138 |
Button assy options silv.calypso | Na dotaz | Zadat poptávku | |
| 332 4 WHR86842 |
C00457707
481241029347 |
Button assy cancel, red | Na dotaz | Zadat poptávku | |
| 400 0 WHR86842 |
C00312017
481236158446 |
motor | 5 944 Kč
€ 234.70 |
||
| 421 0 WHR86842 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR86842 |
C00311675
481236018563 |
cerpadlo vypousteci | Na dotaz | Zadat poptávku | |
| 430 1 WHR86842 |
C00342209
481246668903 |
Damper rubber rear | Na dotaz | Zadat poptávku | |
| 430 2 WHR86842 |
C00342210
481246668902 |
Damper rubber front | Na dotaz | Zadat poptávku | |
| 451 0 WHR86842 |
C00318968
481225928871 |
topne teleso | 2 073 Kč
€ 81.80 |
||
| 451 1 WHR86842 |
C00328887
481240118581 |
drzak topeni | Na dotaz | Zadat poptávku | |
| 451 2 WHR86842 |
C00332750
481256018069 |
Screw MP 1951, M4x14 SS | Na dotaz | Zadat poptávku | |
| 480 0 WHR86842 |
C00497482
481232178165 |
Cable harness motor | Na dotaz | Zadat poptávku | |
| 480 1 WHR86842 |
C00319067
481232178167 |
Cable harness main | Na dotaz | Zadat poptávku | |
| 480 2 WHR86842 |
C00328530
481232178166 |
Cable harness valve | Na dotaz | Zadat poptávku | |
| 490 0 WHR86842 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR86842 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR86842 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR86842 |
C00312075
481221479827 |
programator | 4 657 Kč
€ 183.90 |
||
| 521 0 WHR86842 |
C00314975
481221479826 |
Control board OMEGA, programmed | Na dotaz | Zadat poptávku | |
| 521 1 WHR86842 |
C00314871
481221479772 |
Control unit motor cpl. | Na dotaz | Zadat poptávku | |
| 571 0 WHR86842 |
C00311295
481228128429 |
ventil | 1 477 Kč
€ 58.30 |
||
| 572 0 WHR86842 |
C00311352
481228128432 |
ventil napousteci | 1 418 Kč
€ 56.00 |
||
| 581 0 WHR86842 |
C00497320
481227128521 |
pressostat | Na dotaz | Zadat poptávku | |
| 582 1 WHR86842 |
C00311355
481227128522 |
prutokomer | 2 196 Kč
€ 86.70 |
||
| 620 0 WHR86842 |
C00312511
481227628452 |
jednotka ovladaci | 5 460 Kč
€ 215.60 |
||
| 630 0 WHR86842 |
C00311292
481228058041 |
Blokování dveří pračky | 3 119 Kč
€ 123.10 |
||
| 691 0 WHR86842 |
C00311549
481225928863 |
senzor NTC | 1 140 Kč
€ 45.00 |
||
| 701 0 WHR86842 |
C00315515
481253029329 |
Hose, inlet EN 11770 Reflex | Na dotaz | Zadat poptávku | |
| 701 1 WHR86842 |
C00309500
481953028928 |
hadice napousteci | Na dotaz | Zadat poptávku | |
| 701 2 WHR86842 |
C00343062
481952648467 |
Coupling piece | Na dotaz | Zadat poptávku | |
| 701 3 WHR86842 |
C00332395
481253018075 |
Hose inlet Set (hot+cold+U-Bend) | Na dotaz | Zadat poptávku | |
| 702 0 WHR86842 |
C00318813
481253029264 |
Hose flowmeter | Na dotaz | Zadat poptávku | |
| 702 3 WHR86842 |
C00332428
481253029263 |
Hose valve-dispenser | Na dotaz | Zadat poptávku | |
| 707 1 WHR86842 |
C00318611
481252648228 |
Nozzle inlet cold | Na dotaz | Zadat poptávku | |
| 707 2 WHR86842 |
C00317192
481263058102 |
O-Ring 8,1 x 1,6 mm | Na dotaz | Zadat poptávku | |
| 707 6 WHR86842 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 707 7 WHR86842 |
C00498599
481252648143 |
Reflector hot water | Na dotaz | Zadat poptávku | |
| 708 0 WHR86842 |
C00332515
481253048626 |
Bend | Na dotaz | Zadat poptávku | |
| 711 0 WHR86842 |
C00314273
481241868352 |
Dispenser without window rinse | Na dotaz | Zadat poptávku | |
| 712 0 WHR86842 |
C00313376
481241889012 |
zasuvka nasypky | 1 778 Kč
€ 70.20 |
||
| 713 0 WHR86842 |
C00317127
481241889013 |
Hook drawer | Na dotaz | Zadat poptávku | |
| 714 0 WHR86842 |
C00314025
481241879819 |
vlozka nasypky | 308 Kč
€ 12.20 |
||
| 717 0 WHR86842 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.30 |
||
| 717 3 WHR86842 |
C00328524
481232138026 |
Lever connection | Na dotaz | Zadat poptávku | |
| 717 4 WHR86842 |
C00318028
481232138027 |
PACKA PLAST | 163 Kč
€ 6.40 |
||
| 717 5 WHR86842 |
C00318635
481252838069 |
VACKA PLAST | 194 Kč
€ 7.70 |
||
| 717 6 WHR86842 |
C00313668
481249258045 |
Spring f. lever | Na dotaz | Zadat poptávku | |
| 717 7 WHR86842 |
C00332095
481250218623 |
Screw PT3,5x20-TORx20 | Na dotaz | Zadat poptávku | |
| 718 0 WHR86842 |
C00498598
481252648139 |
Siphon | Na dotaz | Zadat poptávku | |
| 718 1 WHR86842 |
C00314039
481241888994 |
vlozka nasypky | 274 Kč
€ 10.80 |
||
| 753 0 WHR86842 |
C00315669
481241868292 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR86842 |
C00332434
481253029278 |
Hadice nádrž - čerpadlo pračky Whirlpool, Bauknecht | 1 060 Kč
€ 41.80 |
||
| 754 1 WHR86842 |
C00332435
481253029279 |
Lockeco ball | Na dotaz | Zadat poptávku | |
| 754 4 WHR86842 |
C00328901
481240118623 |
Clamp 98,5 mm | Na dotaz | Zadat poptávku | |
| 760 0 WHR86842 |
C00315672
481248058317 |
filtr cerpadla 8900 | Na dotaz | Zadat poptávku | |
| 760 1 WHR86842 |
C00314405
481246688707 |
Těsnění | 1 002 Kč
€ 39.60 |
||
| 781 0 WHR86842 |
C00332436
481253029281 |
hadice vytokova | 544 Kč
€ 21.50 |
||
| 781 1 WHR86842 |
C00332437
481253029282 |
Hose connection outlet | Na dotaz | Zadat poptávku | |
| 782 0 WHR86842 |
C00332438
481253029283 |
Hosepressostat, 700mm | Na dotaz | Zadat poptávku | |
| 783 4 WHR86842 |
C00318819
481253029284 |
Hadice čerpadlo - vypouštění pračky Whirlpool, Bauknecht | 564 Kč
€ 22.30 |
||
| 787 0 WHR86842 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 787 1 WHR86842 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 787 5 WHR86842 |
C00328902
481240118624 |
spona | 147 Kč
€ 5.80 |
||
| 794 2 WHR86842 |
C00317164
481253058164 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 5 WHR86842 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR86842 |
C00327127
481225518288 |
Holder Hose outlet | Na dotaz | Zadat poptávku | |
| 900 1 WHR86842 |
C00327128
481225518289 |
holder Hose outlet, single | Na dotaz | Zadat poptávku | |
| 900 2 WHR86842 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR86842 |
C00328904
481240118626 |
Clamp 32,7 mm | Na dotaz | Zadat poptávku | |
| 900 4 WHR86842 |
C00328905
481240118627 |
Clamp 40 mm | Na dotaz | Zadat poptávku | |
| 900 6 WHR86842 |
C00327122
481225518249 |
Holder drainhose inner | Na dotaz | Zadat poptávku | |
| 904 0 WHR86842 |
C00330758
481246279893 |
Threaded cap for dispenser | Na dotaz | Zadat poptávku | |
| 910 0 WHR86842 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 1 WHR86842 |
C00332096
481250218624 |
Screw 3.5x10-F A2F | Na dotaz | Zadat poptávku | |
| 910 2 WHR86842 |
C00332153
481250238352 |
Screw 4x10 | Na dotaz | Zadat poptávku | |
| 910 4 WHR86842 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 910 5 WHR86842 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 910 6 WHR86842 |
C00332154
481250238355 |
Screw 4,2x16 T20 | Na dotaz | Zadat poptávku | |
| 910 7 WHR86842 |
C00314893
481250218635 |
Screw 4.2x9.5 | Na dotaz | Zadat poptávku | |
| 921 0 WHR86842 |
C00325593
481201118523 |
spona | 199 Kč
€ 7.90 |
||
| 930 0 WHR86842 |
C00345084
481249238403 |
Pružina agregátu-sada 2ks | 1 530 Kč
€ 60.40 |
||
| 930 1 WHR86842 |
C00345868
481249238388 |
Silent bloc | 95 Kč
€ 3.80 |
||
| 941 0 WHR86842 |
C00315000
481252028183 |
Ložisko 6307 2Z C3 GJN (SKF) | 767 Kč
€ 30.30 |
||
| 941 1 WHR86842 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 952 1 WHR86842 |
C00332314
481252448014 |
Bushingf. shaft seal | Na dotaz | Zadat poptávku | |
| 953 0 WHR86842 |
C00332646
481253068029 |
Shaft seal | Na dotaz | Zadat poptávku | |
| 961 0 WHR86842 |
C00327221
481226818018 |
Distance sleeve upper | Na dotaz | Zadat poptávku | |
| 961 1 WHR86842 |
C00327222
481226818019 |
kus distancni | 401 Kč
€ 15.80 |
||
| 965 0 WHR86842 |
C00330934
481246668812 |
Cover | Na dotaz | Zadat poptávku | |
| 965 1 WHR86842 |
C00317606
481226278011 |
Threaded cap tub rear part | Na dotaz | Zadat poptávku | |
| 993 0 WHR86842 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR86842 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
