WHIRLPOOL AWO 12763 WASHINGMACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO 12763 WASHINGMACHINES WP |
| Kód 12NC: | 859201829000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859201829008, 859201829009 |
Potřebujete servis? Jsme tady pro Vás

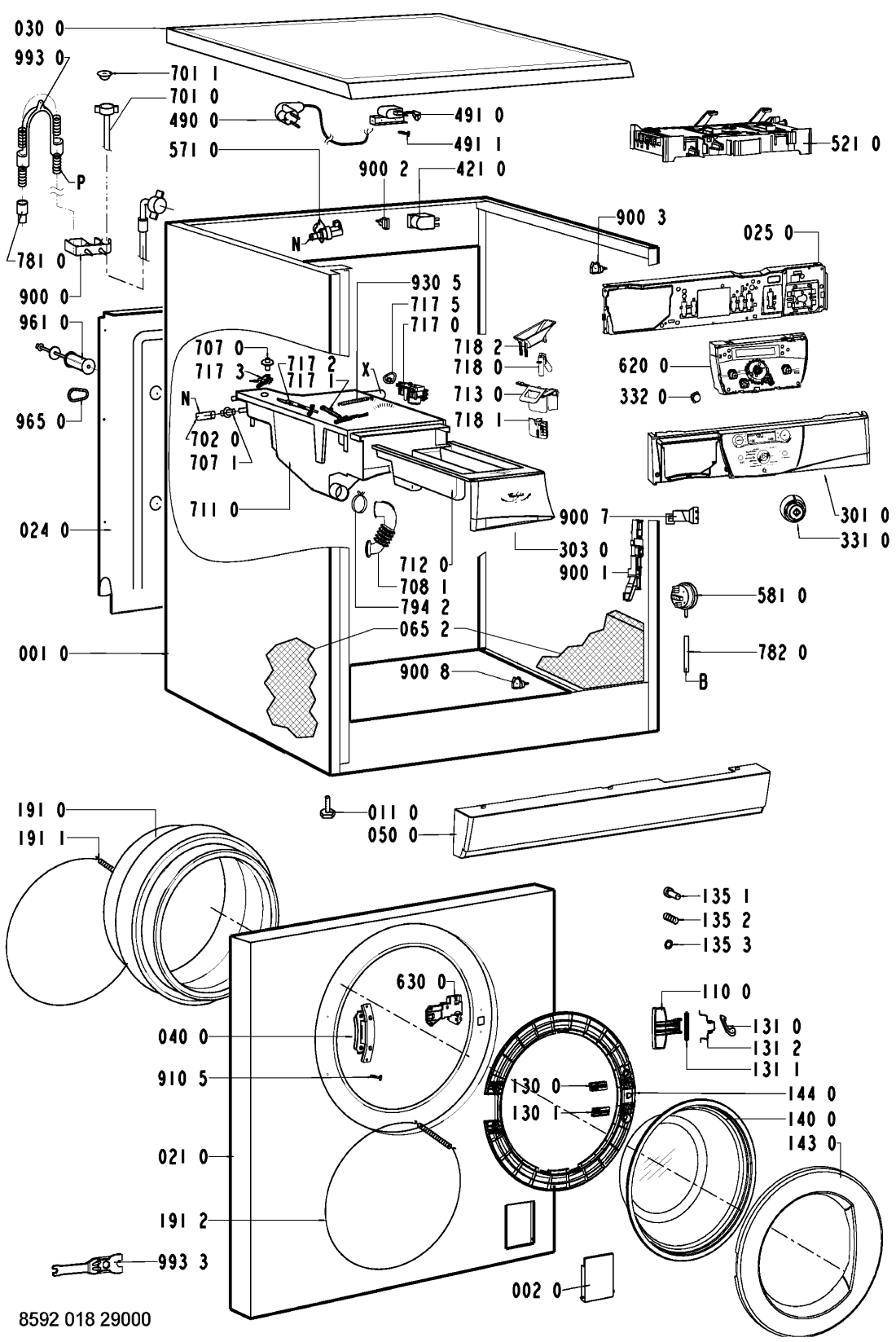

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR41840 |
C00327957
481244010784 |
Cabinet GW | Na dotaz | Zadat poptávku | |
| 002 0 WHR41840 |
C00316479
481244011131 |
kryt filtru | 213 Kč
€ 8.40 |
||
| 011 0 WHR41840 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR41840 |
C00497913
481244011132 |
stena predni | 2 566 Kč
€ 101.30 |
||
| 024 0 WHR41840 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.50 |
||
| 025 0 WHR41840 |
C00329016
481240438737 |
Support EBL | Na dotaz | Zadat poptávku | |
| 030 0 WHR41840 |
C00327986
481244011175 |
Table topEBL short | Na dotaz | Zadat poptávku | |
| 040 0 WHR41840 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR41840 |
C00313304
481244089097 |
sokl pracky EBL | 1 173 Kč
€ 46.30 |
||
| 061 0 WHR41840 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR41840 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR41840 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR41840 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 065 2 WHR41840 |
C00327325
481231018401 |
Insulation side panel | Na dotaz | Zadat poptávku | |
| 081 0 WHR41840 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 084 0 WHR41840 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR41840 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR41840 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 130 0 WHR41840 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR41840 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR41840 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR41840 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR41840 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR41840 |
C00345878
481249818137 |
Knob Door safetyDoor safety | Na dotaz | Zadat poptávku | |
| 135 2 WHR41840 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR41840 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR41840 |
C00320431
481245068219 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR41840 |
C00340318
481244011142 |
Rám dveří vnější EBL | 2 085 Kč
€ 82.30 |
||
| 144 0 WHR41840 |
C00313481
481244011139 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 191 0 WHR41840 |
C00313168
481246068532 |
DOOR BELLOW grease resistance | Na dotaz | Zadat poptávku | |
| 191 1 WHR41840 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR41840 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR41840 |
C00311402
481241818472 |
nadrz predni cast | 5 108 Kč
€ 201.70 |
||
| 200 2 WHR41840 |
C00311634
481241818473 |
nadrz zadni cast 53l | 4 511 Kč
€ 178.10 |
||
| 200 4 WHR41840 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR41840 |
C00311678
481241818471 |
buben | Na dotaz | Zadat poptávku | |
| 271 0 WHR41840 |
C00311514
481935818152 |
Řemen víceklínový 1248J5 | 631 Kč
€ 24.90 |
||
| 272 0 WHR41840 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 272 3 WHR41840 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR41840 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR41840 |
C00606616
481245214683 |
Control panel AWO 12763. | Na dotaz | Zadat poptávku | |
| 303 0 WHR41840 |
C00312802
481249878629 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR41840 |
C00341880
481241318312 |
Knob timer OMEGA LCDA | Na dotaz | Zadat poptávku | |
| 332 0 WHR41840 |
C00545063
481251318154 |
tlacitko | 189 Kč
€ 7.50 |
||
| 400 0 WHR41840 |
C00312297
481236158393 |
motor komutatorovy | 6 844 Kč
€ 270.20 |
||
| 400 1 WHR41840 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
| 409 0 WHR41840 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR41840 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR41840 |
C00311139
481231028144 |
Čerpadlo vypouštěcí DELTA | 1 120 Kč
€ 44.20 |
||
| 451 0 WHR41840 |
C00538595
481225928759 |
OHRIEVACIE TELESO 2050W PONORNE | Na dotaz | Zadat poptávku | |
| 480 0 WHR41840 |
C00311380
481232178109 |
vodice svazek motor | 981 Kč
€ 38.70 |
||
| 490 0 WHR41840 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR41840 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR41840 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR41840 |
C00495921
481221479274 |
Control board OMEGA, 1400, LCDA, 53l. | Na dotaz | Zadat poptávku | |
| 571 0 WHR41840 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR41840 |
C00337540
481227128382 |
Presostat pračky | 1 007 Kč
€ 39.80 |
||
| 620 0 WHR41840 |
C00556474
481227628419 |
English description not available.. | Na dotaz | Zadat poptávku | |
| 630 0 WHR41840 |
C00311146
481228058044 |
Blokování dveří předem plněné pračky Whirlpool | 488 Kč
€ 19.30 |
||
| 691 0 WHR41840 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 67.00 |
||
| 701 0 WHR41840 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR41840 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR41840 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 707 0 WHR41840 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR41840 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR41840 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR41840 |
C00485016
481241868333 |
Těleso násypky | 2 079 Kč
€ 82.10 |
||
| 712 0 WHR41840 |
C00311698
481241868319 |
zasuvka nasypky | 1 652 Kč
€ 65.20 |
||
| 713 0 WHR41840 |
C00317129
481241889042 |
Přepážka násypky pračky Whirlpool | 816 Kč
€ 32.20 |
||
| 717 0 WHR41840 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.30 |
||
| 717 1 WHR41840 |
C00338398
481232138015 |
Lever water distr. OME | Na dotaz | Zadat poptávku | |
| 717 2 WHR41840 |
C00338404
481232138014 |
Lever OMEGA/GAMMA | Na dotaz | Zadat poptávku | |
| 717 3 WHR41840 |
C00338410
481232138016 |
Lever connection OMEGAconnection OMEG | Na dotaz | Zadat poptávku | |
| 717 5 WHR41840 |
C00342853
481231018459 |
VACKA AKTUATORA OMEG | 489 Kč
€ 19.30 |
||
| 718 0 WHR41840 |
C00332332
481252648051 |
sifon do nasypky | 723 Kč
€ 28.50 |
||
| 718 1 WHR41840 |
C00327911
481241889041 |
Separator 3 C. EBL | Na dotaz | Zadat poptávku | |
| 718 2 WHR41840 |
C00327912
481241889043 |
Grille drawer 3 C. EBL | Na dotaz | Zadat poptávku | |
| 753 1 WHR41840 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR41840 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR41840 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR41840 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR41840 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR41840 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR41840 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR41840 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 787 2 WHR41840 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 794 2 WHR41840 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR41840 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR41840 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR41840 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR41840 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR41840 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR41840 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR41840 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 900 6 WHR41840 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR41840 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR41840 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 910 0 WHR41840 |
C00336553
481250218383 |
sroub M8*25loz.domu | 169 Kč
€ 6.70 |
||
| 910 5 WHR41840 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR41840 |
C00345869
481249238391 |
Spring Suspension 53l, 1400 | Na dotaz | Zadat poptávku | |
| 930 5 WHR41840 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR41840 |
C00314254
481252028003 |
BEARING 6306 2Z C3 GJN | Na dotaz | Zadat poptávku | |
| 941 1 WHR41840 |
C00317100
481252028071 |
Ložisko 6305 2Z C3 GJN (SKF) | 425 Kč
€ 16.80 |
||
| 953 0 WHR41840 |
C00314432
481253058142 |
gufero 35x75x12 | Na dotaz | Zadat poptávku | |
| 961 0 WHR41840 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR41840 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR41840 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR41840 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
