| Komerční kód: | AWO 9963 WASHINGMACHINES WP |
| Kód 12NC: | 859202229000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859202229002, 859202229001 |
Potřebujete servis? Jsme tady pro Vás

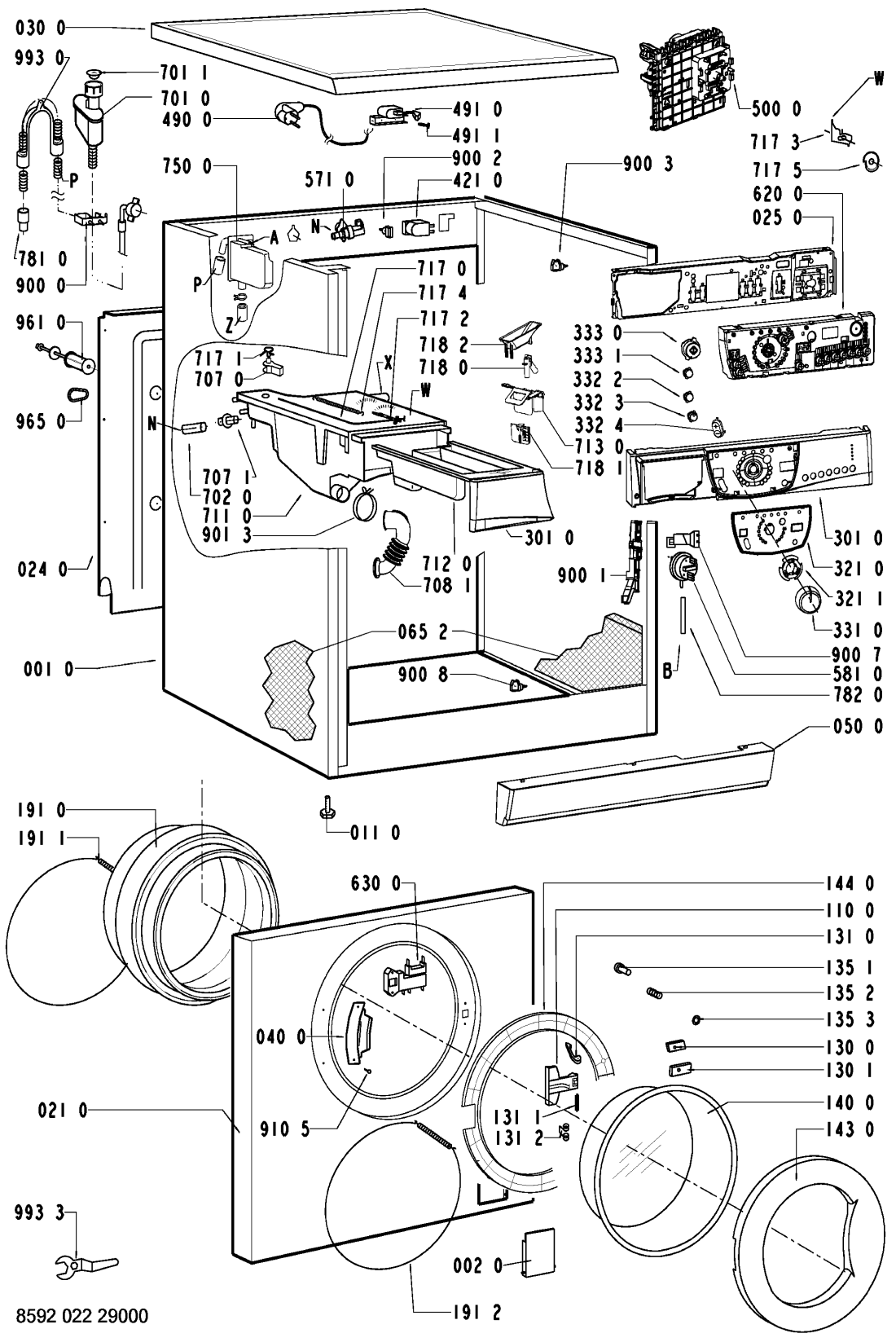

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR14400 |
C00327957
481244010784 |
Cabinet GW | Na dotaz | Zadat poptávku | |
| 002 0 WHR14400 |
C00316479
481244011131 |
kryt filtru | 213 Kč
€ 8.40 |
||
| 004 0 WHR14400 |
C00497924
481244018993 |
ZBERAC AQUA DELTA | Na dotaz | Zadat poptávku | |
| 011 0 WHR14400 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR14400 |
C00497913
481244011132 |
stena predni | 2 566 Kč
€ 101.30 |
||
| 024 0 WHR14400 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.50 |
||
| 025 0 WHR14400 |
C00329016
481240438737 |
Support EBL | Na dotaz | Zadat poptávku | |
| 030 0 WHR14400 |
C00316493
481244011178 |
deska horni EBL | Na dotaz | Zadat poptávku | |
| 040 0 WHR14400 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR14400 |
C00313304
481244089097 |
sokl pracky EBL | 1 173 Kč
€ 46.30 |
||
| 061 0 WHR14400 |
C00331509
481246688818 |
Counter weight upper 1600 | Na dotaz | Zadat poptávku | |
| 061 1 WHR14400 |
C00331510
481246688819 |
Counter weight bottom 1600 | Na dotaz | Zadat poptávku | |
| 061 3 WHR14400 |
C00326731
481209498006 |
Mounting kit Weight bottom, 1600 | Na dotaz | Zadat poptávku | |
| 061 4 WHR14400 |
C00331511
481246688821 |
Counter weight front 1600 | Na dotaz | Zadat poptávku | |
| 061 5 WHR14400 |
C00326732
481209498007 |
Mounting kit weight front, 1600 | Na dotaz | Zadat poptávku | |
| 065 2 WHR14400 |
C00327325
481231018401 |
Insulation side panel | Na dotaz | Zadat poptávku | |
| 081 0 WHR14400 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 084 0 WHR14400 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR14400 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR14400 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 130 0 WHR14400 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR14400 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR14400 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR14400 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR14400 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR14400 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR14400 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR14400 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR14400 |
C00331123
481245058983 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR14400 |
C00340318
481244011142 |
Rám dveří vnější EBL | 2 085 Kč
€ 82.30 |
||
| 144 0 WHR14400 |
C00313481
481244011139 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 191 0 WHR14400 |
C00311499
481246668841 |
Door bellow short 1600 EPDM | Na dotaz | Zadat poptávku | |
| 191 1 WHR14400 |
C00328913
481240118673 |
Strap 1600 | Na dotaz | Zadat poptávku | |
| 191 2 WHR14400 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR14400 |
C00329838
481241818534 |
Tub, half front 53l, 1600 | Na dotaz | Zadat poptávku | |
| 200 2 WHR14400 |
C00319018
481241818533 |
Tub, half rear 53l, 1600 | Na dotaz | Zadat poptávku | |
| 200 4 WHR14400 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR14400 |
C00318240
481241818532 |
Drum 1600, 53l, PP | Na dotaz | Zadat poptávku | |
| 271 0 WHR14400 |
C00328555
481235818194 |
Belt POLY-5 1272 J 5 | Na dotaz | Zadat poptávku | |
| 272 0 WHR14400 |
C00332370
481252858039 |
Pulley 1600 | Na dotaz | Zadat poptávku | |
| 272 3 WHR14400 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR14400 |
C00332635
481253058176 |
Gasket Tub 1600 | Na dotaz | Zadat poptávku | |
| 301 0 WHR14400 |
C00483325
481245214902 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 321 0 WHR14400 |
C00489691
481245214903 |
Insert panel | Na dotaz | Zadat poptávku | |
| 321 1 WHR14400 |
C00341002
481253298011 |
unasec knofliku | 183 Kč
€ 7.20 |
||
| 331 0 WHR14400 |
C00341884
481241458271 |
Knob timer galv. EBL | Na dotaz | Zadat poptávku | |
| 332 2 WHR14400 |
C00336970
481251318146 |
Push button without LED EBL | Na dotaz | Zadat poptávku | |
| 332 3 WHR14400 |
C00336973
481251318145 |
Push button with LED EBL | Na dotaz | Zadat poptávku | |
| 332 4 WHR14400 |
C00336978
481251318153 |
Push button temp. +/- EBL | Na dotaz | Zadat poptávku | |
| 333 0 WHR14400 |
C00316673
481251318143 |
volic programu | 386 Kč
€ 15.20 |
||
| 333 1 WHR14400 |
C00336983
481251318144 |
Push button Start Delay EBL | Na dotaz | Zadat poptávku | |
| 400 0 WHR14400 |
C00312930
481236158413 |
Motor MCA 61/64-148/WHE8, 1600 Delta | Na dotaz | Zadat poptávku | |
| 409 0 WHR14400 |
C00315357
481236248443 |
Brush,carbon BS. | Na dotaz | Zadat poptávku | |
| 421 0 WHR14400 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR14400 |
C00311139
481231028144 |
Čerpadlo vypouštěcí DELTA | 1 120 Kč
€ 44.20 |
||
| 451 0 WHR14400 |
C00538595
481225928759 |
OHRIEVACIE TELESO 2050W PONORNE | Na dotaz | Zadat poptávku | |
| 480 0 WHR14400 |
C00311380
481232178109 |
vodice svazek motor | 981 Kč
€ 38.70 |
||
| 490 0 WHR14400 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR14400 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR14400 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 500 0 WHR14400 |
C00501563
481228219844 |
Timer SC1 (EI,EC,PW,IR,RH) | Na dotaz | Zadat poptávku | |
| 571 0 WHR14400 |
C00492928
481227128543 |
ventil jednocestny | 1 418 Kč
€ 56.00 |
||
| 581 0 WHR14400 |
C00313889
481227618327 |
presostat | 1 477 Kč
€ 58.30 |
||
| 620 0 WHR14400 |
C00341727
481223958031 |
jednotka ovladaci | 3 233 Kč
€ 127.60 |
||
| 630 0 WHR14400 |
C00311146
481228058044 |
Blokování dveří předem plněné pračky Whirlpool | 488 Kč
€ 19.30 |
||
| 631 0 WHR14400 |
C00317471
481227138358 |
mikrospinac plovaku | 1 114 Kč
€ 44.00 |
||
| 631 1 WHR14400 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 691 0 WHR14400 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 67.00 |
||
| 701 0 WHR14400 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR14400 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 701 1 WHR14400 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR14400 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 707 0 WHR14400 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR14400 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR14400 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR14400 |
C00373783
481241868321 |
teleso nasypky | 2 113 Kč
€ 83.40 |
||
| 712 0 WHR14400 |
C00311698
481241868319 |
zasuvka nasypky | 1 652 Kč
€ 65.20 |
||
| 713 0 WHR14400 |
C00317129
481241889042 |
Přepážka násypky pračky Whirlpool | 816 Kč
€ 32.20 |
||
| 717 0 WHR14400 |
C00311569
481932128092 |
Bovden komplet | 699 Kč
€ 27.60 |
||
| 717 1 WHR14400 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR14400 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.30 |
||
| 717 3 WHR14400 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 4 WHR14400 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 717 5 WHR14400 |
C00316494
481228218807 |
SOSOVKA PLAST | 413 Kč
€ 16.30 |
||
| 718 0 WHR14400 |
C00332332
481252648051 |
sifon do nasypky | 723 Kč
€ 28.50 |
||
| 718 1 WHR14400 |
C00327911
481241889041 |
Separator 3 C. EBL | Na dotaz | Zadat poptávku | |
| 718 2 WHR14400 |
C00327912
481241889043 |
Grille drawer 3 C. EBL | Na dotaz | Zadat poptávku | |
| 750 0 WHR14400 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 287 Kč
€ 11.30 |
||
| 753 1 WHR14400 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR14400 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR14400 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR14400 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR14400 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR14400 |
C00312966
481953028959 |
Výtoková hadice 1,5m (koncovky rovná/rovná) | Na dotaz | Zadat poptávku | |
| 782 0 WHR14400 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR14400 |
C00332453
481253029353 |
Steam hose | Na dotaz | Zadat poptávku | |
| 783 3 WHR14400 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 783 4 WHR14400 |
C00498614
481253028818 |
HADICA CERPADLO-KOMORA/D | Na dotaz | Zadat poptávku | |
| 787 0 WHR14400 |
C00332411
481253028819 |
Hose with hole(exhaust) | Na dotaz | Zadat poptávku | |
| 787 2 WHR14400 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 794 5 WHR14400 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR14400 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR14400 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR14400 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR14400 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR14400 |
C00332933
481940118872 |
SPONA HADICE AW | 119 Kč
€ 4.70 |
||
| 900 5 WHR14400 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 900 6 WHR14400 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR14400 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR14400 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 901 3 WHR14400 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 910 0 WHR14400 |
C00336553
481250218383 |
sroub M8*25loz.domu | 169 Kč
€ 6.70 |
||
| 910 5 WHR14400 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 910 6 WHR14400 |
C00332107
481250218678 |
Screw 10.9-M8X50-F | Na dotaz | Zadat poptávku | |
| 910 7 WHR14400 |
C00332108
481250218682 |
Screw P6X40 | Na dotaz | Zadat poptávku | |
| 930 0 WHR14400 |
C00345869
481249238391 |
Spring Suspension 53l, 1400 | Na dotaz | Zadat poptávku | |
| 941 0 WHR14400 |
C00332295
481252028186 |
Ložisko 6208 SKF 2Z, 6208 2Z C3 | 986 Kč
€ 38.90 |
||
| 941 1 WHR14400 |
C00318543
481252028001 |
Bearing,ball BB1-0625 DD | Na dotaz | Zadat poptávku | |
| 953 0 WHR14400 |
C00332636
481253058177 |
gufero 50x93x12,5/9 | 832 Kč
€ 32.80 |
||
| 961 0 WHR14400 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR14400 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR14400 |
C00344296
481253029341 |
Bow | Na dotaz | Zadat poptávku | |
| 993 3 WHR14400 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
