WHIRLPOOL AWO/D 044
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO/D 044 |
| Kód 12NC: | 857004438700 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857004401000, 857004429700 |
Potřebujete servis? Jsme tady pro Vás

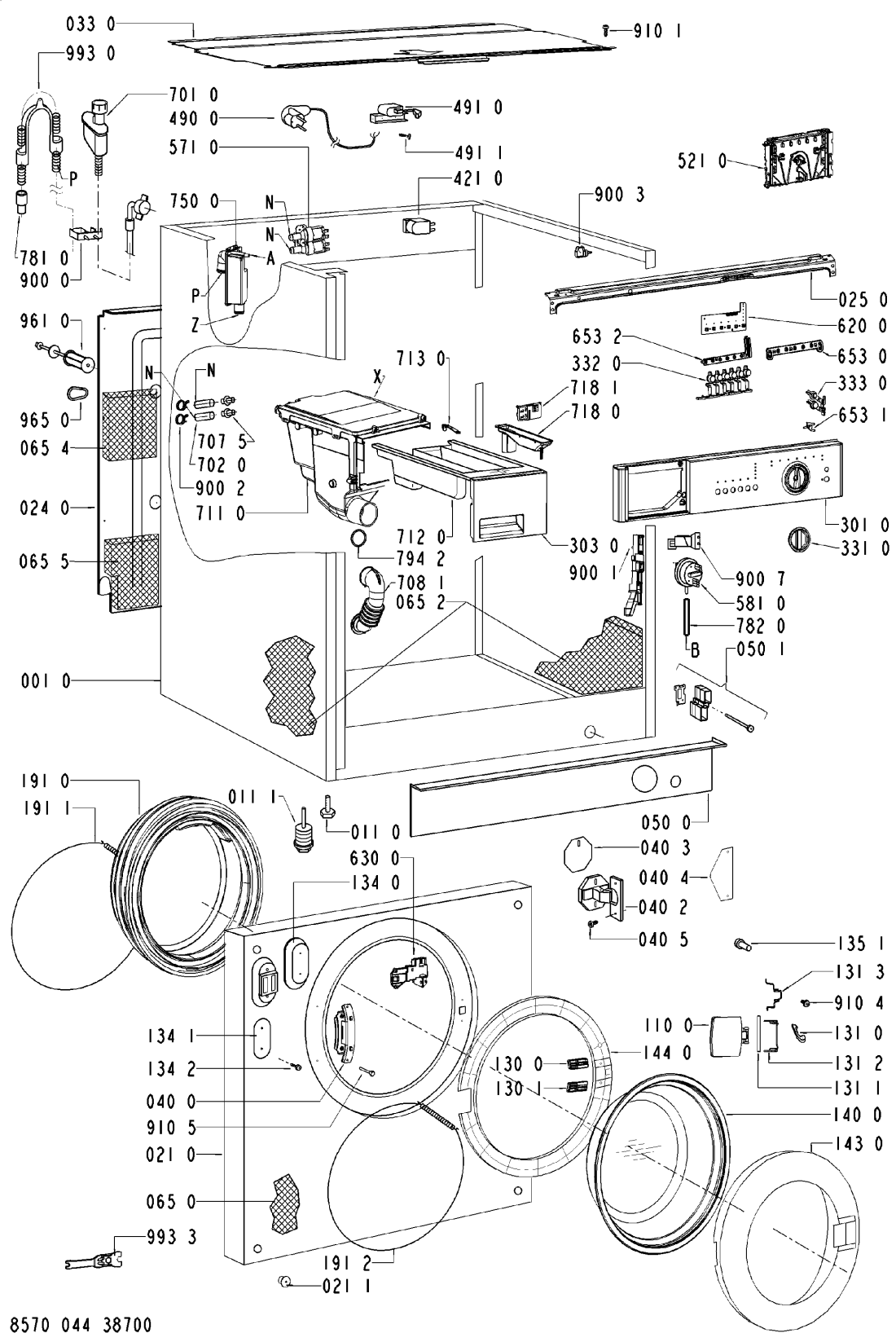

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR12360 |
C00328009
481244011456 |
Cabinet | Na dotaz | Zadat poptávku | |
| 004 0 WHR12360 |
C00497935
481244019479 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR12360 |
C00311705
481250018099 |
noha pracky M8*34/A | Na dotaz | Zadat poptávku | |
| 011 1 WHR12360 |
C00345894
481250018074 |
noha nastavitelna | 399 Kč
€ 15.70 |
||
| 021 0 WHR12360 |
C00314073
481244019424 |
Panel front | Na dotaz | Zadat poptávku | |
| 021 1 WHR12360 |
C00330746
481246279654 |
Stopper | Na dotaz | Zadat poptávku | |
| 024 0 WHR12360 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.40 |
||
| 025 0 WHR12360 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 033 0 WHR12360 |
C00328080
481244011724 |
Cover plate BI/DOM/NEW | Na dotaz | Zadat poptávku | |
| 040 0 WHR12360 |
C00312576
481241718794 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR12360 |
C00316888
481241719304 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR12360 |
C00314485
481241728002 |
podlozka 1mm | Na dotaz | Zadat poptávku | |
| 040 4 WHR12360 |
C00313388
481241718811 |
kryt zavesu | Na dotaz | Zadat poptávku | |
| 040 5 WHR12360 |
C00312043
481250218007 |
sroub M5x16H | 137 Kč
€ 5.40 |
||
| 050 0 WHR12360 |
C00330221
481245938059 |
Plinth GW | Na dotaz | Zadat poptávku | |
| 050 1 WHR12360 |
C00331017
481244098264 |
Spacer f. pedestal | Na dotaz | Zadat poptávku | |
| 061 0 WHR12360 |
C00320755
481246688833 |
zavazi horni | 2 012 Kč
€ 79.40 |
||
| 061 1 WHR12360 |
C00330987
481246688462 |
Counter weight Lower | Na dotaz | Zadat poptávku | |
| 061 2 WHR12360 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR12360 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 065 0 WHR12360 |
C00497384
481231018341 |
Insulation B.in front | Na dotaz | Zadat poptávku | |
| 065 2 WHR12360 |
C00327325
481231018401 |
Insulation side panel | Na dotaz | Zadat poptávku | |
| 065 4 WHR12360 |
C00338701
481231018335 |
Insulation Middle Pane | Na dotaz | Zadat poptávku | |
| 065 5 WHR12360 |
C00338702
481231018336 |
Insulation Lower | Na dotaz | Zadat poptávku | |
| 081 0 WHR12360 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 084 0 WHR12360 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR12360 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.00 |
||
| 110 0 WHR12360 |
C00311084
481231028224 |
Rukojeť dveří pro vestavné pračky Whirlpool | 836 Kč
€ 33.00 |
||
| 130 0 WHR12360 |
C00319956
481241728053 |
podlozka horni | 725 Kč
€ 28.60 |
||
| 130 1 WHR12360 |
C00316910
481241728052 |
podlozka dolni | 814 Kč
€ 32.10 |
||
| 131 0 WHR12360 |
C00312170
481241728051 |
Hák dveří | 705 Kč
€ 27.80 |
||
| 131 1 WHR12360 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR12360 |
C00311804
481249258025 |
Pružina madla dveří pračky | 205 Kč
€ 8.10 |
||
| 131 3 WHR12360 |
C00314204
481249258024 |
Pružina pojistna | 445 Kč
€ 17.60 |
||
| 134 0 WHR12360 |
C00312992
481241748001 |
Magnet dveří | 858 Kč
€ 33.80 |
||
| 134 1 WHR12360 |
C00314481
481241728001 |
Podložka magnetu | 131 Kč
€ 5.20 |
||
| 134 2 WHR12360 |
C00313469
481250248345 |
Šroub 4X16 | 148 Kč
€ 5.80 |
||
| 135 1 WHR12360 |
C00315363
481240118417 |
STOPPER | Na dotaz | Zadat poptávku | |
| 140 0 WHR12360 |
C00311241
481245059812 |
Sklo dveří | 1 741 Kč
€ 68.70 |
||
| 143 0 WHR12360 |
C00311358
481244010749 |
Rám dveří vnější | 1 582 Kč
€ 62.40 |
||
| 144 0 WHR12360 |
C00312366
481241719168 |
priruba dveri | 1 588 Kč
€ 62.60 |
||
| 191 0 WHR12360 |
C00311137
481246068617 |
Manžeta pračky Whilrlpool (TVO) Delta | 391 Kč
€ 15.40 |
||
| 191 1 WHR12360 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR12360 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.50 |
||
| 200 1 WHR12360 |
C00316944
481241818563 |
Tub, half front 48l | Na dotaz | Zadat poptávku | |
| 200 2 WHR12360 |
C00311099
481241818318 |
Nádrž - zadní část | 4 953 Kč
€ 195.30 |
||
| 200 4 WHR12360 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR12360 |
C00311717
481241818666 |
buben AWM 250 | 3 289 Kč
€ 129.70 |
||
| 271 0 WHR12360 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR12360 |
C00313543
481252858041 |
remenice bubnu | 1 562 Kč
€ 61.60 |
||
| 272 3 WHR12360 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR12360 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR12360 |
C00376176
481245310749 |
Control panel AWO/D 044 | Na dotaz | Zadat poptávku | |
| 303 0 WHR12360 |
C00311880
481245310742 |
Čelo násypka | 730 Kč
€ 28.80 |
||
| 331 0 WHR12360 |
C00313180
481241458336 |
Knoflik programátoru pračky | 666 Kč
€ 26.30 |
||
| 332 0 WHR12360 |
C00380580
481241029477 |
Push button EBL 6 Opt. | Na dotaz | Zadat poptávku | |
| 333 0 WHR12360 |
C00313200
481251318199 |
tlacitko | 317 Kč
€ 12.50 |
||
| 400 0 WHR12360 |
C00311192
481236158376 |
motor | 4 646 Kč
€ 183.20 |
||
| 400 1 WHR12360 |
C00332112
481250218705 |
Screw M8x35 | Na dotaz | Zadat poptávku | |
| 409 0 WHR12360 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR12360 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR12360 |
C00313204
481236018598 |
Čerpadlo vypouštěcí | 1 810 Kč
€ 71.40 |
||
| 451 0 WHR12360 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR12360 |
C00313375
481232178376 |
Cable DOM/MOT 7/VBL | Na dotaz | Zadat poptávku | |
| 490 0 WHR12360 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR12360 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR12360 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR12360 |
C00311551
481221470092 |
Control unit C1 DOMINO FULL Class B | Na dotaz | Zadat poptávku | |
| 521 0 WHR12360 |
C00376177
481221470511 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 571 0 WHR12360 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.10 |
||
| 581 0 WHR12360 |
C00311861
481227128585 |
Pressostat 50/25 INVENS. | Na dotaz | Zadat poptávku | |
| 620 0 WHR12360 |
C00327095
481223958039 |
jednotka ovladaci | 3 215 Kč
€ 126.80 |
||
| 630 0 WHR12360 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 631 0 WHR12360 |
C00317471
481227138358 |
mikrospinac plovaku | 1 114 Kč
€ 43.90 |
||
| 631 1 WHR12360 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 653 0 WHR12360 |
C00314734
481213418094 |
Light guide PROG.FLOW-BI | Na dotaz | Zadat poptávku | |
| 653 1 WHR12360 |
C00314303
481213418095 |
Light guide START-BI | Na dotaz | Zadat poptávku | |
| 653 2 WHR12360 |
C00455025
481213448387 |
Light guide 6 OPTIONS-BI | Na dotaz | Zadat poptávku | |
| 691 0 WHR12360 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR12360 |
C00309499
481253029256 |
Přívodní hadice 1,5m s Aqua Stopem | 897 Kč
€ 35.40 |
||
| 702 0 WHR12360 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 5 WHR12360 |
C00327352
481231019102 |
Tryska násypky pračky | 555 Kč
€ 21.90 |
||
| 708 1 WHR12360 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR12360 |
C00311636
481241868428 |
teleso nasypky | Na dotaz | Zadat poptávku | |
| 712 0 WHR12360 |
C00311306
481241868381 |
Zásuvka násypky | 1 595 Kč
€ 62.90 |
||
| 713 0 WHR12360 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR12360 |
C00312808
481252648226 |
Dávkovač aviváže | Na dotaz | Zadat poptávku | |
| 718 1 WHR12360 |
C00314043
481241889066 |
separator do nasypky | 609 Kč
€ 24.00 |
||
| 750 0 WHR12360 |
C00317158
481253048153 |
Chamber,expand. BUILT-IN | Na dotaz | Zadat poptávku | |
| 753 1 WHR12360 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR12360 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR12360 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR12360 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR12360 |
C00313498
481248058406 |
Filtr čerpadla - vestavba | 533 Kč
€ 21.00 |
||
| 781 0 WHR12360 |
C00312966
481953028959 |
Výtoková hadice 1,5m (koncovky rovná/rovná) | Na dotaz | Zadat poptávku | |
| 781 1 WHR12360 |
C00332453
481253029353 |
Steam hose | Na dotaz | Zadat poptávku | |
| 782 0 WHR12360 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR12360 |
C00332412
481253028822 |
hadice násypka-přepad | Na dotaz | Zadat poptávku | |
| 783 3 WHR12360 |
C00310140
481253018001 |
Connection Part | Na dotaz | Zadat poptávku | |
| 783 4 WHR12360 |
C00317150
481253029354 |
hadice | Na dotaz | Zadat poptávku | |
| 785 0 WHR12360 |
C00314984
481253028812 |
Hadice vypouštěcího čerpadla pračky Whirlpool, Bauknecht, Ignis | 914 Kč
€ 36.00 |
||
| 785 1 WHR12360 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
| 787 0 WHR12360 |
C00332411
481253028819 |
Hose with hole(exhaust) | Na dotaz | Zadat poptávku | |
| 787 2 WHR12360 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 794 2 WHR12360 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR12360 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR12360 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR12360 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR12360 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.50 |
||
| 900 3 WHR12360 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR12360 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR12360 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 6 WHR12360 |
C00327583
481229018031 |
Clamp heatingelement+screw | Na dotaz | Zadat poptávku | |
| 900 7 WHR12360 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 910 1 WHR12360 |
C00329028
481240448527 |
Angle iron4.2x9.5 | Na dotaz | Zadat poptávku | |
| 910 4 WHR12360 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 910 5 WHR12360 |
C00315224
481250218619 |
Screw M5/8 | Na dotaz | Zadat poptávku | |
| 930 0 WHR12360 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 941 0 WHR12360 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 941 1 WHR12360 |
C00315230
481252028066 |
Ložisko 6204 2Z C3 GJN (SKF) | 297 Kč
€ 11.70 |
||
| 953 0 WHR12360 |
C00332685
481253278017 |
gufero 35x65x 9 | 614 Kč
€ 24.20 |
||
| 961 0 WHR12360 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 962 2 WHR12360 |
C00497522
481236078035 |
Foil | Na dotaz | Zadat poptávku | |
| 965 0 WHR12360 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR12360 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR12360 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
