WHIRLPOOL AWO/D 1096
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO/D 1096 |
| Kód 12NC: | 859213436100 |
| I.C. kód: | 859213436105 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859213436100 |
Potřebujete servis? Jsme tady pro Vás

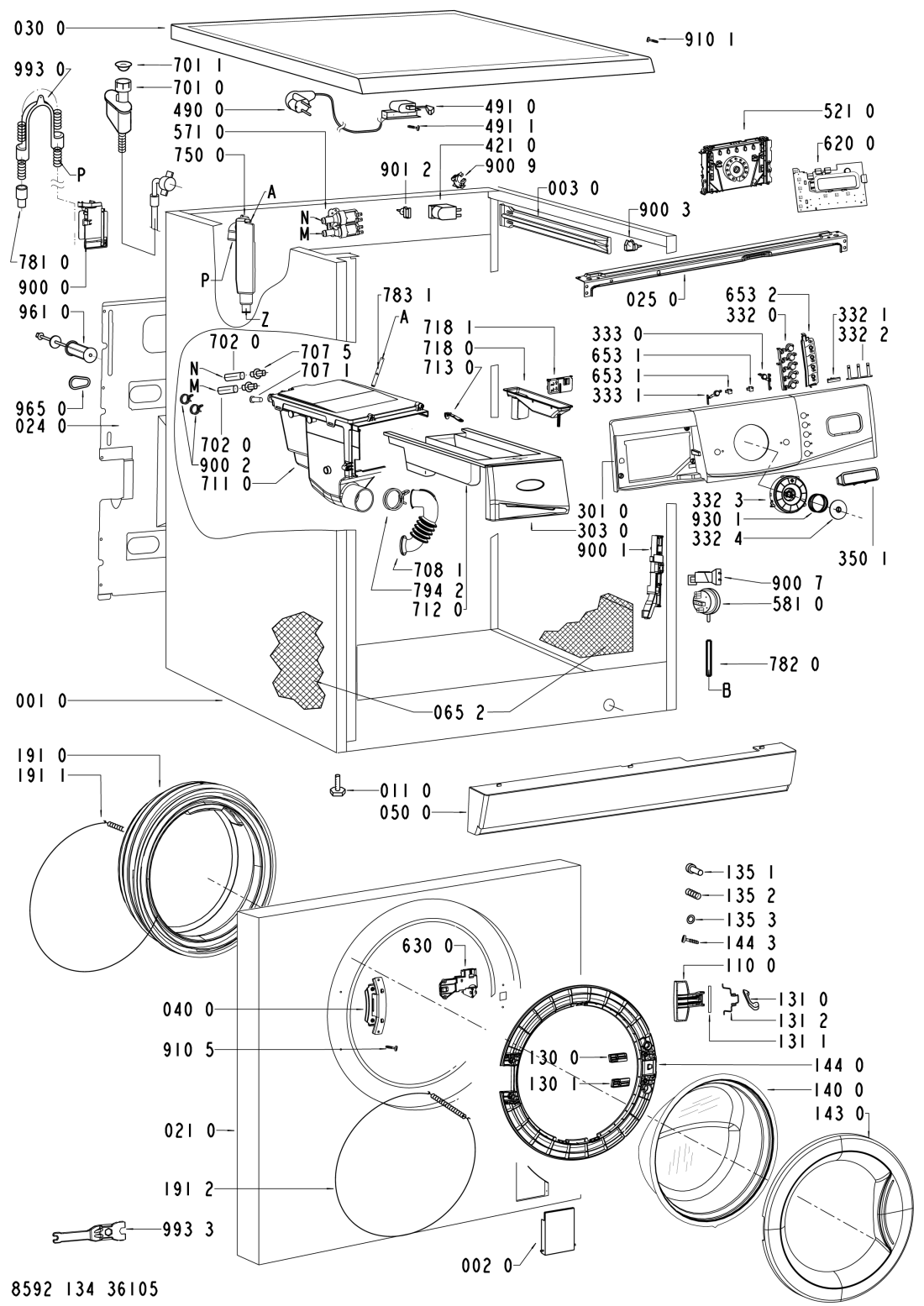

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR16164 |
C00320961
480111100339 |
skelet | 5 623 Kč
€ 222.00 |
||
| 002 0 WHR16164 |
C00316479
481244011131 |
kryt filtru | 213 Kč
€ 8.40 |
||
| 003 0 WHR16164 |
C00319647
481246448161 |
sada odhlučňovací | 449 Kč
€ 17.70 |
||
| 004 0 WHR16164 |
C00320966
480111100593 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR16164 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR16164 |
C00459143
481244011639 |
PREDNY PANEL | Na dotaz | Zadat poptávku | |
| 024 0 WHR16164 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.10 |
||
| 025 0 WHR16164 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 030 0 WHR16164 |
C00320907
481244011691 |
Horní deska pračky Whirlpool, Bauknecht | 2 971 Kč
€ 117.30 |
||
| 040 0 WHR16164 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR16164 |
C00313304
481244089097 |
sokl pracky EBL | 1 173 Kč
€ 46.30 |
||
| 061 0 WHR16164 |
C00331509
481246688818 |
Counter weight upper 1600 | Na dotaz | Zadat poptávku | |
| 061 1 WHR16164 |
C00331510
481246688819 |
Counter weight bottom 1600 | Na dotaz | Zadat poptávku | |
| 061 2 WHR16164 |
C00320419
481231039135 |
Mounting kit weight top | Na dotaz | Zadat poptávku | |
| 061 4 WHR16164 |
C00331511
481246688821 |
Counter weight front 1600 | Na dotaz | Zadat poptávku | |
| 061 5 WHR16164 |
C00326732
481209498007 |
Mounting kit weight front, 1600 | Na dotaz | Zadat poptávku | |
| 065 2 WHR16164 |
C00319867
481231019136 |
Insulation | Na dotaz | Zadat poptávku | |
| 081 0 WHR16164 |
C00311556
480111100195 |
tlumič pračky Whirlpool AWOE | 276 Kč
€ 10.90 |
||
| 084 0 WHR16164 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 110 0 WHR16164 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 130 0 WHR16164 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR16164 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 131 0 WHR16164 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR16164 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR16164 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR16164 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR16164 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 135 3 WHR16164 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR16164 |
C00311241
481245059812 |
Sklo dveří | 1 741 Kč
€ 68.70 |
||
| 143 0 WHR16164 |
C00340318
481244011142 |
Rám dveří vnější EBL | 2 085 Kč
€ 82.30 |
||
| 144 0 WHR16164 |
C00317167
481244011575 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR16164 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 20.20 |
||
| 191 0 WHR16164 |
C00311499
481246668841 |
Door bellow short 1600 EPDM | Na dotaz | Zadat poptávku | |
| 191 1 WHR16164 |
C00328913
481240118673 |
Strap 1600 | Na dotaz | Zadat poptávku | |
| 191 2 WHR16164 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR16164 |
C00329843
481241818608 |
Tub, half front 1600 | Na dotaz | Zadat poptávku | |
| 200 2 WHR16164 |
C00319018
481241818533 |
Tub, half rear 53l, 1600 | Na dotaz | Zadat poptávku | |
| 200 4 WHR16164 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR16164 |
C00329851
481241818629 |
Drum 1600, 53L | Na dotaz | Zadat poptávku | |
| 271 0 WHR16164 |
C00328555
481235818194 |
Belt POLY-5 1272 J 5 | Na dotaz | Zadat poptávku | |
| 272 0 WHR16164 |
C00332370
481252858039 |
Pulley 1600 | Na dotaz | Zadat poptávku | |
| 272 3 WHR16164 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR16164 |
C00332635
481253058176 |
Gasket Tub 1600 | Na dotaz | Zadat poptávku | |
| 301 0 WHR16164 |
C00462615
481245310594 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR16164 |
C00318086
481245310477 |
Čelo násypky pračky Whirlpool | 1 396 Kč
€ 55.10 |
||
| 332 0 WHR16164 |
C00329331
481241029526 |
tlacitko | 239 Kč
€ 9.40 |
||
| 332 1 WHR16164 |
C00319933
481241029542 |
tlacitko | 379 Kč
€ 15.00 |
||
| 332 2 WHR16164 |
C00318201
481249238414 |
pruzina tlacitka | 111 Kč
€ 4.40 |
||
| 332 3 WHR16164 |
C00320946
480111100158 |
vlozka program. uz nebude !!!!! | Na dotaz | Zadat poptávku | |
| 332 4 WHR16164 |
C00319929
481241029528 |
vlozka | 155 Kč
€ 6.10 |
||
| 333 0 WHR16164 |
C00319925
481241029525 |
tlačítko | 211 Kč
€ 8.30 |
||
| 333 1 WHR16164 |
C00319921
481241029524 |
tlačítko | 78 Kč
€ 3.10 |
||
| 350 1 WHR16164 |
C00330861
481246469316 |
rám | 1 234 Kč
€ 48.70 |
||
| 400 0 WHR16164 |
C00312930
481236158413 |
Motor MCA 61/64-148/WHE8, 1600 Delta | Na dotaz | Zadat poptávku | |
| 400 1 WHR16164 |
C00332114
481250218737 |
Screw 8x38 | Na dotaz | Zadat poptávku | |
| 409 0 WHR16164 |
C00315357
481236248443 |
Brush,carbon BS. | Na dotaz | Zadat poptávku | |
| 421 0 WHR16164 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR16164 |
C00313238
481236018578 |
Čerpadlo vypouštěcí pračky Whirlpool, Bauknecht | 1 874 Kč
€ 74.00 |
||
| 451 0 WHR16164 |
C00373838
481225928905 |
Topné těleso + NTC | 1 714 Kč
€ 67.70 |
||
| 480 0 WHR16164 |
C00313012
480111100719 |
Kabeláž Motor 7-pole DOMINO | 1 070 Kč
€ 42.20 |
||
| 490 0 WHR16164 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR16164 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR16164 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR16164 |
C00326997
481221470733 |
Control unit DOMINO,G1-basic | Na dotaz | Zadat poptávku | |
| 521 0 WHR16164 |
C00455396
481221470421 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 571 0 WHR16164 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.20 |
||
| 581 0 WHR16164 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 620 0 WHR16164 |
C00314623
481223958077 |
Modul displeje pračky Whirlpool | 3 907 Kč
€ 154.20 |
||
| 630 0 WHR16164 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 631 0 WHR16164 |
C00314788
480111100338 |
spinac | 1 109 Kč
€ 43.80 |
||
| 631 1 WHR16164 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 653 1 WHR16164 |
C00316219
481213448377 |
svetlovod | 78 Kč
€ 3.10 |
||
| 653 2 WHR16164 |
C00326844
481213448381 |
svetlovod | 100 Kč
€ 3.90 |
||
| 691 0 WHR16164 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR16164 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR16164 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 701 1 WHR16164 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR16164 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 1 WHR16164 |
C00330775
481246279955 |
Threaded cap for dispenser | Na dotaz | Zadat poptávku | |
| 707 5 WHR16164 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 708 1 WHR16164 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR16164 |
C00313206
480111101255 |
teleso nasypky | 2 169 Kč
€ 85.60 |
||
| 712 0 WHR16164 |
C00312664
481241868415 |
Drawer | Na dotaz | Zadat poptávku | |
| 713 0 WHR16164 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR16164 |
C00315768
481241889085 |
Vložka násypky | 502 Kč
€ 19.80 |
||
| 718 1 WHR16164 |
C00315499
481252648252 |
Vložka násypky | 187 Kč
€ 7.40 |
||
| 750 0 WHR16164 |
C00314658
481253049373 |
Chamber,expand. long | Na dotaz | Zadat poptávku | |
| 753 1 WHR16164 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR16164 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR16164 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR16164 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR16164 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR16164 |
C00314886
481253029355 |
hadice | Na dotaz | Zadat poptávku | |
| 782 0 WHR16164 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR16164 |
C00332488
481253029473 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 783 4 WHR16164 |
C00314522
481253029392 |
Hose pump/tank | Na dotaz | Zadat poptávku | |
| 794 2 WHR16164 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR16164 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR16164 |
C00320981
480111100785 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 900 1 WHR16164 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR16164 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR16164 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR16164 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR16164 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 900 6 WHR16164 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR16164 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 9 WHR16164 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 901 2 WHR16164 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 1 WHR16164 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR16164 |
C00312157
481250218815 |
Šroub | 129 Kč
€ 5.10 |
||
| 910 6 WHR16164 |
C00332107
481250218678 |
Screw 10.9-M8X50-F | Na dotaz | Zadat poptávku | |
| 930 0 WHR16164 |
C00345869
481249238391 |
Spring Suspension 53l, 1400 | Na dotaz | Zadat poptávku | |
| 930 1 WHR16164 |
C00315030
481249228222 |
Pružina tlačítka | 262 Kč
€ 10.30 |
||
| 941 0 WHR16164 |
C00332295
481252028186 |
Ložisko 6208 SKF 2Z, 6208 2Z C3 | 986 Kč
€ 38.90 |
||
| 941 1 WHR16164 |
C00318543
481252028001 |
Bearing,ball BB1-0625 DD | Na dotaz | Zadat poptávku | |
| 953 0 WHR16164 |
C00332636
481253058177 |
gufero 50x93x12,5/9 | 832 Kč
€ 32.80 |
||
| 961 0 WHR16164 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR16164 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR16164 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR16164 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR16164 |
C00353173 | Testprogram WHP | Na dotaz | Zadat poptávku | |
