WHIRLPOOL AWO/D 4405
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO/D 4405 |
| Kód 12NC: | 859233015000 |
| I.C. kód: | 859233015005 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859233015000, Q0914310000, 859233015003, Q0914310003, 859233015004, Q0914310004, Q0914310005, 859233015007, Q0914310007, 859233015008, Q0914310008, 859233015009, Q0914310009 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

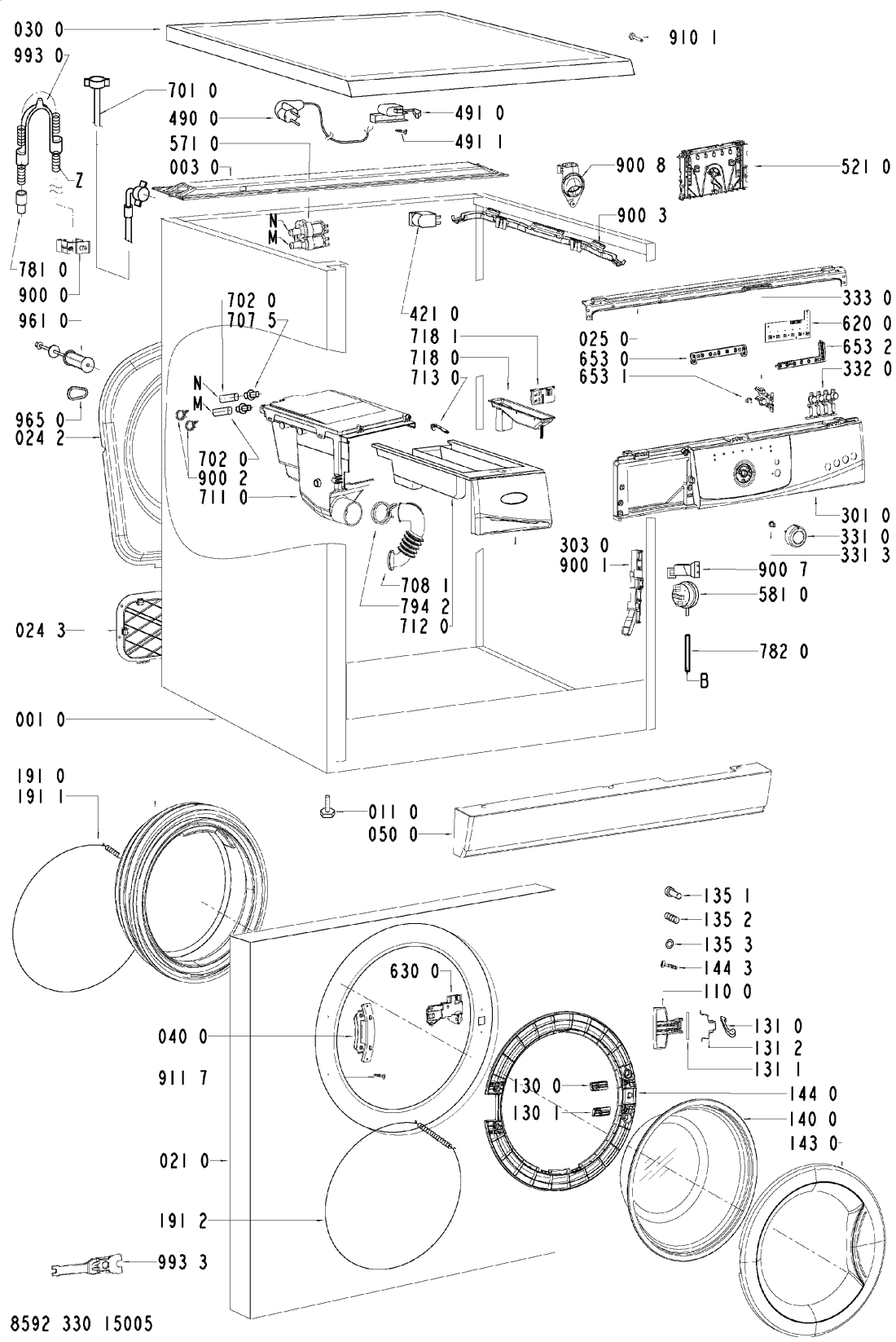

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR03509 |
C00317169
481244011579 |
Cabinet U-SHAPE | Na dotaz | Zadat poptávku | |
| 003 0 WHR03509 |
C00328046
481244011581 |
Lišta víka | 465 Kč
€ 18.30 |
||
| 011 0 WHR03509 |
C00311705
481250018099 |
noha pracky M8*34/A | Na dotaz | Zadat poptávku | |
| 021 0 WHR03509 |
C00311957
481244011471 |
stena predni | 3 464 Kč
€ 136.60 |
||
| 024 2 WHR03509 |
C00331036
481244218046 |
Cover rear | Na dotaz | Zadat poptávku | |
| 024 3 WHR03509 |
C00331037
481244218047 |
deska horni | Na dotaz | Zadat poptávku | |
| 025 0 WHR03509 |
C00328047
481244011582 |
lista | 471 Kč
€ 18.60 |
||
| 030 0 WHR03509 |
C00317175
481244011654 |
deska horni GW | Na dotaz | Zadat poptávku | |
| 040 0 WHR03509 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR03509 |
C00312706
481244010779 |
sokl pracky GW | 1 689 Kč
€ 66.60 |
||
| 061 0 WHR03509 |
C00320755
481246688833 |
zavazi horni | 2 012 Kč
€ 79.40 |
||
| 061 1 WHR03509 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR03509 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR03509 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 081 0 WHR03509 |
C00313195
481252918063 |
Tlumič třecí | 159 Kč
€ 6.30 |
||
| 084 0 WHR03509 |
C00320879
481246658023 |
cep | 158 Kč
€ 6.20 |
||
| 110 0 WHR03509 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 130 0 WHR03509 |
C00329784
481241728107 |
Plate eureka | Na dotaz | Zadat poptávku | |
| 130 1 WHR03509 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 131 0 WHR03509 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR03509 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR03509 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR03509 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR03509 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 135 3 WHR03509 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR03509 |
C00331123
481245058983 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR03509 |
C00317155
481244011141 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| 144 0 WHR03509 |
C00328050
481244011595 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR03509 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 20.20 |
||
| 191 0 WHR03509 |
C00313168
481246068532 |
DOOR BELLOW grease resistance | Na dotaz | Zadat poptávku | |
| 191 1 WHR03509 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR03509 |
C00311875
481249298011 |
spona TVO - přední stěna | 166 Kč
€ 6.50 |
||
| 200 1 WHR03509 |
C00311480
481241818475 |
Tub 42l front | Na dotaz | Zadat poptávku | |
| 200 2 WHR03509 |
C00311607
481941818377 |
Nádrž - zadní část | Na dotaz | Zadat poptávku | |
| 200 4 WHR03509 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR03509 |
C00312161
481241818623 |
buben 1000/44L/COD/C | Na dotaz | Zadat poptávku | |
| 223 0 WHR03509 |
C00311811
481241848958 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR03509 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR03509 |
C00313543
481252858041 |
remenice bubnu | 1 562 Kč
€ 61.60 |
||
| 272 3 WHR03509 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR03509 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR03509 |
C00331288
481245217993 |
Control panel AWO/D 4405 | Na dotaz | Zadat poptávku | |
| 303 0 WHR03509 |
C00312520
481245217755 |
Handle drawer EBL WP25-CPL | Na dotaz | Zadat poptávku | |
| 331 0 WHR03509 |
C00310970
481241458306 |
Knoflík programátoru , volič programu AWO/D , AWE , AWZ | 149 Kč
€ 5.90 |
||
| 331 3 WHR03509 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 332 0 WHR03509 |
C00316297
481241029399 |
tlacitko | 782 Kč
€ 30.80 |
||
| 333 0 WHR03509 |
C00310977
481251318172 |
Tlačítko | 184 Kč
€ 7.30 |
||
| 400 0 WHR03509 |
C00312113
481936158259 |
motor pračky | 4 182 Kč
€ 164.90 |
||
| 400 1 WHR03509 |
C00332112
481250218705 |
Screw M8x35 | Na dotaz | Zadat poptávku | |
| 409 0 WHR03509 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR03509 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR03509 |
C00313045
481236018559 |
Pump | Na dotaz | Zadat poptávku | |
| 451 0 WHR03509 |
C00311143
481225928823 |
Heating element 240 V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR03509 |
C00319105
481232178263 |
vodic propojovaci | 680 Kč
€ 26.80 |
||
| 490 0 WHR03509 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 491 0 WHR03509 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 1 WHR03509 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR03509 |
C00311551
481221470092 |
Control unit C1 DOMINO FULL Class B | Na dotaz | Zadat poptávku | |
| 521 0 WHR03509 |
C00320445
481221479982 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 571 0 WHR03509 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.10 |
||
| 581 0 WHR03509 |
C00315089
481227128583 |
pressostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR03509 |
C00327095
481223958039 |
jednotka ovladaci | 3 215 Kč
€ 126.80 |
||
| 630 0 WHR03509 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 653 0 WHR03509 |
C00318312
481213418046 |
svetlovod | 471 Kč
€ 18.60 |
||
| 653 1 WHR03509 |
C00314404
481213418047 |
kolik | 323 Kč
€ 12.70 |
||
| 653 2 WHR03509 |
C00326839
481213448361 |
Guide,light 4 opt. | Na dotaz | Zadat poptávku | |
| 691 0 WHR03509 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR03509 |
C00315515
481253029329 |
Hose, inlet EN 11770 Reflex | Na dotaz | Zadat poptávku | |
| 702 0 WHR03509 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 5 WHR03509 |
C00327352
481231019102 |
Tryska násypky pračky | 555 Kč
€ 21.90 |
||
| 708 1 WHR03509 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR03509 |
C00311262
481241868379 |
Dispenser 3 ch. | Na dotaz | Zadat poptávku | |
| 712 0 WHR03509 |
C00311306
481241868381 |
Zásuvka násypky | 1 595 Kč
€ 62.90 |
||
| 713 0 WHR03509 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR03509 |
C00312808
481252648226 |
Dávkovač aviváže | Na dotaz | Zadat poptávku | |
| 718 1 WHR03509 |
C00314043
481241889066 |
separator do nasypky | 609 Kč
€ 24.00 |
||
| 753 1 WHR03509 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR03509 |
C00318889
481253029474 |
Hadice nádrž-čerpadlo | 786 Kč
€ 31.00 |
||
| 754 1 WHR03509 |
C00318763
488000318763 |
Lock eco | Na dotaz | Zadat poptávku | |
| 754 2 WHR03509 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR03509 |
C00314883
481948058106 |
Filtr čerpadla | 198 Kč
€ 7.80 |
||
| 781 0 WHR03509 |
C00315521
481253029425 |
Hose draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR03509 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 794 2 WHR03509 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR03509 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR03509 |
C00327130
481225518298 |
držák | Na dotaz | Zadat poptávku | |
| 900 1 WHR03509 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR03509 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.50 |
||
| 900 3 WHR03509 |
C00328934
481240118853 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR03509 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR03509 |
C00315583 | Clamp hose | Na dotaz | Zadat poptávku | |
| 900 6 WHR03509 |
C00327583
481229018031 |
Clamp heatingelement+screw | Na dotaz | Zadat poptávku | |
| 900 7 WHR03509 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 8.30 |
||
| 900 8 WHR03509 |
C00318931
481240118854 |
Holder outlet hose | Na dotaz | Zadat poptávku | |
| 910 0 WHR03509 |
C00314955
481250518427 |
Nut M6 with washer | Na dotaz | Zadat poptávku | |
| 910 1 WHR03509 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 911 7 WHR03509 |
C00316731
481290308196 |
sroub | 67 Kč
€ 2.60 |
||
| 930 0 WHR03509 |
C00317034
481249238408 |
pruzina | 245 Kč
€ 9.70 |
||
| 941 0 WHR03509 |
C00315230
481252028066 |
Ložisko 6204 2Z C3 GJN (SKF) | 297 Kč
€ 11.70 |
||
| 941 1 WHR03509 |
C00315098
481252028002 |
Ložisko 6203 SKF 2Z C3 | 301 Kč
€ 11.90 |
||
| 953 0 WHR03509 |
C00316000
481253058184 |
gufero 25x50x9 | 844 Kč
€ 33.30 |
||
| 961 0 WHR03509 |
C00332677
481253268151 |
Spacer | Na dotaz | Zadat poptávku | |
| 965 0 WHR03509 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR03509 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR03509 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR03509 |
C00365666 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365667 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365668 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365669 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365670 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365671 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365672 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365673 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365674 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365675 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365751 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365752 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00365753 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR03509 |
C00366085 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
